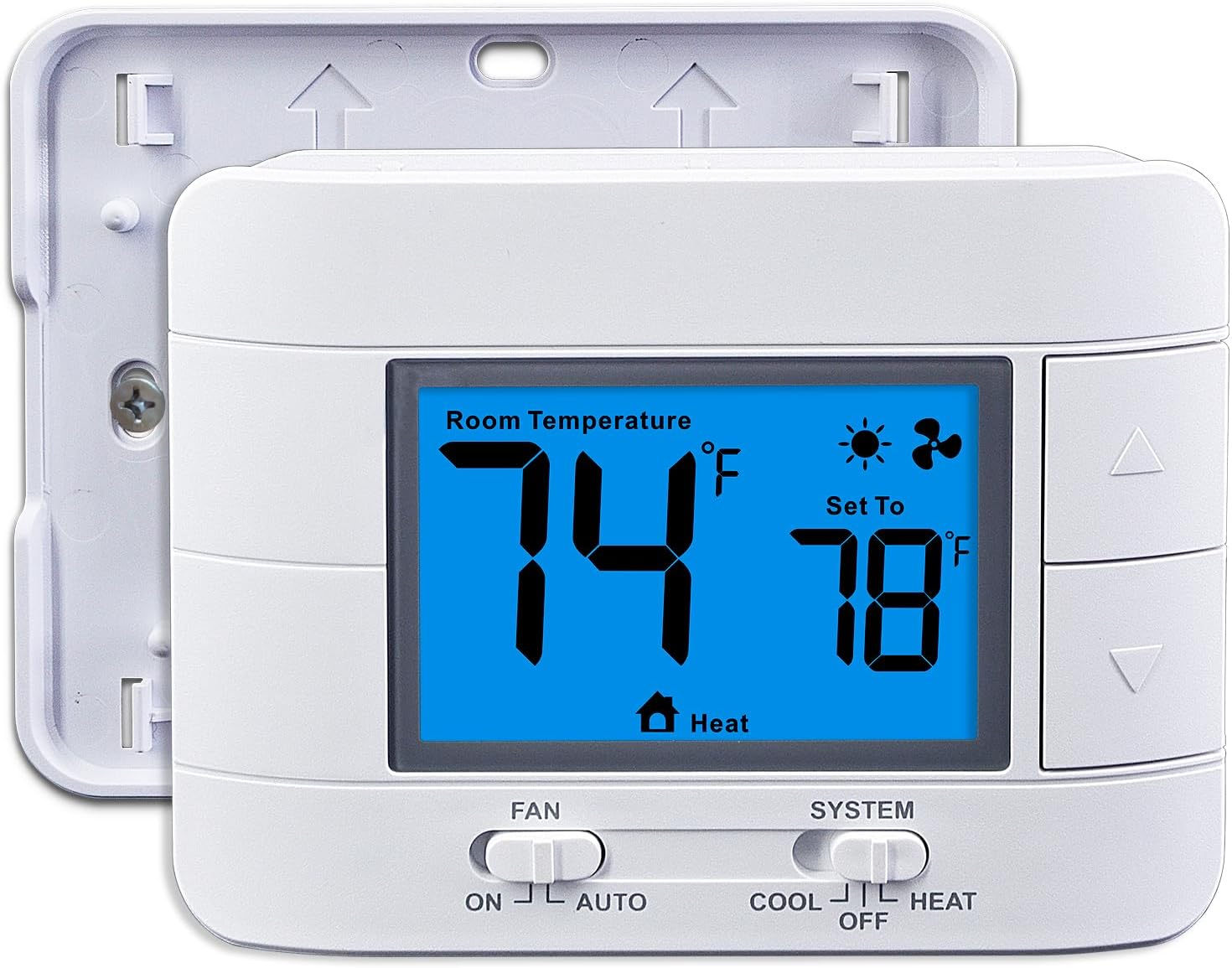

Non-Programmable Thermostats for House, Single-Stage 1 Heat/ 1 Cool, Simple Thermostat, Temperature Control with Humidity Display.

Description

Power Source	Battery Powered
Material Type	Plastic
Temperature Control Type	Heating and Cooling
Product Style	Modern
Controller Type	Push Button
Control Type	Button Control
Connectivity Protocol	Port connection
Model Number	AW601
Model Name	Non-Programmable Thermostat
Additional Features	Separate heating and cooling swing (Cycle Rate)
Specific Uses For Product	for Conventional Single-Stage Heating (Gas/Oil/Electric Furnace) & Ventilation & Air Conditioning
Included Components	Thermostat, instruction manual, label, Wall plug
Control Method	Push Button
Item Weight	0.36 Pounds
Connectivity Technology	RH/RC, C, W, Y, G
Special Feature	Separate heating and cooling swing (Cycle Rate)
Display Type	LCD
Mounting Type	Wall Mount
Color	White
Item Dimensions D x W x H	0.98"D x 4.92"W x 3.74"H
Shape	Rectangular
Voltage	24 Volts (AC)
Product Dimensions	0.98"D x 4.92"W x 3.74"H
Backlight	Yes

• Before making a purchase, please ensure that the image and product description match your existing thermostat (verify that the base supports only 2 to 5 wires), and check the dimensions to confirm whether it will cover any wall marks left by the old thermostat.
• 【Thermostat Applications 1H/1C】for Conventional Single-Stage Heating (Gas/Oil/Electric Furnace) & Ventilation & Air Conditioning, up to 1 Heat and 1 Cool. ( TIP: Does not work Multistage Heating & Air Conditioning, and HVAC Central Air Conditioner Heat Pump System )
• 【Incompatible Systems】Does not work multistage systems (2H/2C, 3H/2C), HVAC heat pump systems (2H/1C, 2H/2C, 4H/2C), PTACs, 3-wire hydronic (hot water), dual fuel/hybrid heating. Does not work line voltage systems (120-240V electric baseboards heat); mini split heat pump air conditioner, RV air conditioners mach and roughneck series.
• Aowel non-programmable thermostat for house up to 1 heating and 1 cooling single stage heating and cooling systems.
• Dual powered by 24VAC Power or 2 AAA Batteries. No common wire (c-wire) required on most systems.
• 5.0 sq. in display with large characters and blue backlight big separate buttons for easy setting. Very suitable for middle-aged and elderly people, easy-to-read and use.
• Separate heating and cooling swing (Cycle Rate) setting and Room temperature calibration adjustment. 【Room temperature display range: 32°F to 99°F, temperature control range: 44°F to 90°F】
• Low battery indicator and a/c 3 minute compressor delay protection (selectable on or off).
• with room temperature & humidity detect, Cooperate with the equipment to adjust the optimal temperature and humidity value to provide the most comfortable environment.
• Friendly Service: 2-year worry-free warranty and 24h customer service. (Tip: before purchasing please check whether the wiring port of the old thermostat matches)
