This Item Has A Current Calibration!
|
|
|
|
Fluke 9100S Low Temp Handheld Dry-Well Temperature Calibrator
World's smallest, lightest and most portable dry-wells.
Stability of ±0.25°C at 50°C
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

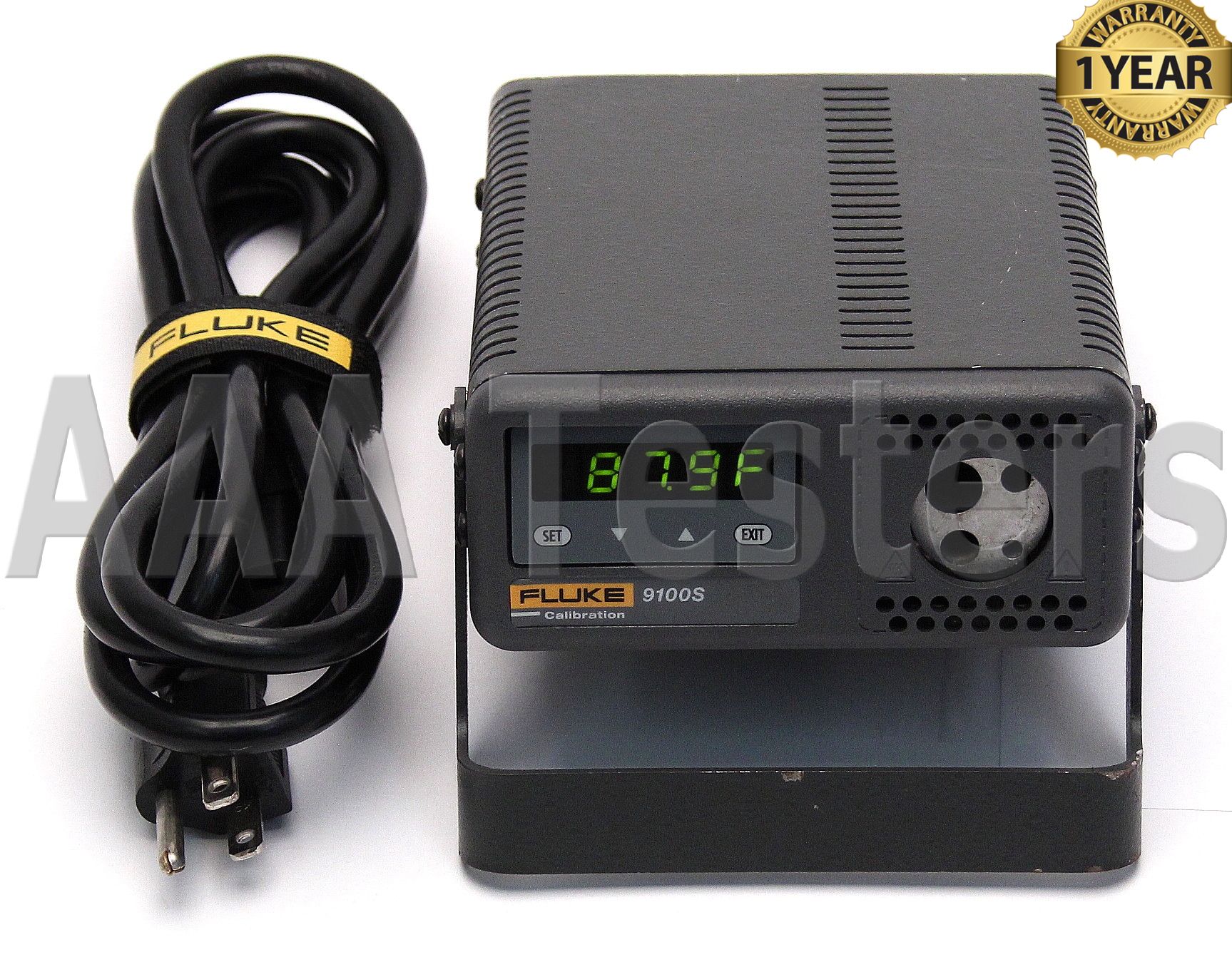

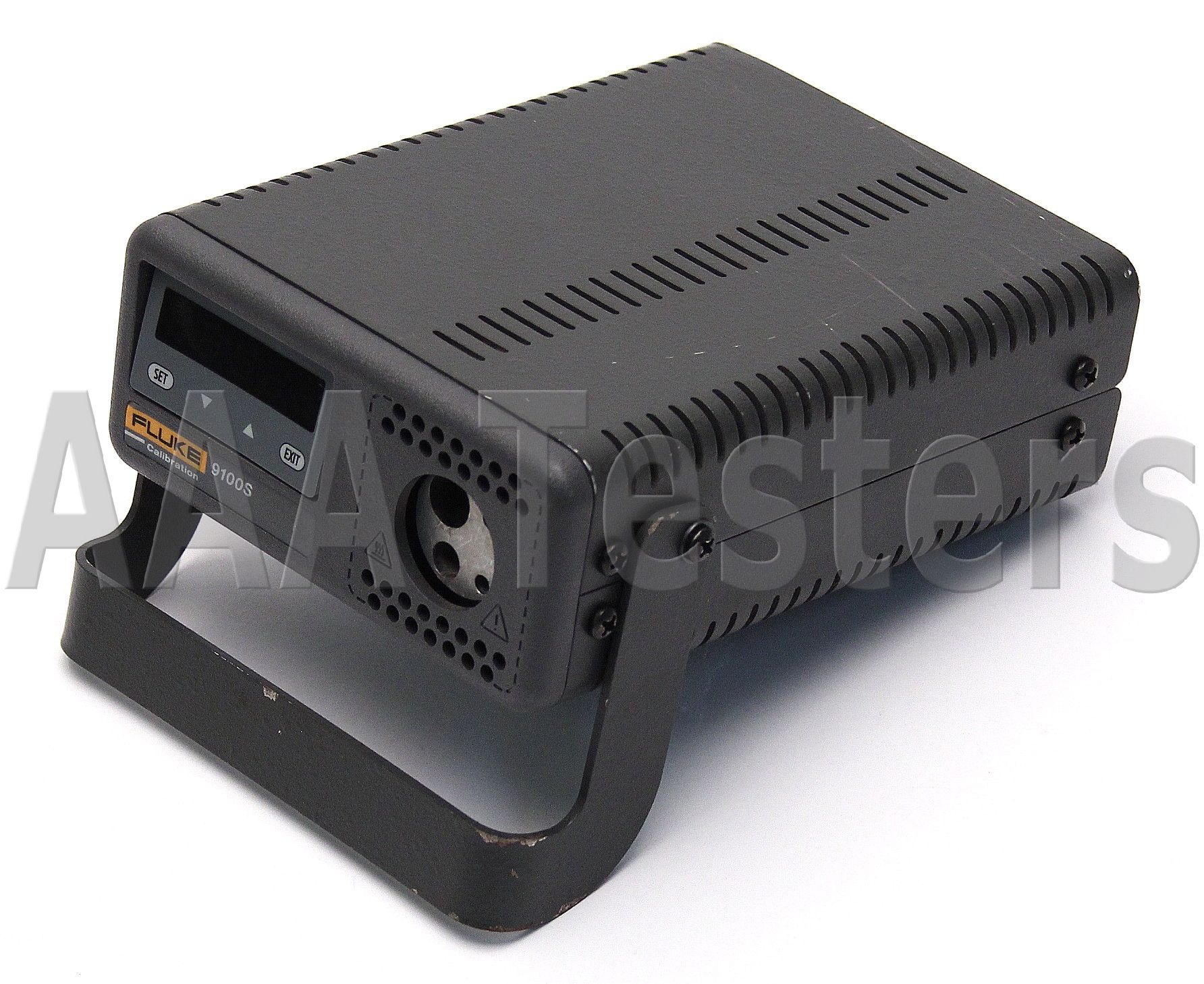

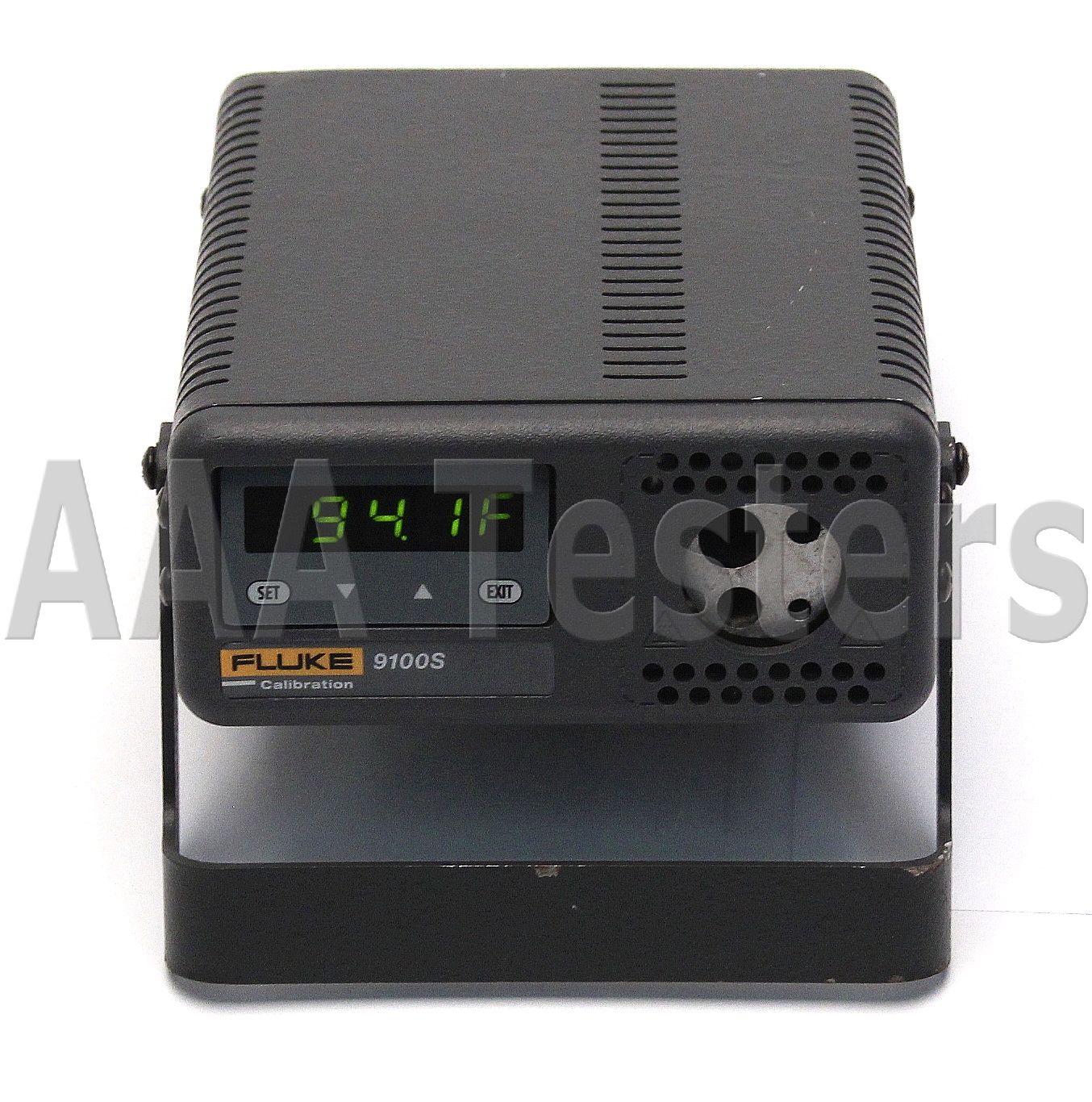

Fluke 9100S Low Temp Handheld Dry-Well Temperature Calibrator
Since we introduced the world’s first truly handheld dry-well, many have tried to duplicate it—in vain. Despite its small size (2¼ inches high and 5 inches wide) and light weight, the 9100S outperforms every dry-well in its class in the world.
It’s simple and convenient, too. Anyone can learn to use one in less than 15 minutes. It has a range to 375°C (707°F) and is perfect for checking RTDs, thermocouples, and small bimetal thermometers in the field.
Plug it in, switch it on (Note, these wells are fixed and not interchangeable,) set the temperature with the front-panel buttons, and insert your probe into the properly sized well. Compare the reading of your device to the display temperature or to an external reference, and the difference is the error in your device. With a proprietary Fluke Calibration temperature controller, the 9100S has a display resolution of 0.1 degrees, an accuracy of ±0.5°C, a stability of ±0.1°C, and a stabilization time of just five minutes.
Specifications:
| Range |
35°C to 375°C (95°F to 707°F) |
| Accuracy |
±0.25°C at 50°C; ±0.25°C at 100°C; ±0.5°C at 375°C |
| Stability |
±0.07°C at 50°C; ±0.1°C at 100°C; ±0.3°C at 375°C
|
| Uniformity |
± 0.02 °C |
| Operating Temperature |
5 °C to 45 °C |
| Heating Time |
35°C to 375°C: 9.5 minutes |
| Cooling Time |
375°C to 100°C: 14 minutes
|
Well Depth
|
102 mm (4 in)
|
| Size H x W x D |
99 x 140 x 175 mm |
| Weight |
1 kg (2 lb 3 oz) |
| Power |
230 VAC (± 10 %), 1.1 A, switchable, 50/60 Hz, 270 W |
| Computer Interface |
RS-232 included with free Interface-it software |
| NIST-Traceable Calibration |
Data at -10 °C, 0 °C, 25 °C, 50 °C, 75 °C, 100 °C and 122 °C |
|
|
|
|
