Product Type: Piston Kit |
Replaces: |
  • Source: Aftermarket

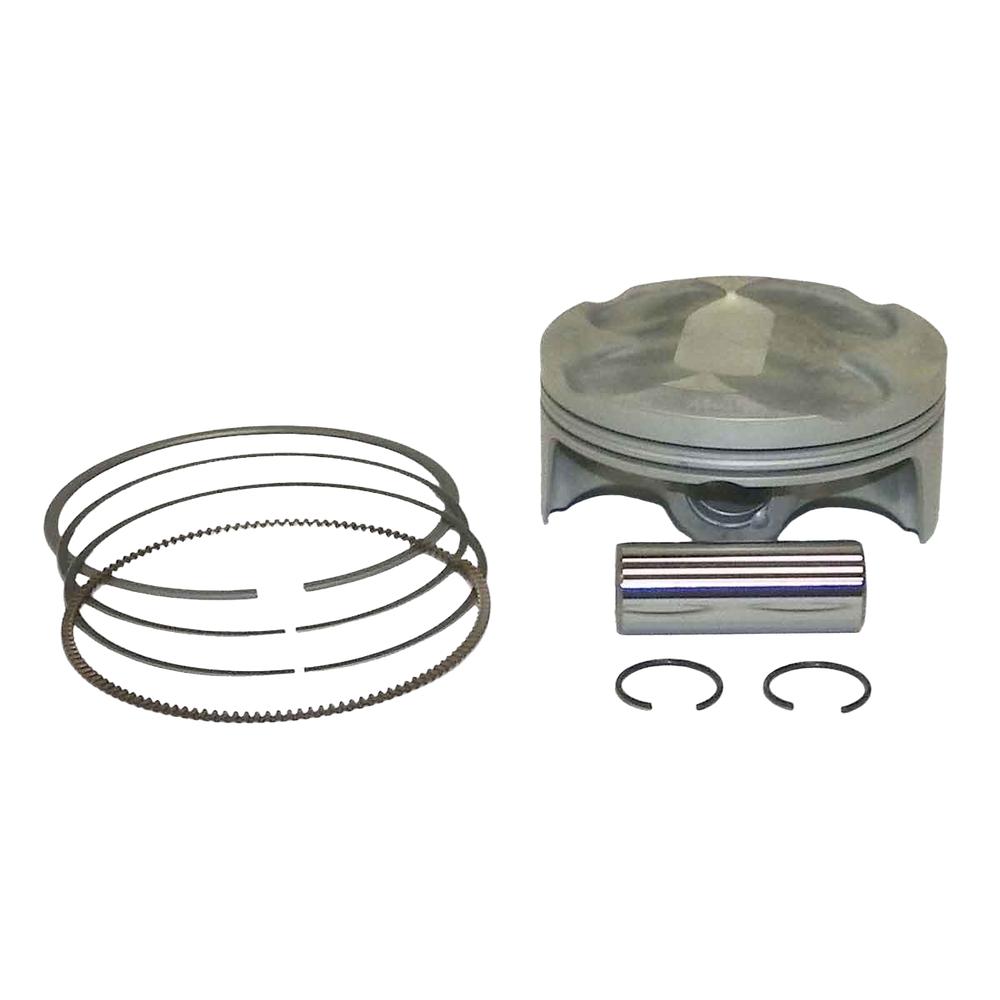

OEM Grade Piston Kit 76.98mm 2007-2009 Suzuki RM-Z 250 249cc DOHC 4-Stroke

Replaces Part Numbers & Specifications

CROSS REFERENCE PART NUMBERS:
• Suzuki 12111-10H10-0F0
• Suzuki 12111-10H20-0F0
• Pro-X 01.3338.C

ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore C Grade)
• Piston Size: 76.98mm (C Grade)
• Bore x Stroke: 77.0mm x 53.6mm (Standard)
• Displacement: 249cc (Single-Cylinder)
• Compression Ratio: 13.4:1
• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Forged Aluminum Alloy Piston
• Engine: Liquid-Cooled DOHC 4-Valve 4-Stroke Single-Cylinder
• Model Years: 2007-2009 (Suzuki RM-Z 250)

COMPATIBLE MODELS:
Suzuki Models:
• RM-Z 250 Motocross Dirt Bike (2007-2009)

PRODUCT DETAILS:
This standard bore C grade piston kit is designed for the 249cc liquid-cooled DOHC 4-valve 4-stroke single-cylinder engine used in the Suzuki RM-Z 250 motocross dirt bike from 2007 through 2009. The 76.98mm C grade piston provides precise piston-to-wall clearance for optimal ring seal and compression in factory-spec cylinders for the Suzuki RM-Z 250 competition motocross motorcycle. Each kit includes forged aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for a complete top-end rebuild of the 249cc liquid-cooled DOHC 4-stroke engine. Manufactured using premium forged aluminum alloy and precision machined on CNC equipment for consistent dimensions and reliable performance in demanding off-road motocross racing applications. The Suzuki RM-Z 250 is a competition-class motocross motorcycle featuring a liquid-cooled DOHC 4-stroke powerplant with 77mm bore and 53.6mm stroke delivering responsive power for off-road racing.

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

APPLICATIONS:
Suzuki Models:
• RM-Z 250 Motocross (2007-2009)
• Engine: 249cc Liquid-Cooled DOHC 4-Valve 4-Stroke Single-Cylinder
• Bore x Stroke: 77.0mm x 53.6mm
• Compression Ratio: 13.4:1
• Component: Piston Kit (Standard Bore C Grade, 76.98mm)
