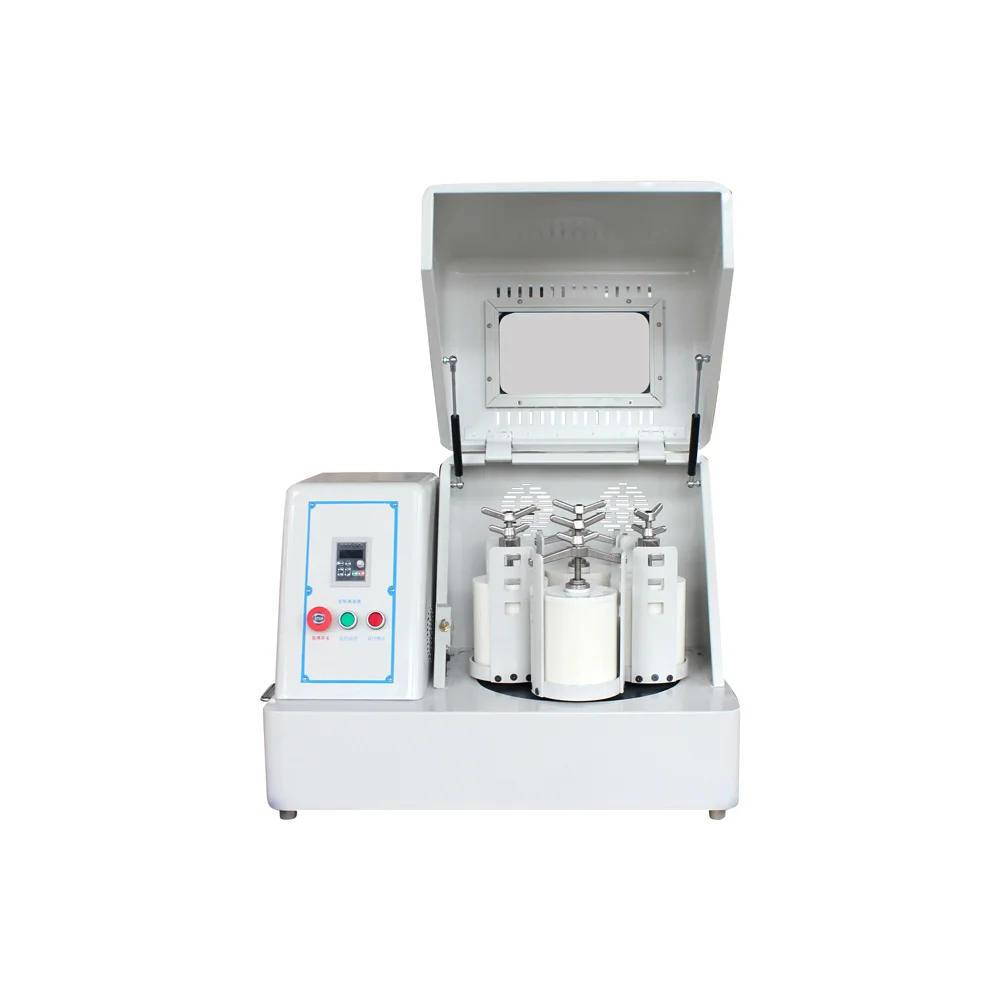

The 1L Planetary Ball Mill is same with the main photo, the price include 4 pcs of stainless steel jars and 1 set of stainless steel balls, if you want other material jars, please send us message.
Please tell us the voltage you'd like to use after place order.
Product Description
Planetary ball mill
Planetary ball mill is an indispensable device for mixing, fine grinding, small sample preparation, nano material dispersion, new product development and small batch production of high-tech materials. The product is small in size, full in function, high in efficiency, and low in noise. It is an ideal equipment for scientific research institutions, universities, and enterprise laboratories to obtain microparticle research samples (four samples can be obtained simultaneously in each experiment). The tank can grind the sample under vacuum. Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other departments. According to the technological requirements, you can set the speed, alternating forward and reverse time, and the total grinding time.
Main Features：

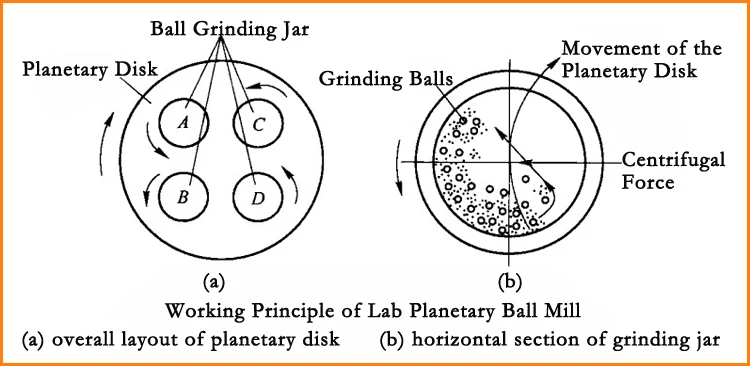

1. The ball milling tank adopts planetary motion, with high ball milling efficiency and fine particle size;
2. Frequency conversion control, the ideal speed can be selected according to the test results;
3. The frequency converter has undervoltage and overcurrent protection, which can perform some operations on the motor Necessary protection;
4. The whole body has the functions of timing shutdown, automatic timing forward and reverse, and can freely choose the unidirectional, alternating, continuous, timing and untimed operation modes to improve the grinding efficiency;
2. Frequency conversion control, the ideal speed can be selected according to the test results;
3. The frequency converter has undervoltage and overcurrent protection, which can perform some operations on the motor Necessary protection;
4. The whole body has the functions of timing shutdown, automatic timing forward and reverse, and can freely choose the unidirectional, alternating, continuous, timing and untimed operation modes to improve the grinding efficiency;
5. One experiment can get four Samples with different sizes and different materials;
6. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, and low loss;
7. The equipment is equipped with a safety switch to prevent the equipment from being in the safety cover Start when opened to avoid safety accidents;
8. Available grinding tank volume: 100ml ~ 250mL * 4.
6. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, and low loss;
7. The equipment is equipped with a safety switch to prevent the equipment from being in the safety cover Start when opened to avoid safety accidents;
8. Available grinding tank volume: 100ml ~ 250mL * 4.

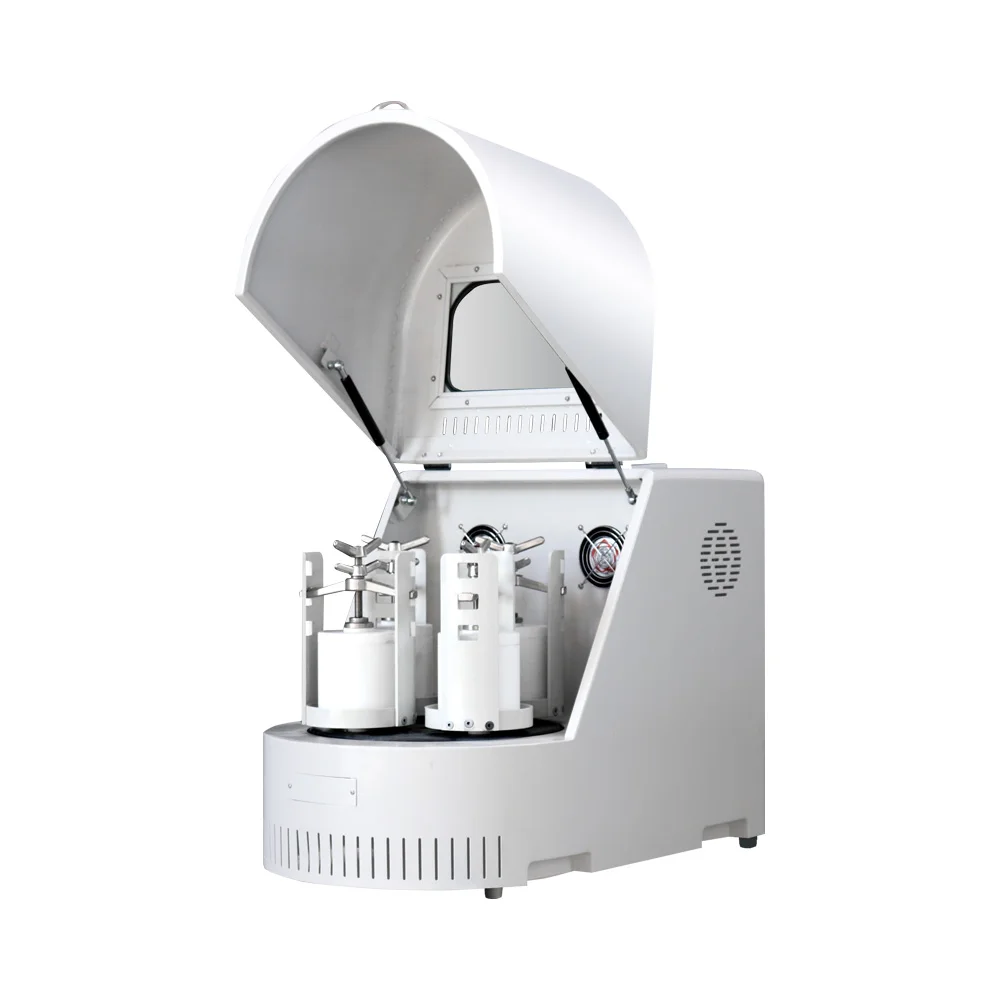

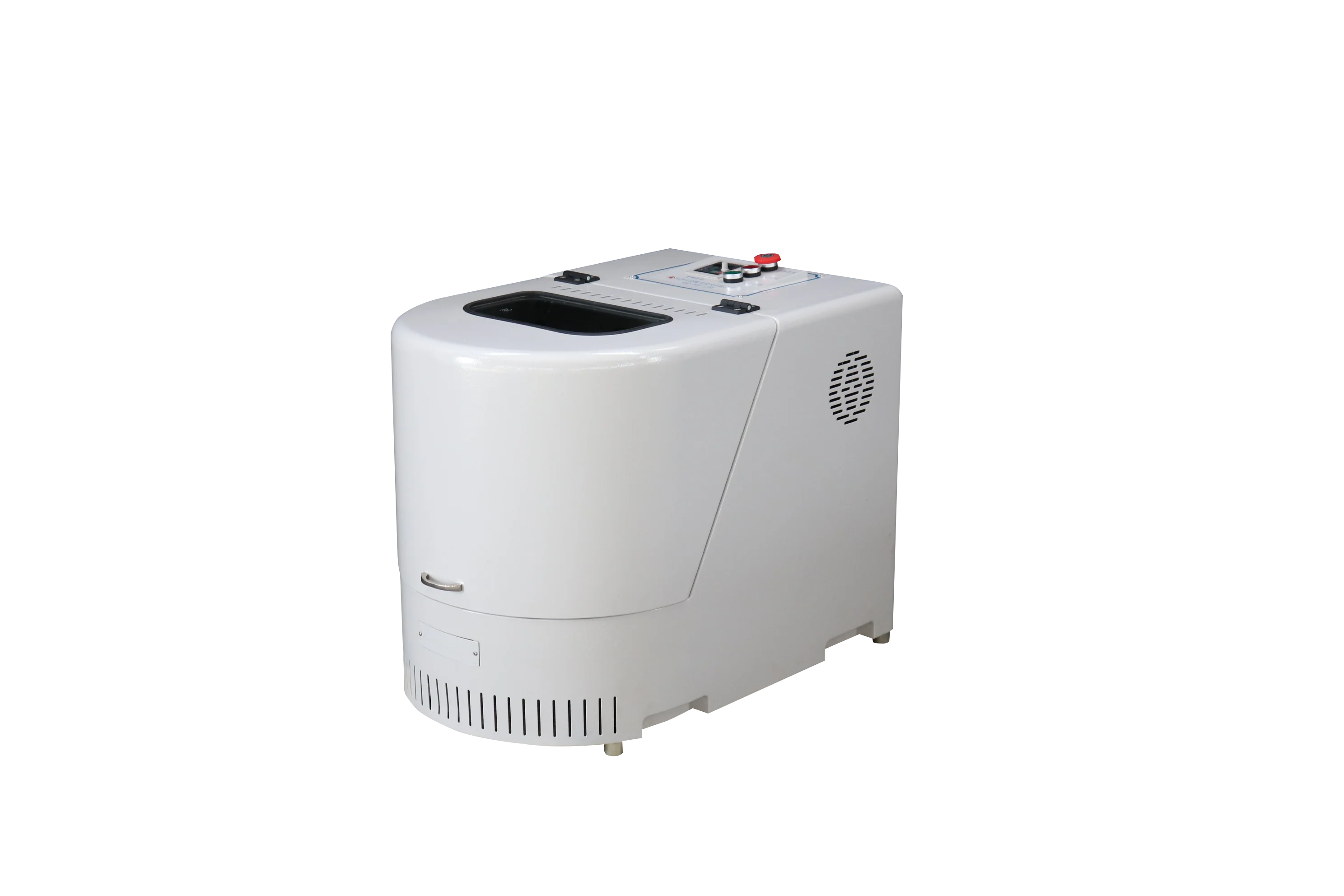

Details Images

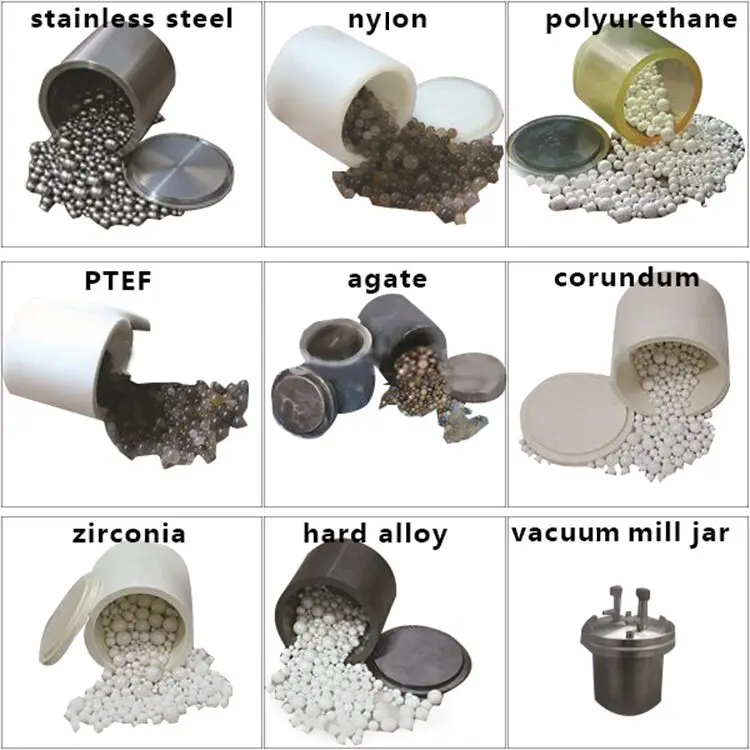

References for Matched Mill Jars and Balls
As a professional manufacturer and supplier of planetary ball mills, we provide all kinds of milljars in full sizes covering 304 or 316stainless steel milljars,tungsten carbide mill jars, agate mill jars, corundum mill jars,zirconia milljars, nylon milljars, PU milljars,PTFE mill jars andetc.
Specification
|
Grinding tank volume
|
250mL * 4
|
|
Grinding tank material
|
Stainless steel
|
|
Grinding medium material
|
Stainless steel, etc
|
|
Maximum capacity per tank
|
Material and grinding medium do not exceed two-thirds of the volume
|
|
Feeding particle size
|
Crispy material is less than 10 mm, other less than 3 mm
|
|
Discharge granularity
|
The smallest can reach 0.1 micron
|
|
Speed
|
Revolution maximum 50-400rpm, rotation 100-800 rpm
|
|
Speed ratio
|
(Revolution: rotation) 1: 2
|
|
Speed regulation mode
|
Brand inverter stepless speed regulation, speed accuracy 0.2 rpm
|
|
Working mode
|
Two or four tanks work at the same time
|
|
Max continuous working time
|
72 hours (timer 0-9999h)
|
|
Program control
|
The ball mill is controlled by a high-tech microcomputer chip. It can run forward and reverse alternately (1-999min) and forward,
pause, reverse, pause, and forward (1-999min) according to the set program, especially suitable for needs of cooling or intermittent operation |
|
Working voltage
|
110V/120V
|
|
Motor power and frequency conversion power
|
0.75Kw
|
|
Dimension
|
450 × 700 × 550mm
|
Notes:If any change of data, we will not notify further
