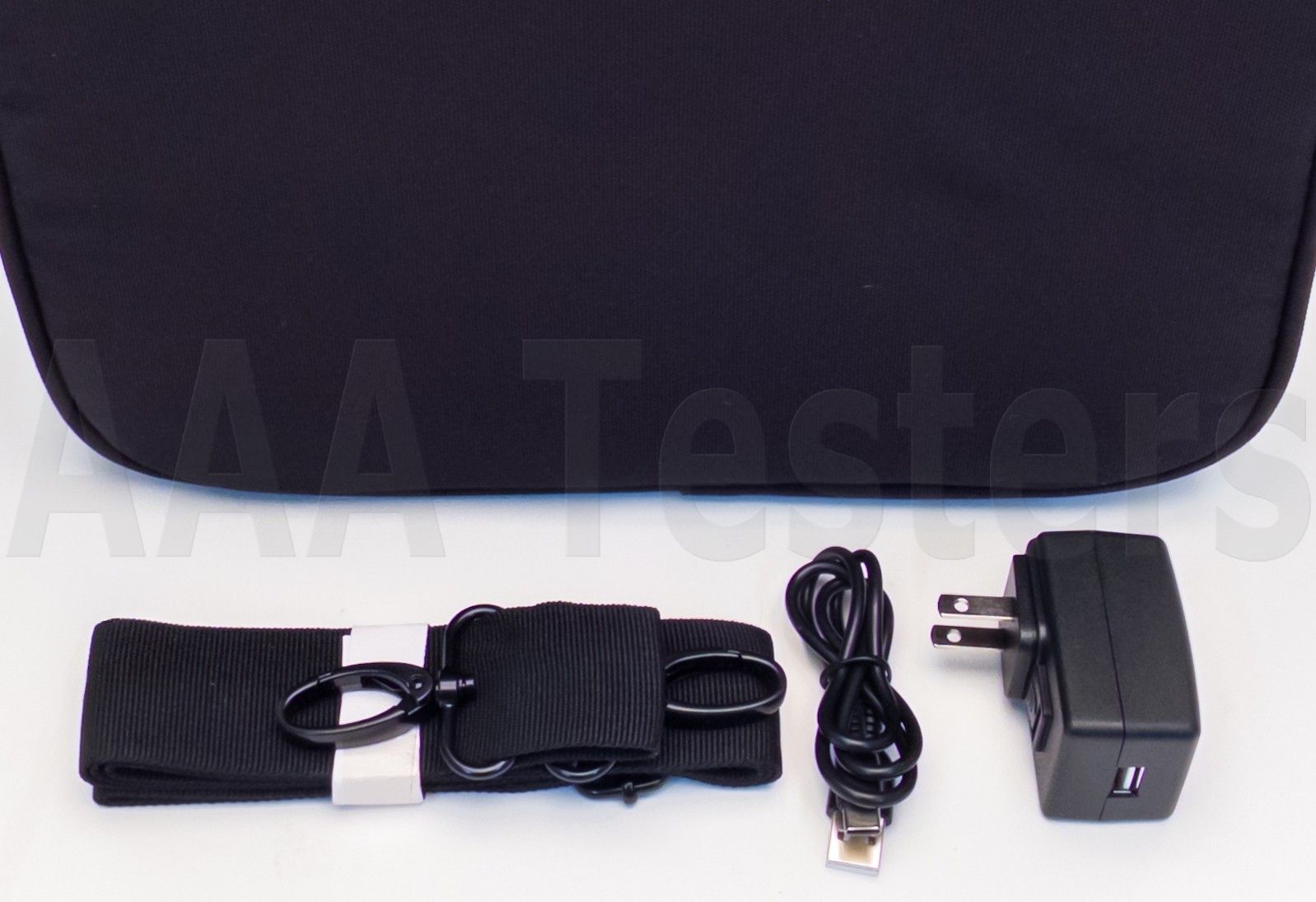

The Following Items Are Included:

EXFO FIP-500 Fiber Inspection Probe
- SC-UPCA Tip For Probe
AC Adapter
USB Cable
Travel Case

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

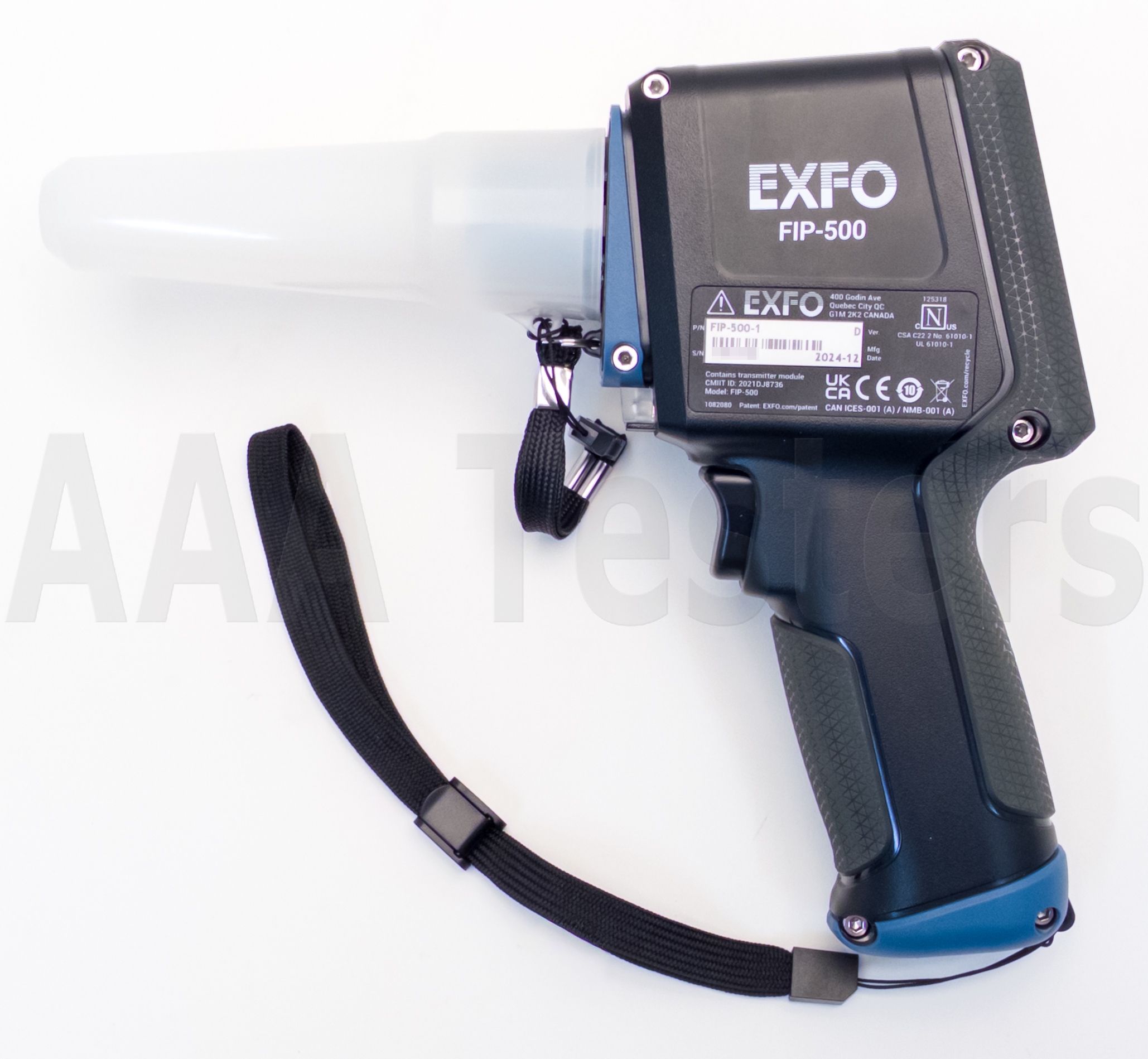

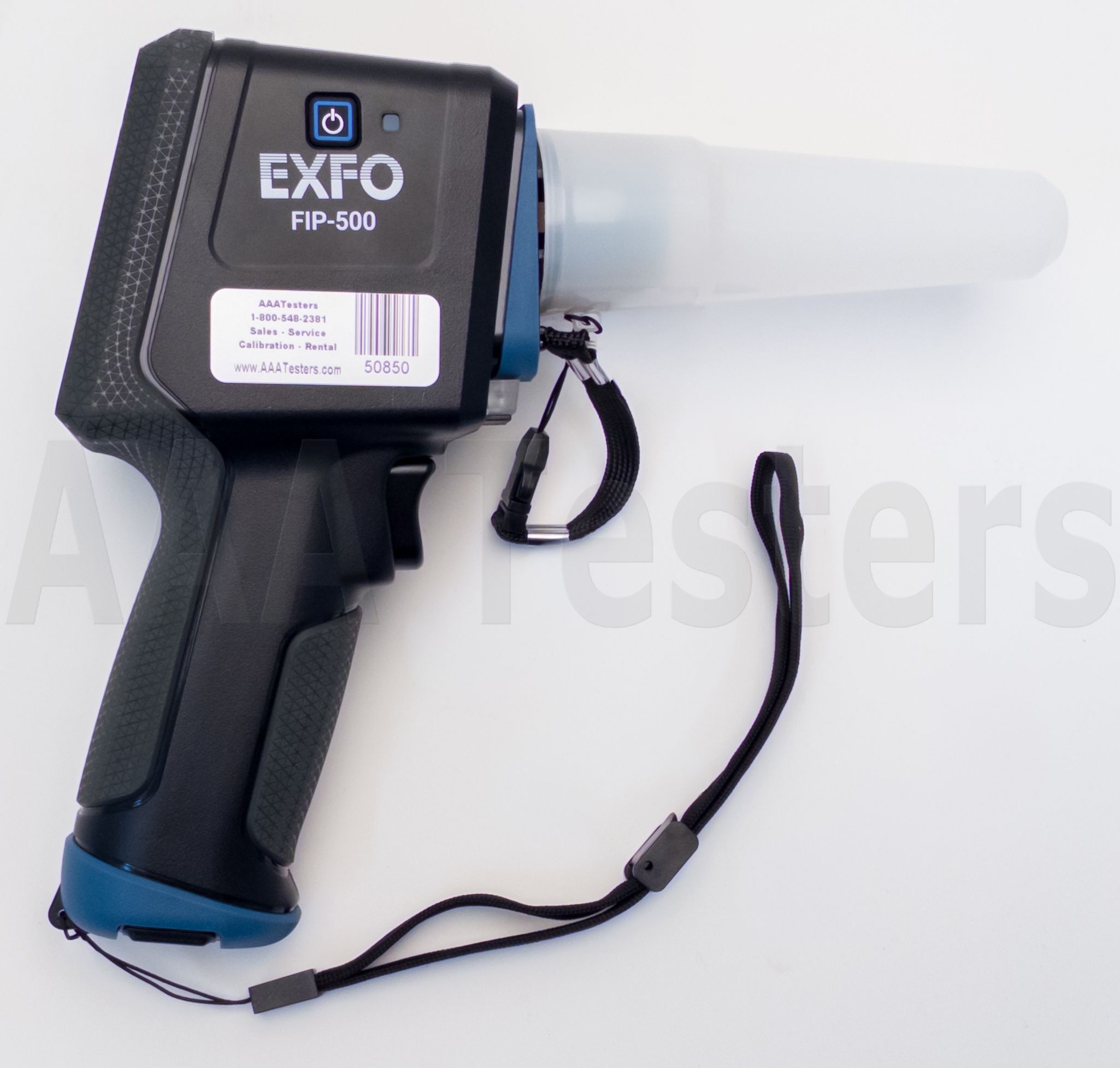

EXFO FIP-500 Fiber Inspection Probe

Industry's first AI-powered inspection for single-fiber, duplex and multi-fiber connectors. Delivers reliable and repeatable results with a self-contained, fully automated tool for zero-button testing.

Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

EXFO FIP-500 Fiber Inspection Probe

Innovating fiber inspection for all

In today’s fiber-dense environments, single-fiber, multi-fiber and duplex connectors need to be reliably and rapidly inspected to keep networks running smoothly. Leveraging 35+ years of leading expertise in optical testing, we’ve designed the inspection scope that makes it easy for all technicians, everywhere.

Less handling, more doing.

Quick-connect tips: Swap tips in a quarter-turn click, a small but life-changing innovation. No loose parts, not a second wasted.

Longer reach: By design, the FIP-500 provides longer reach and better handling for inspection in dense fiber environments or on top of telecom towers.

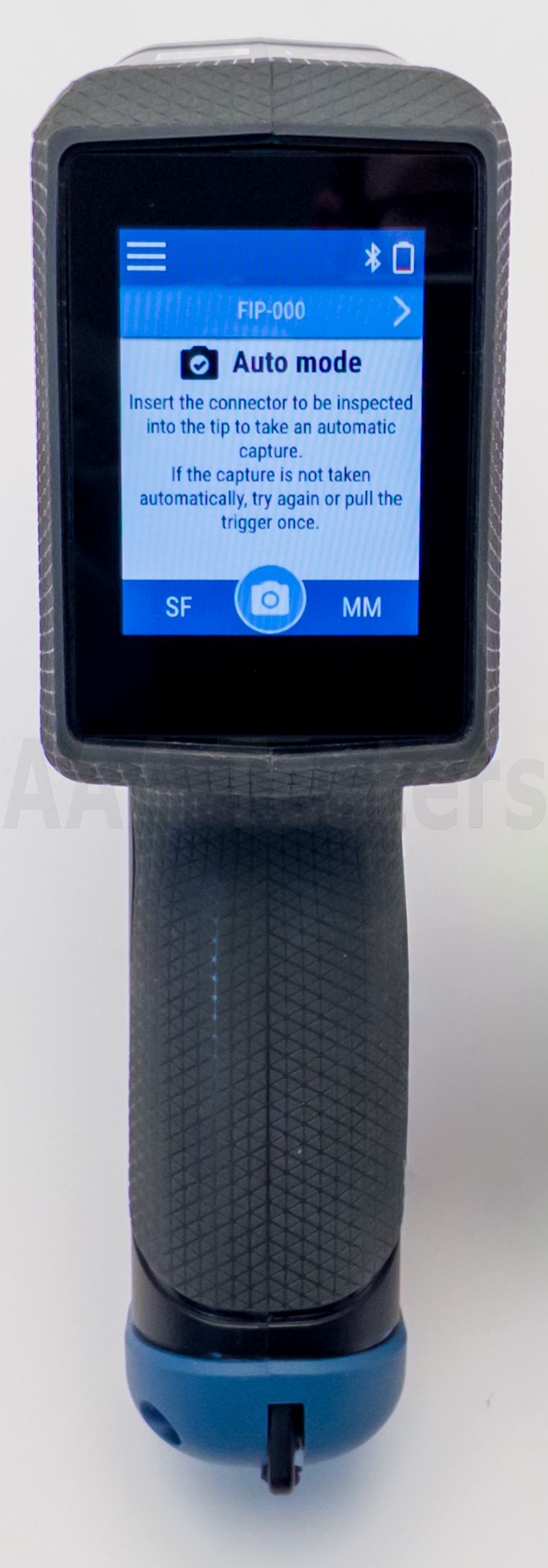

Intuitive graphical user interface (GUI): Leveraging the capabilities of the touchscreen, the GUI is very user-friendly for any technician, regardless of their experience.

Features:

Fastest inspection in the industry (in under 10 seconds for MPO-12)
Best-in-class optical performance for accurate and repeatable results
Zero-button inspection: 100% automated from insertion to data saving
Wide array of adapter tips for single, duplex and multi-fiber connectors (e.g., LC, SC, ST, MPO, OptiTap®, OptiTip®)
Test all day without any interruption: long-lasting battery and memory space to store results locally - 1800 (MPO) or 10 000 (single-fiber)
Smartphone-grade 2.4-inch color touchscreen
Quick-connect design: quarter-turn click for switching between any tips or inspection type
First AI-powered inspection in the industry for enhanced detection accuracy even in poor lighting or dirty fiber scenarios

Specifications:

Size (HxWxD)	196 mm × 230 mm × 59 mm (7 3/ 4 in × 9 1/ 16 in × 2 5/ 16 in)
Weight	580 g (1.28 lb)
End‑to‑end inspection and analysis time	MPO‑12: 10 s MPO‑24: 15 s Single‑fiber: 4 s
Pass/fail analysis	IEC 61300‑3‑35 ED.3(2022) b , IEC 61300‑3‑35 (2015), user‑set criteria
Camera sensor	2 sensors of 5 megapixels
Field Of View	Multi‑fiber: 2.03 mm × 5.16 mm Single‑fiber: 0.75 mm × 0.75 mm
Light Source	2 violet LEDs at 415 ±15 nm
Lighting technique	Coaxial, pulsed
Display	2.4 in IPS color LCD 166 dpi + capacitive touchscreen
CPU	1.4 GHz dual core
Battery type	Lithium‑ion polymer (Li‑Po) rechargeable battery
Connectivity	Bluetooth ®, Wi‑Fi and USB‑C
Connector	USB‑C
Local storage capability	10 000 single‑fiber connectors measurements or 5000 duplex‑fiber connectors measurements or 2000 multi‑fiber connectors (MPO 12) measurements The available memory for storage is 1.2 GB (on the entire system’s 2 GB
Autonomy	11 hours
