This Item Has A Current Calibration!
|
|
|
|
Meriam MFC5150x HART Field Device Communicator
Directly reads Device Descriptions without any translations or subscriptions, enabling communication to take place with any registered or unregistered HART® device
Certified In The Following Hazardous Locations:
- Class I, Division I Group IIC (US/Canada)
- ATEX Zone 0 Group IIC (Europe)
- IECex Zone 0 Group IIC (Asia, South America, Africa)

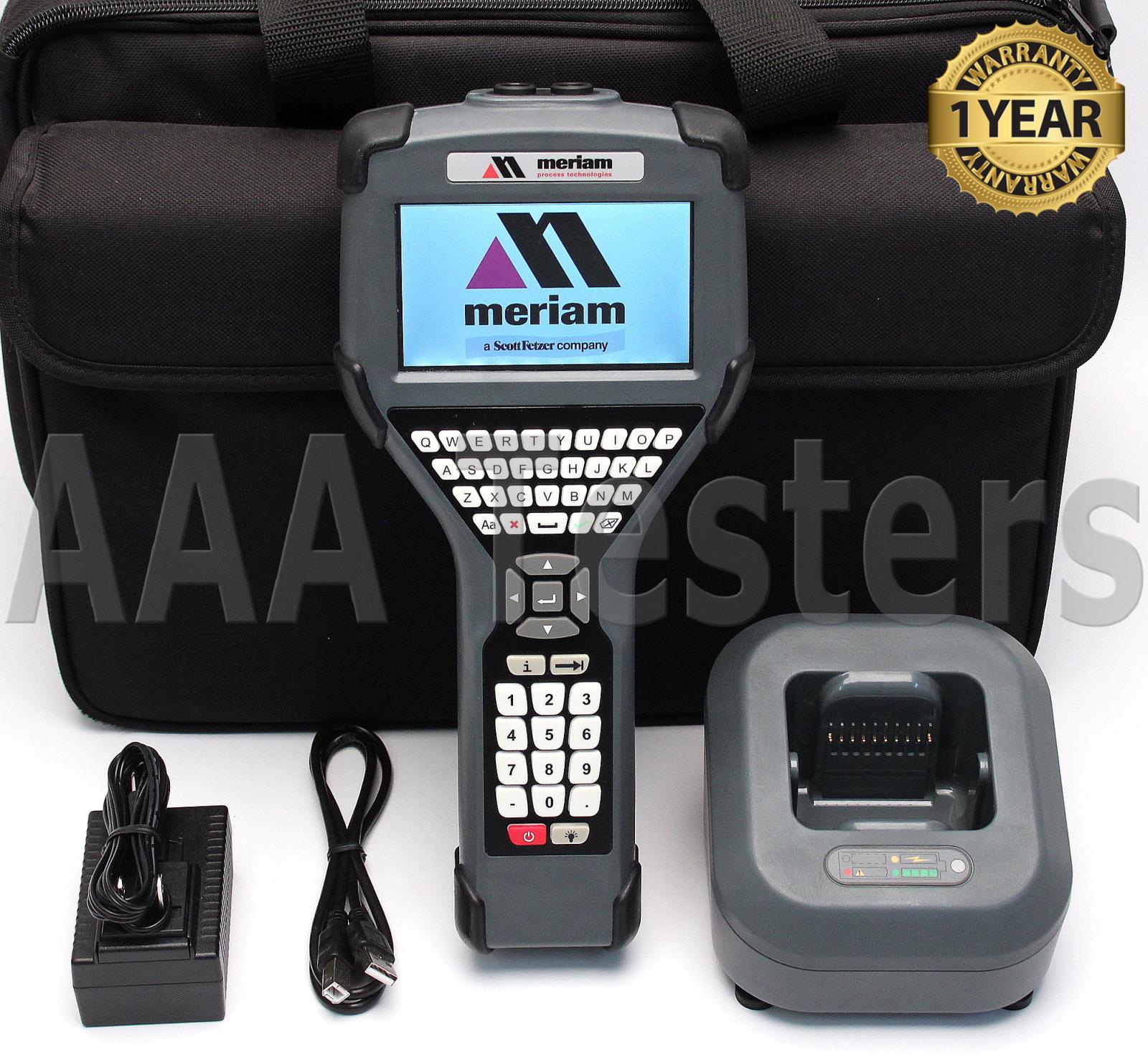

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

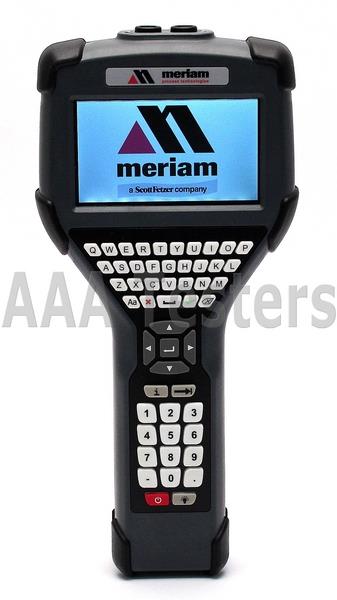

Meriam MFC5150x HART Communicator
The MFC5150x HART® Communicator is the latest addition to Meriam’s product line of hand-held calibrators and field communicators. Available in ATEX (intrinsically safe) and Non-ATEX models, the MFC5150 directly reads Device Descriptions without any translations or subscriptions, enabling communication to take place with any registered or unregistered HART® device. This ensures your HART® transmitter will connect, regardless of brand or model.
The MFC5150x is certified in the following Hazardous locations:
- Class I, Division I Group IIC (US/Canada)
- ATEX Zone 0 Group IIC (Europe)
- IECex Zone 0 Group IIC (Asia, South America, Africa)
Features:
- The MFC5150 is built on the SDC-625 infrastructure and runs Windows CE.
- With a 1 GHz processor and an 4 GB Micro SD card, this HART® communicator is ideal for all of your data storage needs.

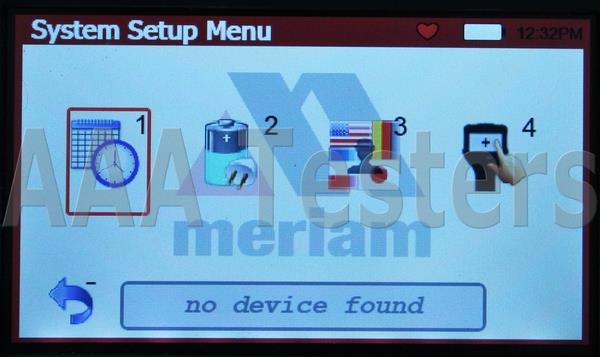

- The 4.3 inch touchscreen provides excellent anti-glare viewing, allowing for comfortable mobile use in darkness or in bright sunlight.
- All functions are easily navigated via the full QWERTY keyboard and intuitive icons similar to that of a smart phone.ll functions are easily navigated via the full QWERTY keyboard and intuitive icons similar to that of a smart phone.
- The handheld HART device also features hyperlink menu paths, teachable device specific shortcuts, instant on, multiple languages, help context, video’s and TAB access to panes just like on a computer.
Specifications:
| Display |
Type: Transmissive Display with anti-glare
Color: 24 bit TFT color
Resolution: 480 x 272 pixels
Backlight: White LED |
| Body |
Size: 11.9 x 5.6 x 1.9 inch [303 x 142 x 48 mm]
Weight: Approximately 2.1 lbs [0.95 kg] with battery |
| Keyboard |
Material: Molded Keyboard design with tactile feedback
Key: 52 keys including qwerty keysv |
| Power |
Rechargeable Battery: Lithium-Ion |
| Battery life at 100% charge |
On at 100% backlight: 10 hours minimum
Off: 30 days minimum
Storage, Battery removed: 1 year minimum |
| Battery Charger |
AC Adapter Form: Wall Adapter Four international inserts (US-U,UK-B,EU-E,AU-A)
Input voltage: 100 – 240 VAC 50/60 Hz
Output voltage: 15 VDC
Output current: 1600 mA
Overcharge protection: Yes |

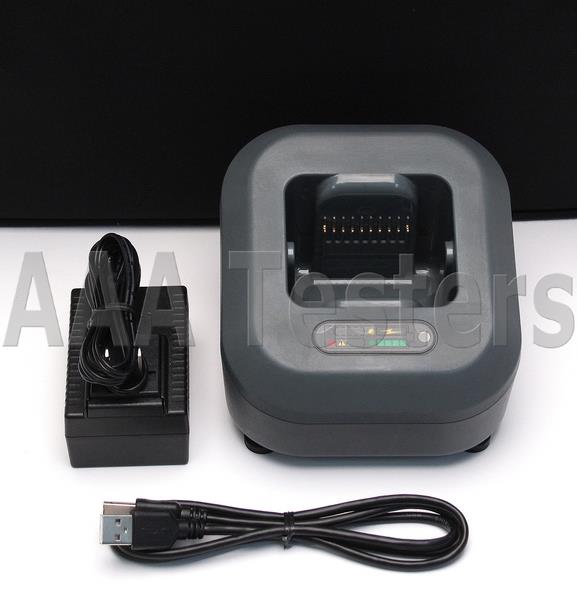

| Battery Charger (Cradle) |
LED Indication: Tri-color LED |
| Environmental conditions |
| Operating |
Ambient Temp: 14 °F to 122 °F (-10 °C to 50 °C)
Ambient humidity: 0% to 95% RH (non-condensing) for 32 °F to 122 °F (0 °C to 50 °C) |
| Storage |
Ambient temp. with battery: -4 °F to 131 °F (-20 °C to 55 °C)
Ambient temp. without battery: -4 °F to 150 °F (-20 °C to 60 °C)
Ambient humidity with battery: 0% to 95% RH (non-condensing) for 32 °F to 122 °F (0 °C to 50 °C)
Ambient humidity without battery: 0% to 95% RH (non-condensing) for 32 °F to 122 °F (0 °C to 50 °C) |
| Charging |
Ambient temp.: 50 °F to 104 °F (10 °C to 40 °C)
Ambient humidity: 0% to 95% RH (non-condensing)
Other: Charge only in Non-Hazardous areas |
| Enclosure Rating |
Body: IP51 |
| Communication connections |

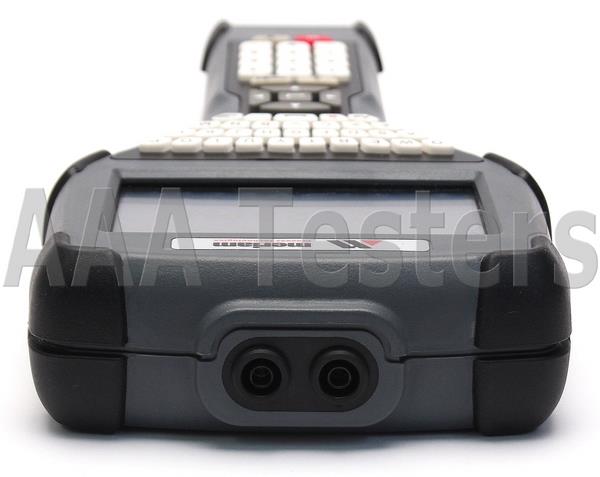

Form: Two banana plugs spaced 3 ⁄4 inch |
| Storage |
Media type capacity: microSD card 4 GB minimum |
| USB |
Data rate: Supporting up to 921.6 kbps
Form: USB B type (receptacle) |
| Intrinsic safety |
ANSI/ISA (US): UL913 Ed7 CL I, DIV 1, GP A,B,C,D; T4 UL60079-0 Ed5 CL I, ZONE 0, AEx ia IIC T4 UL60079-11 Ed5 CL I, DIV 1, GP A,B,C,D; T4
CSA (Canada): CSA-C22.2 CL I, ZONE 0, Ex ia IIC T4 NO. 157-92(R2012) NO. 60079-0:11 NO. 60079-11:11
ATEX (Europe): EN60070-0:2012 II 1 G Ex ia IIC T4 Ga EN60079-11:2012 EN60079-26:2007
IECEx (International): IEC60079-0:2011 Ed6 Ex ia IIC T4 Ga IEC60079-11:2011 Ed6 IEC60079-26:2006 Ed2 |
| EMC |
FCC (US): EN61326-1
CE (Europe): EN61326-2-3
C-tick (Australia)
ANSI-ISA |
| Electrical Safety equipment |
UL (US): UL61010-1 Ed3
ANSI (US): UL60950-1 AC Adapter
CSA (Canada): SA-C22.2 NO. 61010-1-12
CE (Europe): EN60950-1 AC Adapter |
| Environmental protection |
RoHS: Directive 2011/65/EU
WEEE: Directive 2012/19/EU
REACH: Regulation (EC) No 1907/2006 |
| Transportation |
IATA: UN/DOT 38.3 Li-ion Battery |
| Field Communication |
HART communication host |
| Operating System |
Microsoft windows CE |
| Internal Memory |
ROM: 512 MB
RAM: 256 MB |
| Support HART communication revisions |
HART 5, 6, 7 |
| Languages supported |
Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Spanish |
| Applicable equipment |
All transmitters supporting HART® Communication protocol |
| Shock condition |
Tested to survive a 39.4 inch [1 m] drop onto concrete |
For full Meriam MFC5150x HART Communicator product specifications, please click here: Meriam MFC5150x
|
|
|
|
