1. Features a screen protector made from cast PC material, ensuring robustness, durability and impact resistance.
2. The USB Type-C port incorporates multiple safety protections, ensuring reliability and security.
3. Supports tri-mode communication via Wi-Fi, BLE and LoRa, offering flexible connectivity.
4. LoRa transmission power reaches up to 28±1dBm, enabling extended coverage.
5. Newly added solar charging and GNSS interfaces provide excellent expandability.

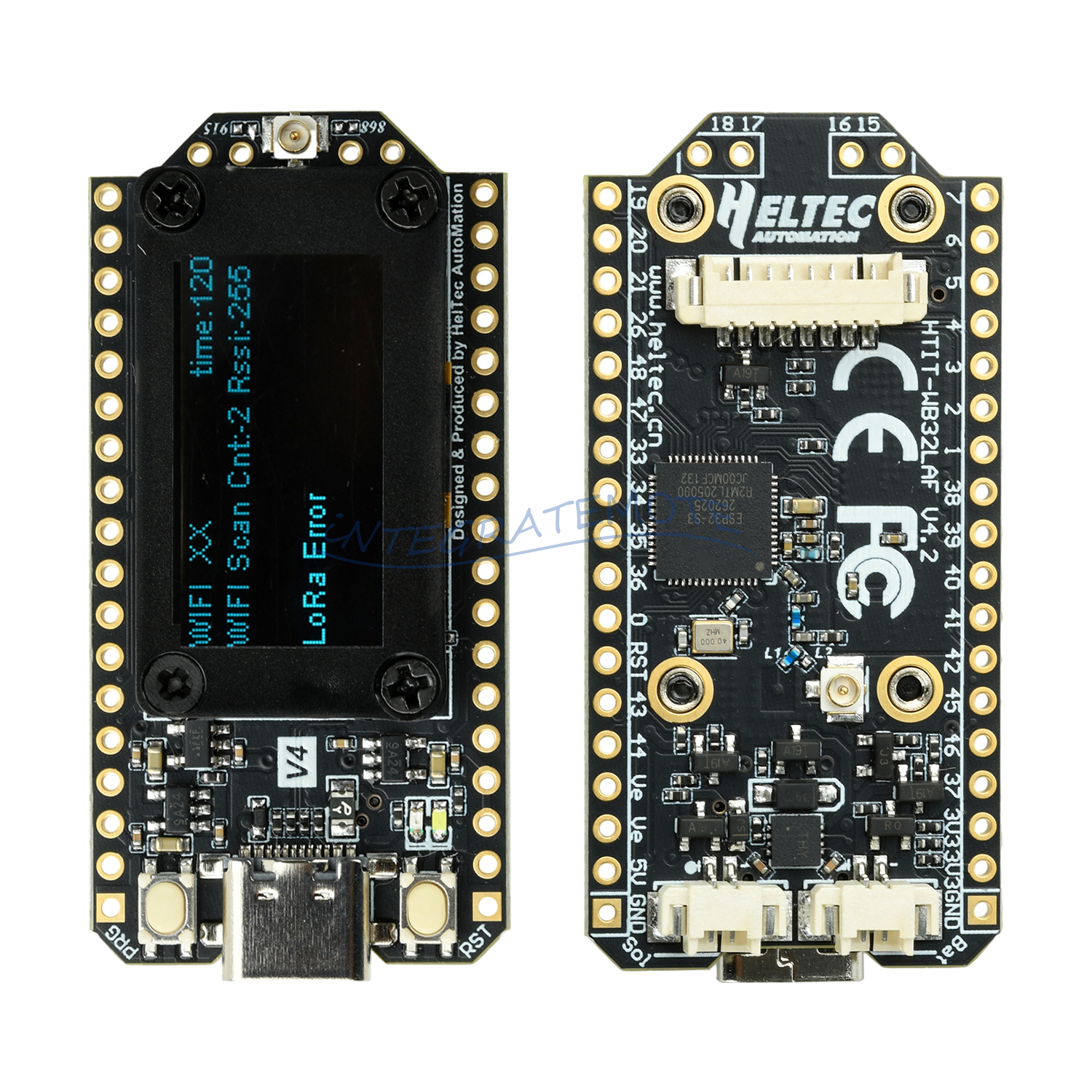

The WiFi LoRa 32 V4 is a fully upgraded version of the classic LoRa development board. Since its launch, this product series has been highly favoured by developers and manufacturers. Building upon the robust capabilities of its predecessor, the V4 version has undergone comprehensive optimisation in terms of transmission power, power management, expandability and other hardware designs. It is suitable for a wide range of IoT applications, such as smart cities, agricultural monitoring, smart homes, industrial control, security systems and wireless meter reading, providing developers with a more efficient and flexible development experience.
Based on the ESP32-S3R2 and SX-1262, supporting Wi-Fi b/g/n, BLE and LoRa communication.
2MB PSRAM and 16MB external flash memory, making it more suitable for UIs and complex systems.
High-power version, with LoRa transmission power increased to 28±1dBm.

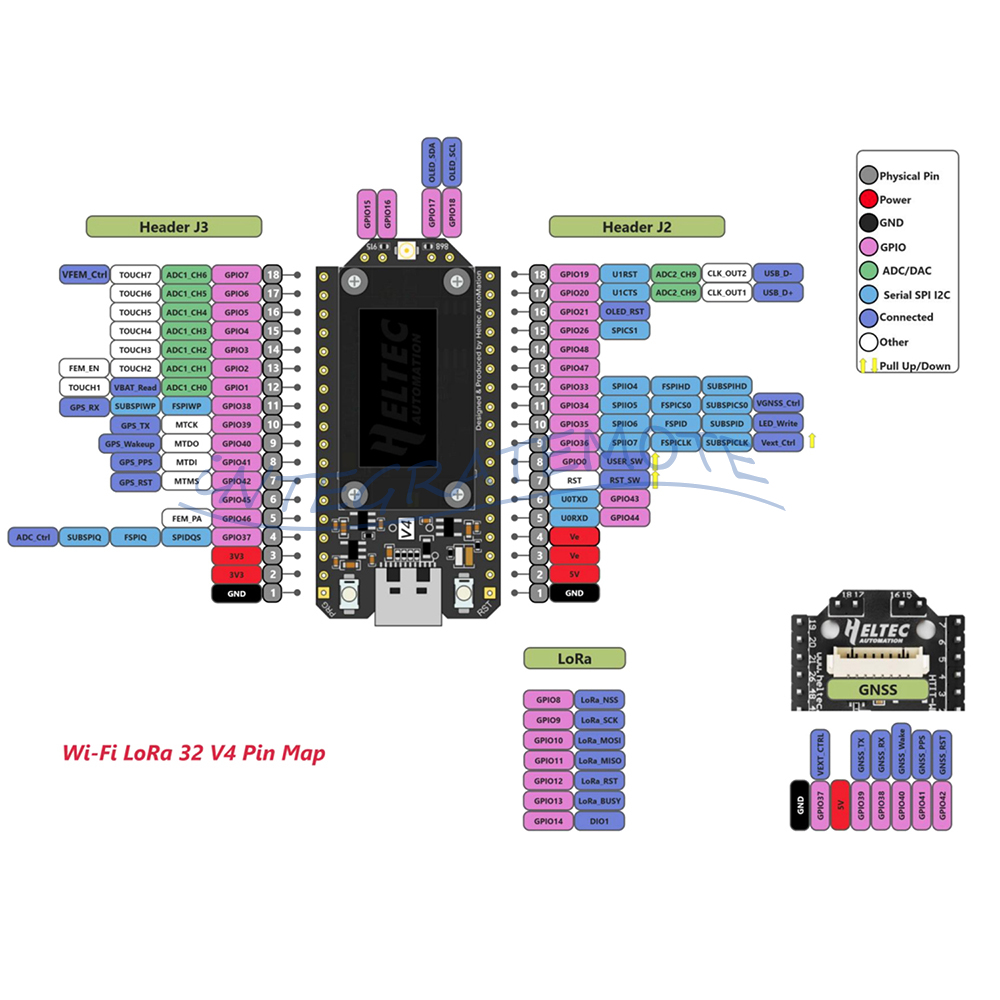

Form factor and pinout are compatible with the WiFi LoRa 32 V3.
PC shell protects the screen, with an integrated 2.4GHz FPC antenna.
New SH1.25-2P solar panel interface.
Optimised lithium battery management.
New SH1.25-8Pin GNSS interface.
USB Type-C interface, featuring integrated voltage regulation, ESD protection, short-circuit protection and RF isolation design; low power consumption of less than 20μA.
Main controller chip: ESP32-S3R2
LoRa chip: SX-1262
Frequency: 433–510 MHz, 863–928 MHz
Maximum transmit power: 21±1 dBm, 28±1 dBm
Maximum receive sensitivity: -137 dBm
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth Mesh
OLED: SSD1315 (0.96-inch, 128×64 resolution)
Power supply: 5V via USB/solar; 3.3–4.2V via battery
Hardware resources: 7× ADC1 + 2× ADC2, 7× touch, 3× UART, 2× I2C, 2× I2S, 4× SPI, etc.
Storage: 384KB ROM; 512KB SRAM; 16KB RTC-SRAM; 16MB flash; 2MB PSRAM
Interfaces: USB Type-C; SH1.25-2P lithium battery connector; SH1.25-2P solar panel connector; 2× IPEX1.0 ANT (LoRa and 2.4G); 2× 18-pin 2.54mm header, 2× 2-pin 2.54mm header
Operating temperature: -40 to 85°C (OLED operating temperature: -40 to 70°C)

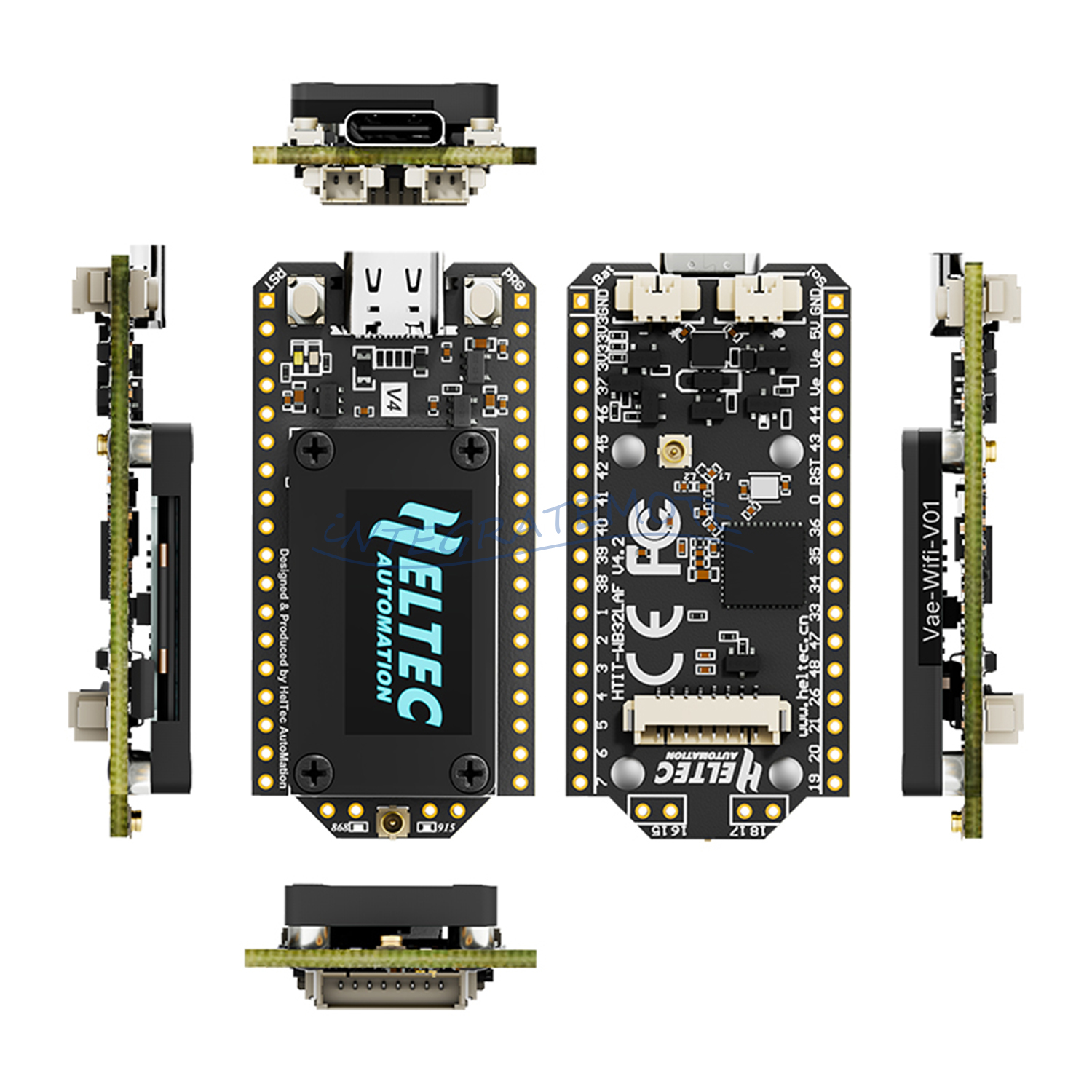

Dimensions: 51.7 × 25.4 × 10.7 mm
Environmental sensors
Industrial IoT
Asset tracking
Remote meter reading
Smart agriculture
Wireless alarms
Innovative projects and DIY applications

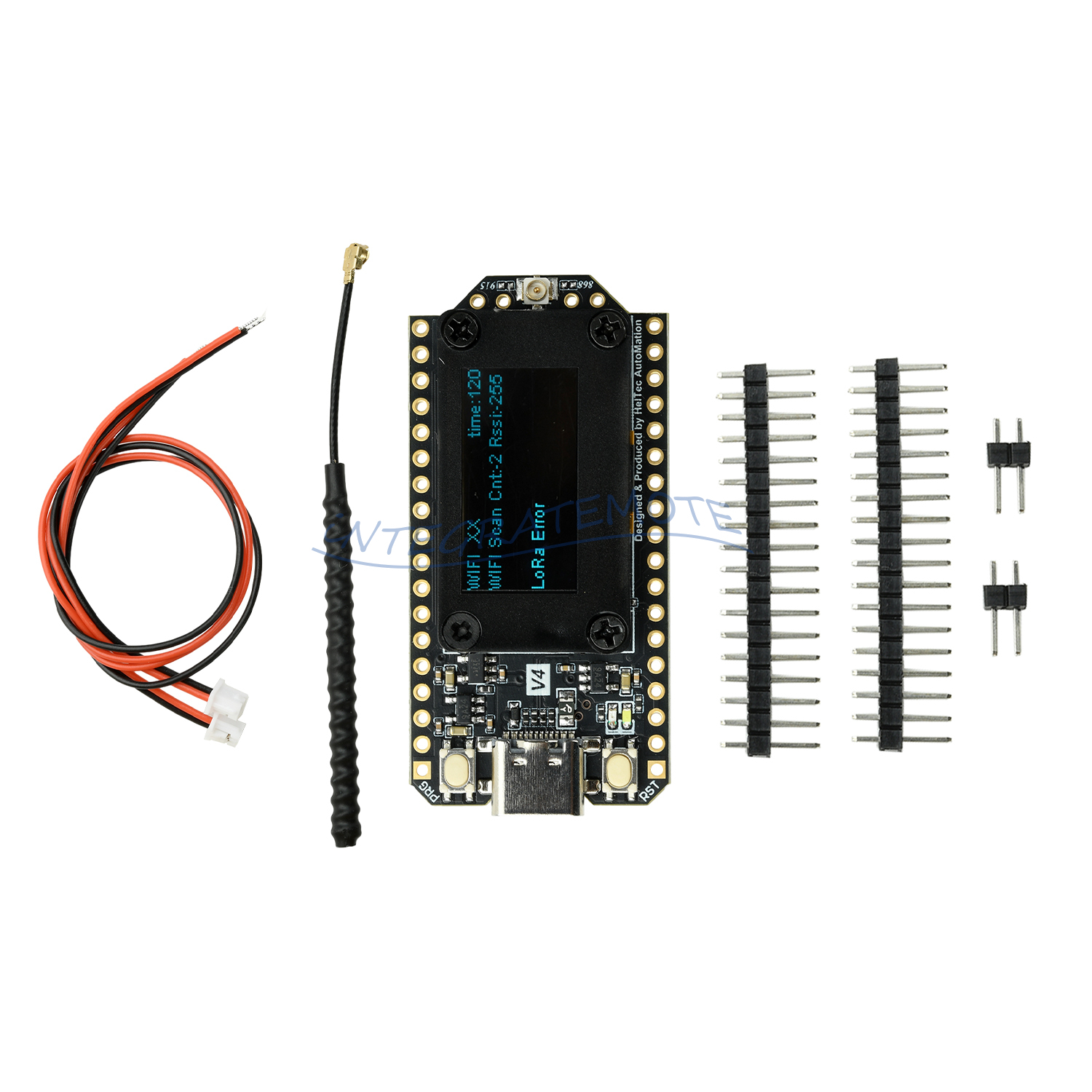

Development board （with screen or without screen optional）

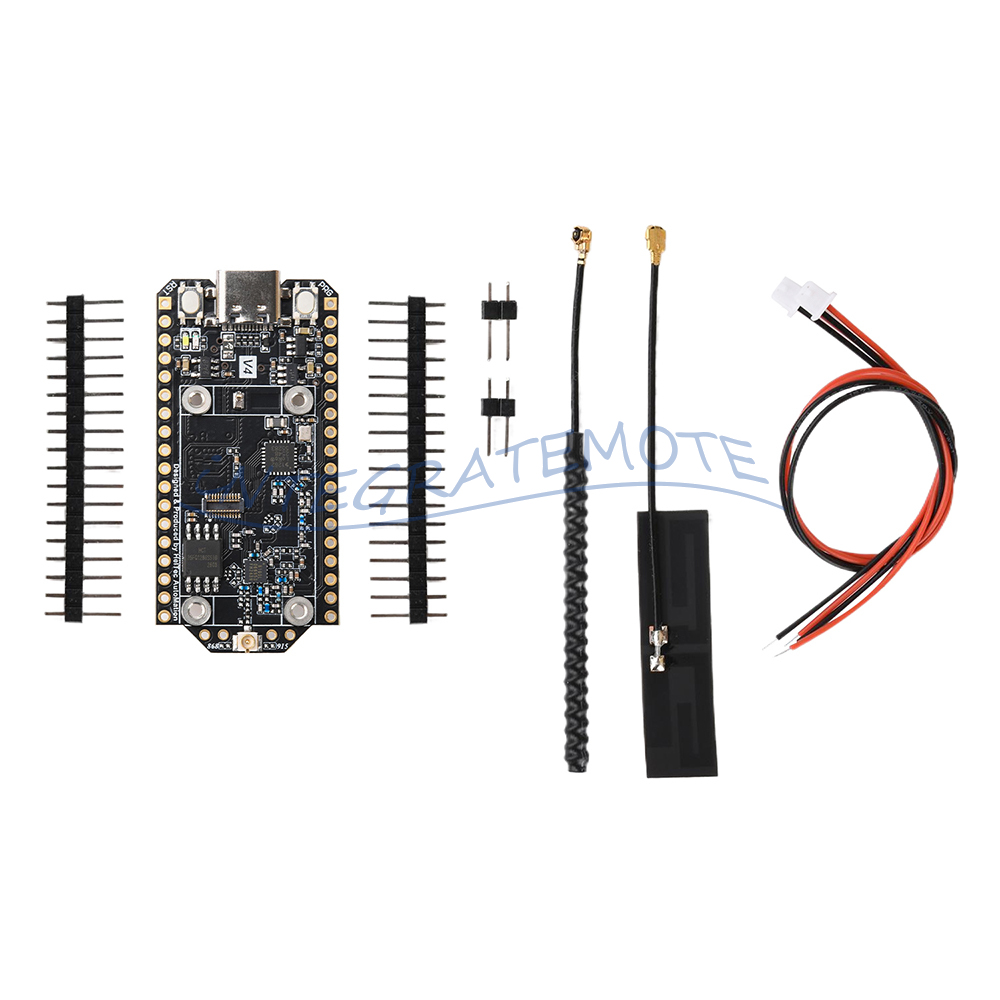

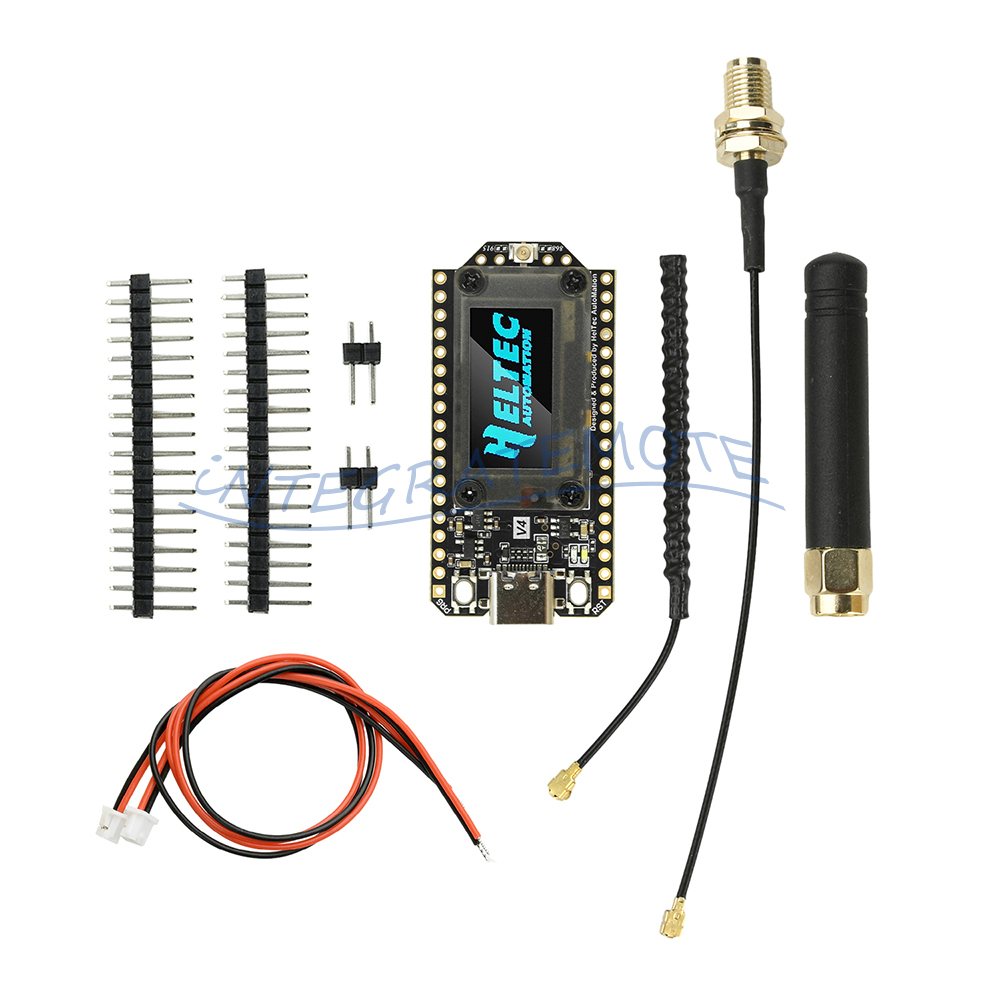

Antenna (Optional)
Terminal leads
Pin headers

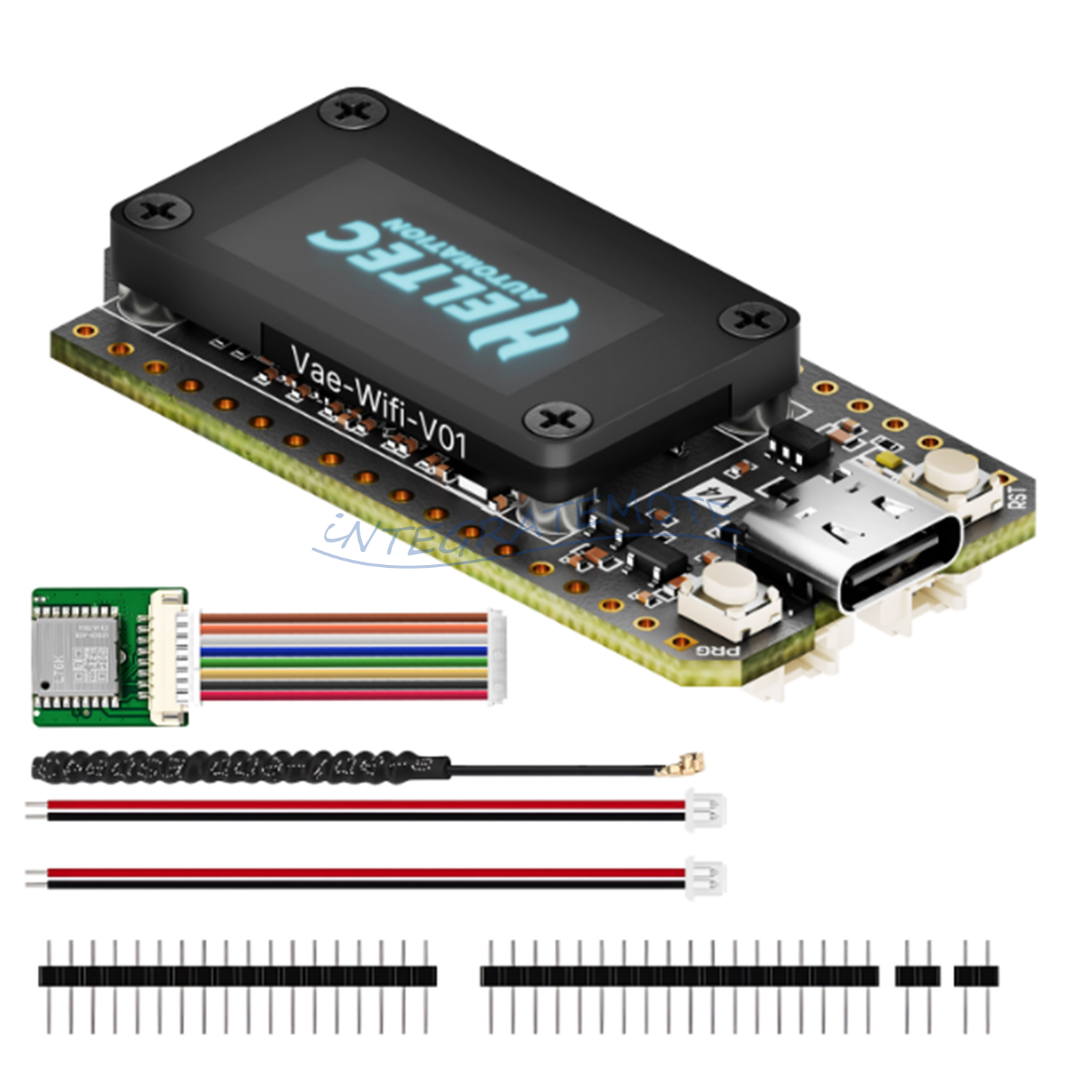

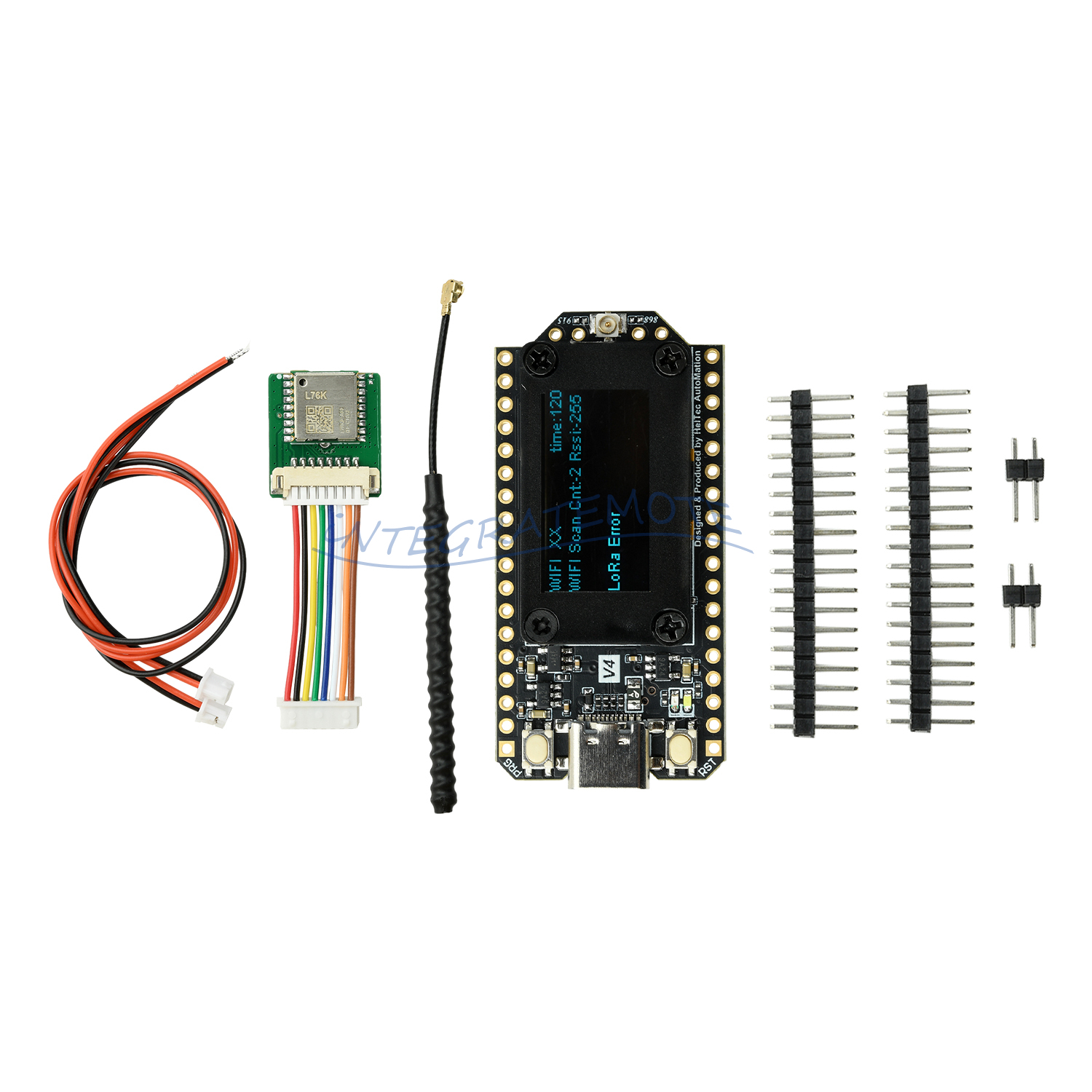

GPS module (optional)
