About this item

  • [±1/13 inch at 33 ft. High Accuracy] Huepar professional 360 laser level with ±1/13 in. high accuracy at 33 ft. and working range of up to 100 ft. (100 LUX). The 4*360° full layout laser level features two 360° horizontal laser lines and two 360° vertical laser planes that can be projected onto ceilings, walls, and floors throughout the room. With a lift base, this 4D laser can be raised from a surface from 0.83 inches to 3.2 inches in height. It is laser Class 2 (IEC/EN60825-1/2014), <1mW.
  • [Li-Ion Battery & Dry Battery Pack] The rechargeable laser level has a 5200mAh Li-Ion battery that can work for 8 hours on a full charge. It also comes with a dry cell battery pack for backup power.
  • [LCD Display] The laser line level has LCD screen to easily get the status of the laser lines, brightness, auto sensor, battery, pendulum and pulse mode on the display. The working status information of the laser level can be easily obtained through the screen.
  • [Auto Sensor Mode] Turning Auto Sensor Mode on in self-leveling mode causes the laser line to disappear if the laser level is tilted by wind or other forces. This function is used to alert you that the laser line may have shifted.
  • [Adjustable Laser Lines & Brightness] The green laser level lines can be selected by the H/ V buttons on the keyboard, adapting to different scenarios and helping to save power. The visibility adjustment function allows users to adjust the brightness according to different light conditions with 3 options. The ultra-bright laser technology makes it a great tool for large workplaces.
  • [Self-leveling & Manual & Pulse Mode] In Self-leveling mode, the self-leveling laser level will project horizontal and vertical lines with a leveling compensation range of 3.5°, and the laser will blink when it exceeds the compensation range to indicate that it is out of level. In manual mode, the laser line is locked to project at any angle, and the laser line flashes every 3-5 seconds to remind you that you are in manual mode. Use Pulse Mode in bright light or outdoor conditions to extend the laser range up to 200 feet. (Pulse mode requires the additional purchase of a Huepar laser receiver.)
  • [Integral 360 Magnetic Bracket] No additional installation is required, the Huepar HX04CH laser level has its own magnetic bracket that supports 360° horizontal rotation and strong magnetism to securely attach to metal surfaces. The bracket is available in 1/4“-20 & 5/8”-11 mounting thread options and can be mounted on most tripods. Ideal for construction projects, home improvement and picture hanging

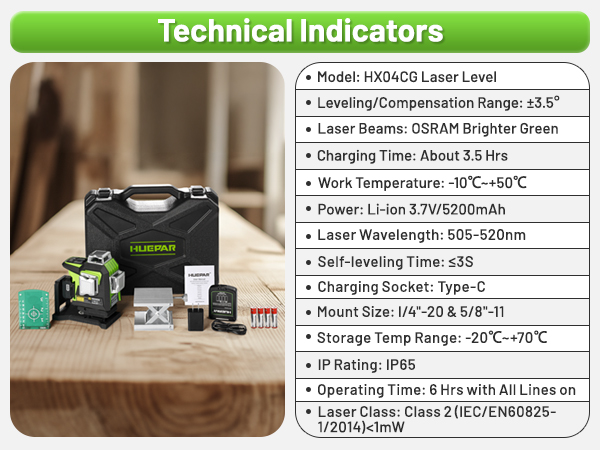

Package Contents

  • ‎1 x HX04CG 3x360 Green Laser Level with LCD Display
  • 1 x Charging Cable
  • 4 x AA Battery
  • 1 x Hard Carry Case
  • 1 x Li-Ion Battery & Dry Battery Pack
  • 1 x ‎Lifting Base
  • 1 x Green Laser Target Plate
  • 1 x Type-C Charging Kit
  • 1 X Huepar LR-8RG Laser Detector
  • 1 X Holder
  • 2 X AAAA Dry Batteries
  • 1 X Instruction Manual
  • 1 X Inner Box
  • 4 x Telescopic Rod Section
  • 1 x Tail Rod (with Spring-Loaded Base, Arbitrary Telescopic Rod Section, and Floor Skid Face)
  • 1 x Top Ceiling Skid Plate
  • 1 x Height Adjustable Bracket (with 1/4"-20 Male Thread)
  • 1 x 5/8"-11 Screw Adapter
  • 1 x Adjustable Stable Tripod
  • 1 x Soft Carry Bag

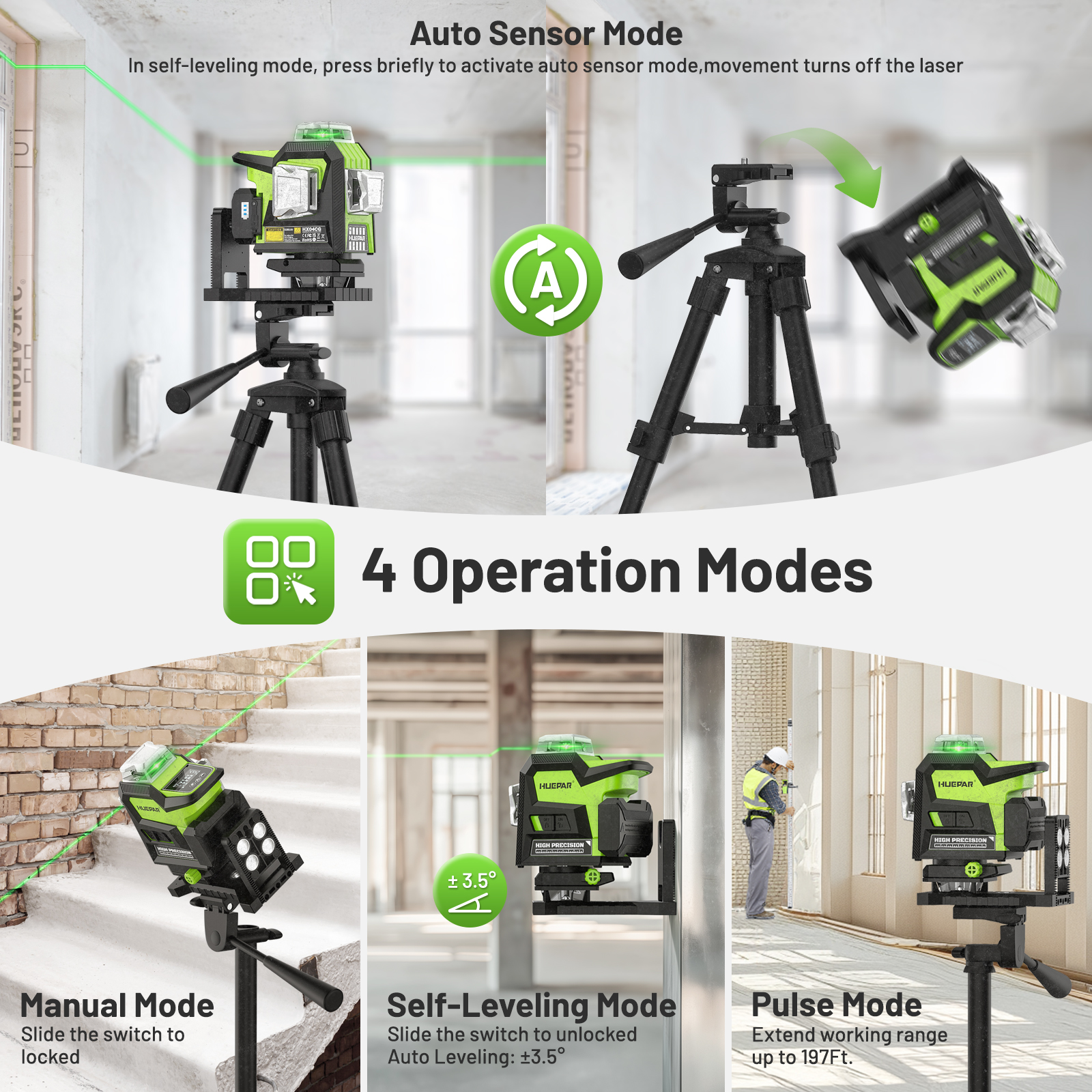

Self-levelling Mode & Manual Mode

  • Auto Sensor Mode: Automatically adjusts laser level, minimizing manual intervention.
  • Manual Mode: Allows flexible manual adjustments for specific angles.
  • Self-Leveling Mode: Quick auto-calibration for precise, efficient operations.
  • Pulse Mode: Optimized for outdoor use, extends visibility with a receiver.

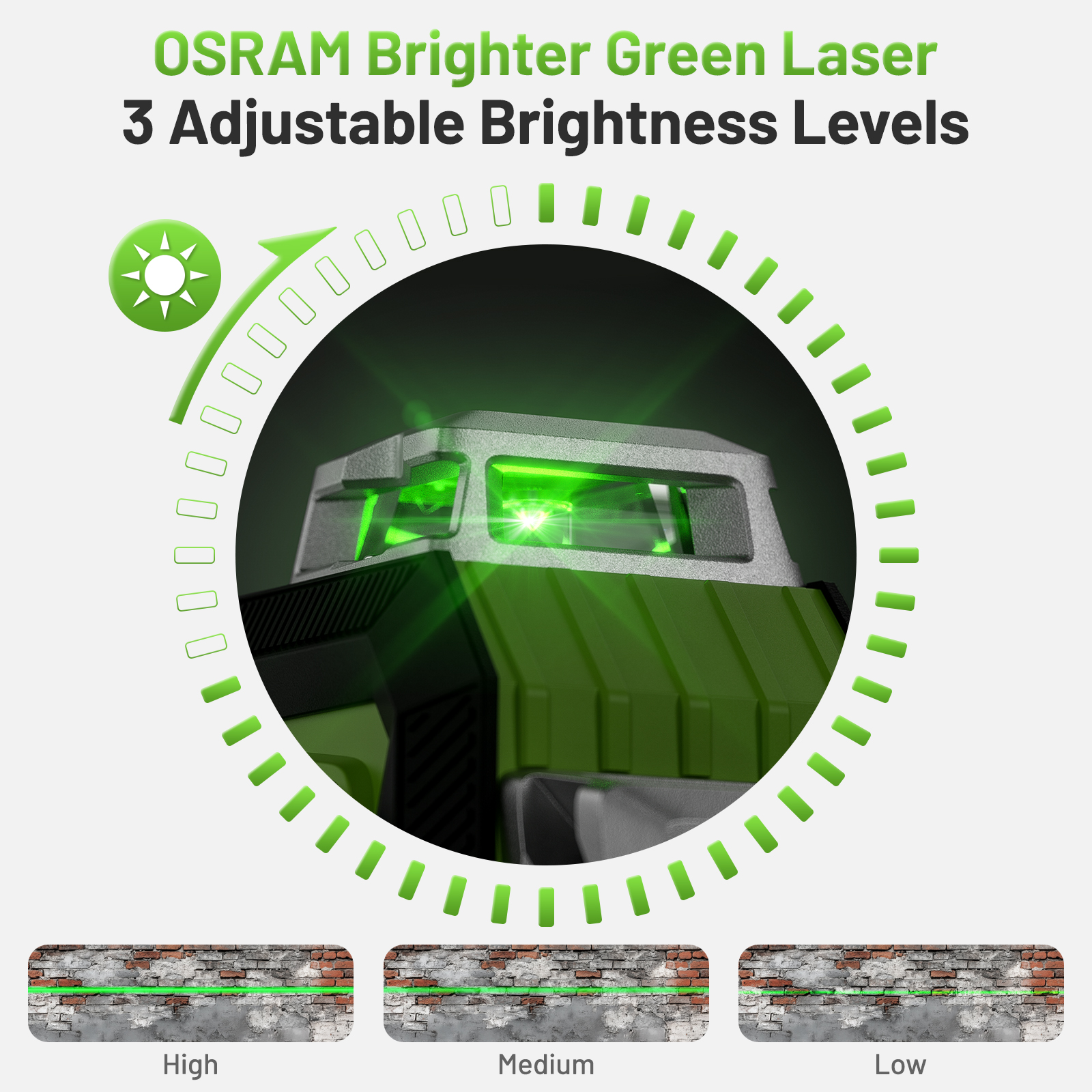

Upgraded Green Laser

Explore the remarkable capabilities of the Huepar HX04CG, featuring an upgraded green beam laser with brightness far exceeding that of ordinary beams. Whether you're working on a major construction project or a home DIY task, this tool offers a brighter, sharper reference line that ensures precision and efficiency in every job.

  • Upgraded Green Beam: Superior brightness that guarantees excellent visibility, even in demanding conditions.
  • Ordinary Green Beam: Lower brightness, more suited for use in low-light environments.

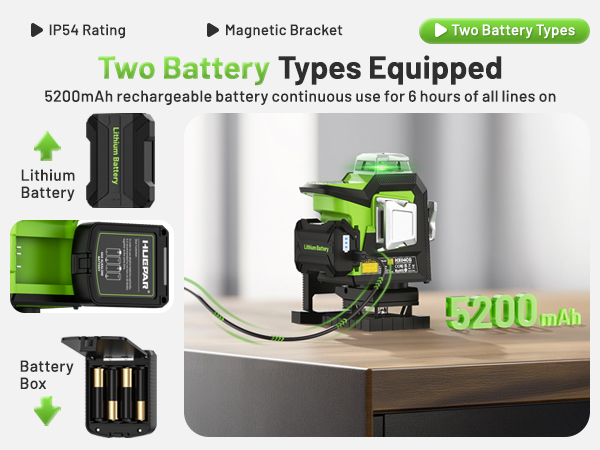

Two Battery Types Equipped for Maximum Flexibility

  • The Huepar HX04CG offers dual battery options, giving you the freedom to choose between a powerful 5200mAh lithium battery or a convenient battery box.
  • The rechargeable 5200mAh lithium battery allows for continuous use for up to 6 hours with all lines active, ensuring long-lasting performance on demanding projects.
  • Alternatively, the battery box offers flexibility by allowing the use of standard AA batteries, providing a reliable backup when needed. This thoughtful design keeps your work uninterrupted, giving you the power to stay productive, no matter the task at hand.

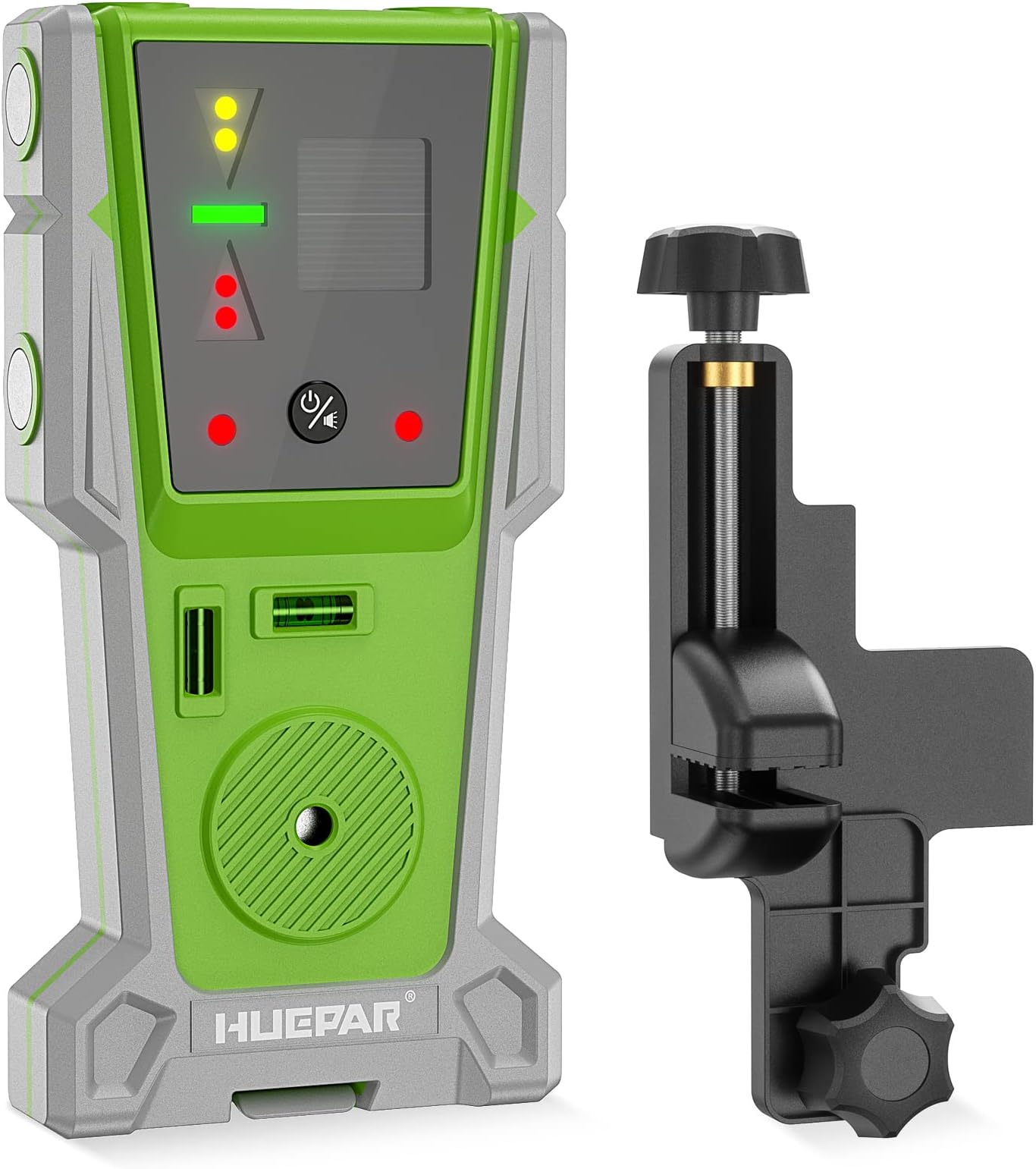

Clear Multi-Sied Readouts

  • Sunlight often makes it difficult to see the laser beams. While a laser detector can help you find out the lines.
  • And two-sided display on the front and back of this laser receiver makes it easier to get the position.

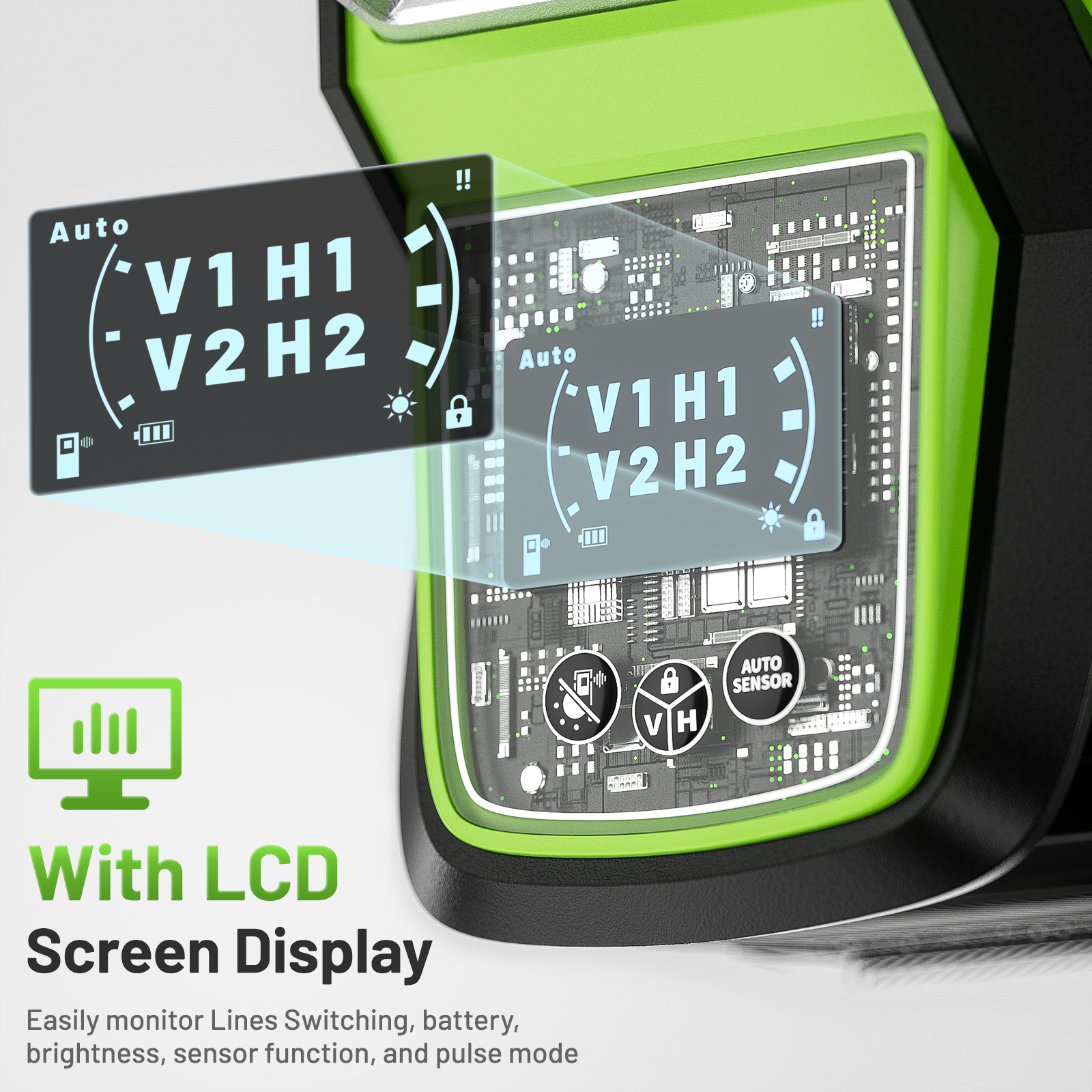

Equipped with an LCD Display

  • The Huepar HX04CG features a modern LCD display, providing an intuitive monitoring experience that makes the workflow smarter.
  • With the LCD display, you can easily track the laser's working status—real-time monitoring of laser line modes, battery level, brightness adjustments, sensor status, and pulse mode switching.
  • All information at a glance makes the operation more convenient and helps you stay efficient in various working environments, allowing you to achieve precision and efficiency effortlessly.

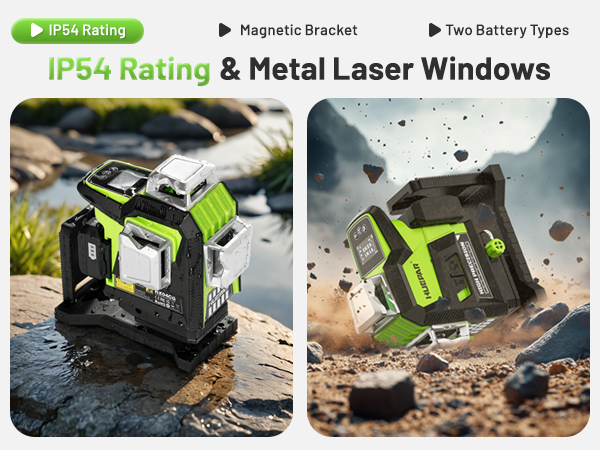

IP54 Rated & Metal Laser Window

Built to withstand the elements, the Huepar HX04CG offers IP54-rated protection against water and dust, ensuring reliability in the toughest conditions. Its robust construction features metal laser windows for enhanced durability, providing optimal performance even in rugged environments.

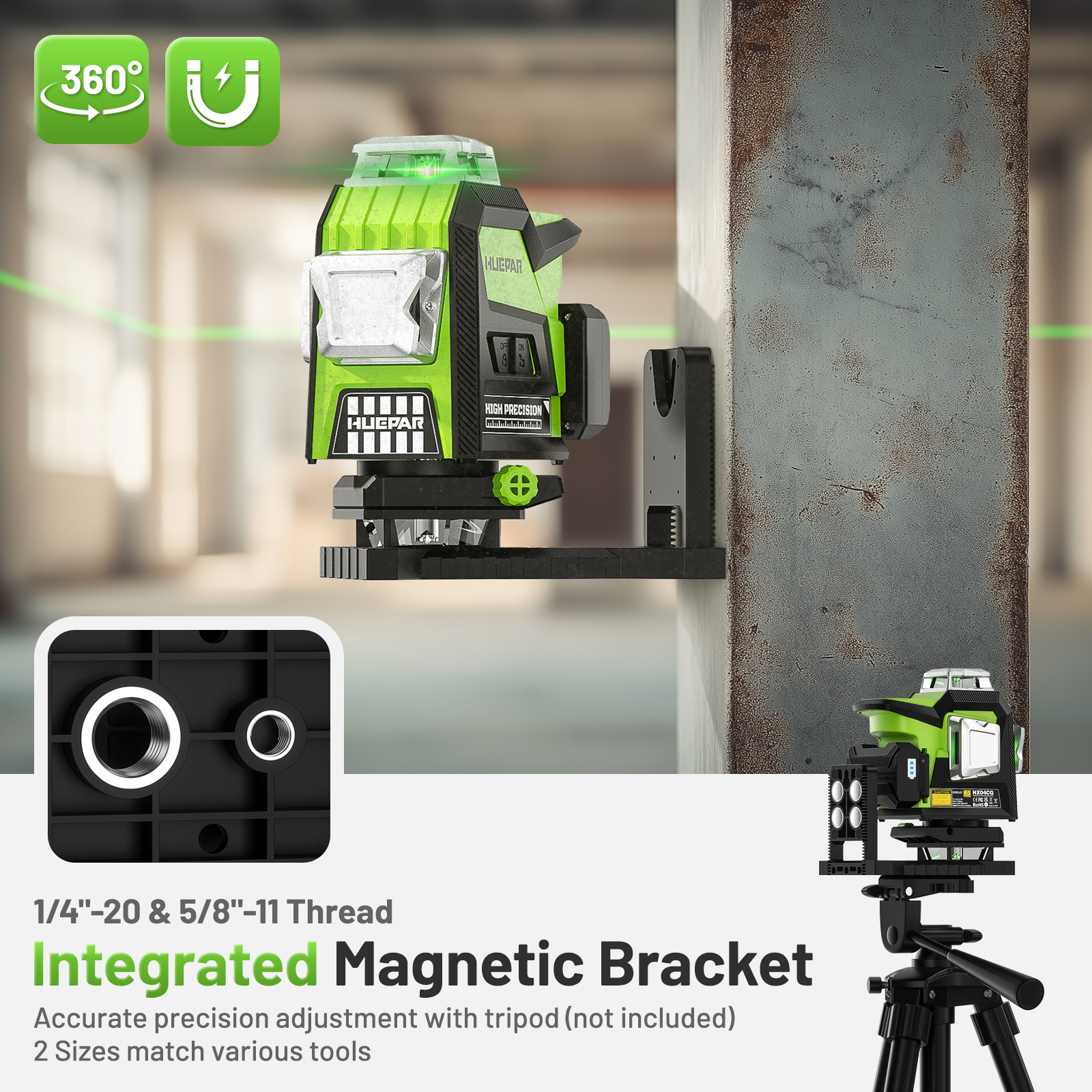

360° Multi-Functional Magnetic Bracket

  • The Huepar HX04CG comes with a 360° Multi-Functional Magnetic Bracket, designed for effortless versatility. Whether you're positioning the device on a wall, column, or using a tripod (not included), this bracket provides flexible mounting solutions, ensuring precise alignment in any scenario.
  • Additionally, the 1/4"-20 and 5/8"-11 thread sizes ensure compatibility with a variety of tools, offering maximum flexibility for different tasks. Whether mounting on a wall, column, or using a tripod, this bracket offers easy and reliable installation.

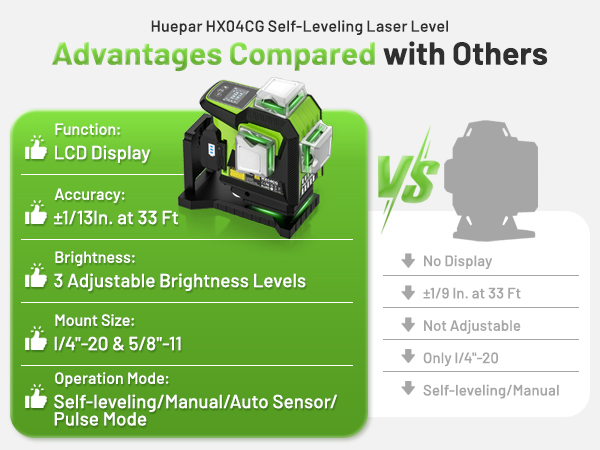

More accurate & Smart Laser Measurement Solutions

  • Function: An LCD display shows real-time status, unlike many similar products that lack this feature.
  • Accuracy: Offers an accuracy of ±2mm at 10m, significantly surpassing other products with ±3mm.
  • Brightness: Features 3 adjustable brightness levels to adapt to different lighting conditions, guaranteeing laser visibility. Competing models often lack this adjustability, limiting usability.
  • Operation Modes: Supports Self-Leveling, Manual, Auto Sensor, and Pulse Modes, offering more flexibility than products with only basic modes.

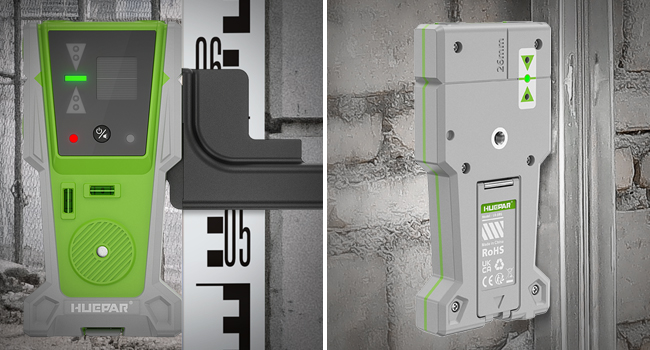

Move the Detector as the Direction Shown

  • Datum Lower than Laser Beam – Move Up
  • Datum Higher than Laser Beam – Move Down
  • When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

Huepar LP36 3.7m Laser Mounting Pole:

  • Huepar LP36 3.7m laser mounting pole is designed to work with your line or rotary lasers to help you level structures, level grade job sites, and prep farmland.
  • Huepar LP36 multi-purpose support rod made of aluminum with a polyurethane coating for durability. Easy to read, Graduations are marked in black on the yellow pole in inches and centimeters.
  • An ideal telescopic rod for any worksite using tools that can be easily placed at any height between the floor and ceiling
    The Tail Rod Section with Arbitrary telescopic rod section can telescope out another 53cm.
  • It has 3.7m/12.18ft when fully assembled with all sections and both end parts.

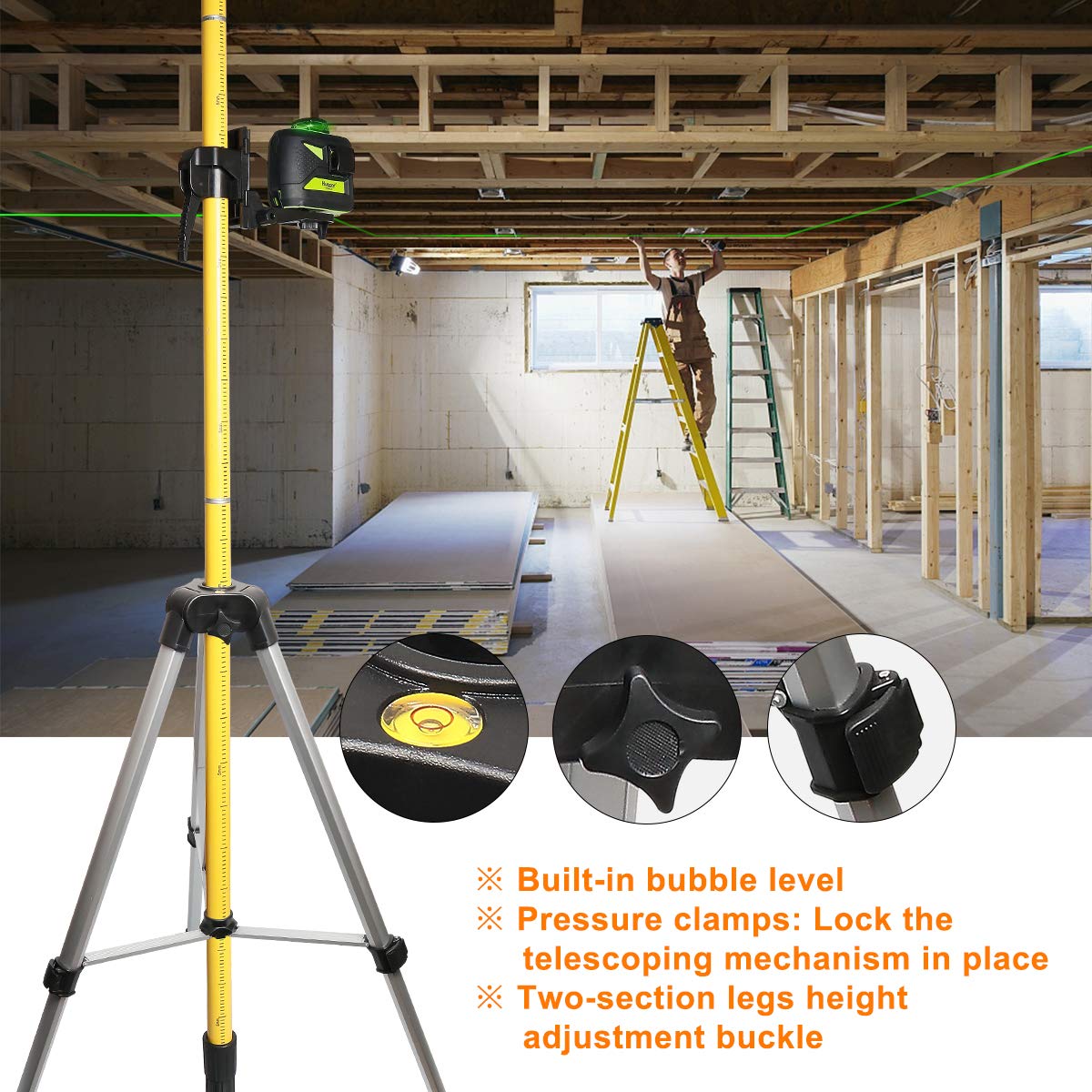

Applicable Accessories:

  • Two-section legs height adjustment buckle to meet your different needs, height adjustable range 0.48m-0.84m.
  • While a screw clamp on the side of the head stabilizes the pole so that it won’t shift.
  • A small bubble level embedded in the head to ensure that your measurements will be as accurate as possible.

Adjustable Mounting Bracket:

  • The bracket can be placed at any height of the rod according to your needs.
  • With a Height Fine-tuning knob, the fine-tuning range is 7cm. There is a screw for fixing the adjusted height.
  • Can be adjusted within 5cm in depth so it can be used with any instrument that measures 6.5-11.5 from the back.
  • Mounting Bracket with 1/4"-20 Male Thread and 5/8"-11 Thread Adapter, compatible with most line lasers and rotary lasers.
