9211G Laser Level Specifications:

  • Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW

  • Laser Wavelength: 510~530 nm

  • Leveling Accuracy: ±3mm/10m

  • Leveling/Compensation Range: 4°±1°

  • Up Plumb Accuracy: 2mm/10m

  • Down Plumb Accuracy: 3mm/10m

  • Working Distance (Dot/Line): 60m/ 25m (100 LUX)

  • Operating Time: 6 hours with all laser beams on

  • Power Source: 2×˝AA˝ (LR6), >1500mA

  • IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough

  • Operation Temperature Range: -10℃-＋50℃

  • Storage Temperature Range: -20℃-＋70℃

  • Size: 9.3x6.4x8cm (3.7”x2.5”x3.1”)

        Warning:

        Avoid direct exposure of the laser beam to the eyes.



    Items in the Package:

  • 1 X Huepar 9211G laser level( No including battery )

  • 1 X 360 Degree Magnetic pivoting base

  • 1 X Green laser target card

  • 1 X Cloth case

  • 1 X English User's Manual

  • 1 X Huepar TPD05 Tripod

  • 1 X Quick Release Plate with 1/4"-20 Screw Mount

  • 1 X Carrying Bag

     Self-leveling mode & Manual mode

  • Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is on. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).

  • Manual mode:

When the pendulum lock is in locked position, you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.





     Features:

  • ★ 2-IN-1 TOOL: Lay out two green beams with a combination of up and down points from floor to ceiling, the expanded angle can be reach to 180 degrees. Huepar 9211G combines all the features of 9011G plus two dots.
  • ★ TWO MODES: The self-leveling function that gives you accurate marks almost instantly. Manual mode perform layout tasks with any angle you like. (Can not switch from horizontal and vertical lines to plumb dots).
  • ★ ACCURATE: The 9211G has a 25 meters interior range, and offers cross line accuracy of ±3mm at 10 meters, up beam accuracy of ±2mm at 10 meters and down beam accuracy of ±3mm at 10 meters.
  • ★ RUGGED: dust proof, waterproof, shockproof, operation temperature range -10℃ ~ 50℃. This versatile tool can help with everything from acoustic ceiling or door and window installations to wallpaper, drywall, and tile jobs.
  • ★ WARRANTY: Industry-leading 2 Year Warranty.

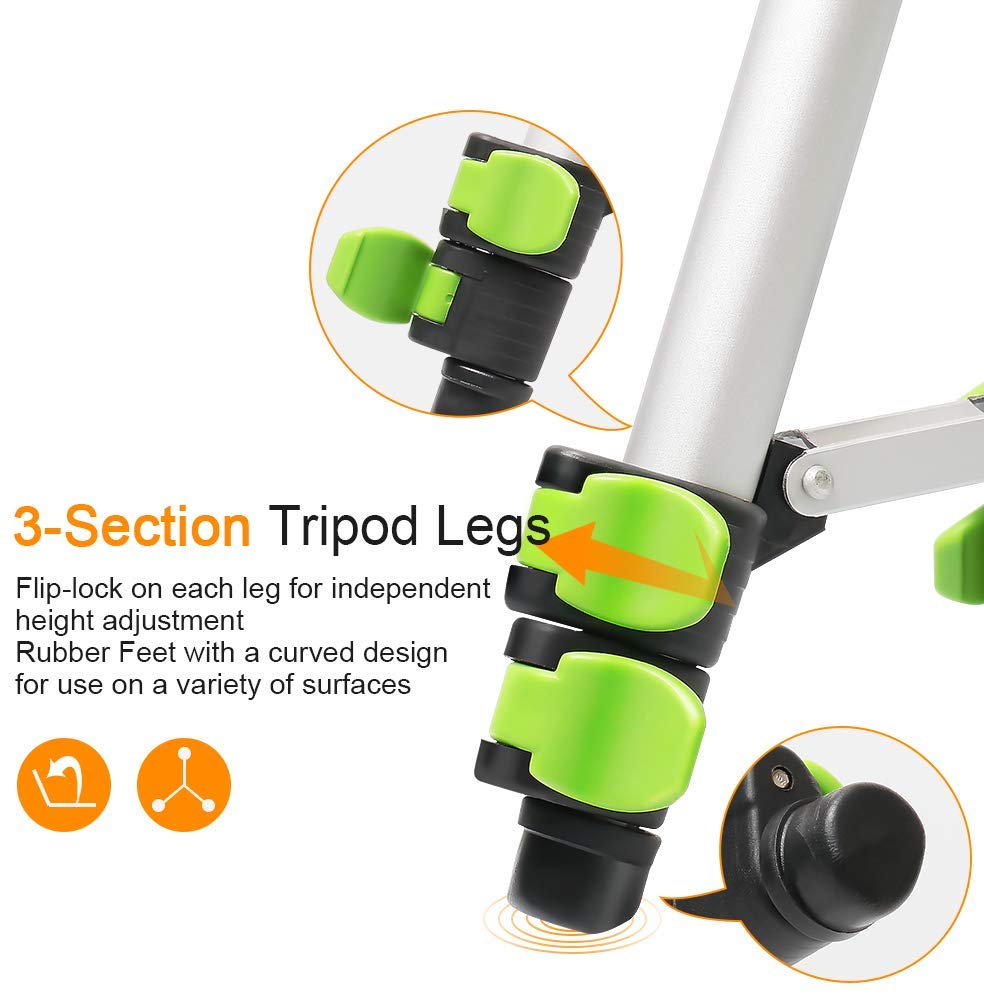

Adjustable 3-Section Legs & Center Column



  • 3 section legs height adjustment buckle, extended center column to meet your different needs.
  • Leg with quick lock adjusts from 0.8 feet to 1.64 feet.
  • Maximum carrying capacity: 0.8 pound.

3 Way Head for Easy Operation

The 3-Way Flexible Pan Head Provides 360-degree Rotation Panoramas, allows you to rotate at any angle horizontally and vertically.

Rotate the knob to adjust:



  1. Adjust the tilt angle of the gimbal within 90°
  2. Swivel the handle clockwise or counterclockwise: adjust the ball head vertically
  3. Rotate 360 horizontally
  4. Center column section height adjustable & 360° horizontally Rotation
