Miranda GV Densite 2 Frame w/ (10) AMX-1881 AES 8CH Audio Embedder +ETH2N +DRP
Miranda GV Densite 2 Frame w/ (10) AMX-1881 AES 8CH Audio Embedder +ETH2N +DRP
Miranda GV Densite 2 Frame w/ (10) AMX-1881 AES 8CH Audio Embedder +ETH2N +DRP
Functional Condition: Fully Functional
Cosmetic Condition: Very Good
CONDITION:
Functional: Fully Functional
Cosmetic: Very Good
Scroll down for additional photos
Overview:

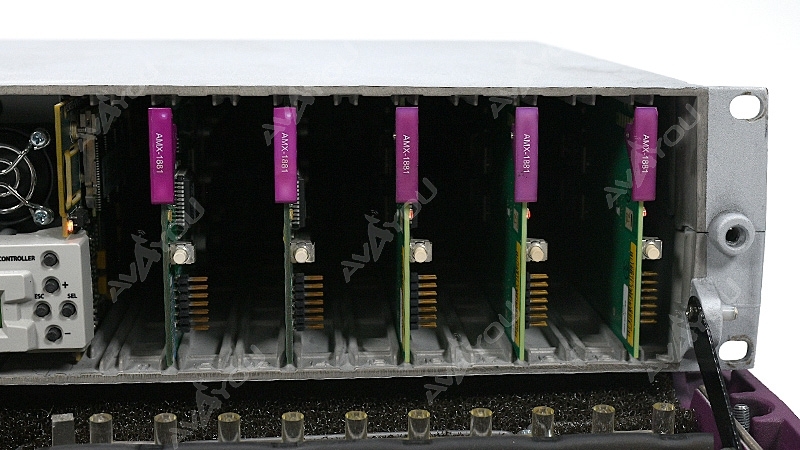

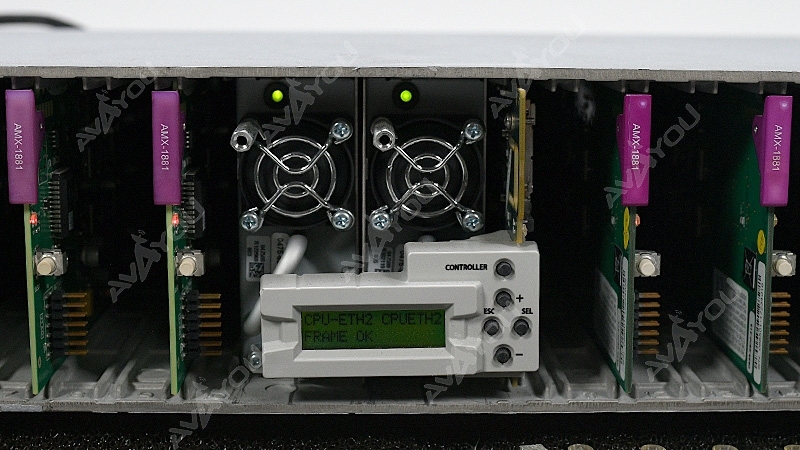

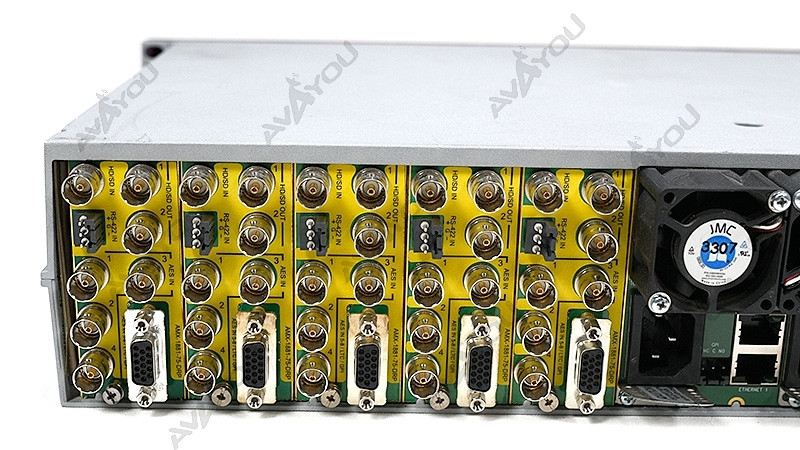

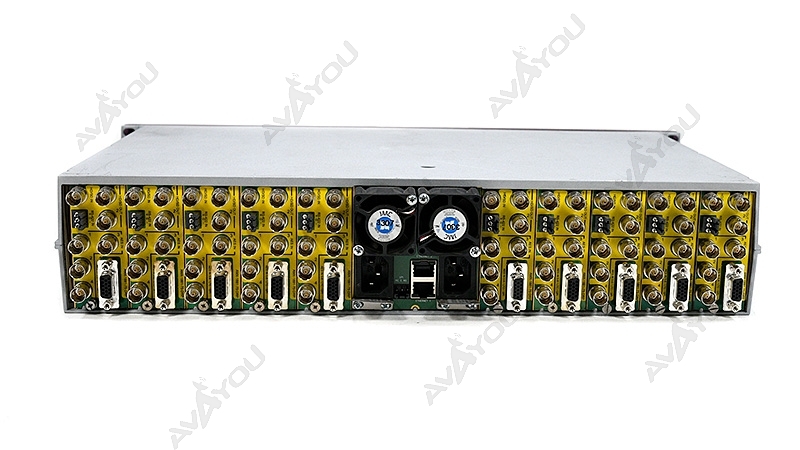

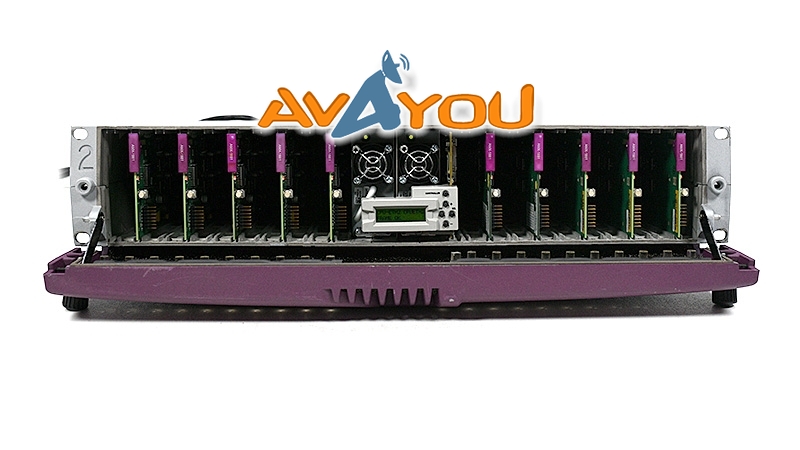

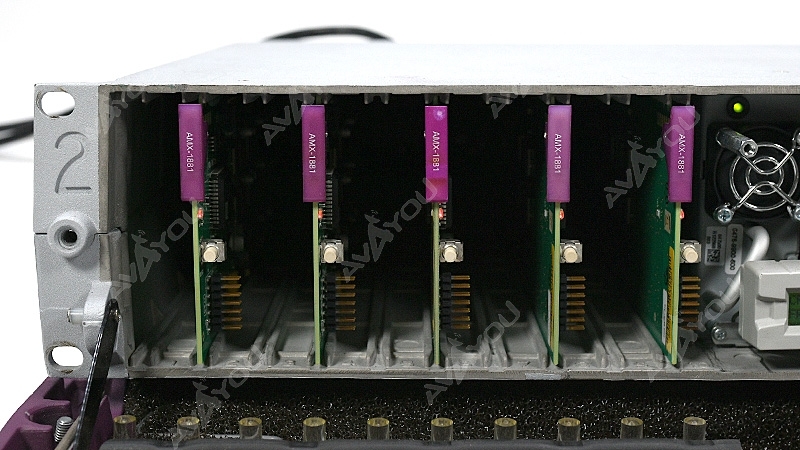

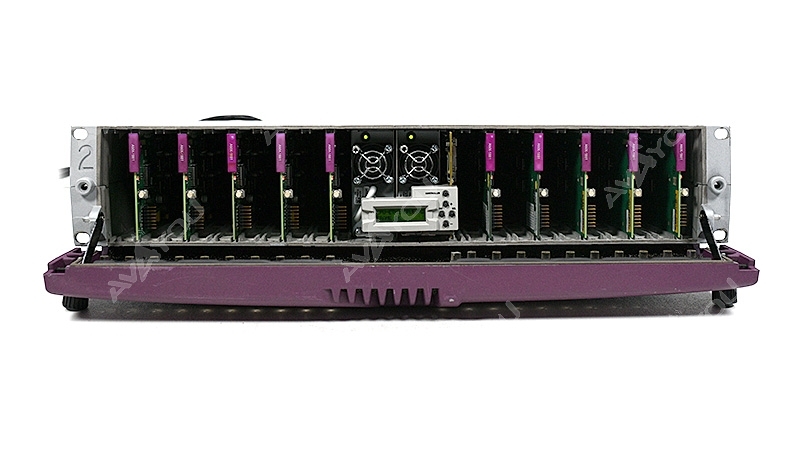

For sale is ONE (1) Miranda frame populated with (10) AES audio embedder cards. Very good condition with some minor scratches. Frame has two power supplies plus CPU-ETH2 Frame controller (newer plastic one). All corresponding backplanes are included. Actual photos are showed. Power cords are not included unless otherwise mentioned. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.
SKU# 6704
Description:

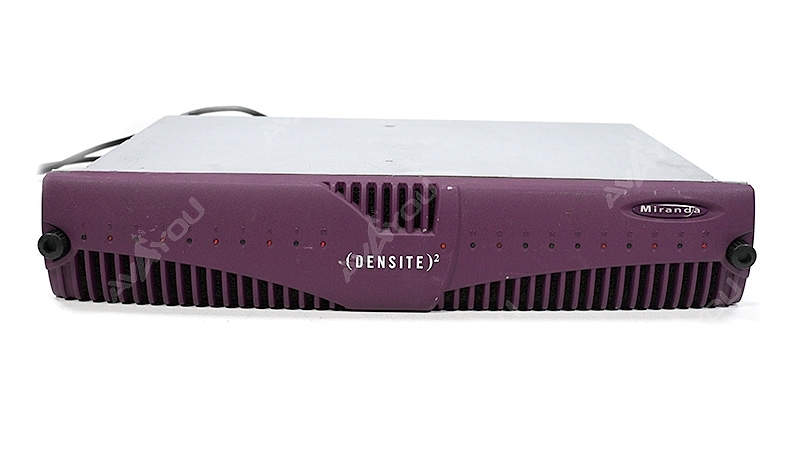

The 2 RU Densité 2 Frame can simultaneously process 3G, HD, SD and analog video, as well as AES and analog audio. Its front-opening frame features dual hot-swappable power supplies (PSUs) and fans. Modules for the air-cooled frame are also hot swappable, and replacement modules can be configured automatically. All modules, redundant PSUs and fans are monitored to deliver status via GPI or an Ethernet port. Front panel multicolor LEDs provide status reporting, while a controller card allows card adjustments from the front panel.
The AMX-1881 is a high-quality interface which embeds up to eight AES 24-bit 48 kHz digital audio signals into a single HD/SD serial digital video signal. The module offers audio and video signal presence detection and reporting, and local or remote configuration and control. A unique feature is its ability to embed timecode, a serial RS-422 data signal (including Dolby metadata) and two GPI status signals into the video signal. The card also serves as a VLI and AFD inserter for an SD or HD signal. The card has built-in audio tone, timecode and video color bar test signals. By combining AMX-1881 embedder and ADX-1881 de-embedder cards, a full duplex link may be established.
Features:
  • AMX-1881 - HD/SD 8 AES Embedder
  • Cable length: up to 110/250m (360/820 ft.) of Belden 1694A
  • HD/SD-SDI input with automatic equalization
  • Video signal: HD/SD-SDI SMPTE ST 292/SMPTE ST 259-C
