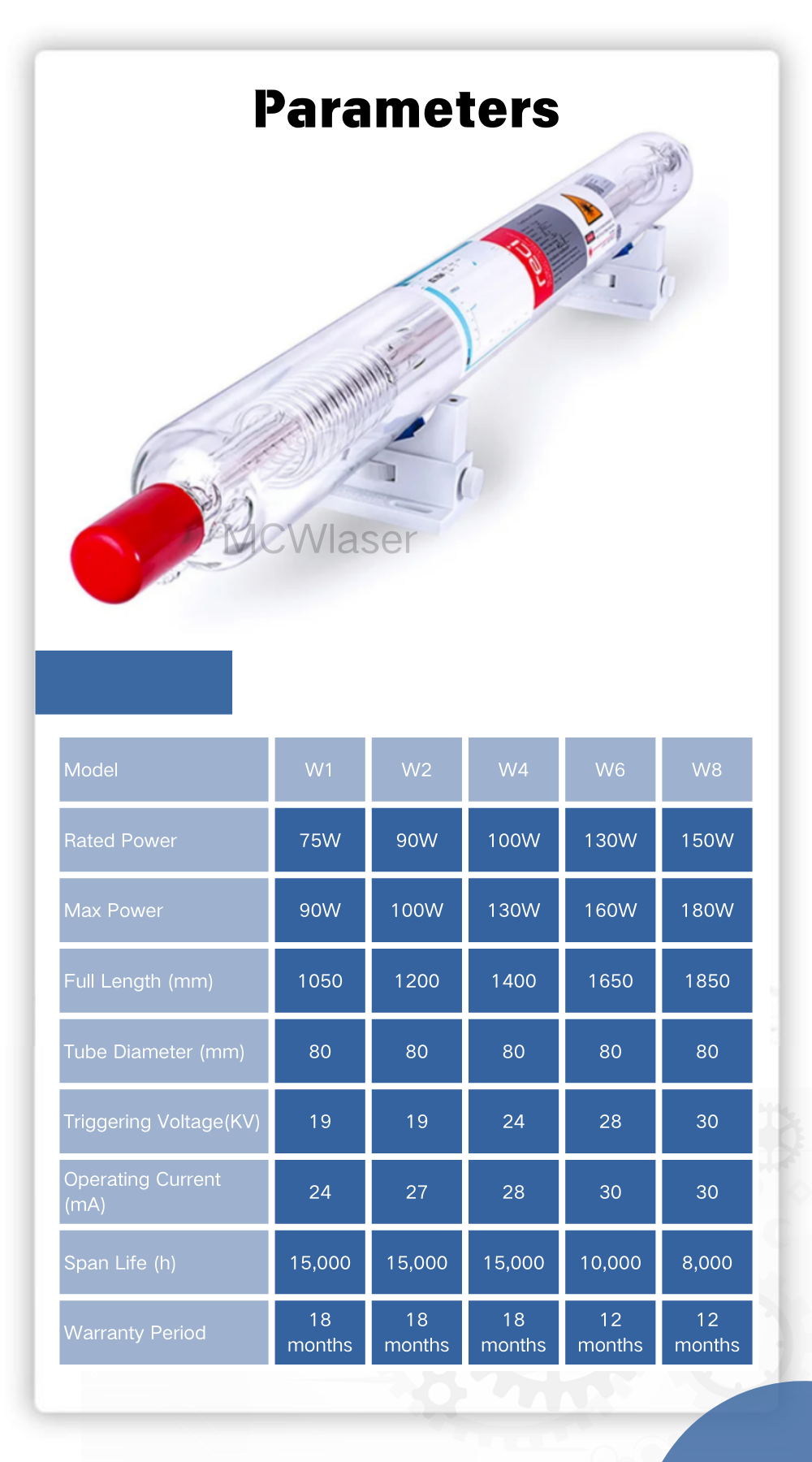

• Model: W6 Power: 130-160W L: 1650mm Dia.80mm
• Expedited Shipping with Wooden Box Packing
• 10000 hours lifespan,12 months Maintenance;
• Better performance, more stabilty & higher efficiency
• Replacement parts for co2 laser engraver laser marking, laser cutting and laser engraving machine

Feature:

1.The most advaced technique；Longer service life；Good beam mode,good stability.

2.It can replace all RECI old model tube, such as S series (S1,S2,S4,S6 S8) and Z series (Z1,Z2,Z4,Z6,Z8)

3.It can replace almost all brand glass CO2 laser tube with the same power or similar length,such as Yongli and EFR,etc.

4.It can be used to upgrade upgrade of laser tube.

5.It should be worked with compatible power supply.

6.Full of catalyst, it can increase service life and power better.

7.About 10000 hours service life; 18 months warranty for W1,W2 and W4 model, 12 months warranty for W6 and W8 model.

Package List:

W6 Laser Tube x 1pcs

Installation Requirement
Make sure to follow the operation instructions of model W6 as shown in the illustration. The dedicated power DY20 should be equipped. The positive pole is in high voltage (The ignition voltage is 28kv). It may cause the following consequence when it is failed to follow the instruction: Arcing; the inner tube will be punctured by electricity and may cause water leakage.

Operation conditions
• Water cooling: Using purified water; 3 to 5 liter / minute; water temperature: 10℃ - 40℃.
• The operating environment: temperature 2 - 40℃, humidity 10-60%.
• The working current: test current is 29mA. Maximum working current is 32mA. The running current must be kept below 30mA. The life span can reach 10,000 hours if the current is kept below 28mA. The ammeter indicating current must be connected to the negative electrode of the laser tube.
• When it is working under over - high current for long term, the negative pole will appear light yellow, and the life span will be reduced rapidly.
• To protect dust from going into the insulation sheath, please wrap it with plastic film.

Working Performance
• Cutting function.
Key Notes
Do not clean the exterior surface of the output widow mirror with tools such as tampon; otherwise the output power will be seriously affected. The followings are the designated methods to clean up pollution in the exterior surface of window mirror:
1) When the mirror is polluted, do not turn on the laser.
2) Blow the mirror surface sideway with air blower.
3) Spray the pure alcohol on the mirror surface with sprayer.
4) Turn on the laser after the alcohol gets fully volatilized.
5) If the methods above don't work effectively, it is necessary to ask for the professional to use tampon with alcohol to clean the mirror surface from middle to edge. The best solution is to prevent the window from being polluted.

Attention:
It is forbidden to clean the mirror with acetone.
The screw in the front and back ends of the laser tube is not allowed to be moved, otherwise the out power will be declined and even the tube may be scrapped.
Put the acryl 300mm far away from output mirror, when testing the laser spot.

Safety
The laser beam is invisible light. Please wear protective glasses when debugging the laser. The positive pole is in high voltage. Pay attention to the security marks.
