Product Description



ECG
Lead Type	Display Gain	Band Width	Lead Set	Sweep Speed
Integrated ECG electrodes External ECG cable and electrodes	1.25 mm/mV, 2.5 mm/mV, 5 mm/mV10 mm/mV, 20 mm/mV	0.05 to 40 Hz	Lead I, lead II	25 mm/s
Electrode Offset Potential Tolerance	Measure Mode	Accuracy	Sampling Rate	HR Measurement Range
±300 mV	Episode, continuous	±2 bpm or ±2%, whichever is greater	500Hz	30 to 250 bpm
Sampling Accuracy	ST Measurement Range	Measurement Summary
16 bit	-0.5 to +0.5 mV	Heart rate**, QRS duration, ST segment***,QT/QTc Rhythm analysis(Regular ECG Rhythm, High Heart Rate, Low Heart Rate, High QRSValue, High ST Value***, Low ST Value***, Irregular ECG Rhythm,Unable to analyze)

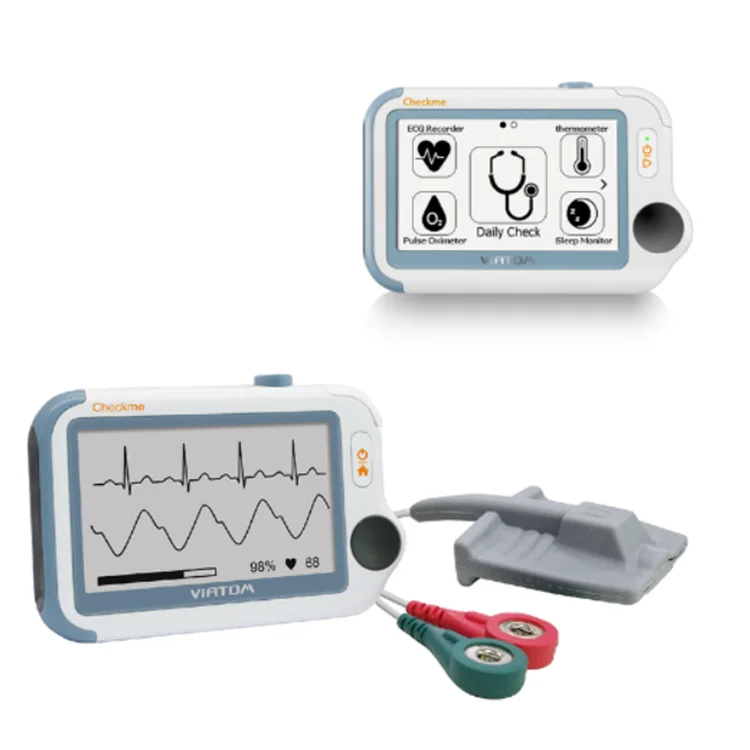

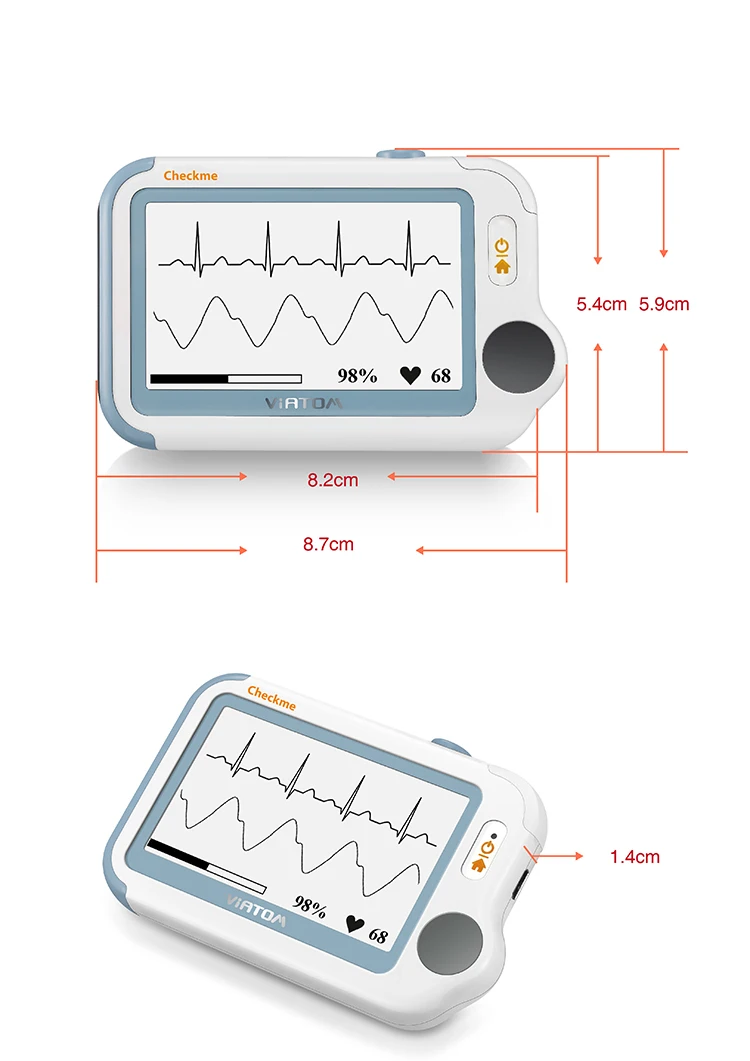

Detailed Images
