Features:
1. Power-off memory function: Supports single or staged discharges; the final total capacity can be read once the power bank is completely depleted.
2. Power bank capacity testing: Say goodbye to concerns about inflated capacity claims—simply use a USB tester to measure the actual battery capacity (mAh).

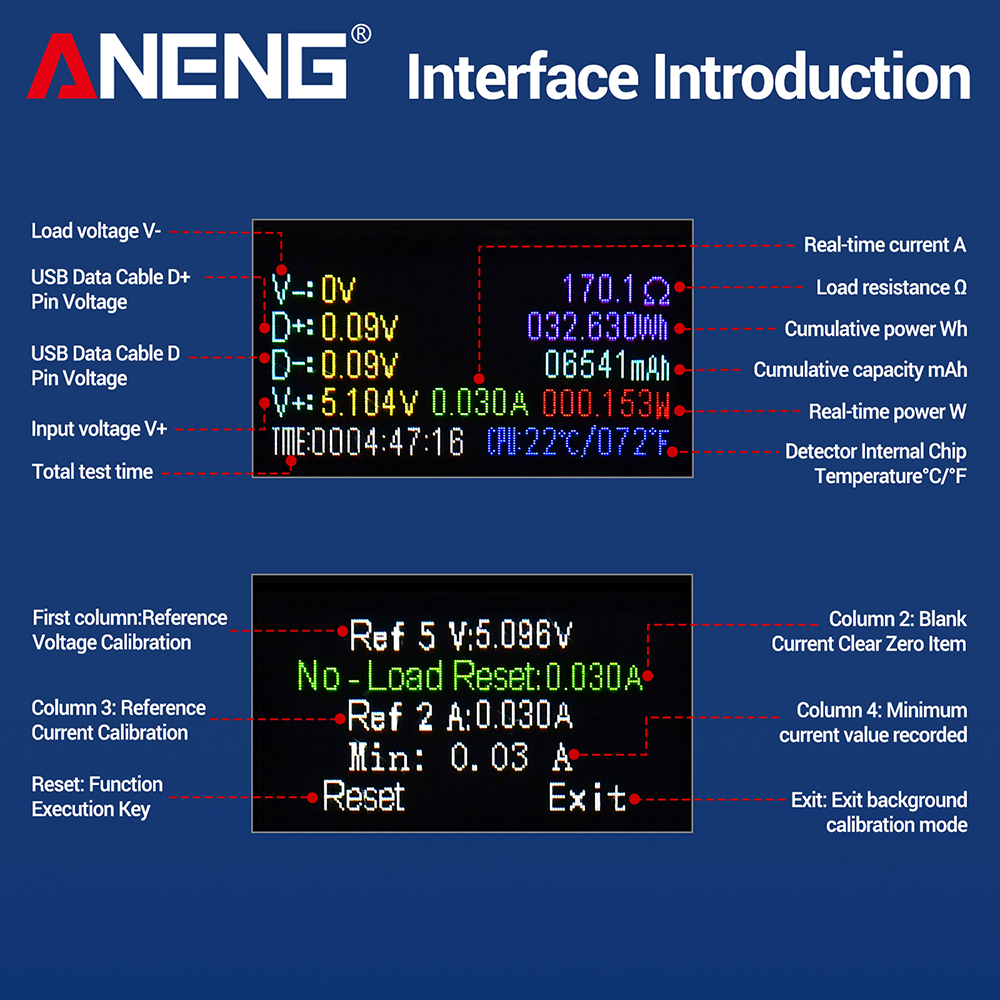

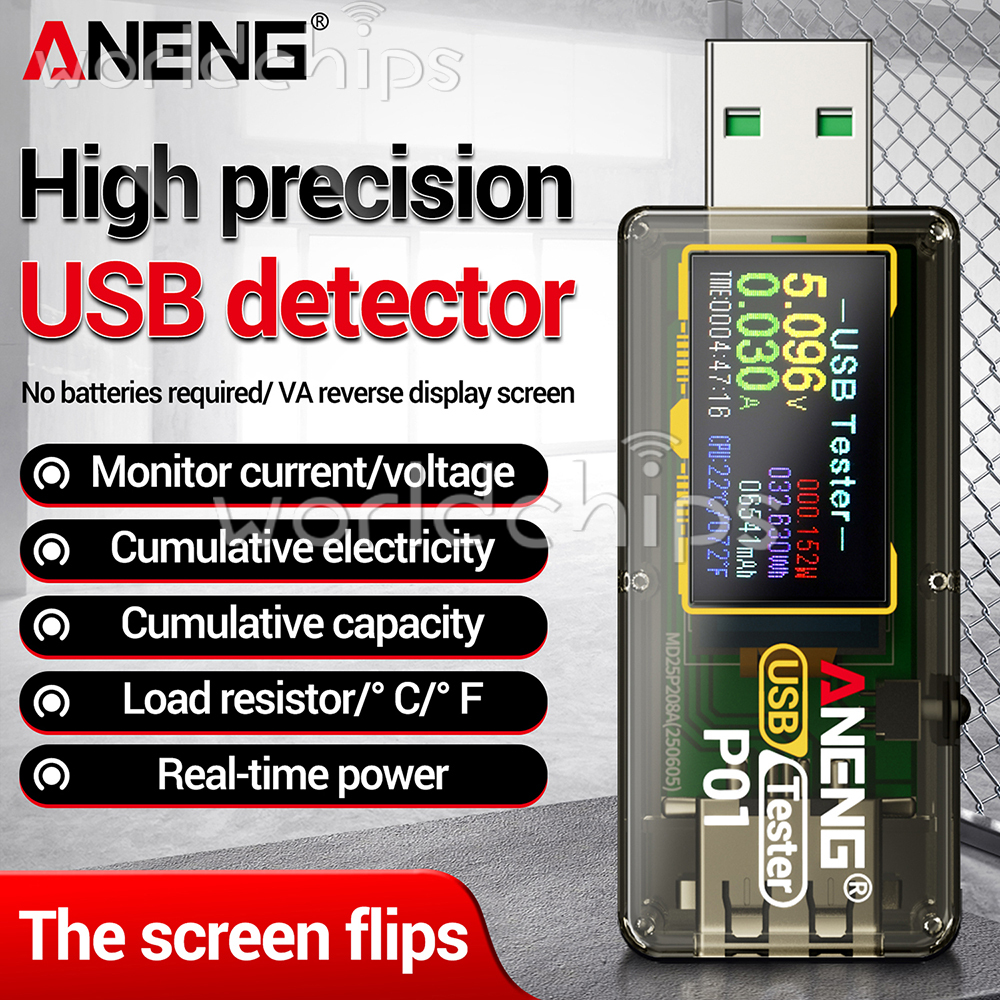

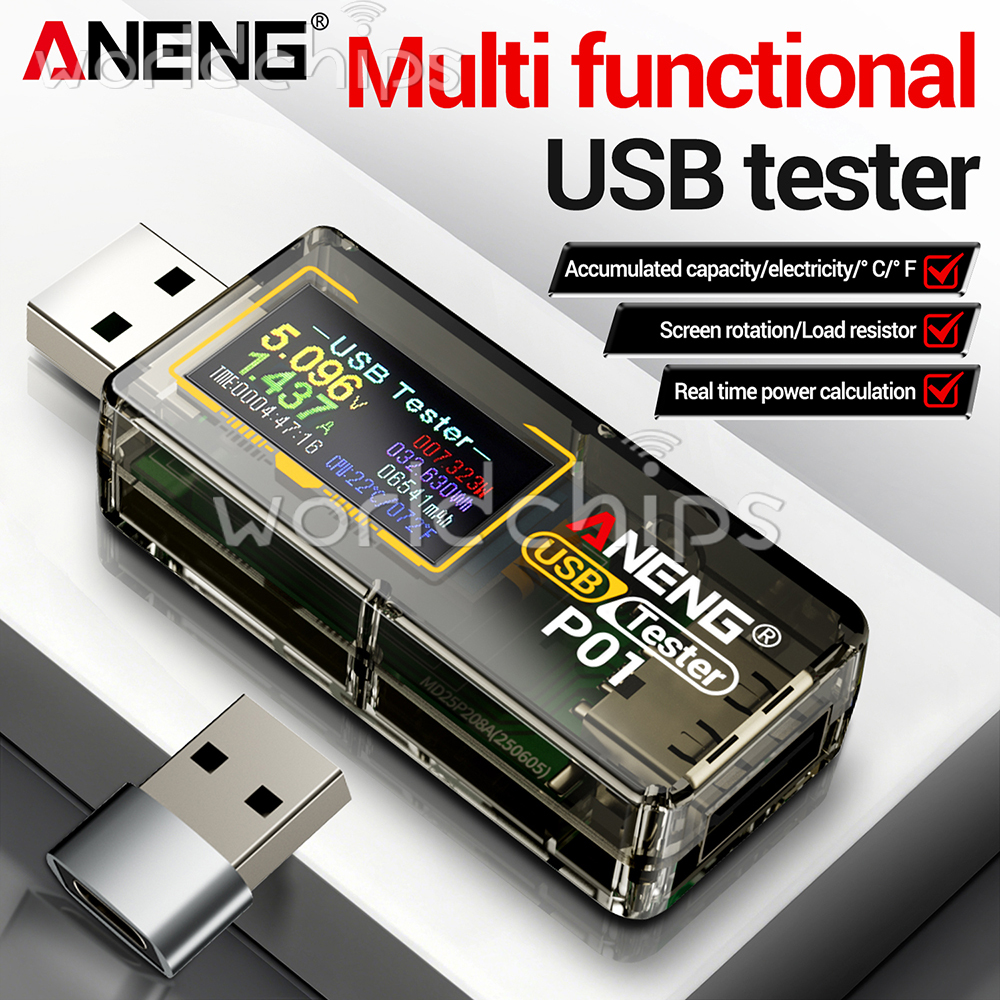

3. Comprehensive test data display: Monitor charging performance with full visibility into voltage, current, power, temperature, capacity, charge level, and time.

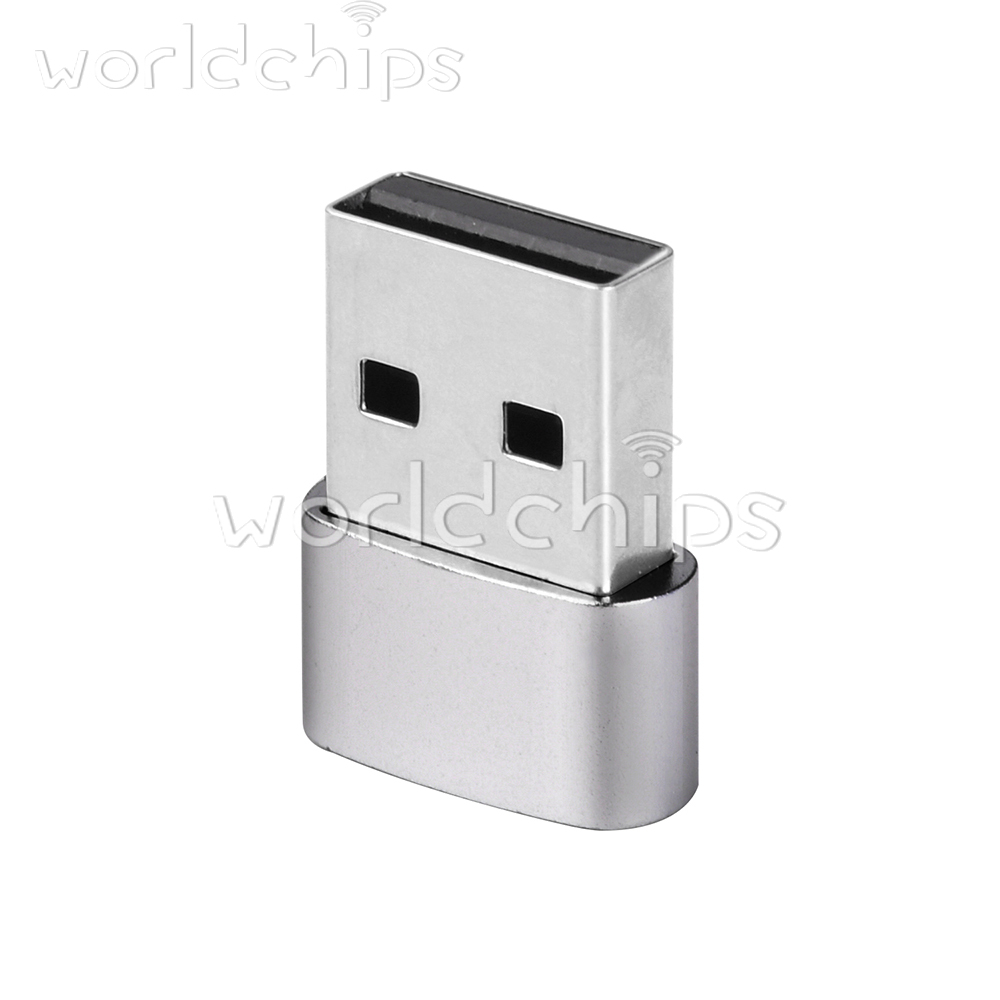

4. Compatibility with Various Devices: Includes a USB-to-Type-C adapter; with a simple connection, it instantly supports Type-C devices such as smartphones and laptops, expanding measurement capabilities.
5. Itemized Data Reset for More Efficient Testing: On screens 1 or 2, double-tap to reset capacity, triple-tap to reset charge level, and quadruple-tap to reset time. A long press resets all values, eliminating the need for repeated testing and making measurements more efficient.
1. Power-off memory function: Supports single or staged discharges; the final total capacity can be read once the power bank is completely depleted.
2. Power bank capacity testing: Say goodbye to concerns about inflated capacity claims—simply use a USB tester to measure the actual battery capacity (mAh).
3. Comprehensive test data display: Monitor charging performance with full visibility into voltage, current, power, temperature, capacity, charge level, and time.
4. Compatibility with Various Devices: Includes a USB-to-Type-C adapter; with a simple connection, it instantly supports Type-C devices such as smartphones and laptops, expanding measurement capabilities.
5. Itemized Data Reset for More Efficient Testing: On screens 1 or 2, double-tap to reset capacity, triple-tap to reset charge level, and quadruple-tap to reset time. A long press resets all values, eliminating the need for repeated testing and making measurements more efficient.

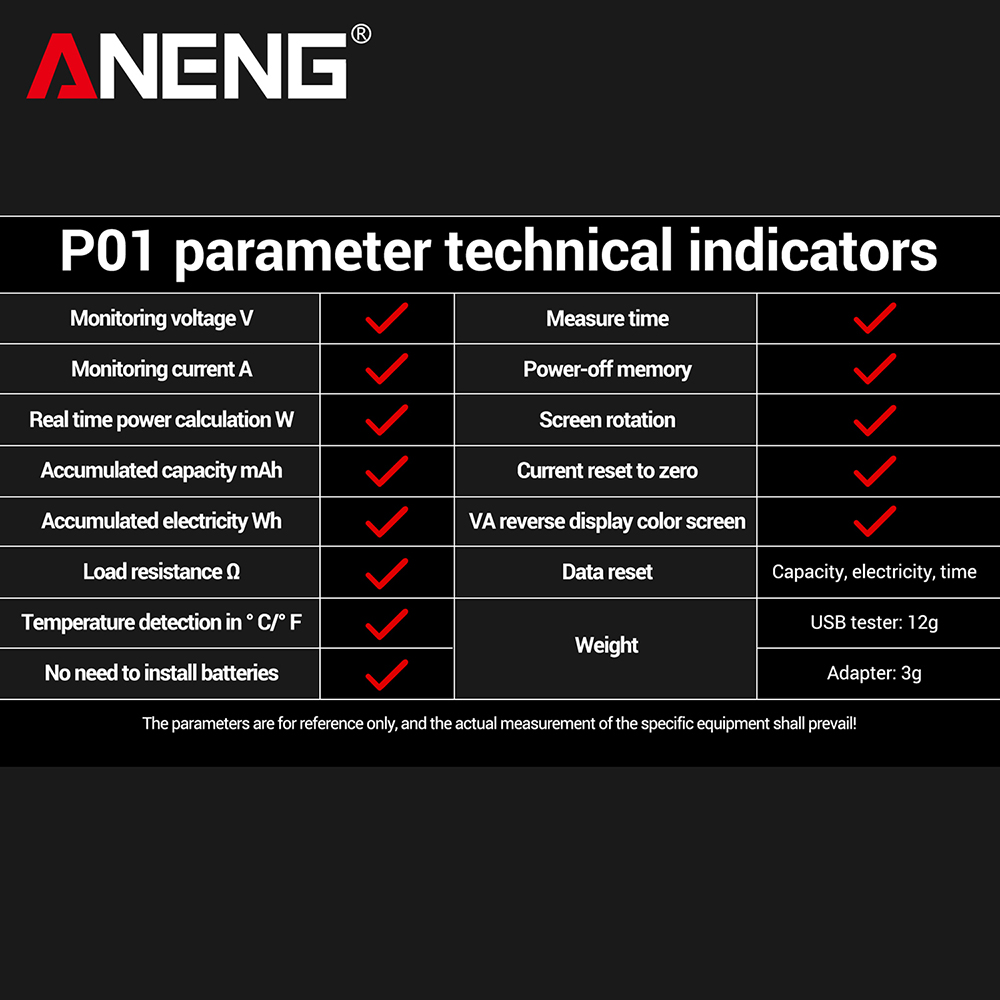

Specifications:

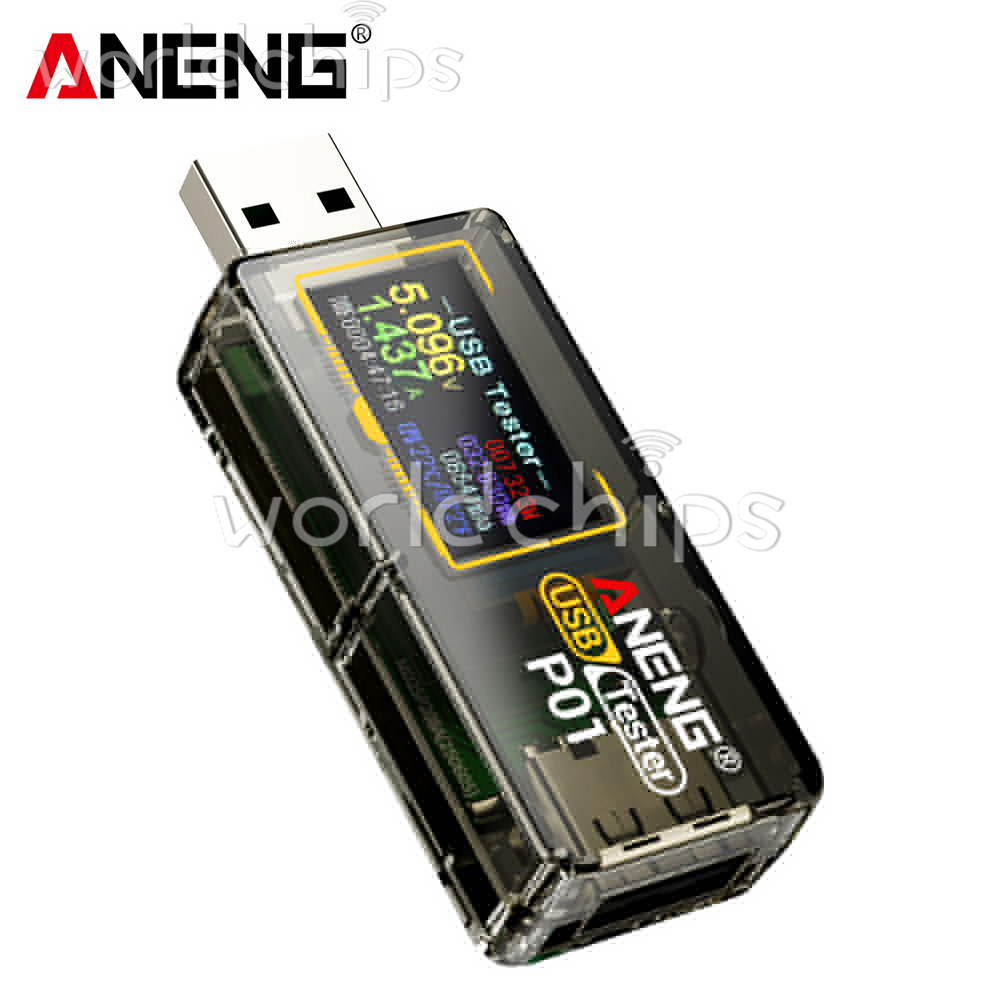

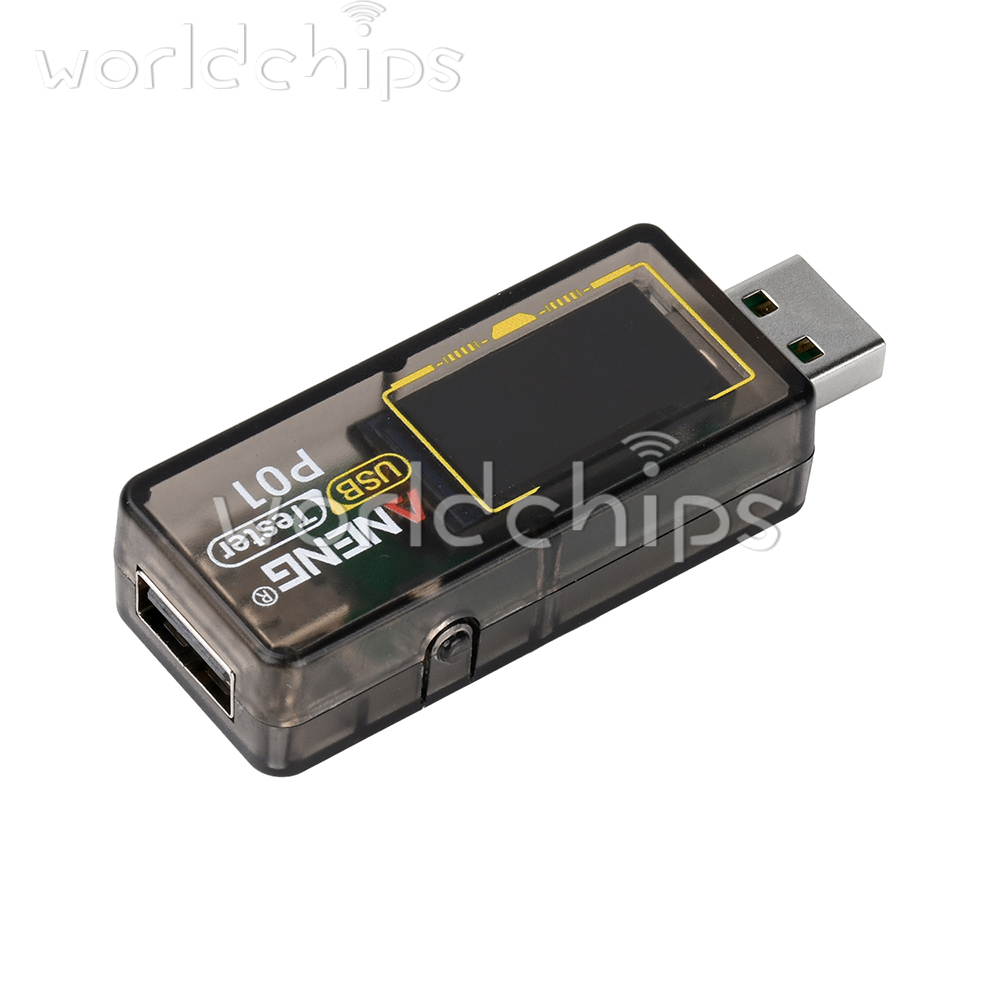

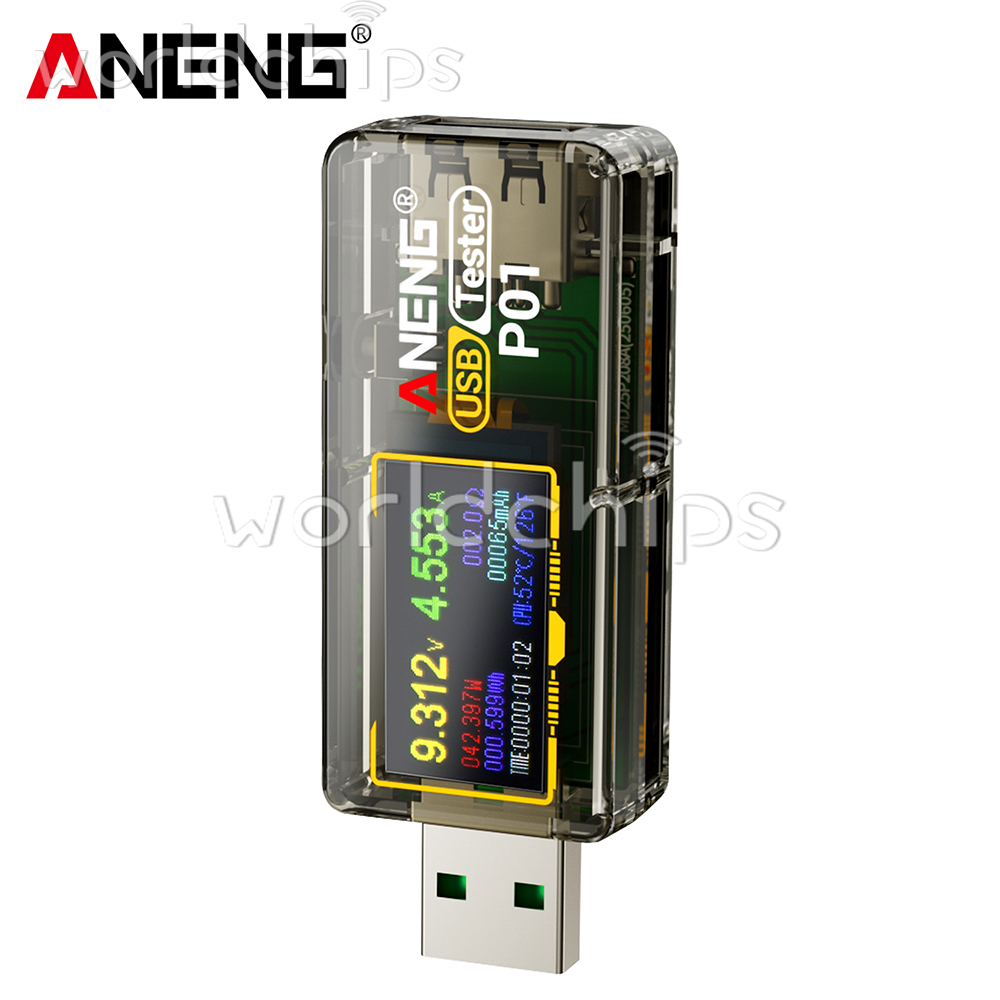

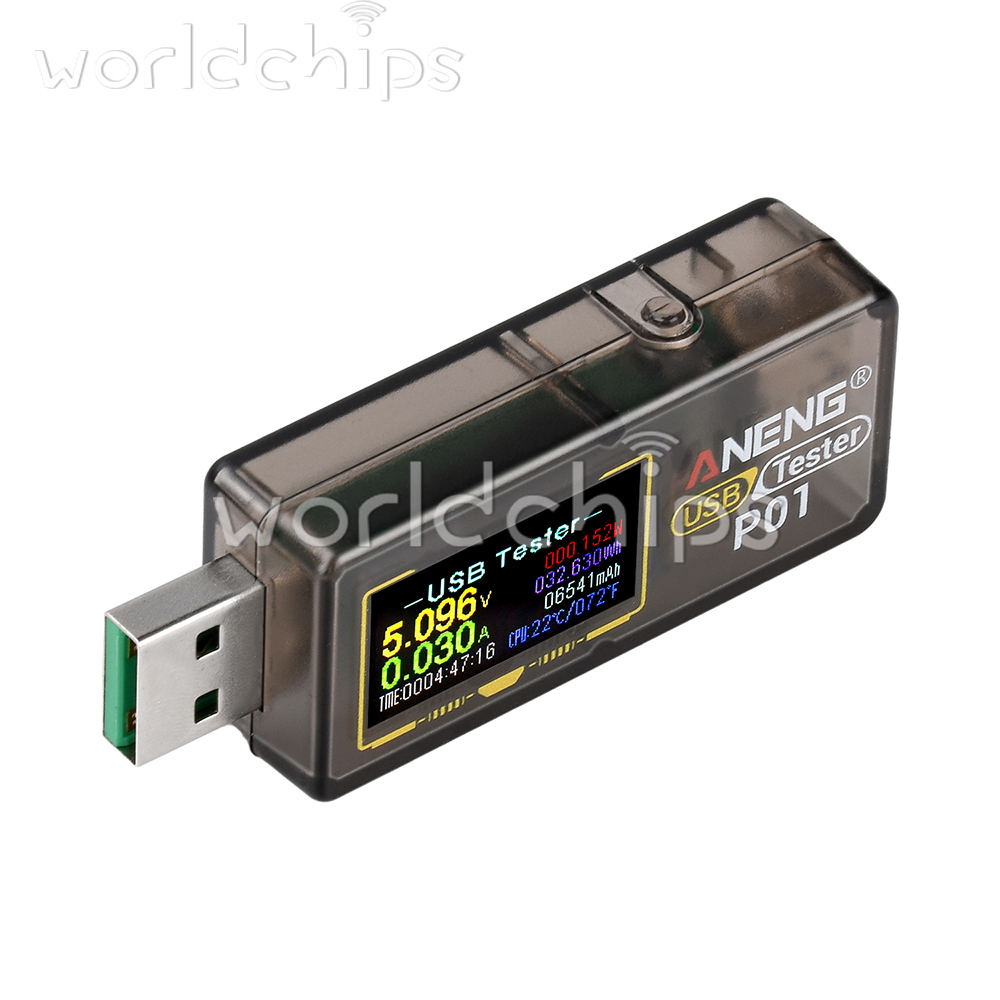

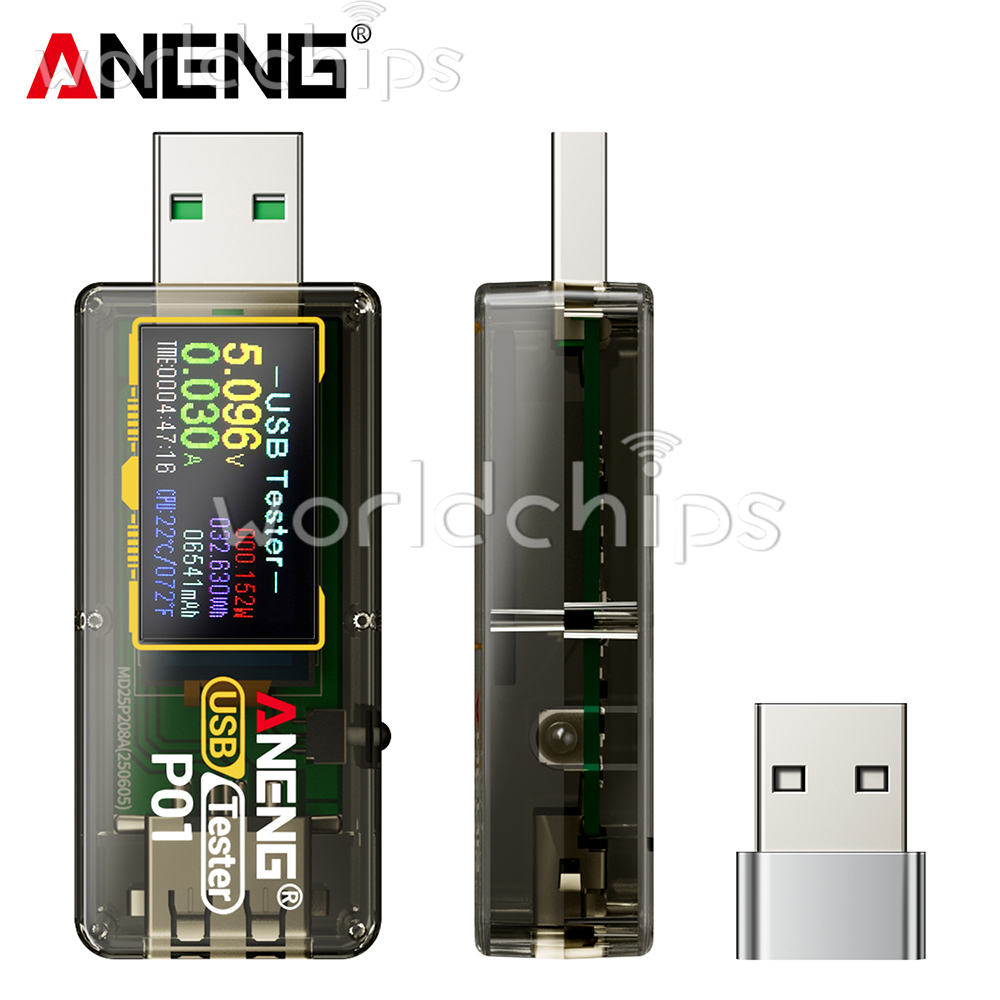

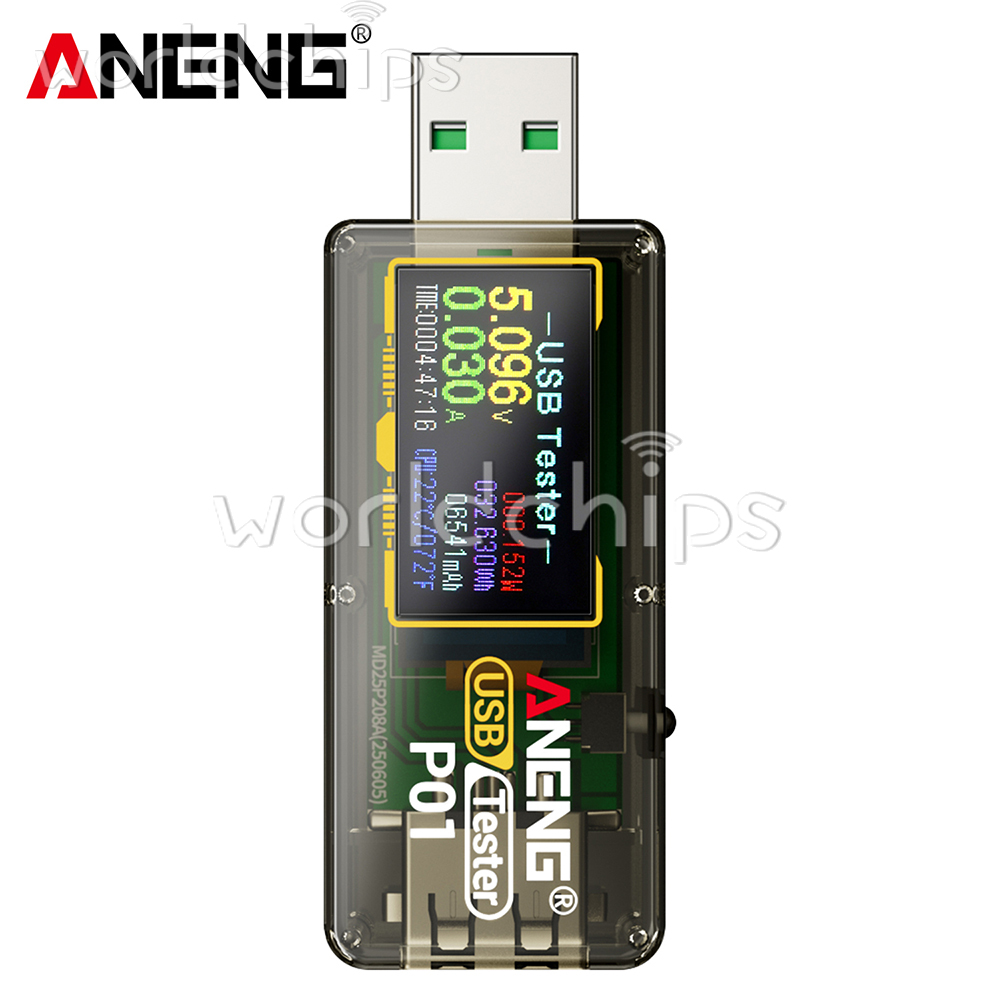

Product Name: USB Energy Meter
Model Number: P01
Monitoring Voltage: DC 4–32V
Resolution: 0.001V
Monitoring Current: 0–6A
Resolution: 0.001A
Capacity: 0–99,999 mAh
Resolution: 1 mAh
Energy Consumption: 0–999.99 Wh
Resolution: 0.001 Wh
Load Resistance: 0–999.9 Ω
Resolution: 0.1 Ω
Dimensions: 64.1 × 24.4 × 14.3 mm
Cumulative Time: 0–9999:59:59
Product Name: USB Energy Meter
Model Number: P01
Monitoring Voltage: DC 4–32V
Resolution: 0.001V
Monitoring Current: 0–6A
Resolution: 0.001A
Capacity: 0–99,999 mAh
Resolution: 1 mAh
Energy Consumption: 0–999.99 Wh
Resolution: 0.001 Wh
Load Resistance: 0–999.9 Ω
Resolution: 0.1 Ω
Dimensions: 64.1 × 24.4 × 14.3 mm
Cumulative Time: 0–9999:59:59

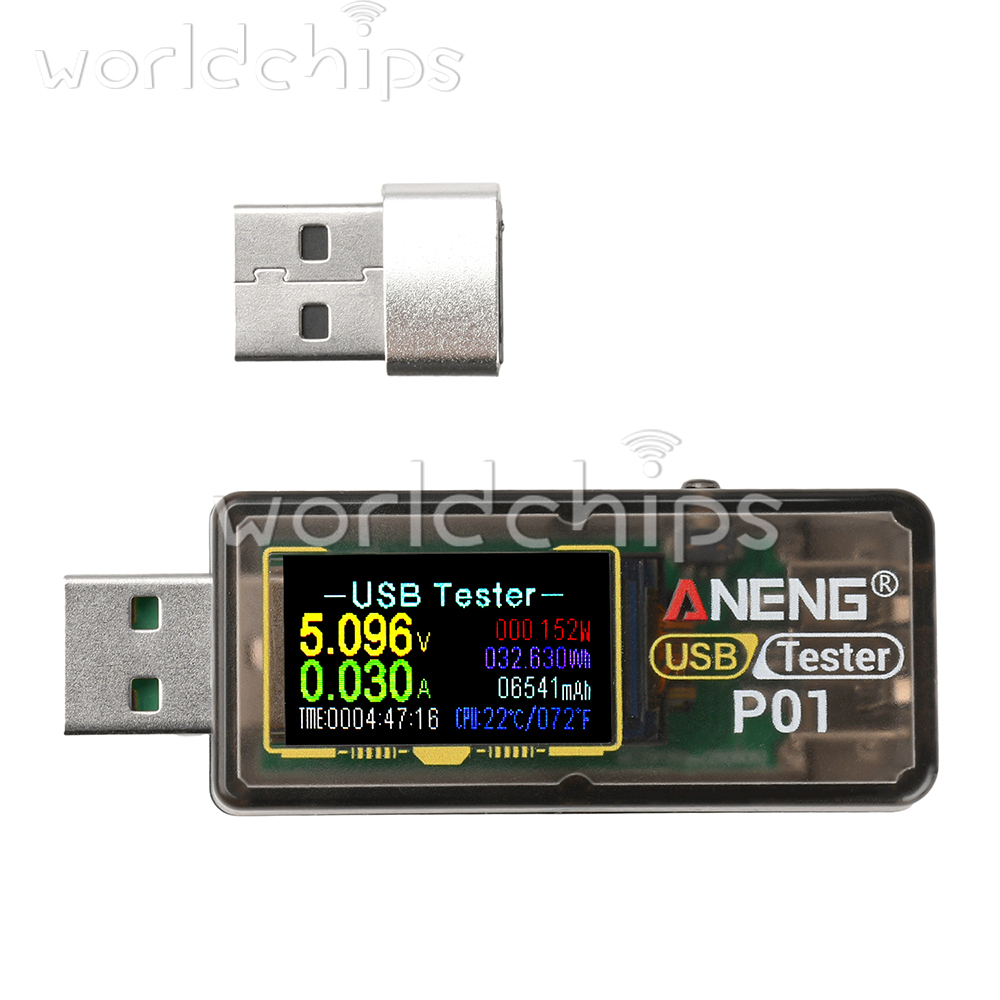

Package Contents:
USB Meter × 1
Adapter × 1
User Manual × 1
USB Meter × 1
Adapter × 1
User Manual × 1
