Sumitomo Type-Q102-M12 SM MM Ribbon Fiber Fusion Splicer
The Type-Q102-M12 ribbon splicer is capable of handling 250um and 200um ecosystems.

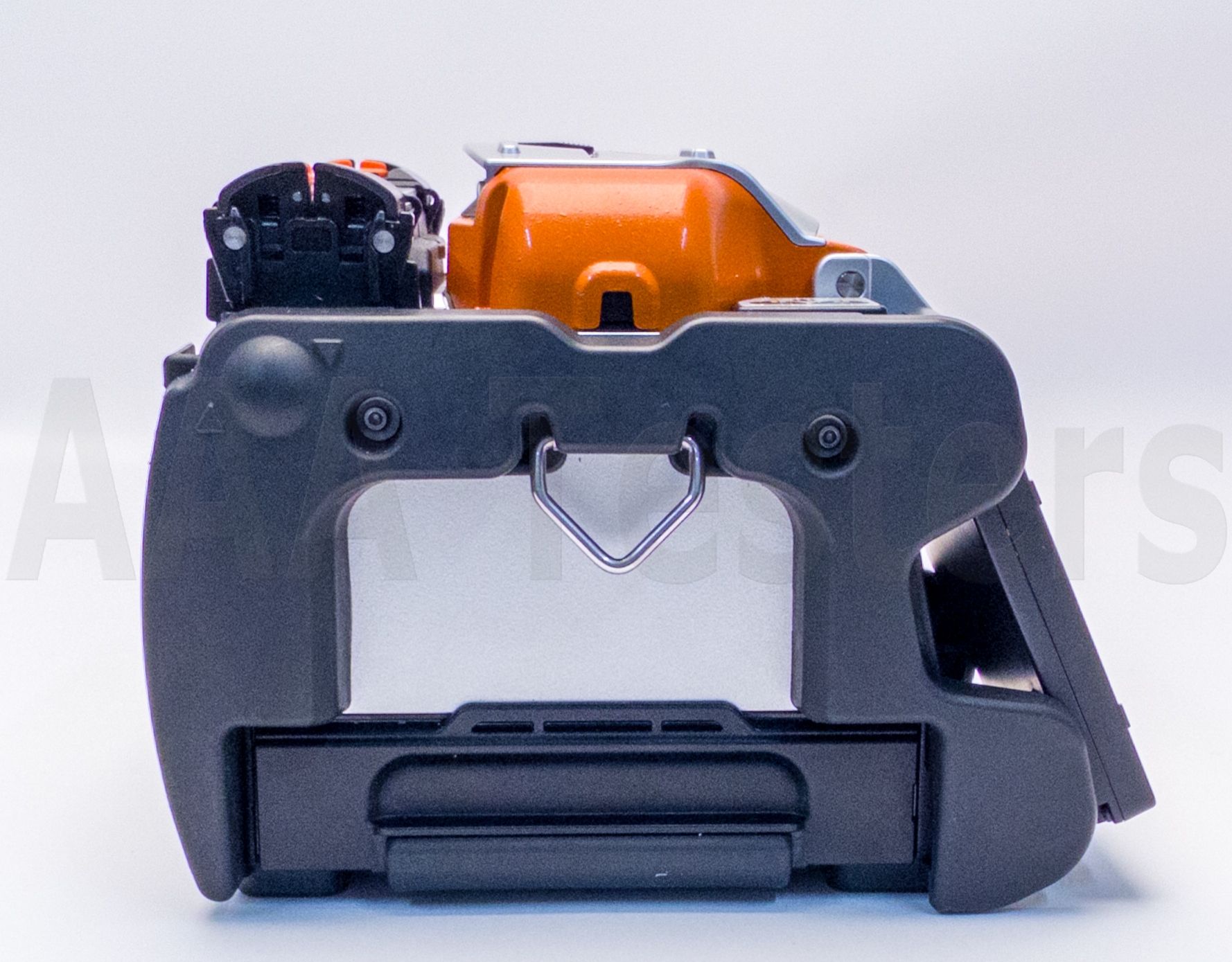

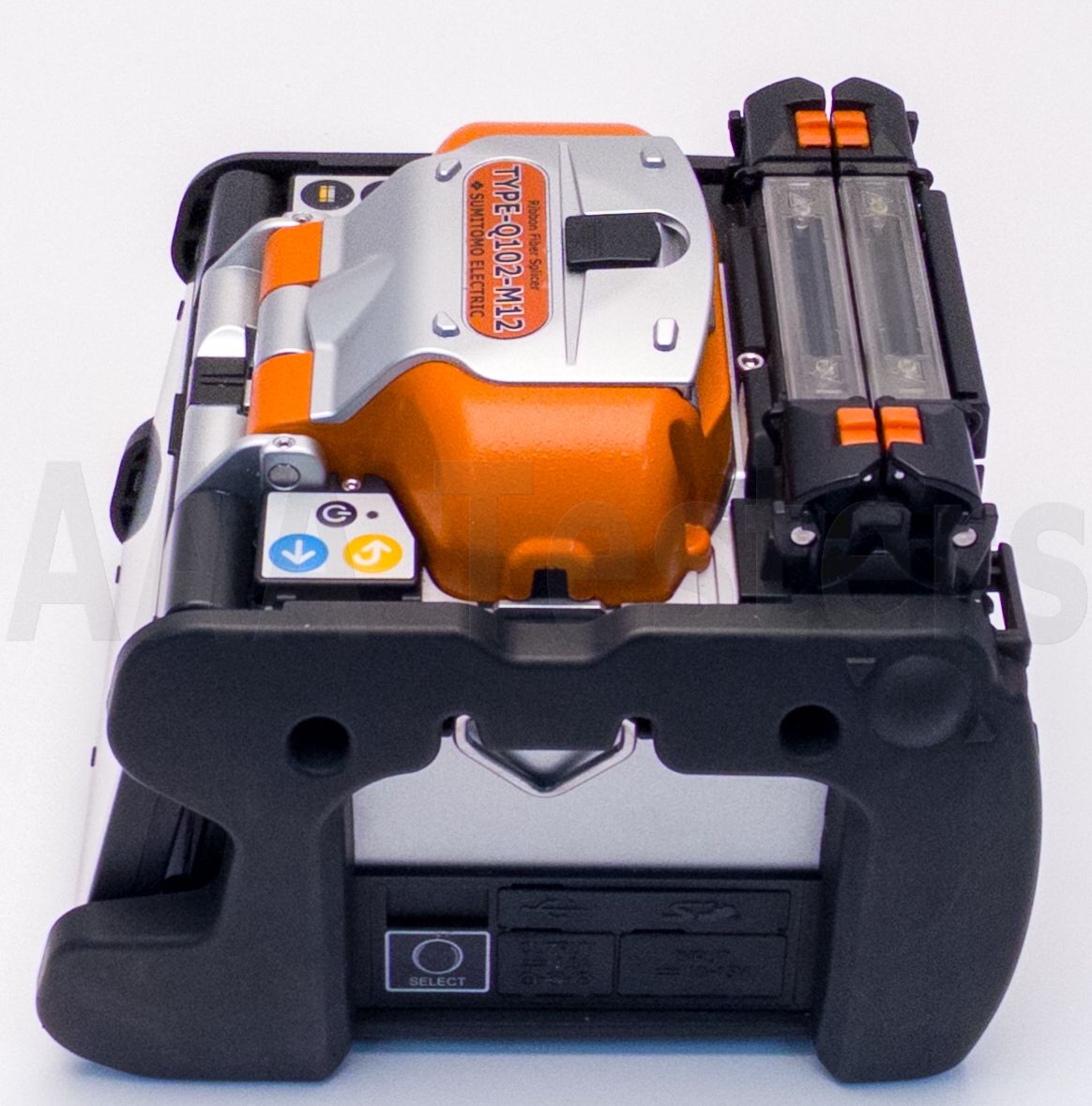

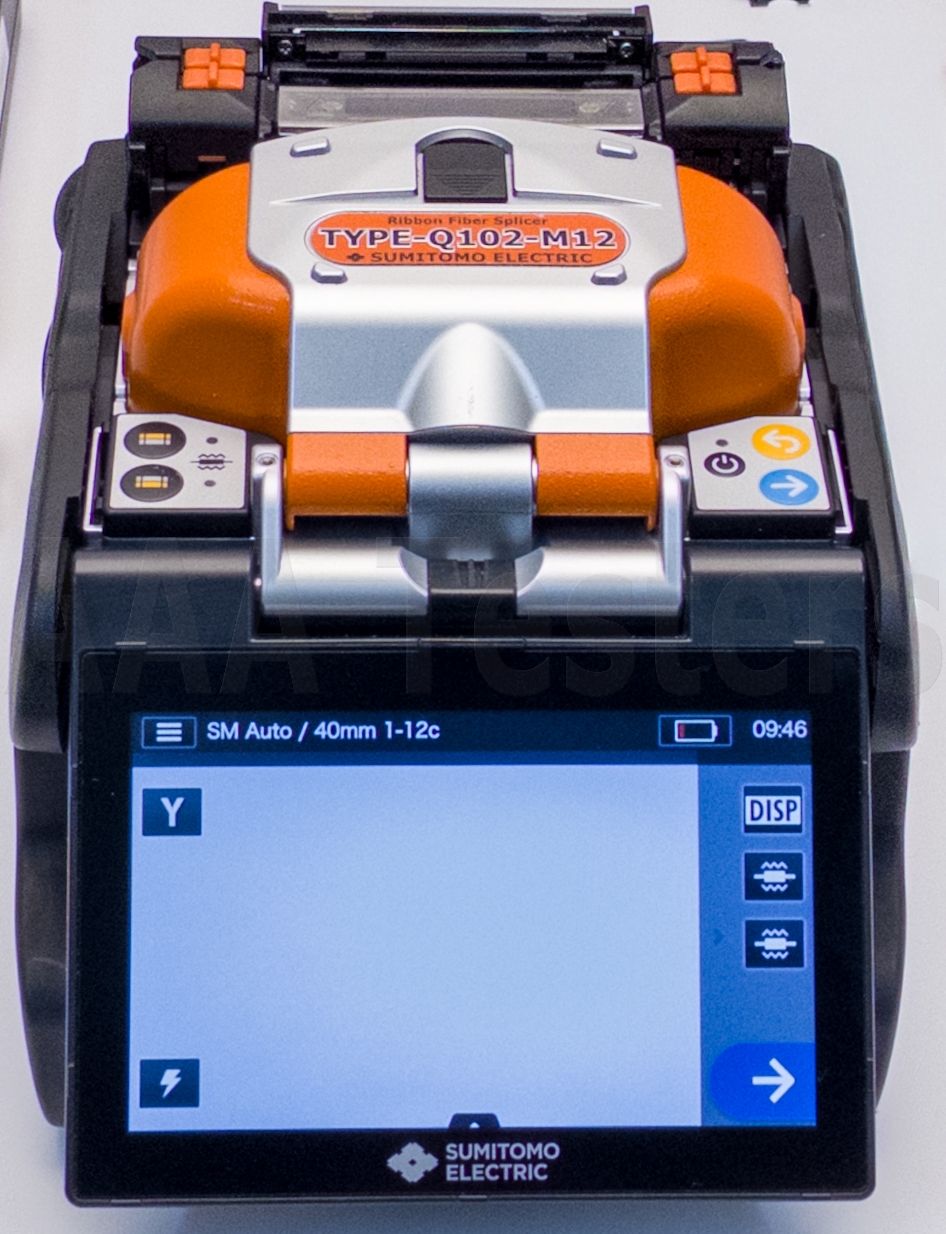

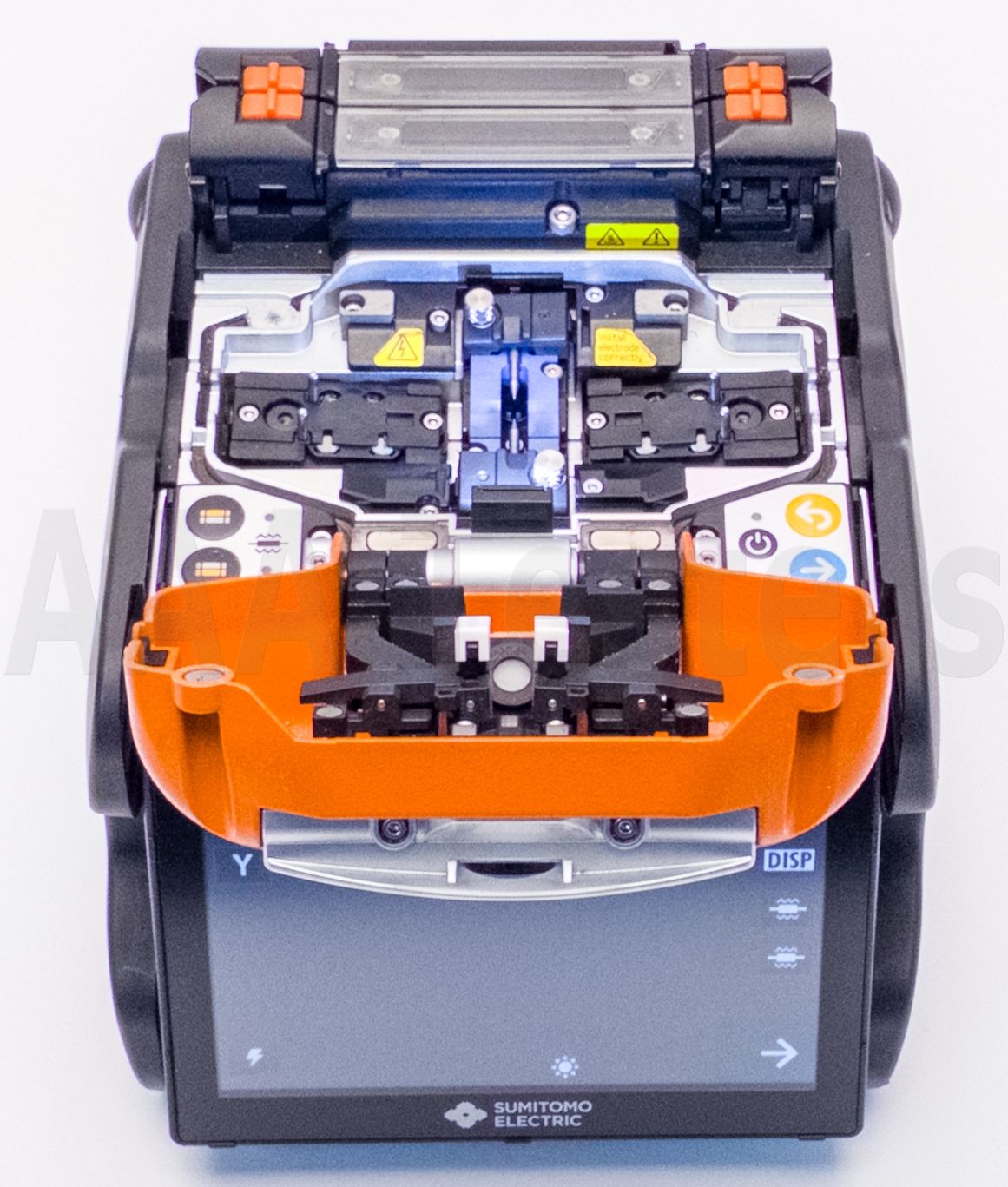

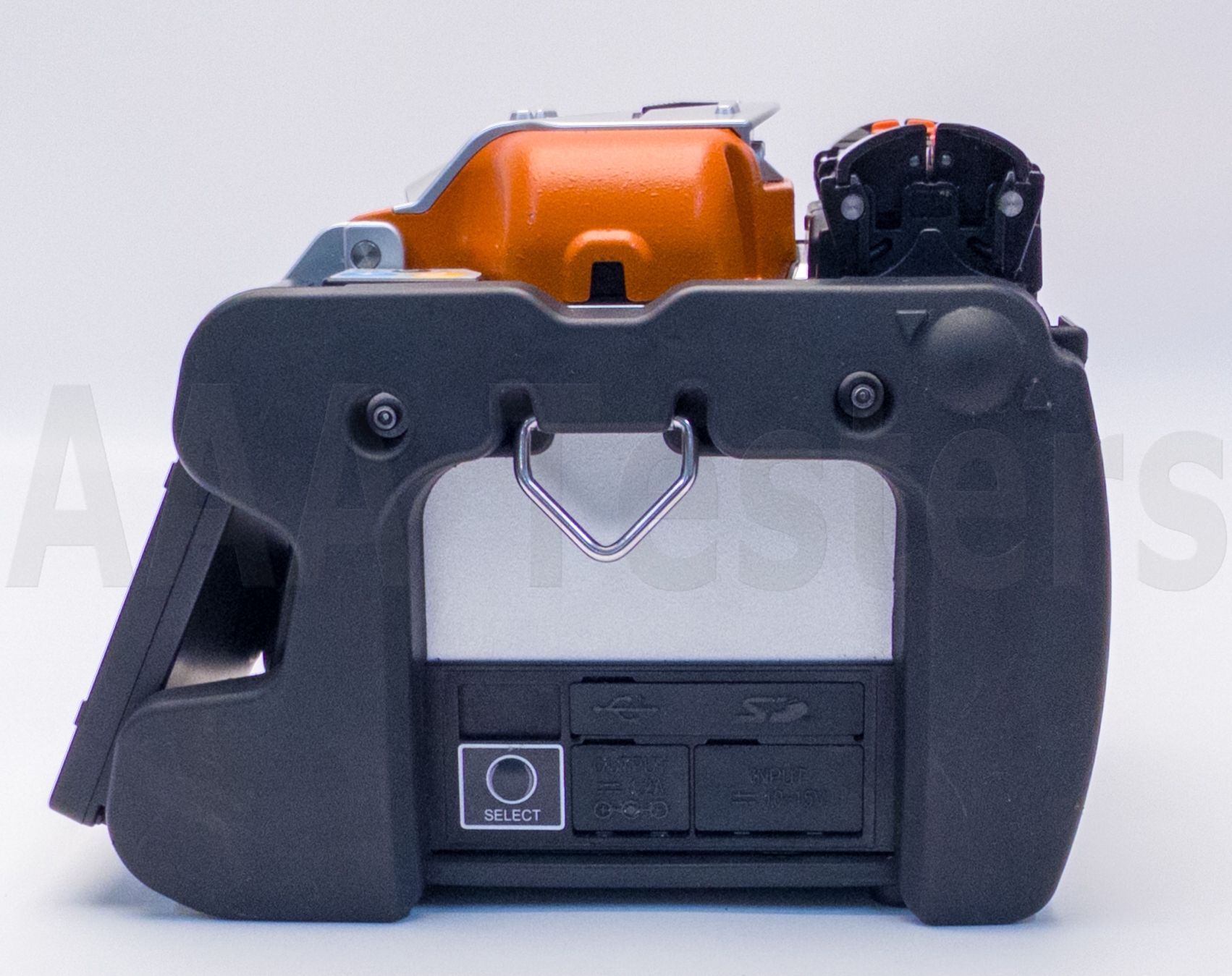

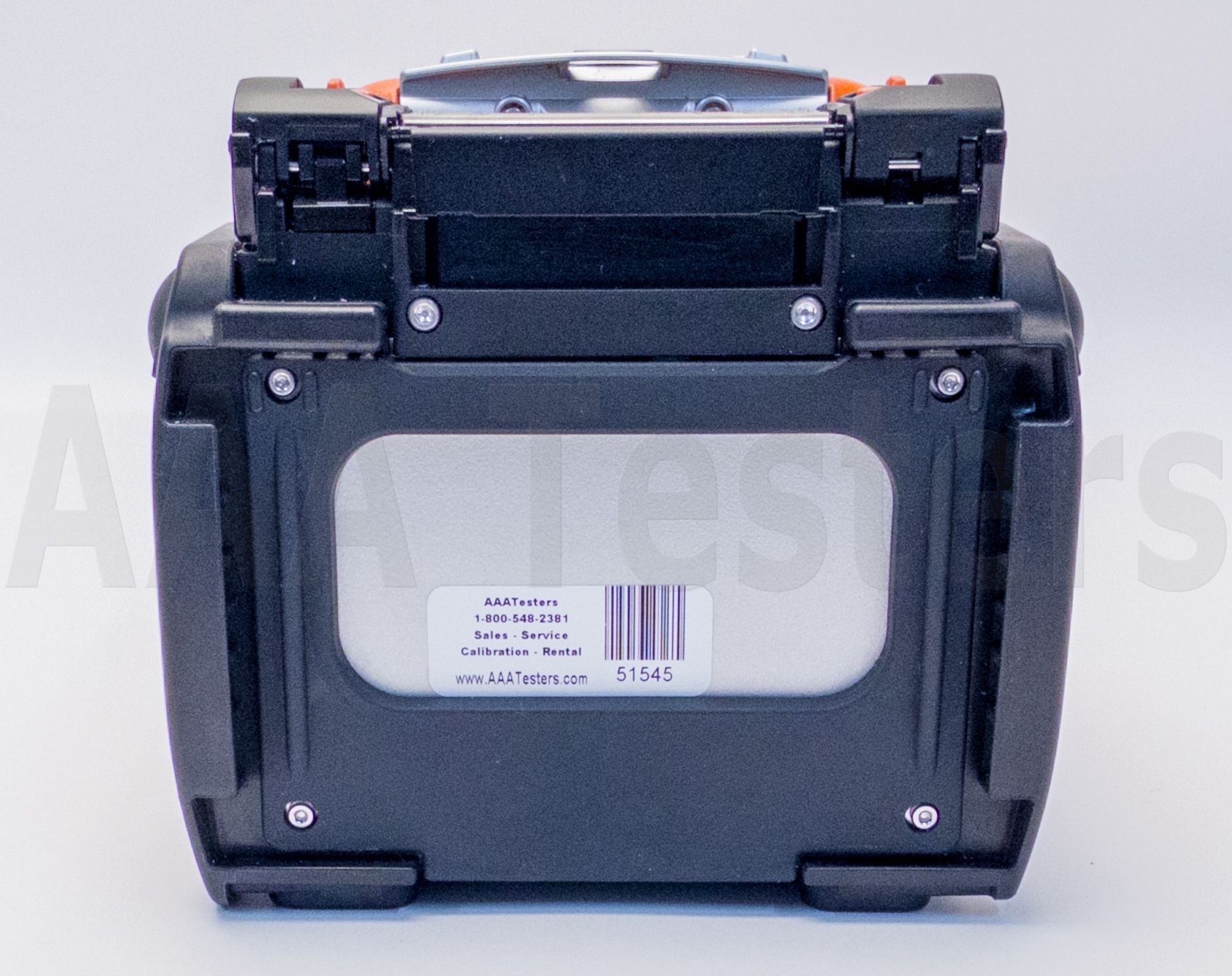

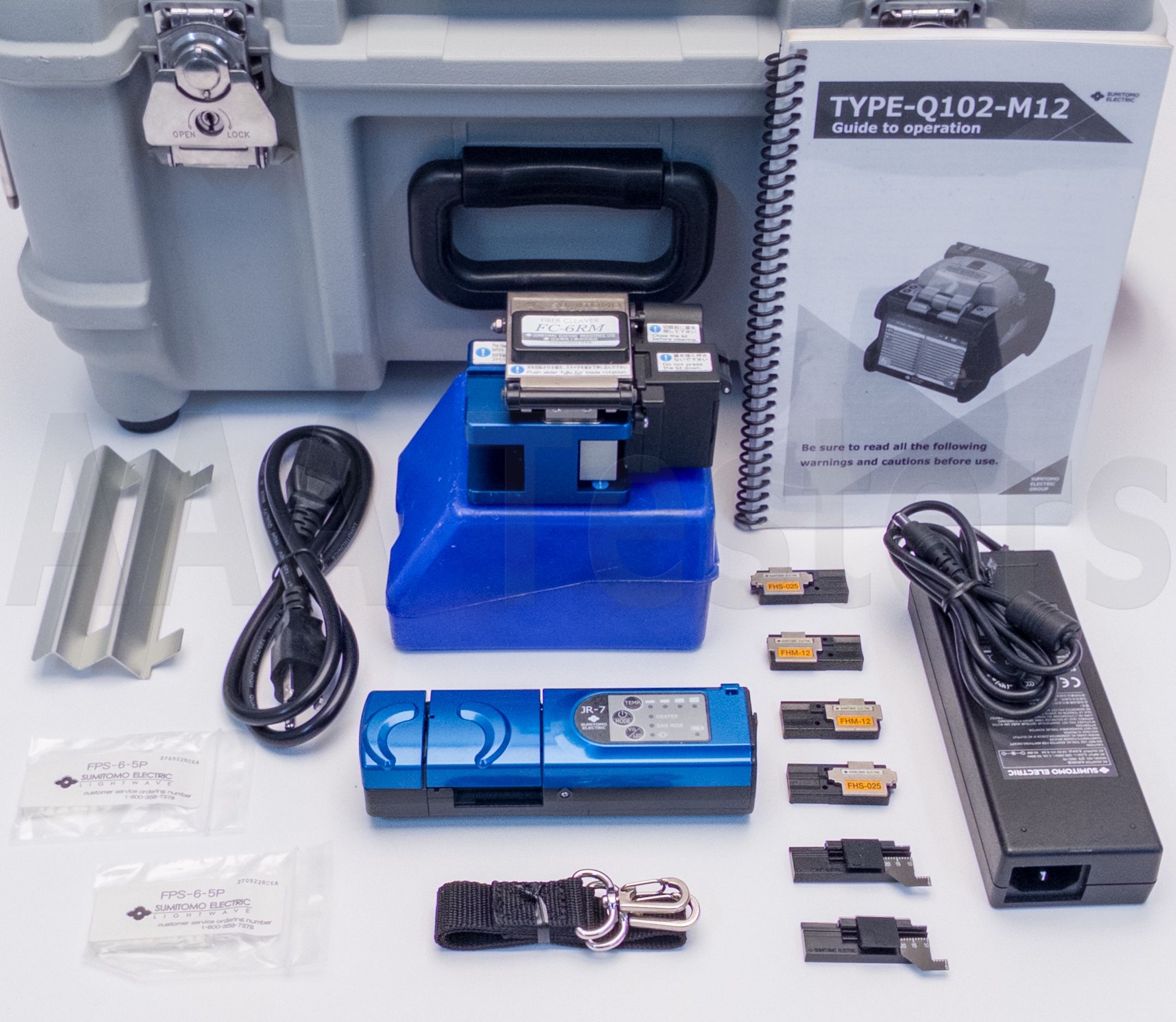

Includes High Precision Fiber Cleaver, Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
Sumitomo Type-Q102-M12
Sumitomo Electric’s new Type-Q102-M12 is accompanied by new features and benefits capable of deploying next-generation hyperscale networks. Consistent and quality low-loss splicing, the compatibility with Lynx Custom-Fit® 2 Splice-On Connecters and Sumitomo Electric’s patented dual independent ovens make this fusion splicer a preferred choice for extensive and diverse optical fiber networks.
Features
- Patented Dual Independent Ovens
- Splice time of 11 seconds/Heat time 35 seconds
- Auto Clamping Adjustment System
- High-Resolution Touch Screen Display
- Improved User Interface
Specifications
|
Optical fiber requirements
|
| Material |
Silica glass |
Profile types
|
Single / SMF (G.652), MMF (G.651), DSF (G.653), NZDSF(G.655), BIF(G.657)
|
| Fiber count |
1, 2, 4, 5, 6, 8, 10, 12
|
Fiber diameter
|
125µm
|
Coating diameter
|
Single fiber coating dia: 200µm, 250µm, 500µm, 900µm
Ribbon fiber thickness: 200-400µm
|
Applicable cable
|
Drop cable(2.0mm x 3.1, or 2.6mm), Indoor calbe(2.0mm x 1.6mm)
|
Cleave length
|
10mm
|
Standard Performance
|
Splice loss (typical)
|
SMF : 0.05dB, MMF 0.02dB, DSF : 0.08dB, NZDSF : 0.08dB
|
Splice time (typical)
|
11sec (SM 12c Quick Mode), 14 sec(SM 12c Std. Mode)
|
Heating time (typical)
|
35sec (FPS-6 sleeve, 40mm 1-12c Quick Mode)
|
Splice & Heat cycles per battery full charge
|
Approx. 180
|
Fiber view & Magnification
|
2 CMOS cameras observation, 23X (zoom 46X)
|
Proof test
|
1.96 ~2.09n
|
Applicable protection sleeve
|
60mm, 40mm & Sumitomo Electric Nano sleeves
|
Programs
|
Splice programs
|
Max. 300
|
Heating programs
|
Max. 100
|
Functions
|
Splice image capture / splice data storage
|
200 images / 10,000 splice data (internal memory only) 50,200/20,000 (with 16GB SD card)
|
Automatic fiber count detection
|
Provided
|
Auto clamping adjustment system
|
Provided
|
Reversible fiber holder system
|
Provided
|
Dual automatic independent heaters
|
Provided |
User-selectable heater clamp operation
|
Provided |
Onboard user training video
|
Provided |
Automatic arc calibration
|
Automatically compensates for environmental condition changes
|
Display of remaining Splice & Heat cycles
|
Provided (Battery Mode)
|
Size / Weight
|
Size
|
128(W) x 154(D) x 130(H)mm (without anti-shock rubber) |
Weight
|
1.8kg (without battery) / 2.1kg (with battery BU-102)
|
Monitor
|
5.0" touch screen color LCD display
|
Terminals
|
DC output
|
DC 12V (for JR-6+)
|
USB port
|
USB 2.0 (mini-B type)
|
Storage medio
|
SD / SDHC memory card MAX32GB
|
Power supply
|
AC input
|
AC 100 ~ 240V, 50/60Hz (ADC-16)
|
DC input
|
DC10 ~15V, 7.5A
|
Battery pack
|
Li-ion 10.8V, 6,400mAh (BU-102)
|
Operating Condition
|
Altitude : 0~3,660m, Temperature : -10 ~ +50°C, Humidity : 0 ~95% (non-condensing), Wind velocity : up to 15m/sec
|
Storage Condition
|
Temperature : -40 ~ +80°C, Humidity : 0 ~ 95% (non-condensing), Battery : -20 ~+30°C (Long term)
|
Electrode life
|
1,500 arc discharges
|
Software updates
|
Internet
|
Data management
|
Can be stored, edited and analyzed by dedicated PC software
|
|
|
|
|
