Product Description
Specification:
Type:Cycling Linear Actuator
Voltage:24V
Material:Aluminum alloy+Steel
Stroke Length:150mm (6 inch)
Screws:M8
Installation structure type: horizontal
Power supply mode: DC
Max speed:160rpm/min
Pushing force: 3 lbs to 30 lbs
Package includes:
1 × Linear motion actuators

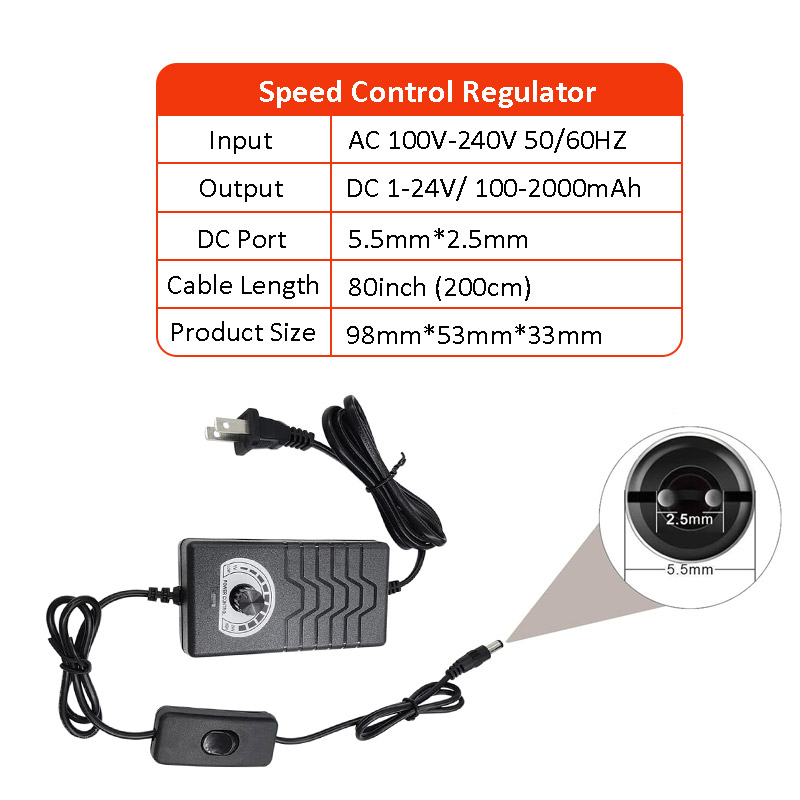

1 × Power speed regulator

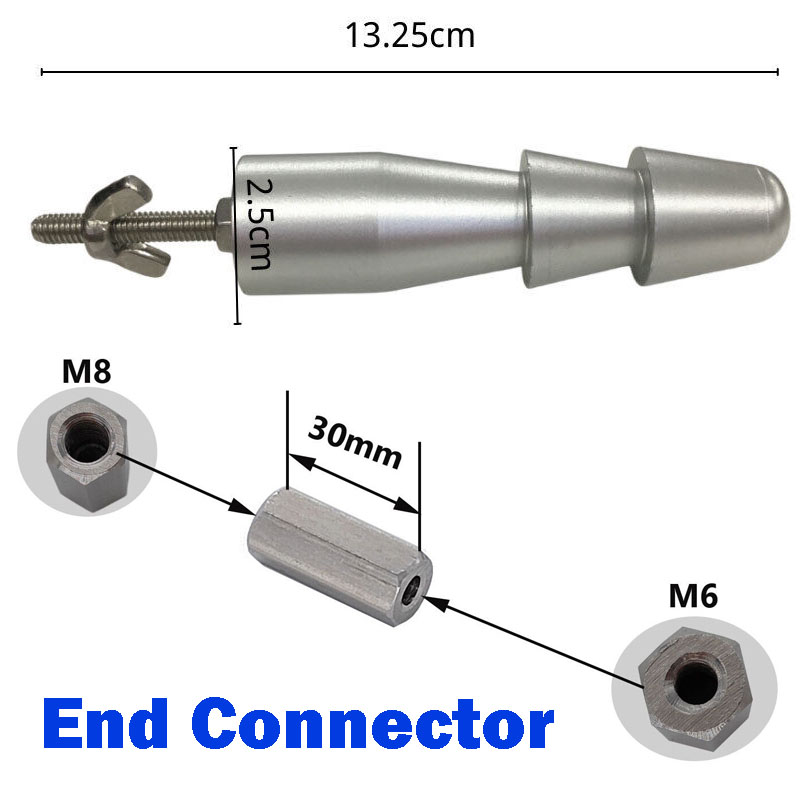

1 × Big End

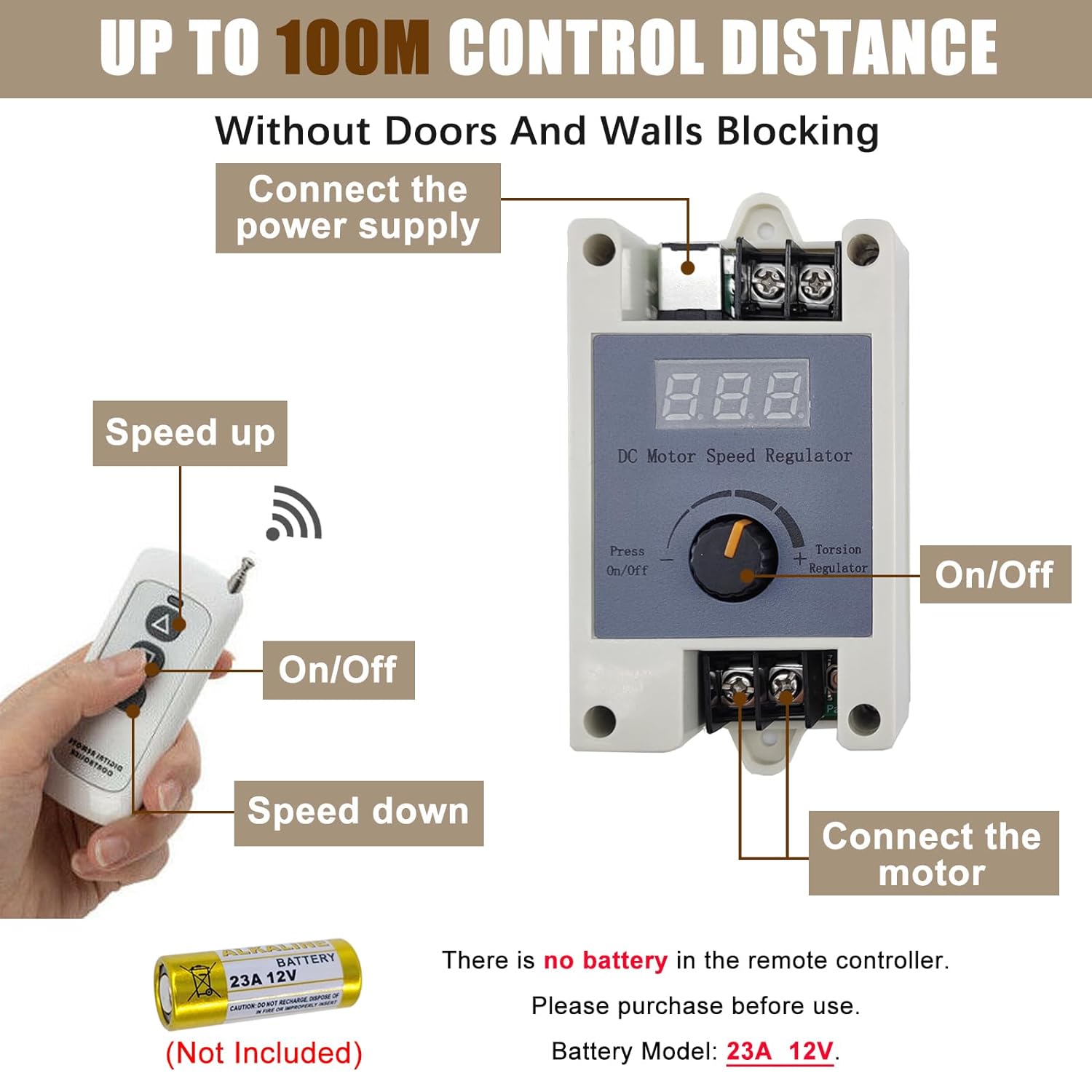

1 × Remote Control
Product Highlights:
⭐【Applications】
Widely use for Elastic Life Test, Shale Shaker, DIY Cradle, Holiday Decoration, Spraying
machine, Pellet machine, Particle-making Experiment, lab testing.

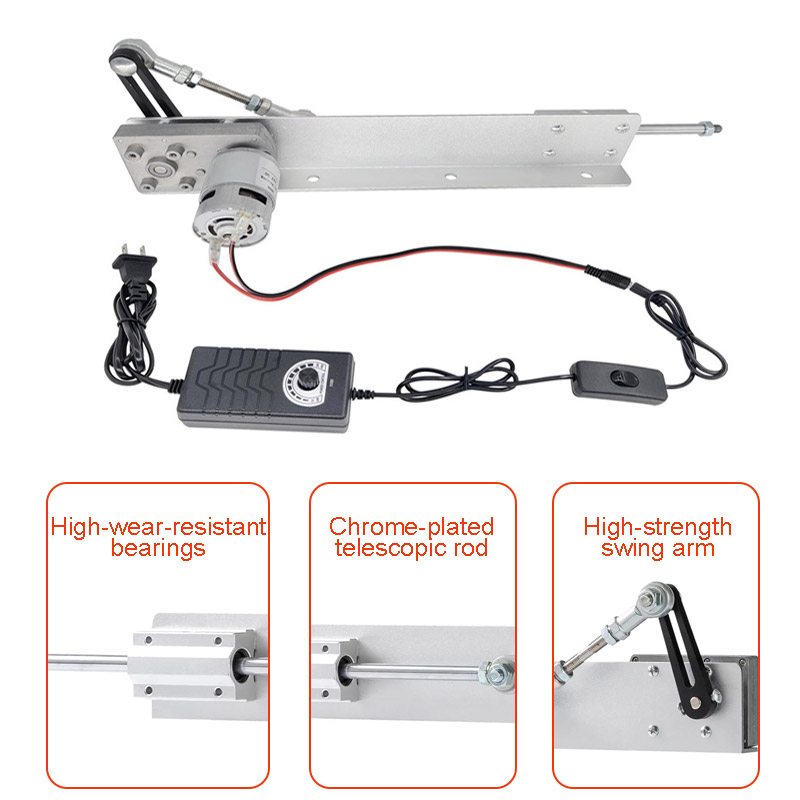

⭐【Chrome-Plated Telescopic Rod】
Good steel, high hardness, strong bending resistance.
⭐【High Strength Swing Arm】
It can withstand a wide range of torque, high tensile strength, and a wide range of
adjustment of telescopic travel.
⭐【High Quality】
High wear-resistant bearings, durable and sturdy. Strong motor horsepower, stable and
reliable.
Installation Steps:
1. Install the rocker arm
Install the rocker arm and adjust the stroke.
2. Choose a proper mounting surface
Select a flat, stable surface that can bear the motor's weight and with stand the
vibration generated during operation. Make sure to leave enough space for the rocker
arm to swing freely this prevents the arm from colliding with the mounting surface
during operation.
3. Secure the motor firmly
Use bolts to fasten the motor to the mounting surface through the 3 predrilled holes on
the motor plate. Ensure all connections are tight to avoid shaking or displacement
during use.
4. Complete the final setup

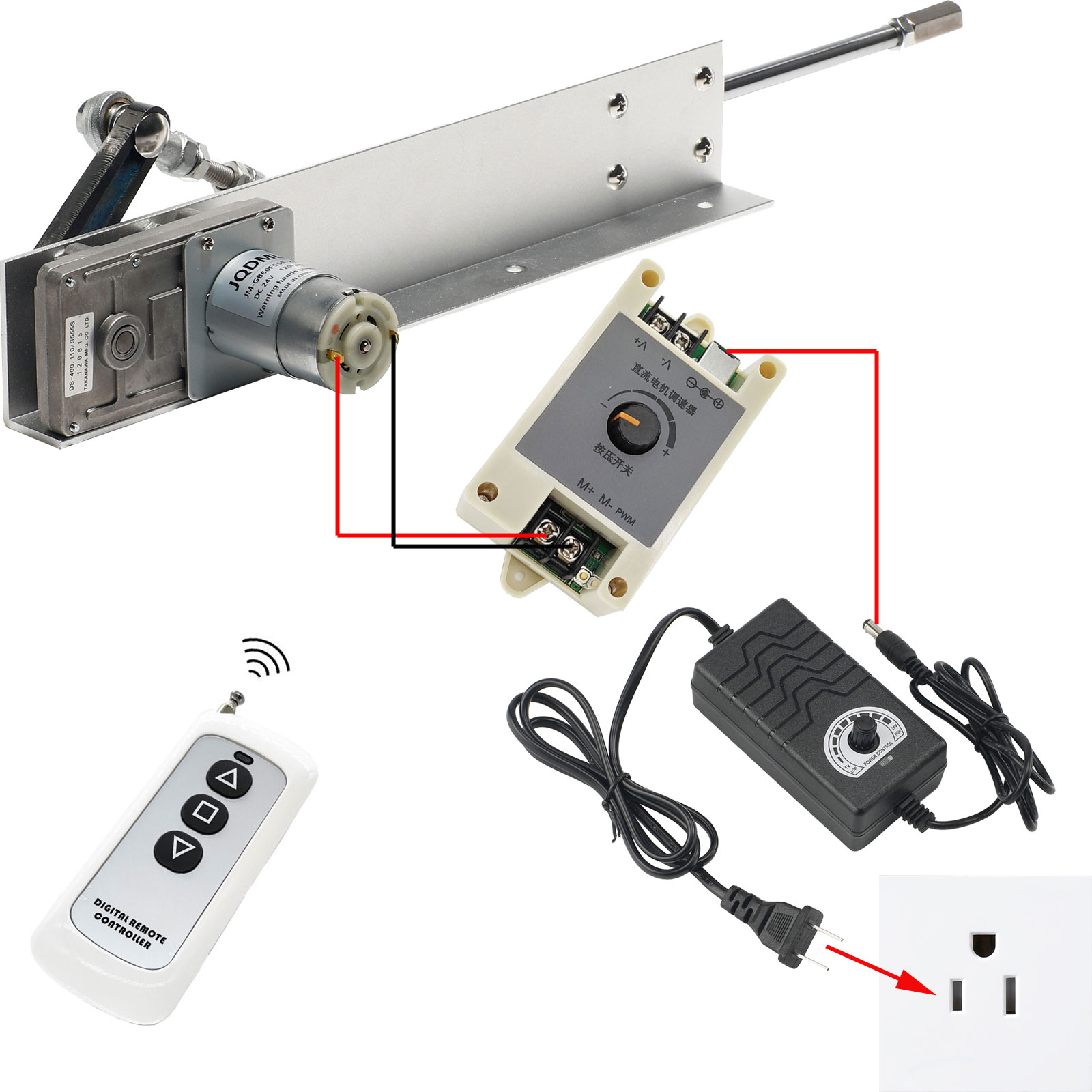

Connect the motor to the speed controller properly.
