Description

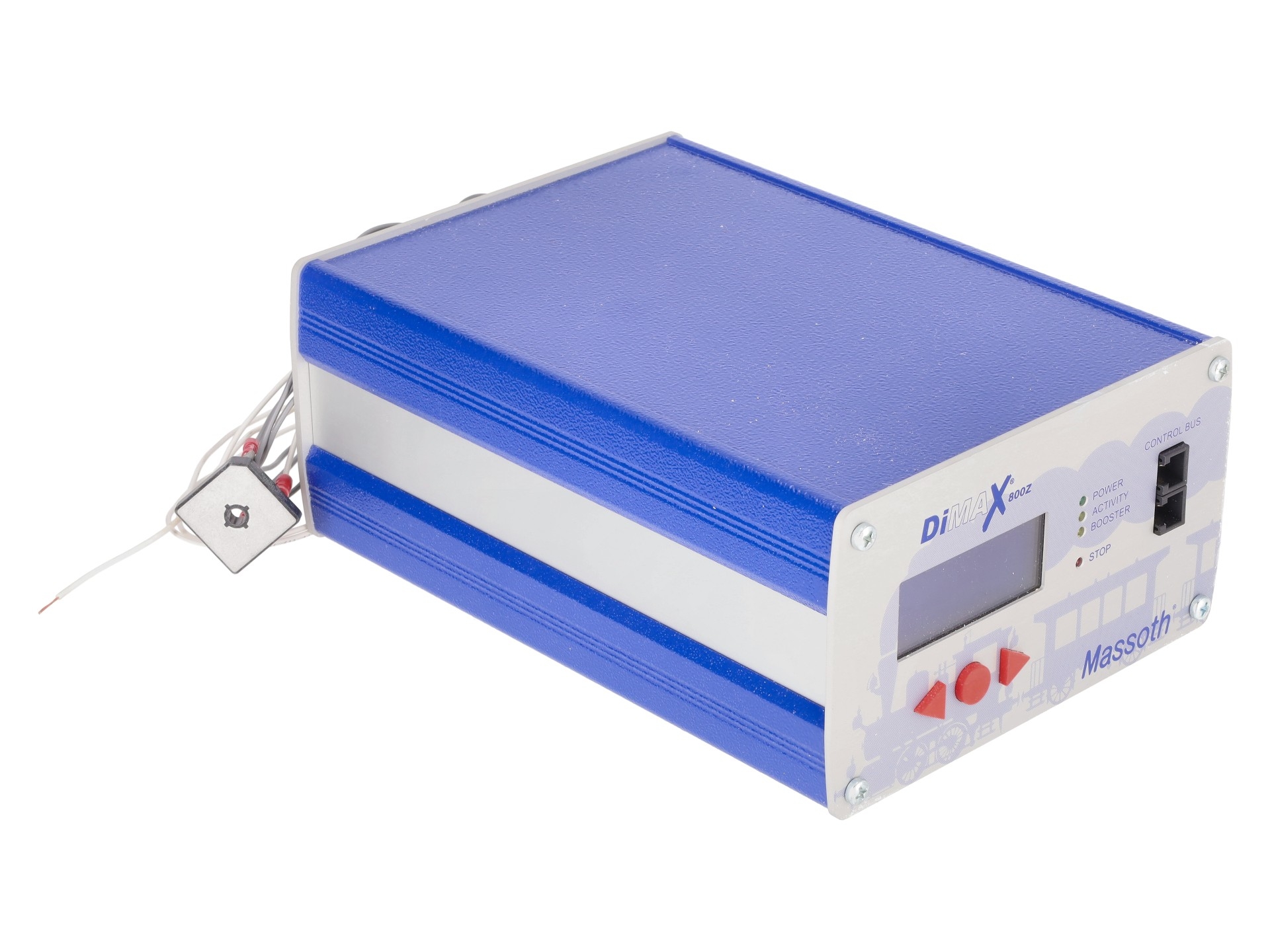

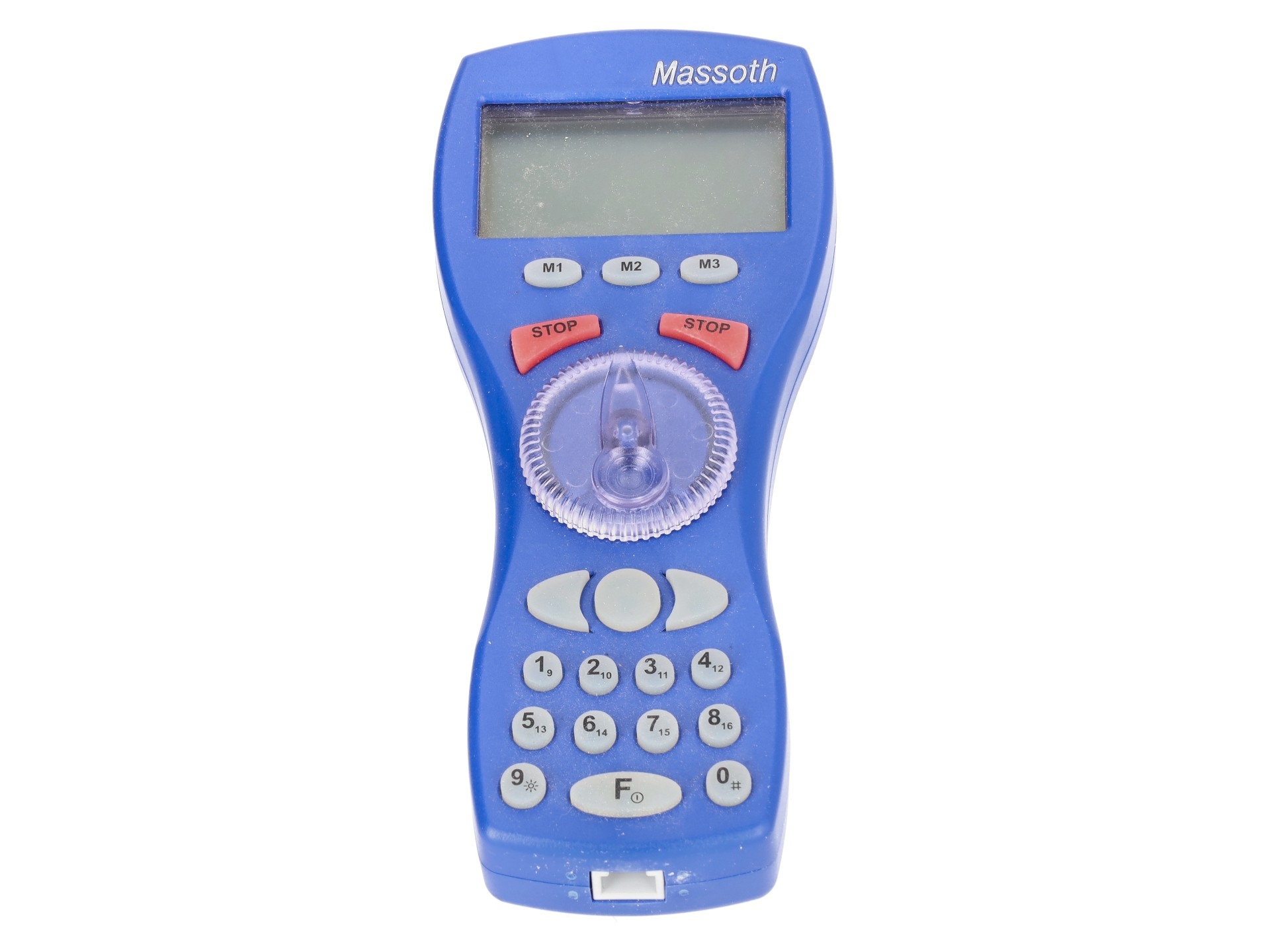

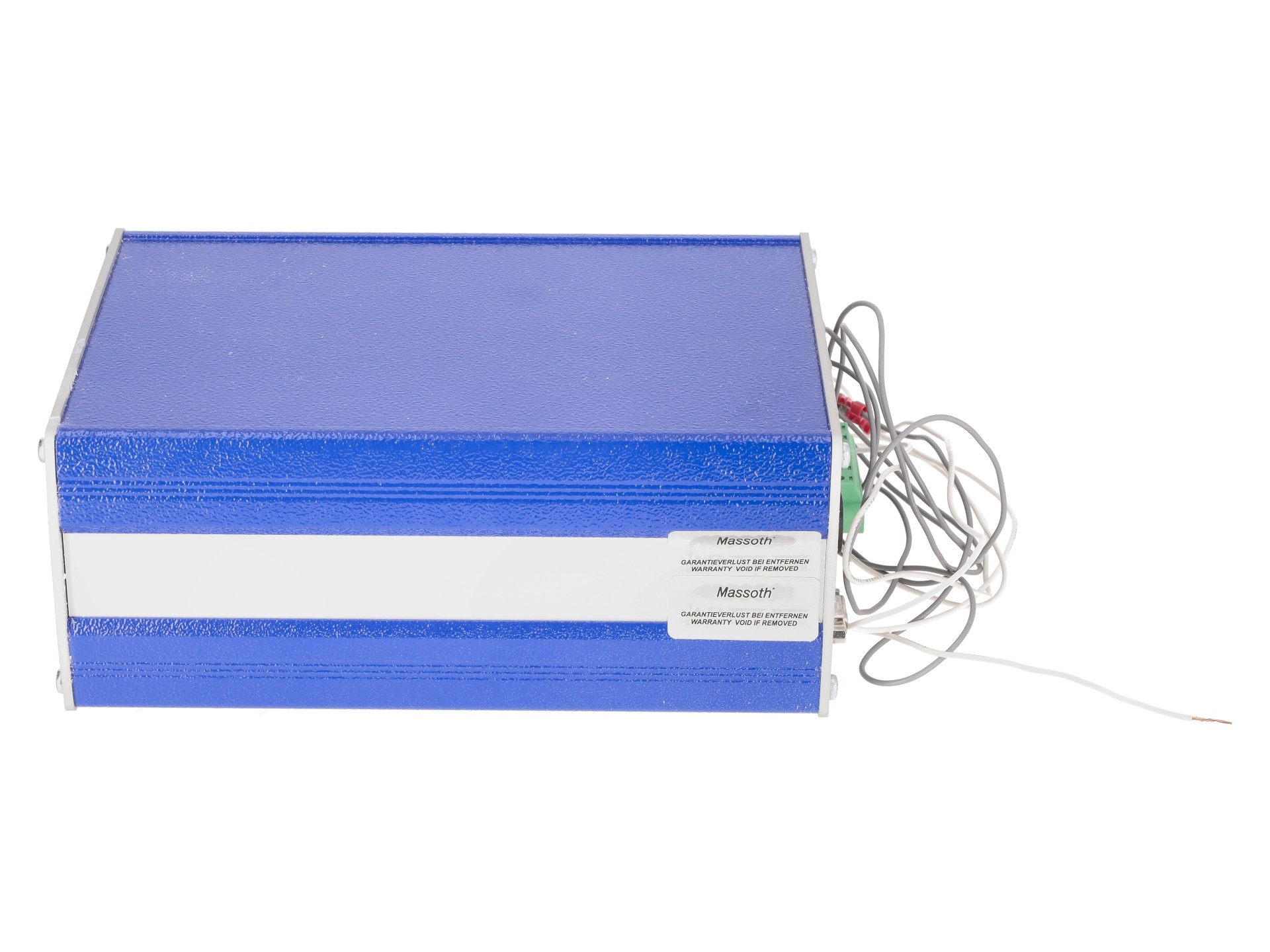

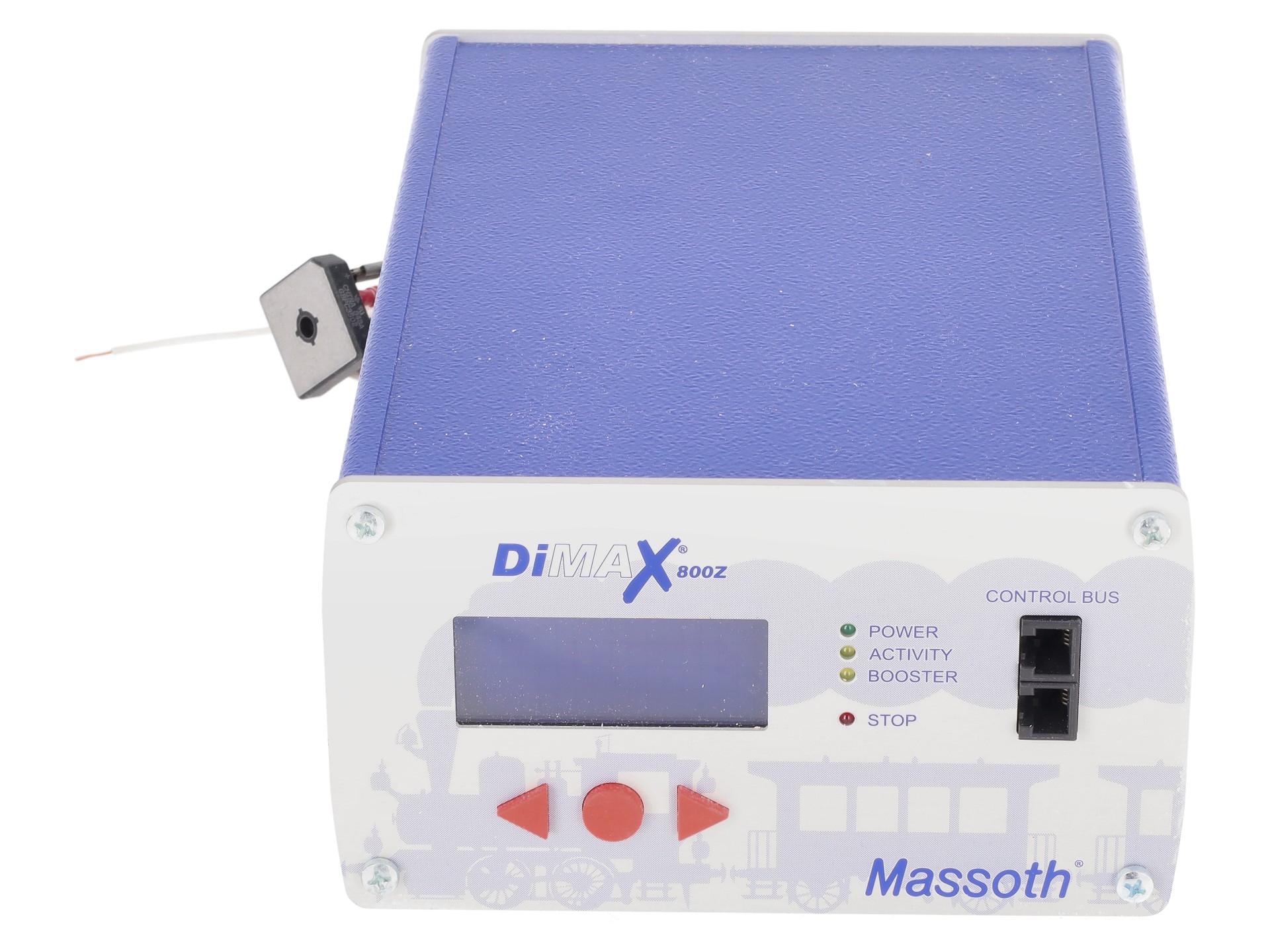

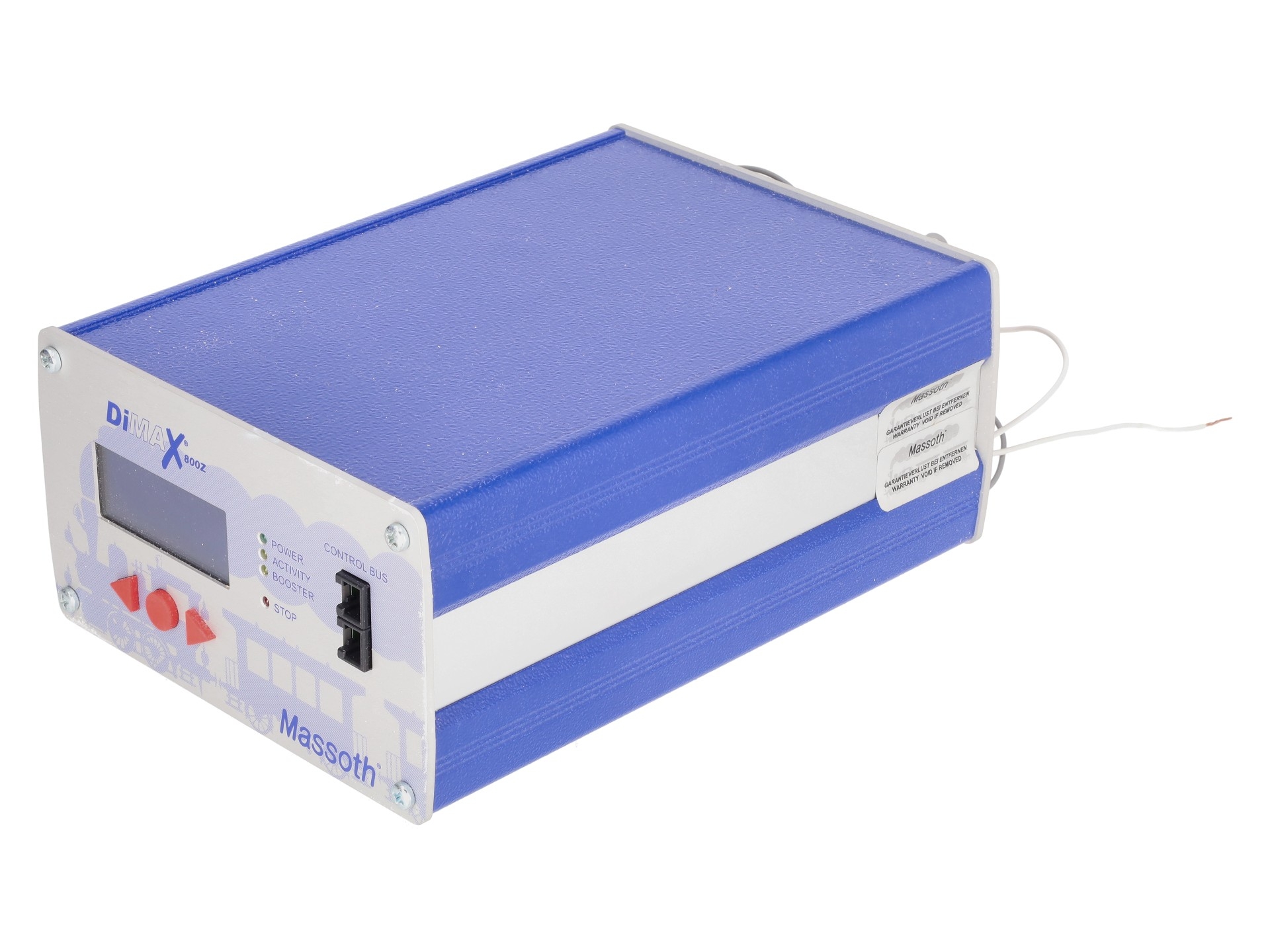

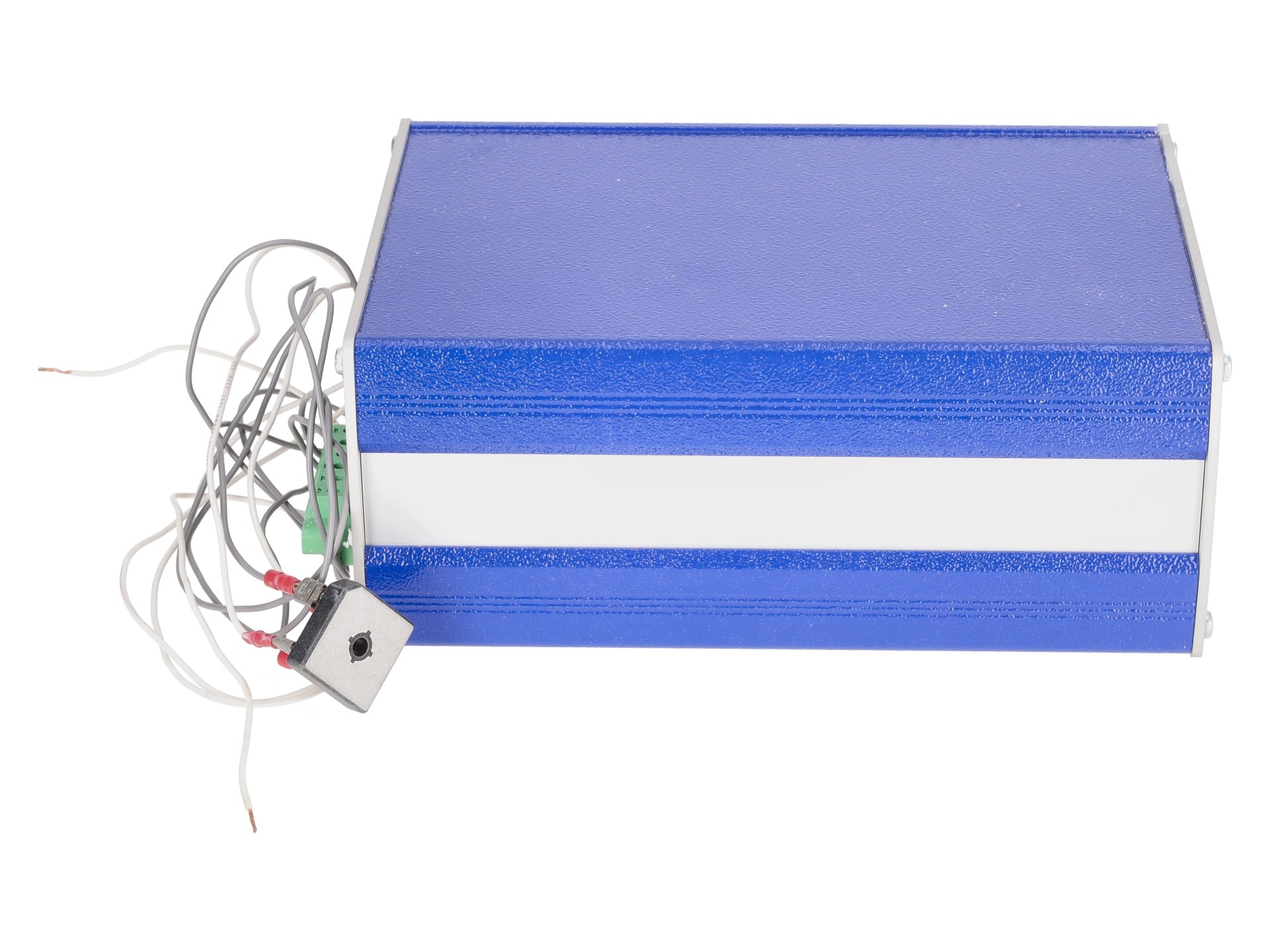

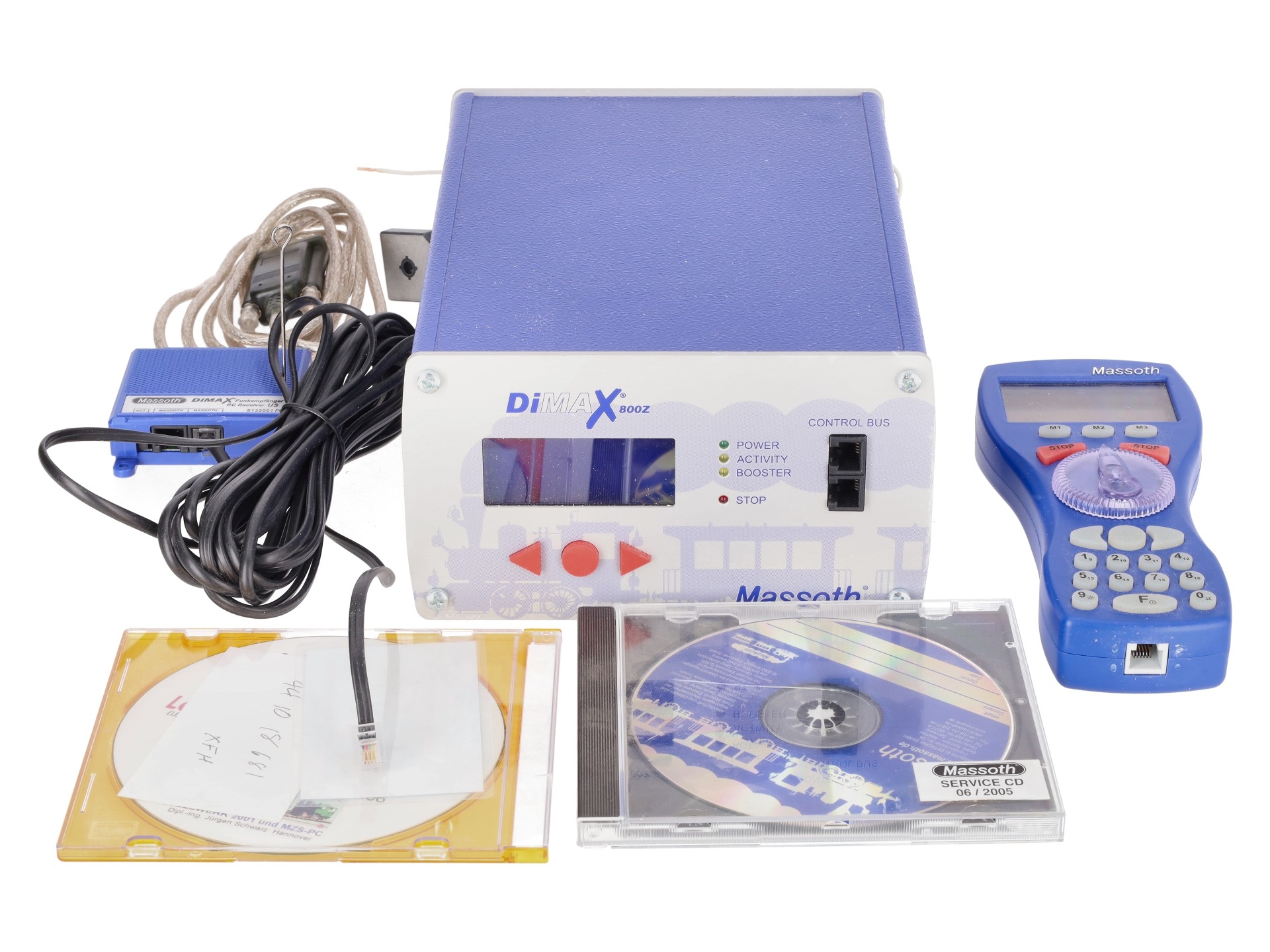

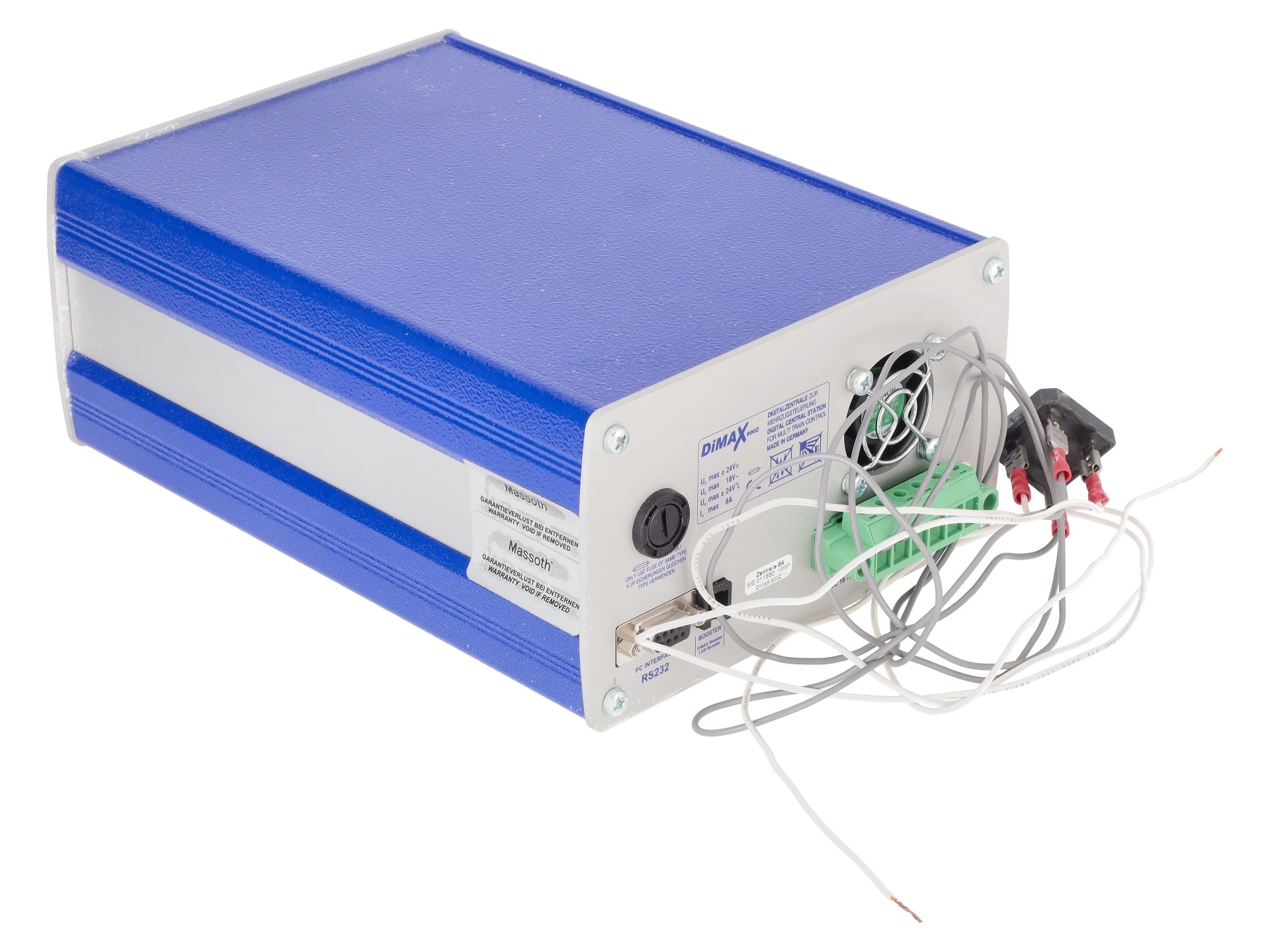

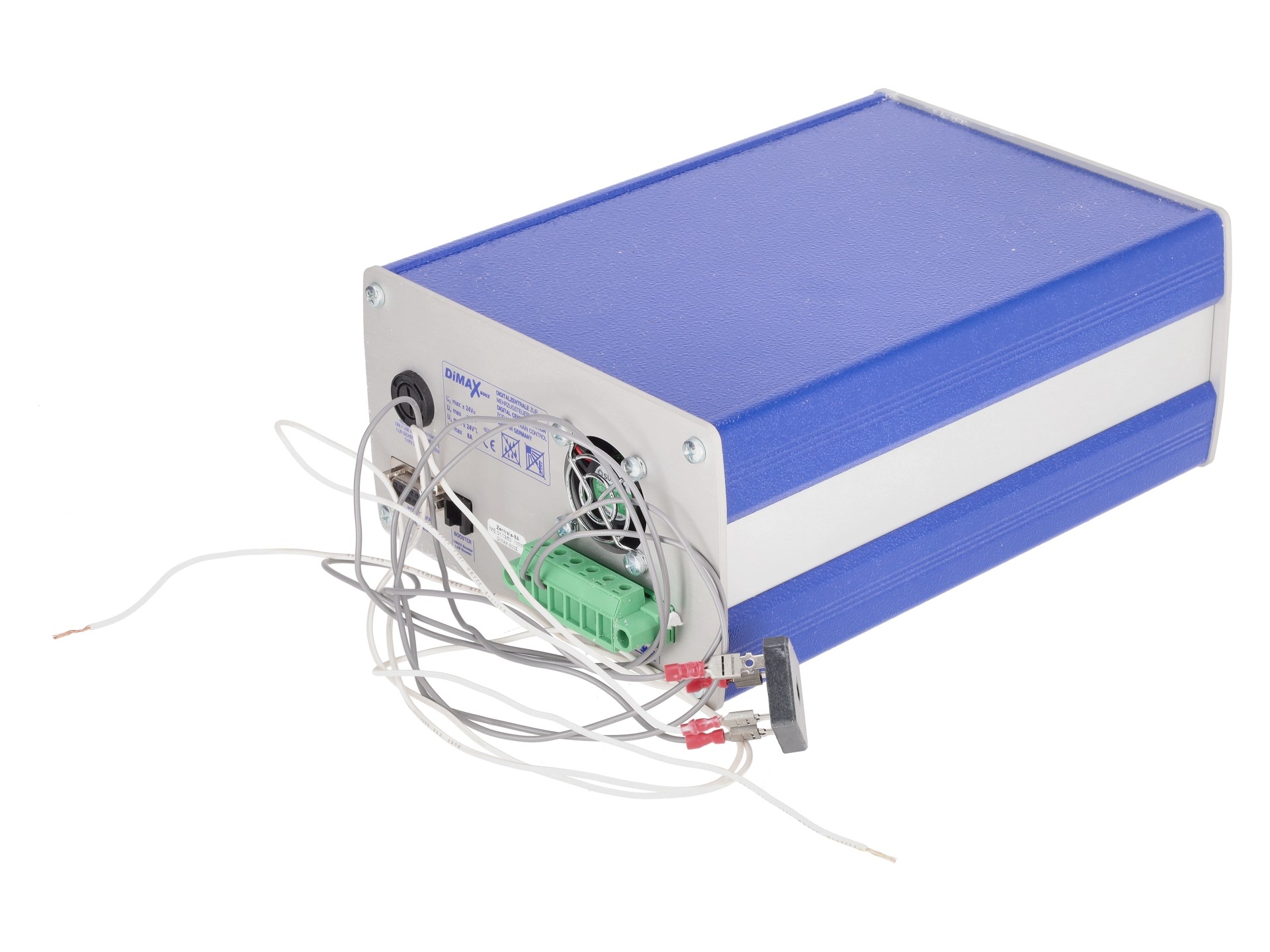

Here is a Massoth 800Z DiMax 800Z Central Station DCC System. Included is the 800Z Central Station, an 8134701 Navigator remote, and an 81320012 RC Receiver.
The DiMAX 800Z Digital Central Station is a favorable alternative since it is built on the same technical properties as the DiMAX 1200Z. Up to 8 Amps driving current without an integrated transformer allows using the 800Z for all scales from Z to G. Operating Voltage: 16 to 24 Volts DC or 12 to 18 Volts AC. The current output can be adjusted to 2, 4, or 8 Amps. This option is desirable for smaller scales. Since July 2005 the 800Z features a voltage limitation of 23.5 V which is the optimum for garden layouts which often suffer of voltage drops. This should not be a problem for decoders that are in compliance with the NMRA standard. This standard requires decoders to be able to handle voltages up to 27 V. Decoders of Massoth and LGB are tested for max 30V to be able to guarantee a stable and consistent operation. A separate programming track outlet, booster connection and a user friendly PC Programming interface are integrated as well. The 800Z provides a connector for LGB or DiMAX boosters on the back of the unit. Other NMRA compatible boosters may be used. Properties of the 800Z:
* Up to 8 Amps track current
* Adjustable max track current: 2 Amps, 4 Amps, or 8 Amps ;according to the needs of the layout
* Adjustable output voltage from 14 - 22V
* External power supply with max. 18 Volts AC, or max. 24 Volts DC (Gauge N to G)
* Output current at 22-24 V : max. 8 Amps (only for G-Scale recommended)
* Easy to read display with blue background lighting
* Selectable parallel or serial data processing (may be defined individually for each locomotive)
* Thermal overload control / automatic overheat protection
* Temperature controlled fan
* Automatic short circuit protection (cut off time adjustable)
* Additional program track outlet ( 2 Amps max.)
* Operation control light
* Activity control light
* Booster control light
* STOP control light (supports MTS blinking emergency stop light)
* Push button with STOP function
* Easy to use menu control by 3 push buttons
* 2 connectors for peripheral units

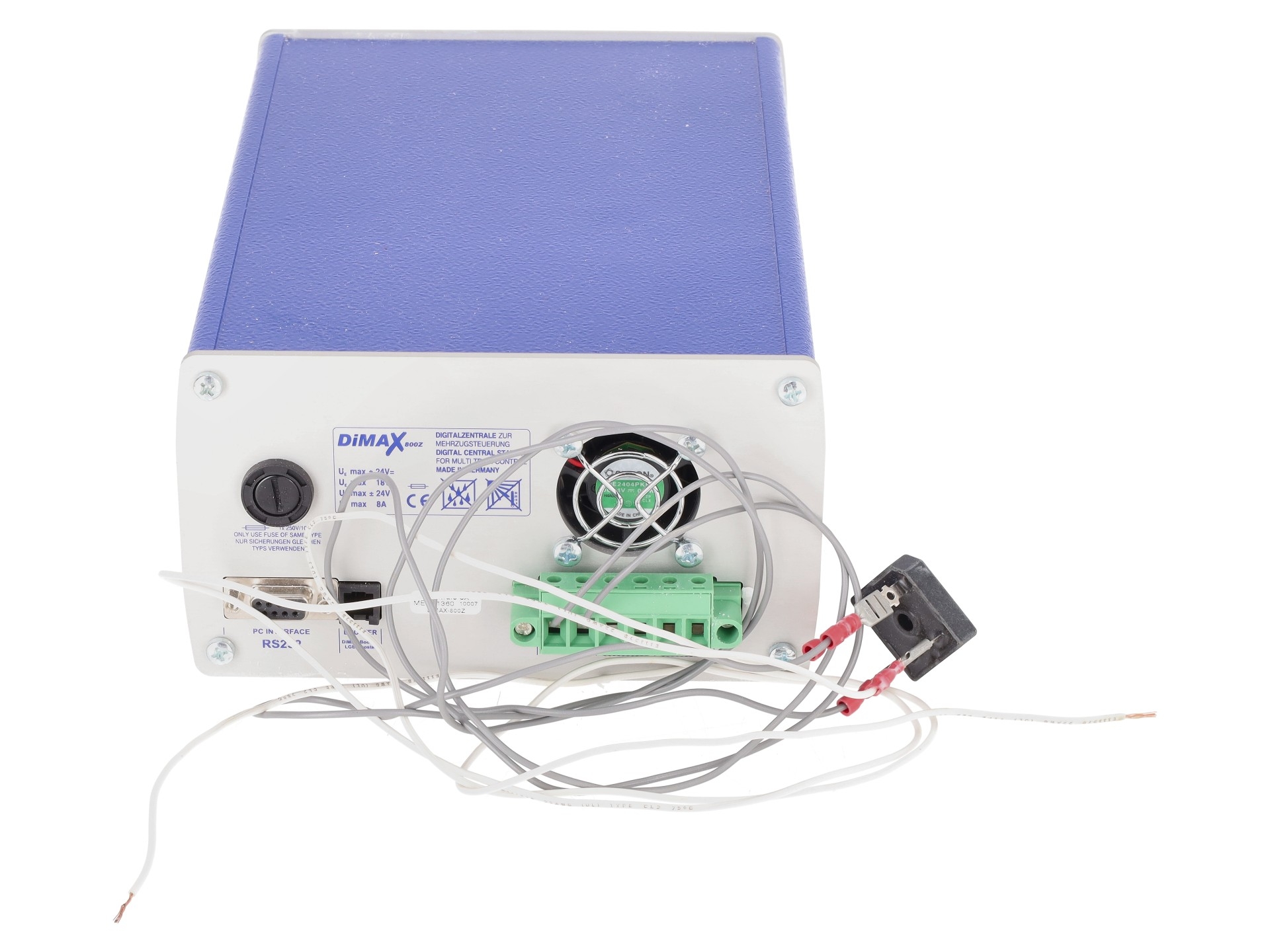

* 1 booster connector for DiMAX and LGB boosters
* 2 Amp control bus for 31 input devices or control units
* Selectable control bus protocol: DiMAX Massoth or LGB MTS II
* Operational control by DiMAX Navigator or LGB MTS components ( Loco Remote, Universal Remote, etc..)
* PC Interface (RS 232) for firmware updates of all DiMAX bus components (central station, Navigator, etc.)
* Free firmware update downloads
* Massoth bus protocol 100% compatible to NMRA DCC Standard
* Top quality aluminum housing
* Explicit operation manual, available as PDF download too
* CE certified
* Dimensions: 170 x 100 x 245 mm
This item has been graded per TCA standards C-7: Excellent based on visual appearance. The remote and modem both show scratches and scuffs on the casing. The buttons on the remote are slightly discolored. The instruction manual is included. The original box is not included. Please check the photos for a detailed look at this item. Overall condition is Excellent.
Condition: Excellent (C-7All original: minute scratches and paint nicks; no rust or missing parts; no distortion of parts.
Standards for all toy train related accessory items apply to the visual appearance of the item and do not consider the operating functionality of the equipment.
Condition and Grading Standards are subjective, at best, and are intended to act as a guide. )
Operational Status: FunctionalThe condition of this item leads us to believe it is fully functional.
Original Box: No
Manufacturer: Massoth
Model Number: 800Z
Road Name: **** No Road Name
Scale/Era: G Scale
Model Type: Control
Availability: Ships within 1 Business Day!
The Trainz SKU for this item is 6223206.
