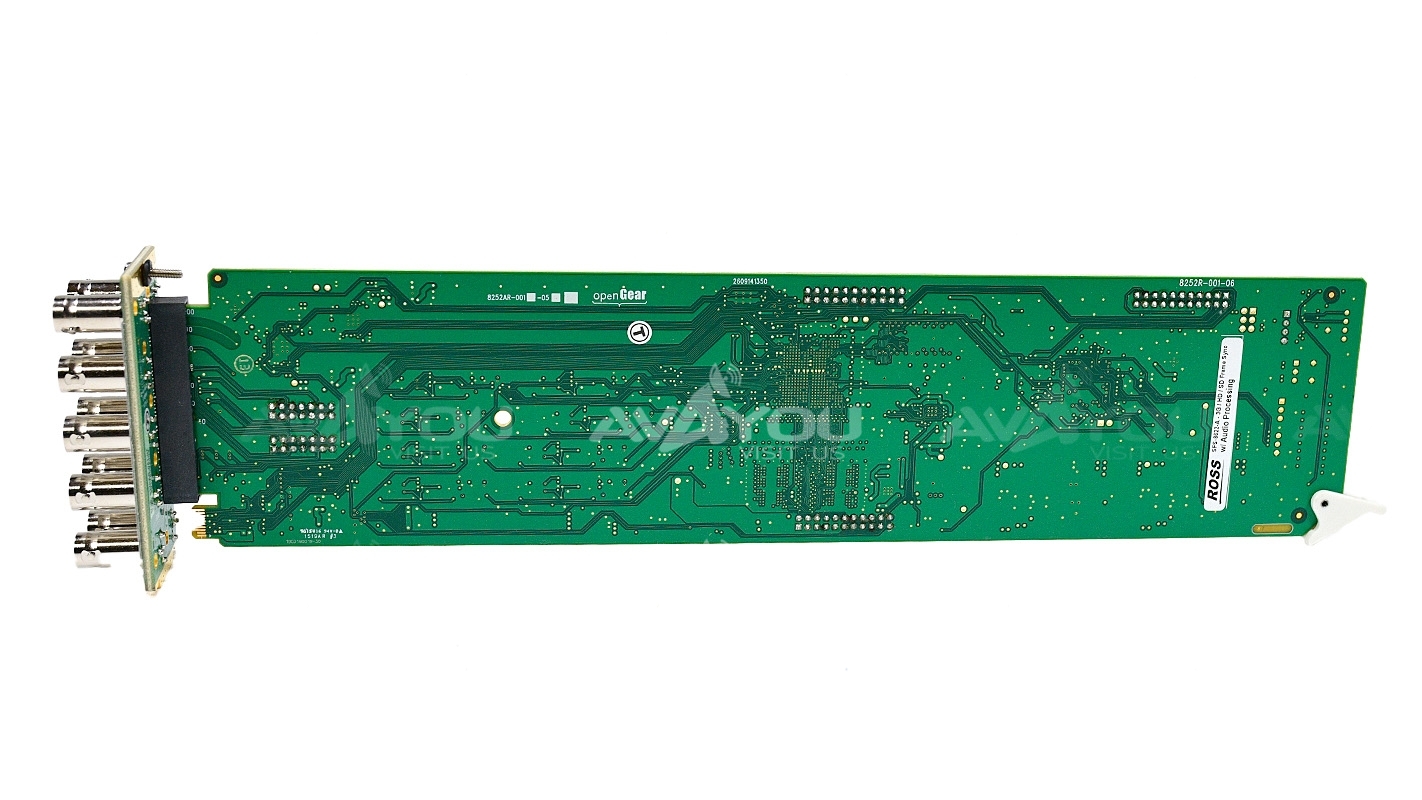

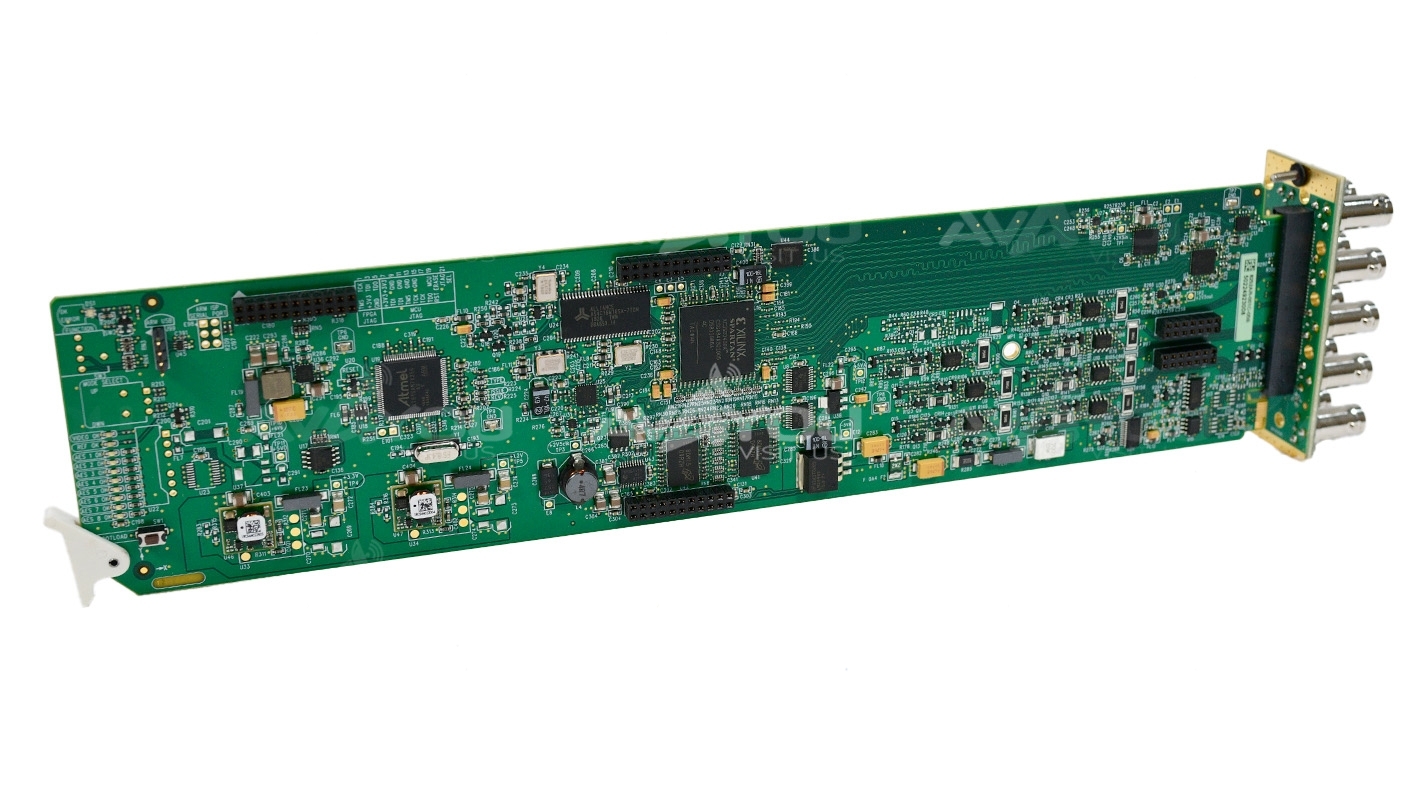

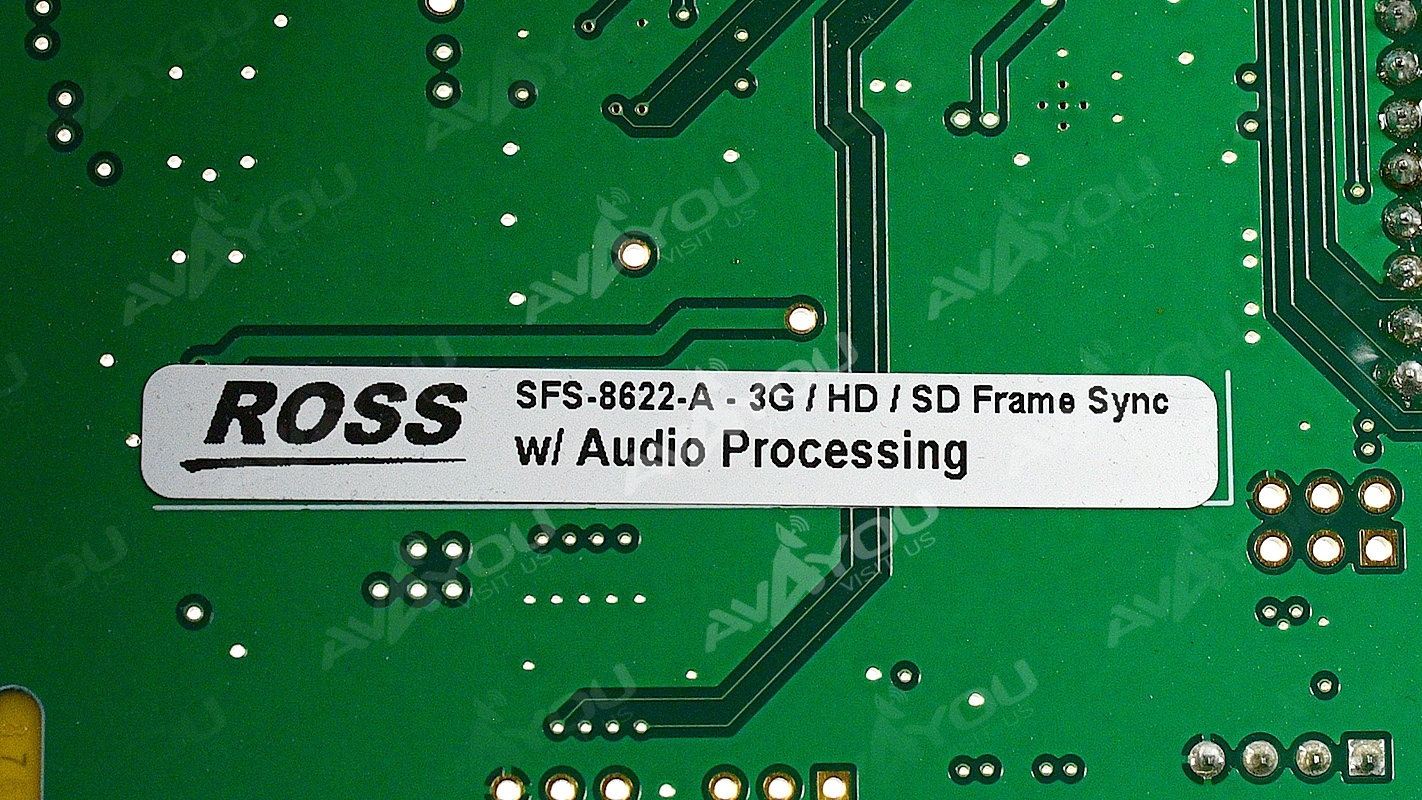

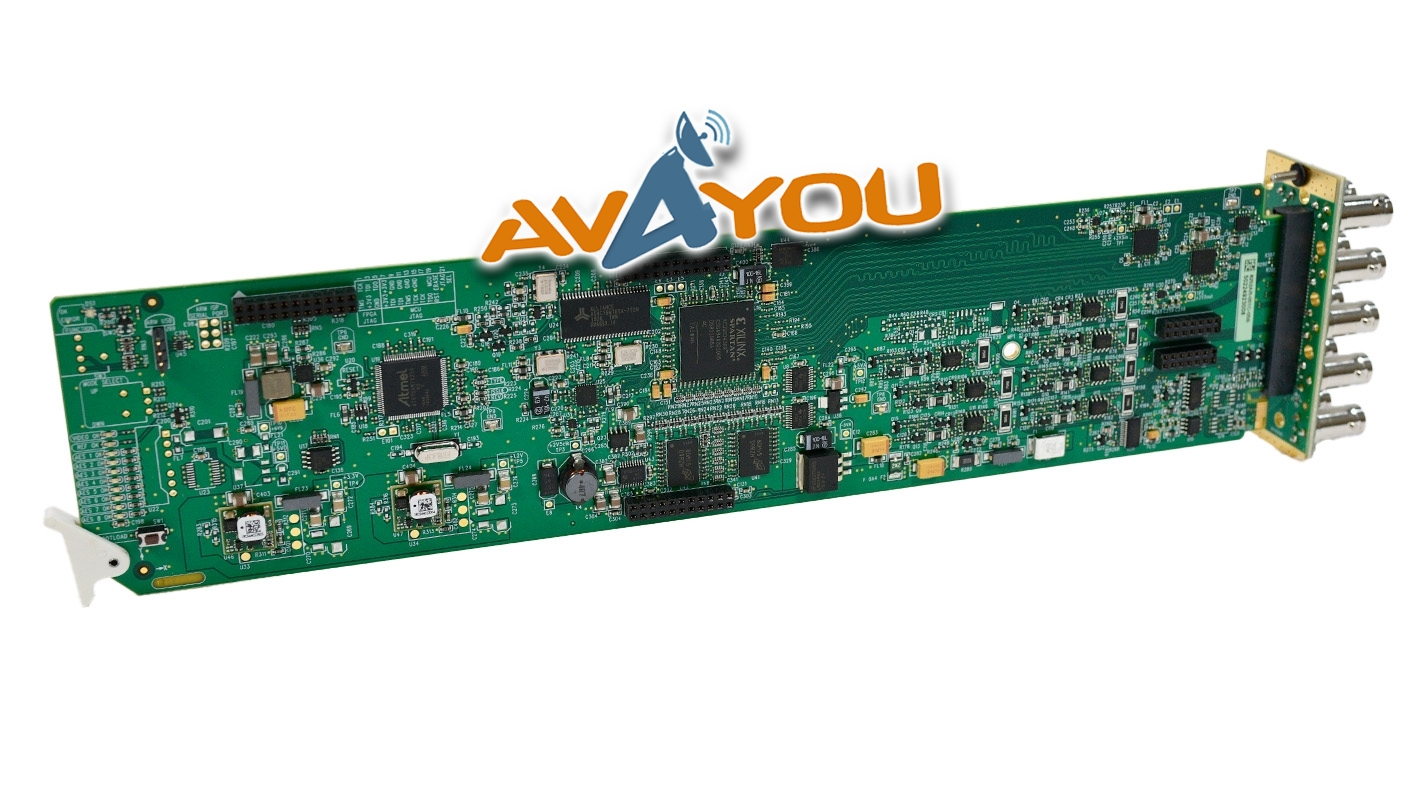

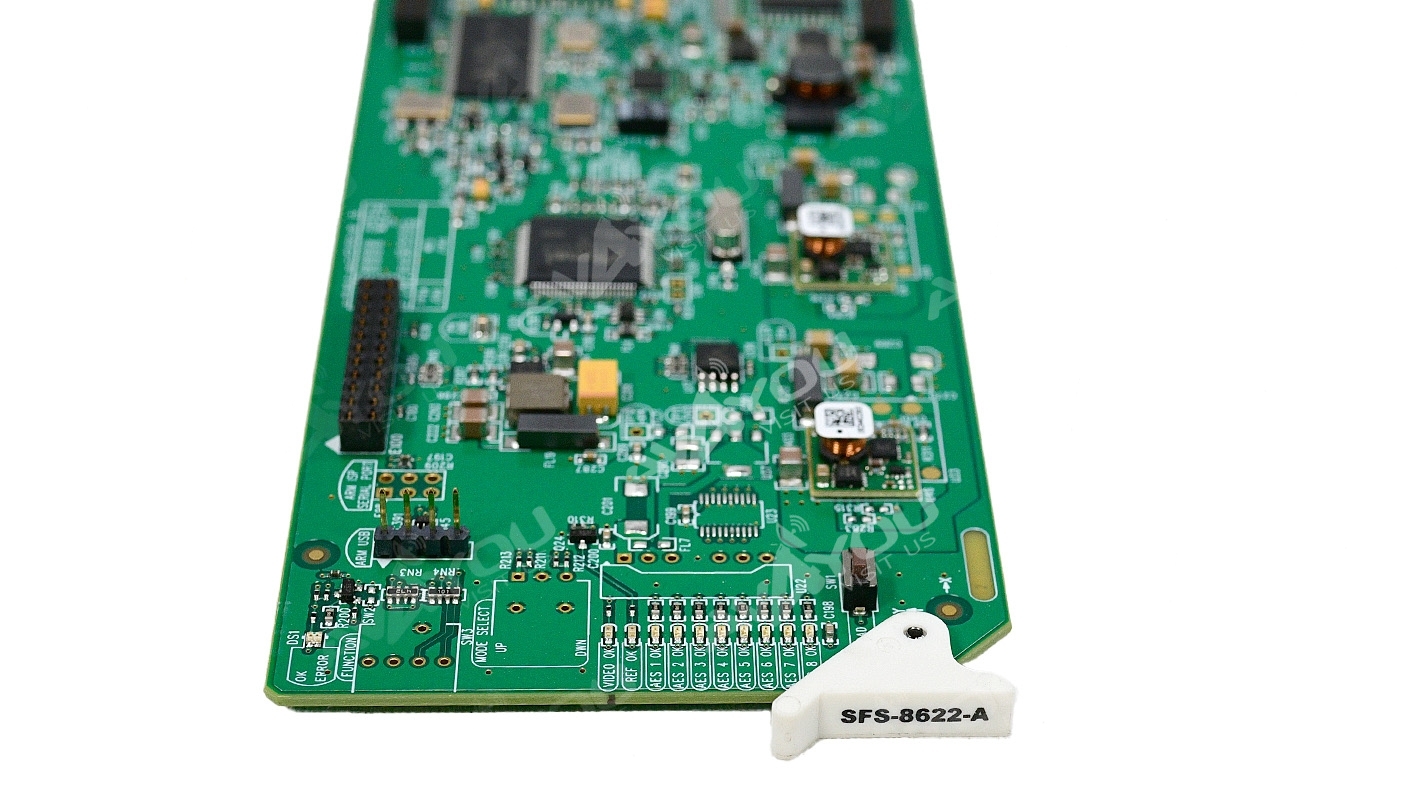

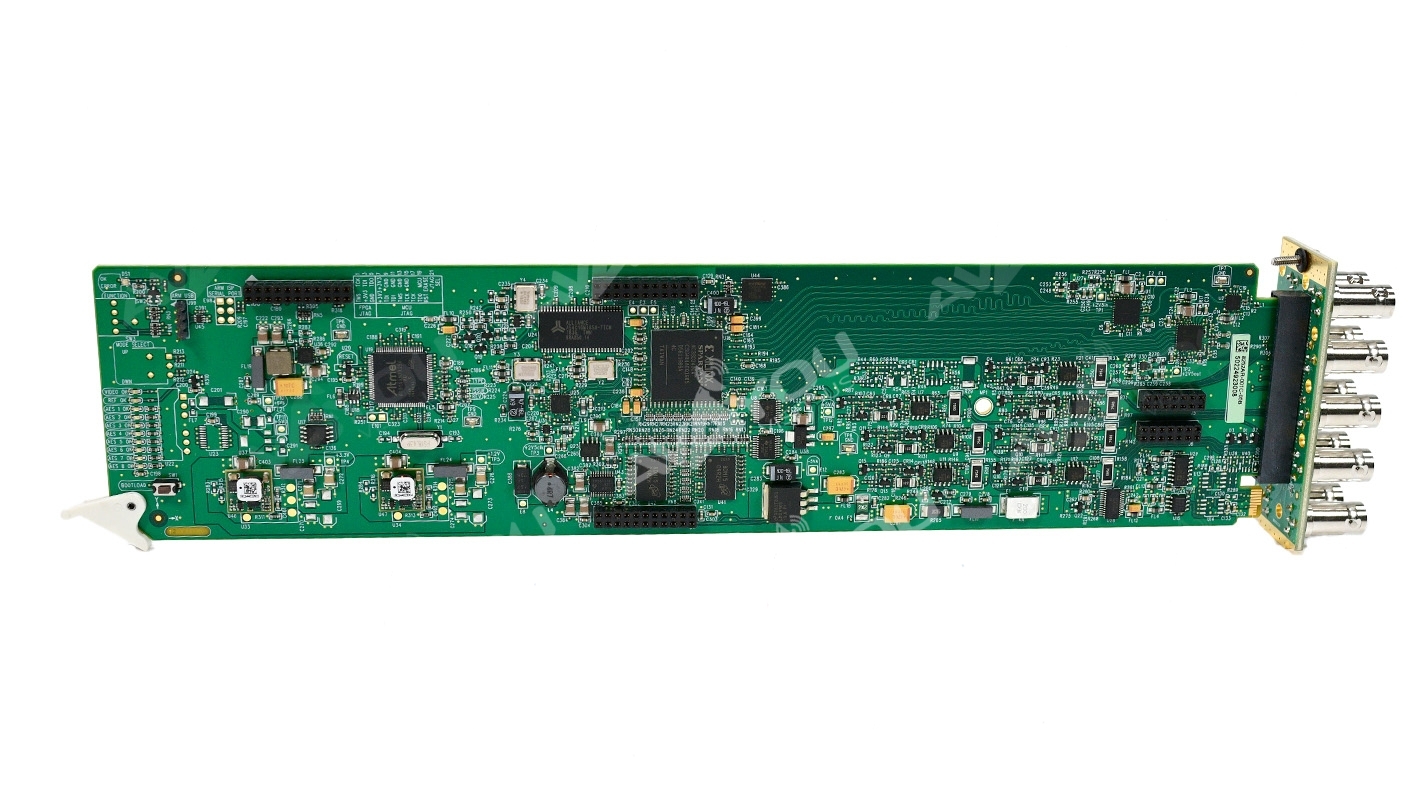

For sale is ONE (1) used SFS-8622-A A/V sync board in very good condition. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped

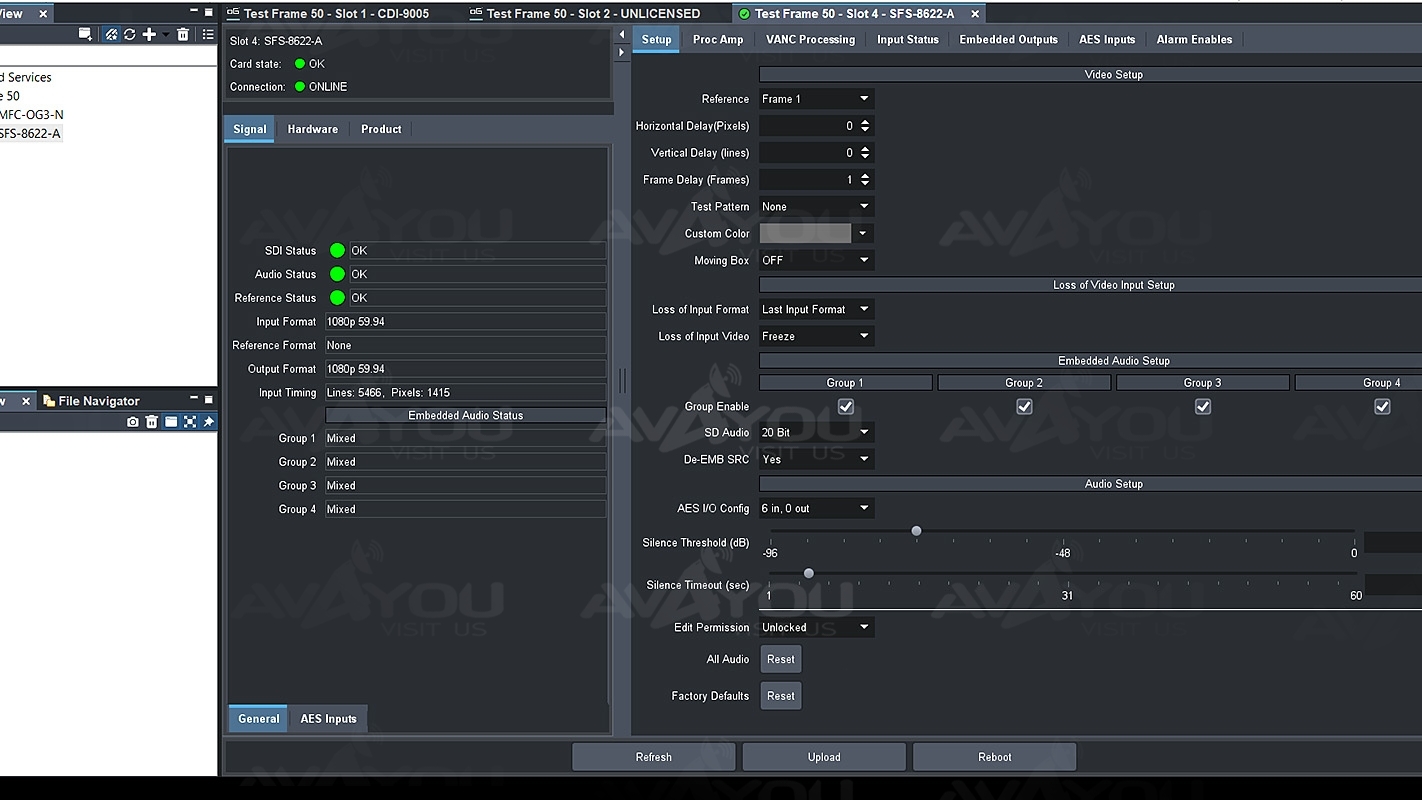

The SFS-8622-A supports all popular formats, including 480i, 576i, 720p, 1080i, and 1080p. Input video format is automatically detected to simplify operation combined with an onboard test pattern generator, with user selectable patterns in the event of input signal loss. The input signal is locked and re-timed to the reference input, with an additional adjustable delay of up to 28 frames.

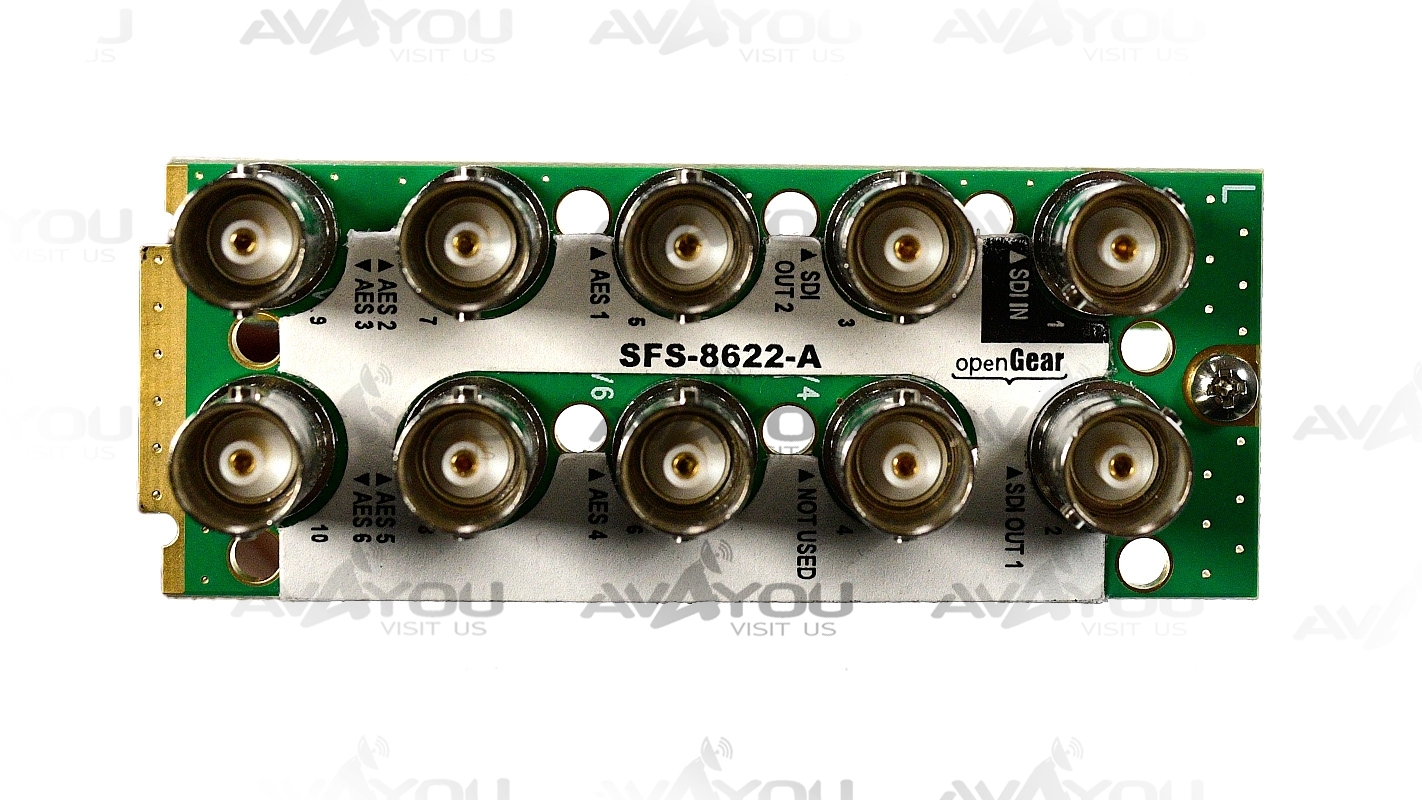

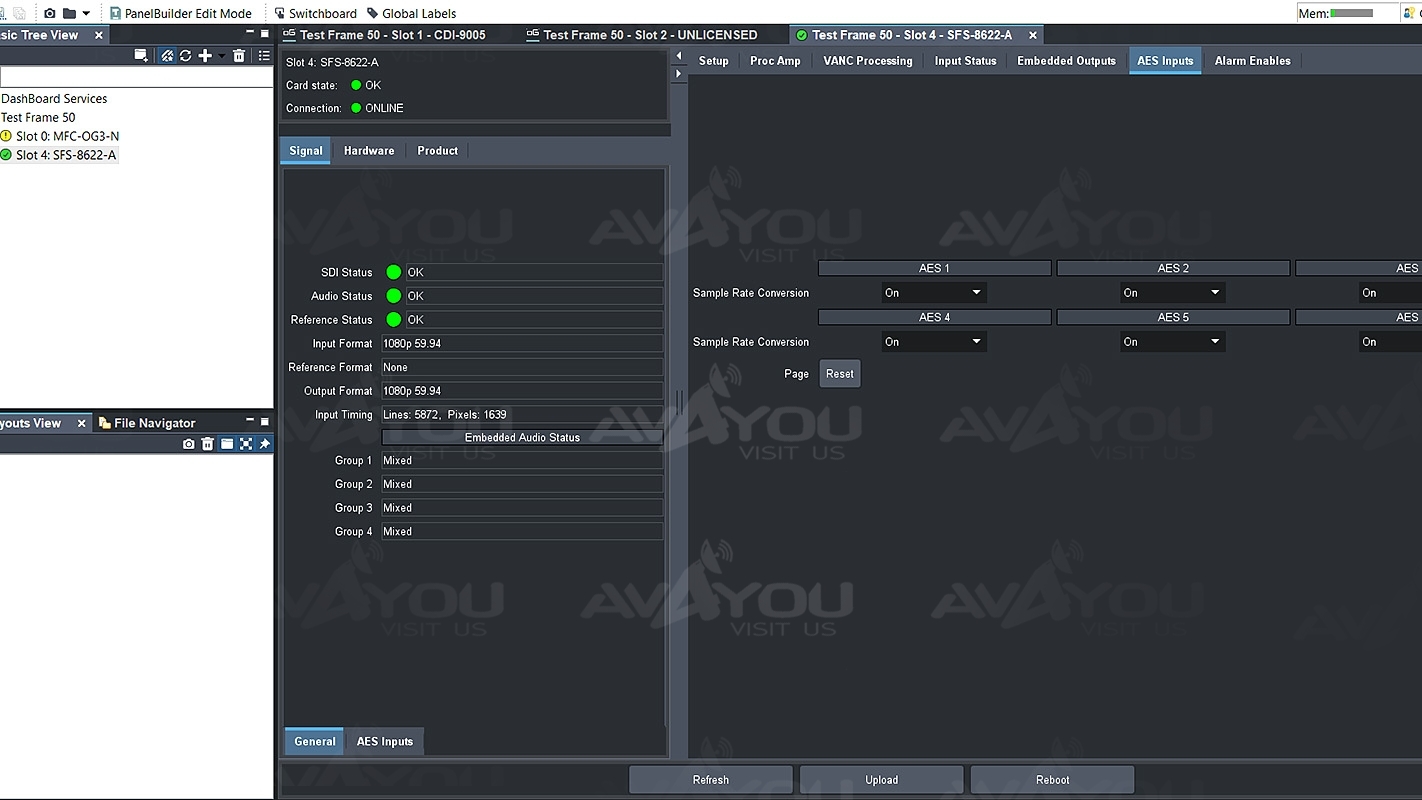

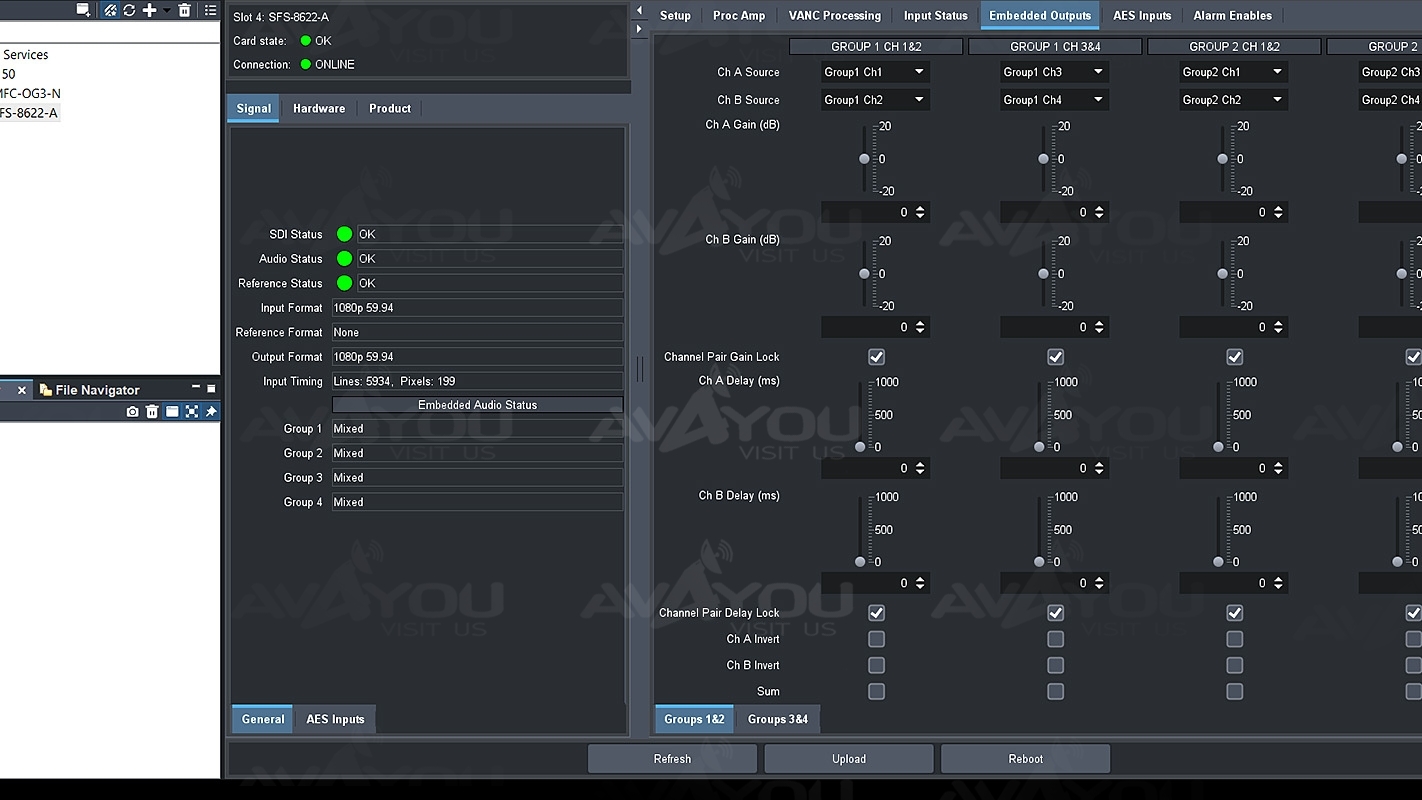

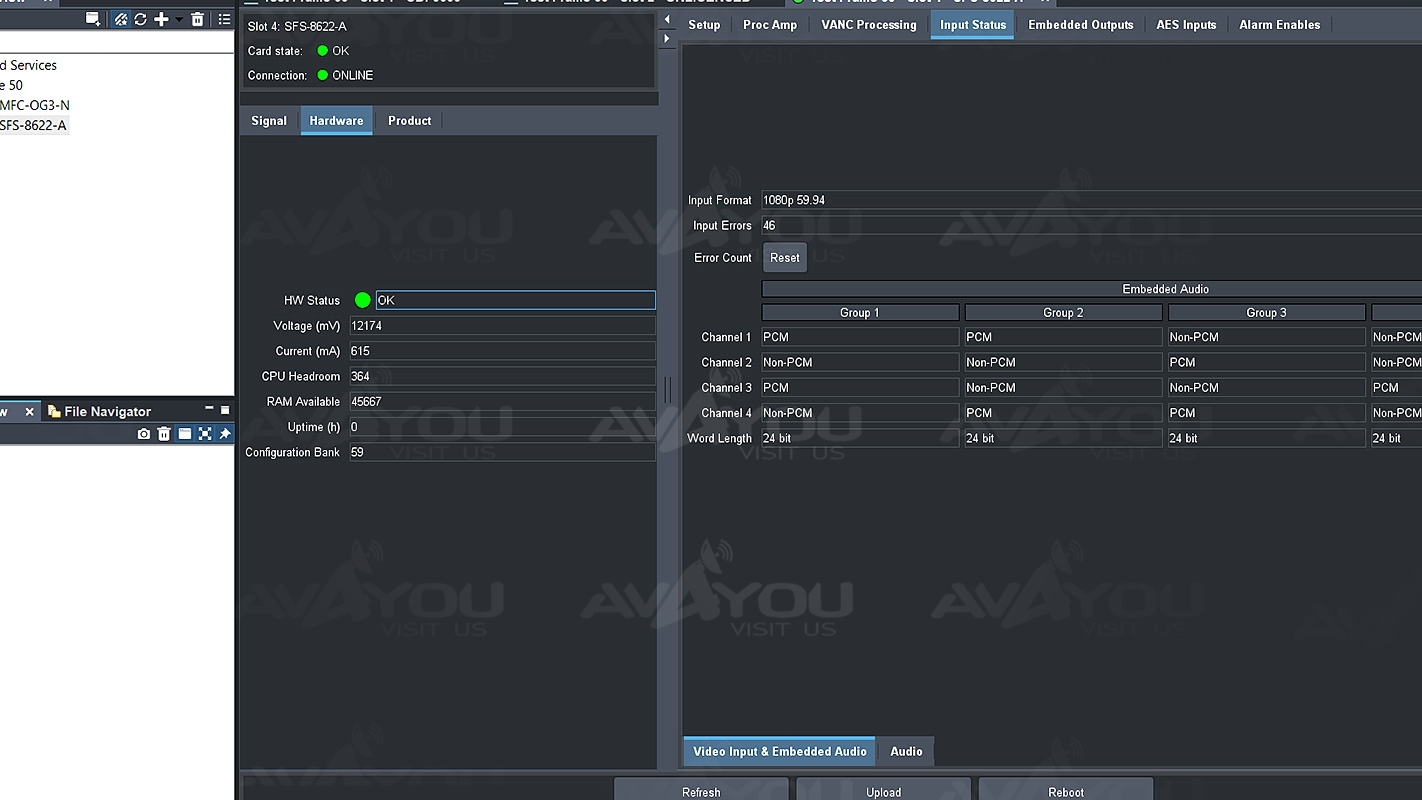

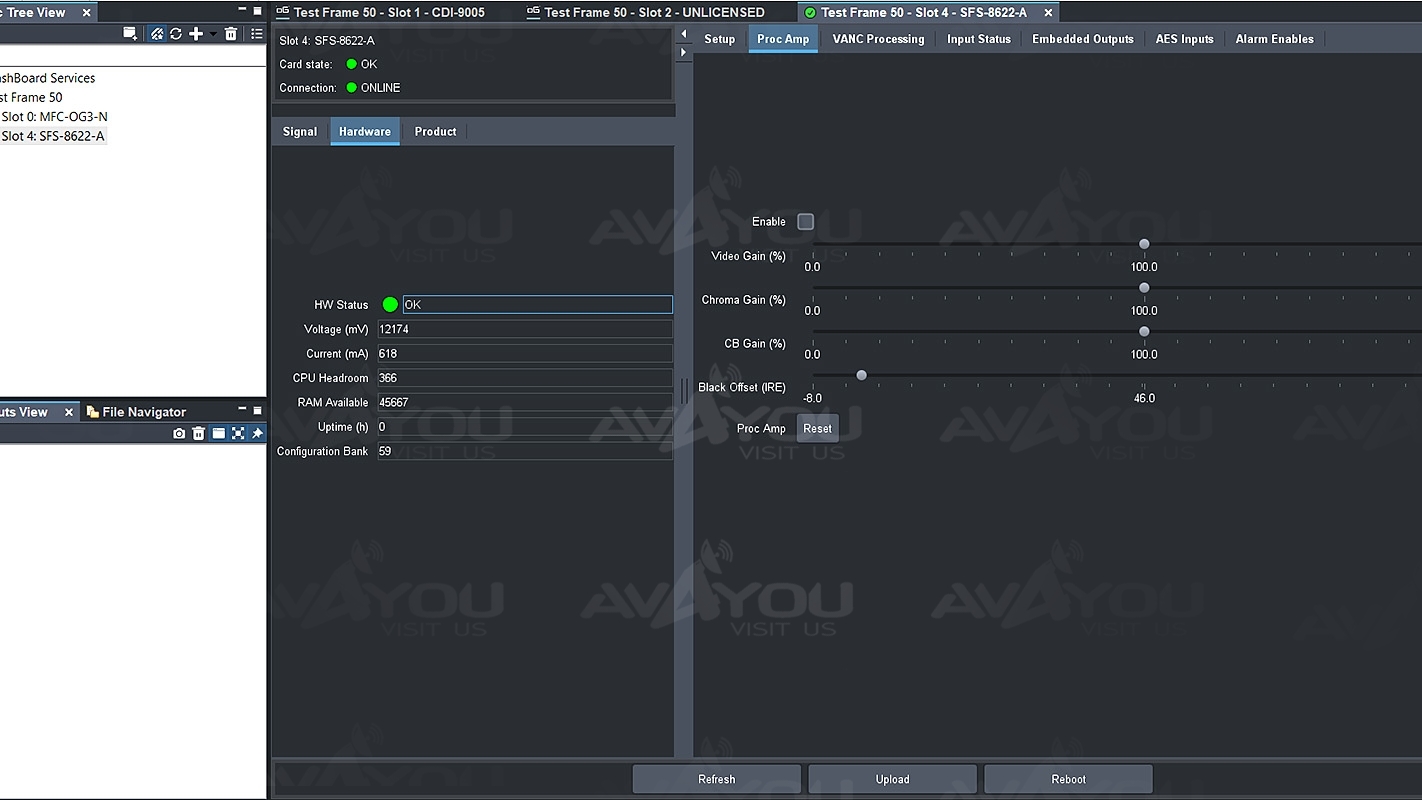

Audio processing with embedding and de-embedding for up to 16 channels of discrete audio, is available using one of the different types of rear modules available. These rear modules can be ordered as unbalanced AES, balanced AES, analog only (limit 8 channels), or combined analog and unbalanced AES versions. Audio processing includes, independent sample rate conversion, delay, swap, sum and mute with pass-through support for Dolby E or Dolby Digital. When ordering the AES versions of the rear module, the discrete audio I/O can be configured via Dashboard as either inputs, outputs, or a mixture of both. The SFS-8622-AIC-R2 provides up to 4 AES and 2 analog stereo pairs for input, while the SFS-8622-AOC-R2 gives users up to 4 AES and 2 analog stereo pairs as outputs.
