Performance Specifications

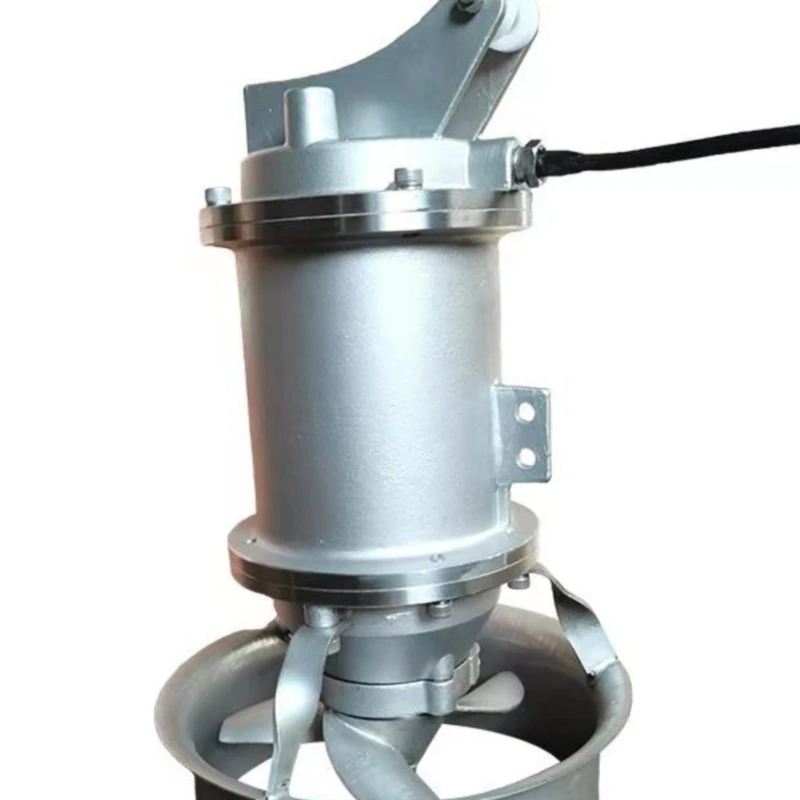

Cast-body mixer QJB0.37/6-220/3-960: Power 0.37 kW, Current 1.9 A, Impeller diameter 220 mm, Impeller speed 960 rpm, Thrust 138 N, Weight 45 kg, Mounting system standard I/II

QJB0.55/4-220/3-1400: Power 0.55 kW, Current 1.8 A, Impeller Diameter 220 mm, Impeller Speed 1400 rpm, Thrust 145 N, Weight 45 kg, Installation System Standard I/II

QJB0.85/8-260/3-740C: Power 0.85 kW, Current 4 A, Impeller Diameter 260 mm, Impeller Speed 740 rpm, Thrust 165 N, Weight 65 kg, Mounting System Standard I/II

QJB1.5/6-260/3-980C: Power 1.5 kW, Current 4.4 A, Impeller diameter 260 mm, Impeller speed 980 rpm, Thrust 220 N, Weight 65 kg, Mounting system standard I/II

QJB2.2/8-320/3-740C: Power 2.2 kW, Current 6.4 A, Impeller diameter 320 mm, Impeller speed 740 rpm, Thrust 580 N, Weight 88 kg, Mounting system standard I/II

QJB4/6-320/3-960C: Power 4 kW, Current 10.3 A, Impeller diameter 320 mm, Impeller speed 960 r/min, Thrust 610 N, Weight 90 kg, Mounting system standard I/II
