24 Ways Coilovers for VW Golf MK5 MK6 Jetta 2003-2012


Features


All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Search for "How to Install the Coilover for Volkswagen Golf R 2009-2012" on YouTube



Application

For VW Golf MK5/A5 (GTI,DTI) 2003-2009

For VW Golf MK6/A6 2009-2012

For VW Jetta MK5/A5 2005-2011

For VW Jetta MK6/A6 2011-2019



Specification

Note: Compatible with front strut inserts of 54.5mm inner diameter.

  • Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
  • Front damping adjustable: Yes, 24 levels of rebound damping force
  • Rear damping adjustable: Not available
  • Front top mount: Pillow ball with camber plate
  • Rear top mount: OE top mount required
  • Camber adjustable: Available
  • Spring rate Front: 6 kg/mm (336 lbs/in)
  • Spring rate Rear: 6 kg/mm (336 lbs/in)
  • Front spring inner diameter: 62 mm
  • Rear spring inner diameter: 63-105-66 mm
  • Spring length Front: 160 mm
  • Spring length Rear: 180 mm
  • Spring Preload advised: 7-10 mm
  • Shock Type: Twin tube
  • Damping rod diameter Front: Φ22 mm
  • Damping rod diameter Rear: Φ12.5 mm
  • Damping  thread Front: M55×2 mm
  • Damping  thread Rear: M55×2 mm
  • Twin -tube Diameter Front: 55 mm
  • Twin -tube Diameter Rear: 55 mm
  • Rod End Thread Front: M14×1.5 mm
  • Rod End Thread Rear: M10×1.25 mm
  • Coil-overs overall length Front: 431 mm - 536mm / 16.97"-20.94"
  • Coil-overs  overall length Rear: 515 mm - 595 mm / 20.27"-23.42"



Package included

  • 2x Front coil-overs
  • 2x Rear coil-overs
  • 1x Allen wrench
  • 2x C spanners
  • 2x Sway bar end links
  • 2x Lower mount washers

Details























































Feature

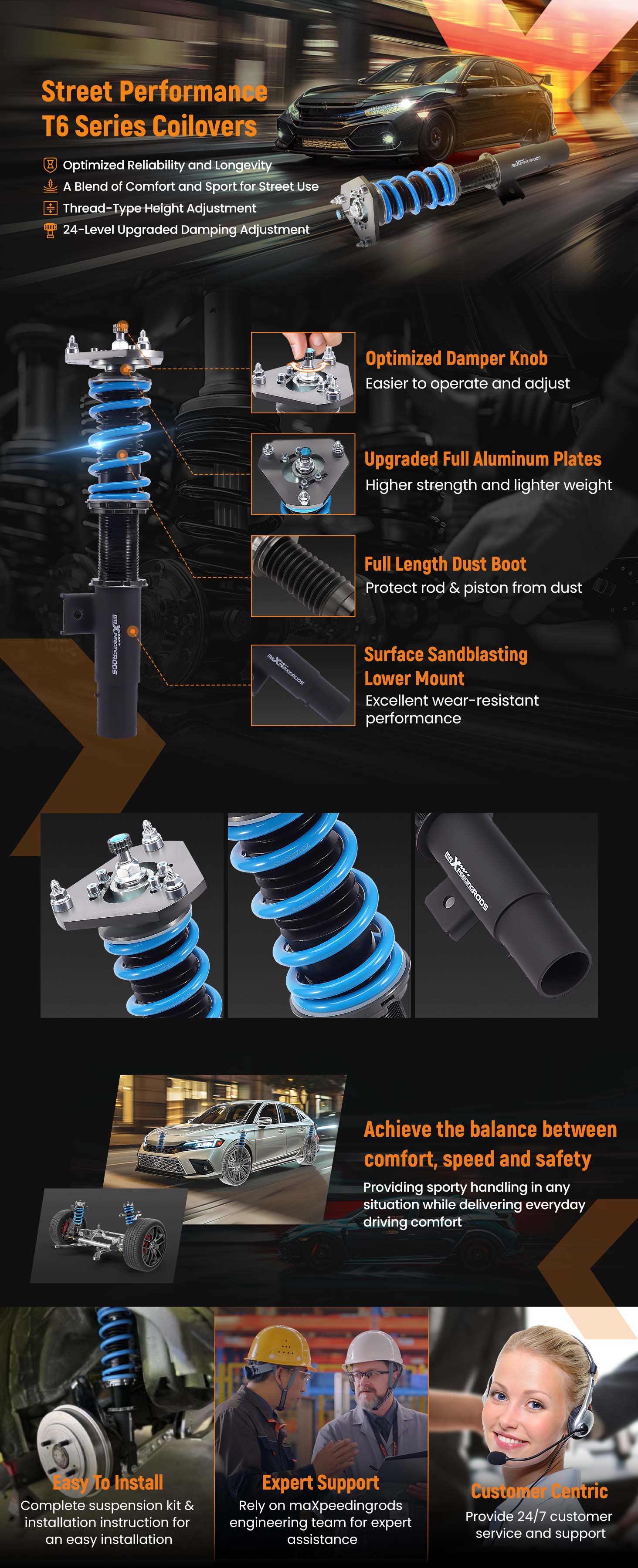

maXpeedingrods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate(for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.

1. Low price but grate quality

2. Full-length system allows ride height adjustment with minimal ride changes

3. 24 levels of adjustable damping force-adjust the Softness/Hardness to your preference

4. Dual-tube system makes street riding more comfortable

5. Aluminium top plates

6. High Tensile Performance Spring-more than 600,000 times continuously test

7. Rubber Bump Stops

8. TPV rubber plastic extended dust cover

9. Grade 12.9 high strength bolts

10. Surface anodized treatment (some parts)

11. Bolt and nut surface: Dacromet

12. Optimized Sleeve Structure, Matte Surface Treatment---Lower Mount
