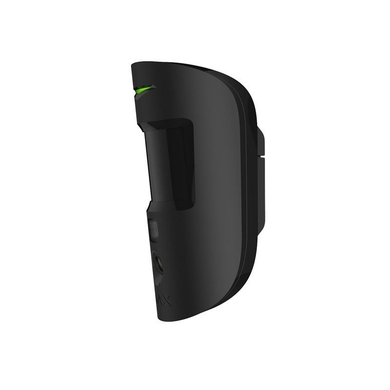

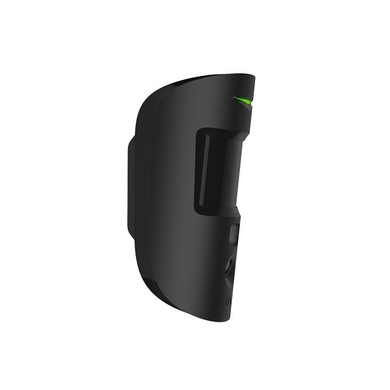

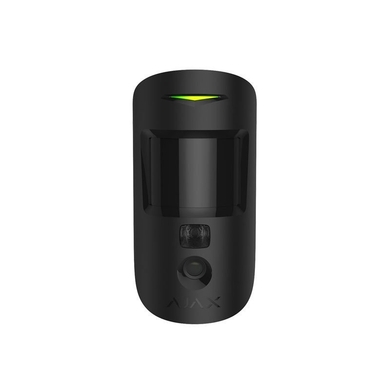

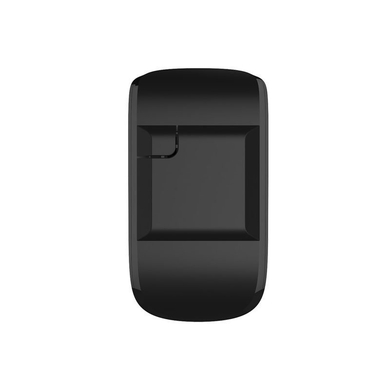

Wireless motion detector with camera Ajax MotionCam (PhOD) Jeweller (Black)

MotionCam (PhOD) will show the real situation on the object in seconds and dispel doubts in case of alarm. You can request a photo with just one click in the Ajax application . The sensor will also automatically take a series of photos if it detects movement or the FireProtect or FireProtect Plus fire detector is triggered. Installing the MotionCam sensor in the right place, at the optimal height and perpendicular to the probable penetration route guarantees an informative thermal diagram. And significantly increases the accuracy of detection. Professional installation also makes the detector's immunity to animals more effective. Sensitivity adjustment allows you to adapt the detector to the conditions of a specific room: possible thermal interference, pets. Increasing or decreasing sensitivity affects the markers that filter false alarms.
List of characteristics
  • Sensitive element: PIR sensor
  • Motion detection range: 12 m
  • Detection angles: 88.5° horizontal, 80° vertical
  • Immunity from pets: weight up to 20 kg/height up to 50 cm
  • Image resolution: up to 640x480 pixels
  • Number of photos in case of alarm: up to 5
  • Viewing angle: 90°
  • IR illumination: yes
  • Compatibility: Ajax Hub 2 / Ajax Hub 2 Plus / Ajax Hub Hybrid
  • Communication protocol: Jeweller (868.0-868.6 MHz), Wings (transmission of series of photos, verification of delivery of photo confirmations)
  • Communication range with the control panel: 1700 m (open space)
  • Radio signal power: 20 mW
  • Temperature sensor: yes
  • Tamper: yes
  • Battery type: CR123A – 2 pcs.
  • Battery life: 3 years
  • Installation type: indoors
  • Installation height: 2.4 m
  • Housing protection class: IP50
  • Operating temperature: from 0 ° C to +40 ° C
  • Humidity: up to 75%
  • Dimensions: 135x70x60 mm
  • Weight: 167 g

Features



Area up to 12 m when installed at a height of 2.4 m.
Installation height 2.4 m
Animal immunity weight: up to 20 kg, height: up to 50 cm
Digital temperature compensation Supports
Anti-sabotage Tamper against opening, Floor protection, Loss of communication detection
Frequency response 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – M 922
Transmission distance up to 1700 m
Detection speed from 0.3 to 2.0 m/s
power supply 2 CR123A batteries, 3 V
Battery life up to 4 years of battery life
Degree of protection IP50
Operating temperature −10°C - +40°C
Dimensions 135×70×60 mm
Weight 167 g
Package size (W x H x D) 142 x 72 x 82 mm
Gross weight Weight: 0.22 kg
