72V 3000W 26" 27.5" 29" MTX39 Rear Motor Wheel Conversion Kits With 72V 26AH 60A BMS Triangle Battery
Please note that the battery and the kit will be shipped separately.
Wheel Sizes Options: 26", 27.5", 29" MTX39 Wheel
Without Tire and tube
Motor Specification:
Magnet Width: 45mm
Magnet Quantity: 23 pairs (46 pcs)
Magnet Width: 45mm
Dual Hall Sensor (One for spare use)
High Motor Efficiency: 84.8%
Max Torque: 80.3 N.M.
Max Rotation: About 642RPM
Rated Rotation: About 600RPM
Weight: 10kgs
Wheel dropout: 135mm(Single Speed Freewheel)
Parts Including:
1. 72V 3000W 26"/27.5"/29" MTX39 Rear Motor Wheel with Single Speed Freewheel (Without Tire and Tube)
2. 72V 60A Sine Wave Controlller
3. T24 Color Display
4. Twist Throttle
5. Brakes sensor or Brakes Lever
6. PAS
7. Torque Arm
8. Alarm device

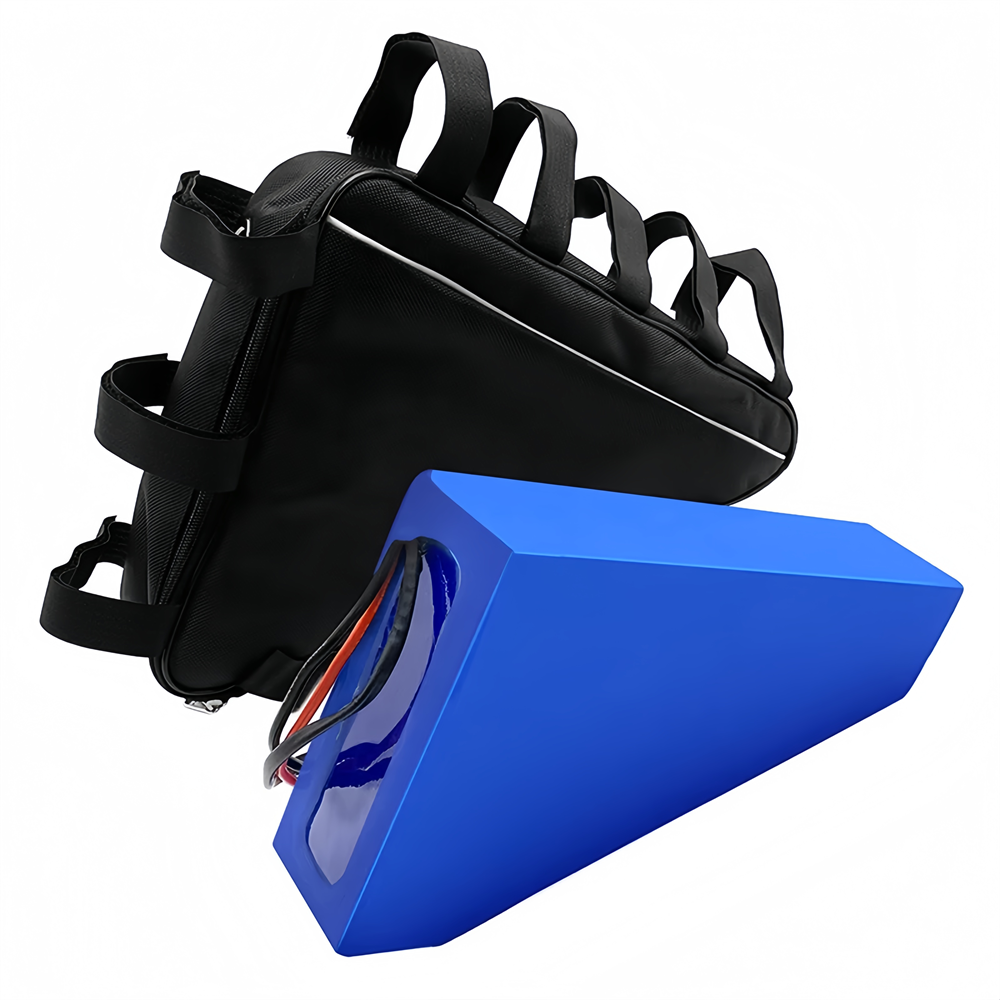

9. 72V 26AH Triangle Lithium Battery with Bag
10.84V 6A battery Charger
11.Controlller bag
Nominal Capacity (AH): 26Ah
Nominal Voltage (V): 72V
Source Resistance (mΩ）: <15
Cell Specification: 3.7V 5200mAH 3C Powerful LG INR21700-52E Cell
Cell Combination: 20-series, 5-parallels
Cell Size: 21700 Cylinder Cell
Diameter: 21mm, Height: 70mm
Cell Quantity (parallel*series): 100pcs
Discharge Cutoff Voltage (V): 60 +/- 1V
Charge Cutoff Voltage (V): 84V
Rated Discharge Current (A): 26A
Maximum Continuous Discharge Current (A): 60A
Maximum Continuous Charge Current (A): 12A
Charge Mode: CC/CV
Standard Charge Current (A): 6A
Charge Time under Standard Charge Current (Hours): 5h
Charge Temperature Range: 0 - 60 ℃
Discharge Temperature Range: -20 - 60 ℃
Battery Size: 360.7*214*110*280.6*88 mm (Size in Photo)
Charging Cycles > 1000 cycling times
Battery Net Weight: 9.2kgs
Battery Gross Weight(include charger,bag and packing): 12kgs
Battery Application: For less than 72V 3600W Motor and Controller (72V 60A)
