This Item Has A Current Calibration!
|
|
|
|

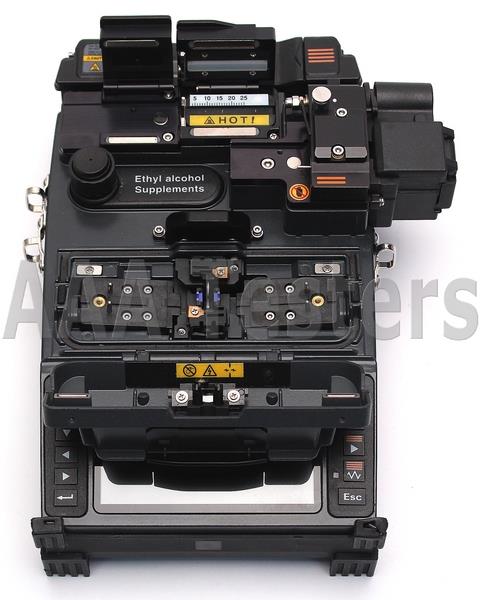

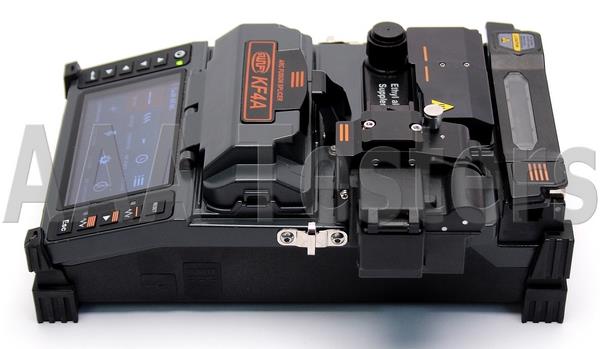

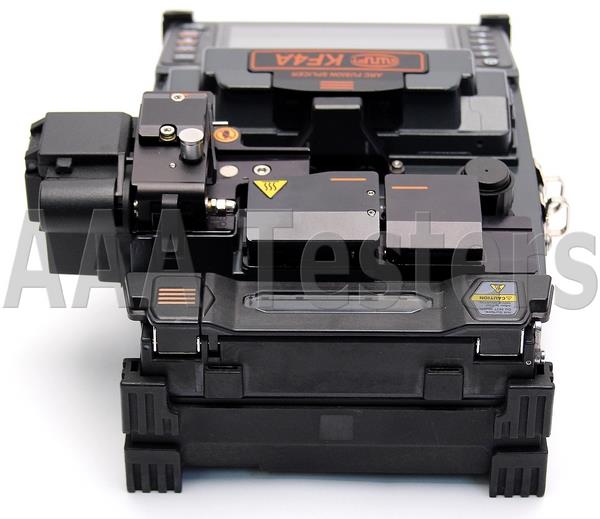

ILSINTECH Swift KF4A SM MM Clad Alignment Fiber Fusion Splicer
Designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving
The Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector (SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors

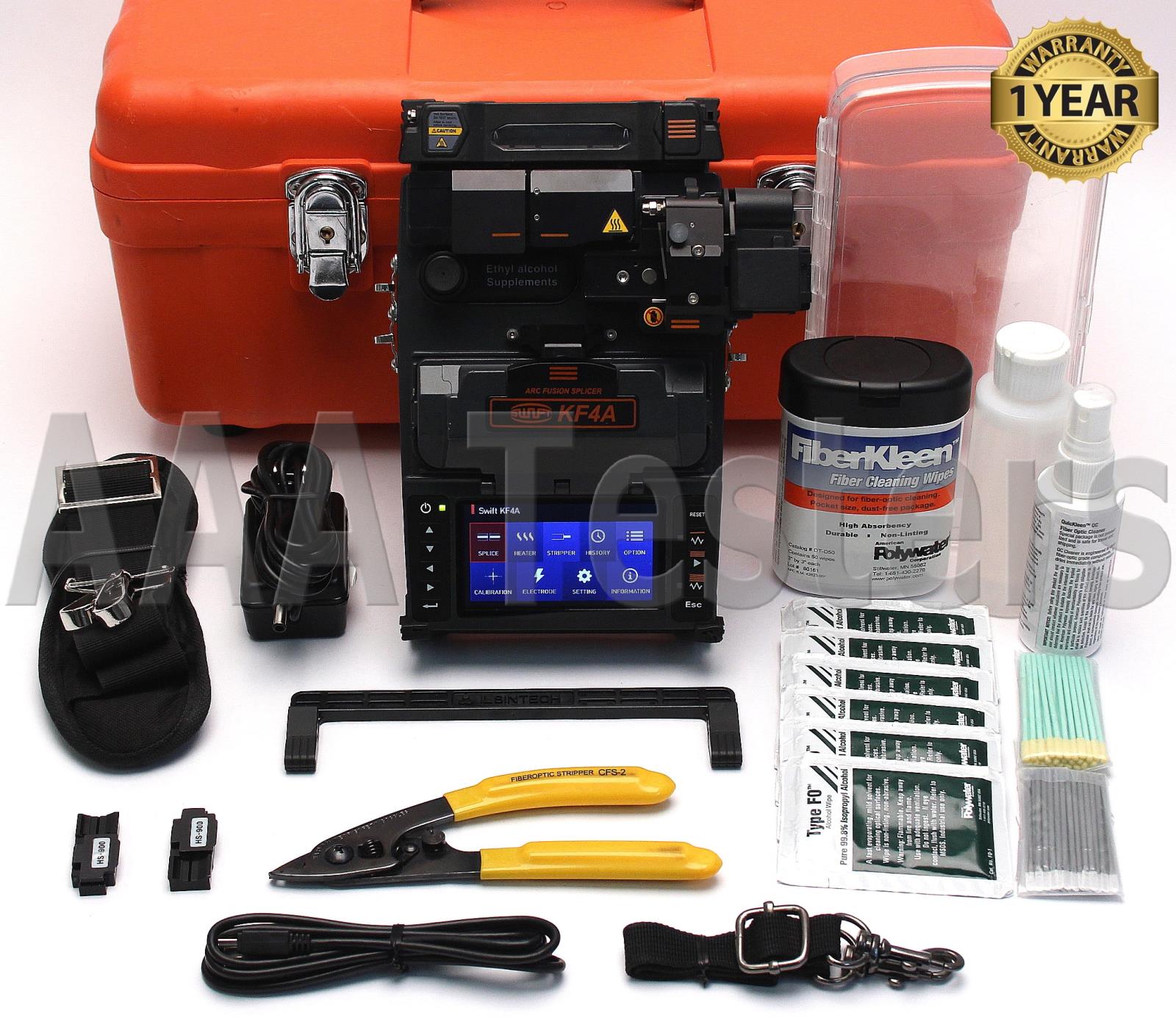

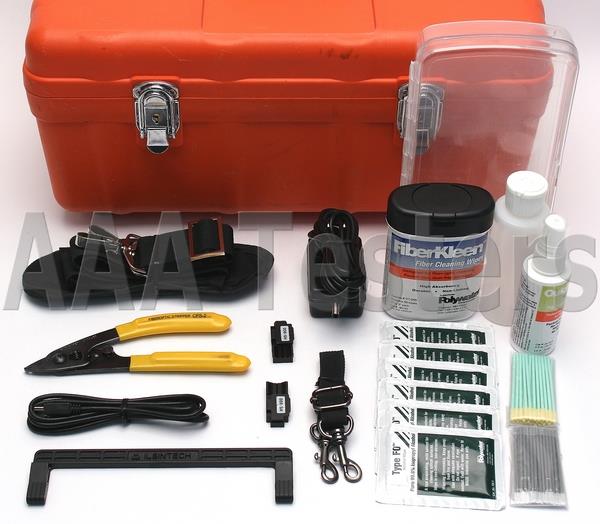

Includes Hard Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

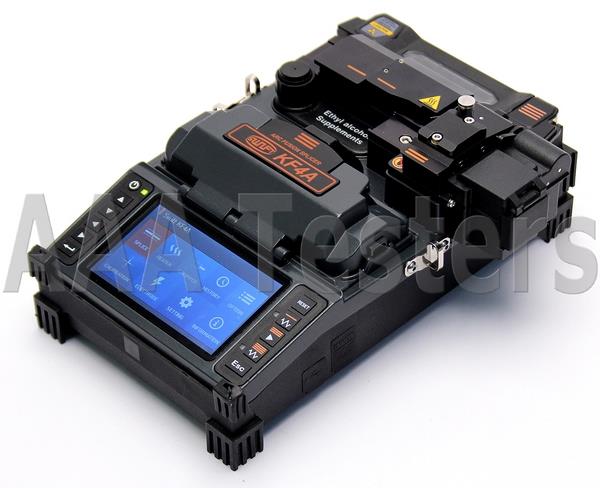

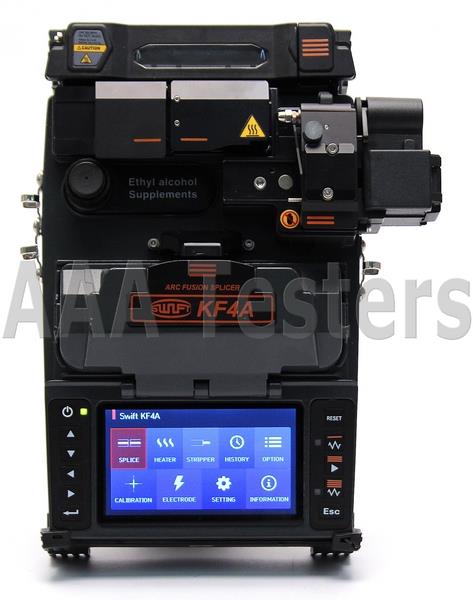

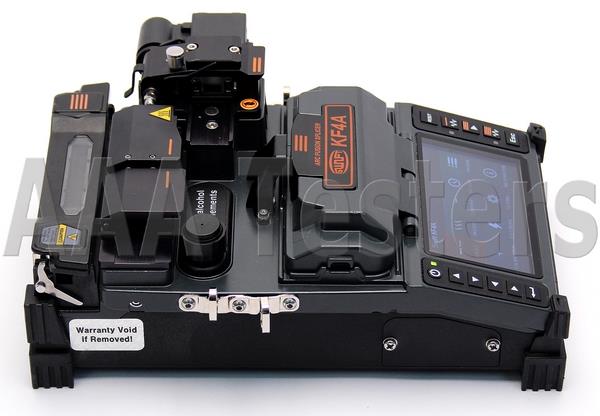

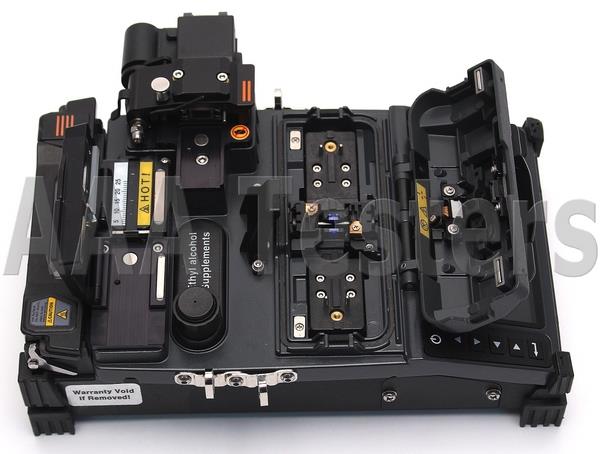

Ilsintech Swift KF4A Fusion Splicer
Swift KF4A is the highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving.In addition, optional Optical Power Meter and V.F.L(Visual Fault Locator) is imbedded in the machine. They allow users check the splice result immediately without additional tools. (ALLINONE+, KF4A+) The Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector(SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors.(low quality, weak durability and high maintenance cost). Swift KF4A+fusion Splice-On-Connector gives our customer the best ROI.
Features:
- Stripping
- No scratches from heated stripping
- Stripping time : 1.5sec
- Over 5kg/f Tensile Strength of fiber after stripping
- Cleaning
- One-touch pump
- Easy to refill cleaning alcohol
- Cleaving
- Single-action cleaving
- Fiber chip collector attached
- Resistance to Shock, Dust and Water
- The splicer with high reliability has stable performance even in a harsh environment.
- Shock – Free Fall : 76cm from 5 sides l Waterproof : IPx2 l Dustproof : IP5x
- Compatible with Fusion Splice-On Connector(SOC) in accordance with the Industrial Standard
Specifications:
Fiber alignment
|
Active Clad to Clad Alignment
|
Applicable type of fibers
|
0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable
|
Fiber Count
|
Single fiber
|
| Applicable fiber dimensions |
Cladding diameter : 125㎛, Coating diameter : 150㎛~3mm
|
Fiber setting and cleaved length
|
5mm to 16mm
|
Splicing modes
|
Splice mode: 300, Heater mode: 100
|
Typical Splice Loss
|
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
|
Return loss
|
> 60dB
|
Splicing time
|
Typical 7sec (with SM)
|
Splice loss estimate
|
Available
|
Sleeve heating time
|
Typical 13sec, IS-60 mode with IS-20 sleeve |
Applicable protection sleeve
|
40mm, 60mm and Micro sleeve |
| Storage of splice result |
Data : Up to 5,000 (Image : Up to 5,000 pcs) |
| Tension test |
1.96N to 2.25N |
Operating condition
|
Altitude: 0~5,000m above sea level, Temperature: -10℃~50℃,
Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
| Storage condition |
Temperature: -40℃~80℃, Humidity: 0~95% |
| Dimension |
132(W)ｘ212(L)ｘ73(H)mm |
Weight
|
1.5kg (Including battery)
|
| Viewing method and display |
2AXIS Two CMOS cameras and 4.3-inch color LCD monitor |
Fiber view and magnification
|
X/Y : 130X, Max : 260X |
| Power supply |
DC Lithium polymer battery(DC 14.8V, 1650mAhｘ2), 100 ~ 240V AC Adapter |
| No. of splice cycles with battery |
Typical 200 cycles |
| Electrode lifetime |
More than 21,000 times |
| Blade lifetime |
75,000 fibers |
| Terminals |
USB
|
For full Ilsintech Swift KF4A product specifications, please click here: Ilsintech Swift KF4A
|
|
|
|
