Description

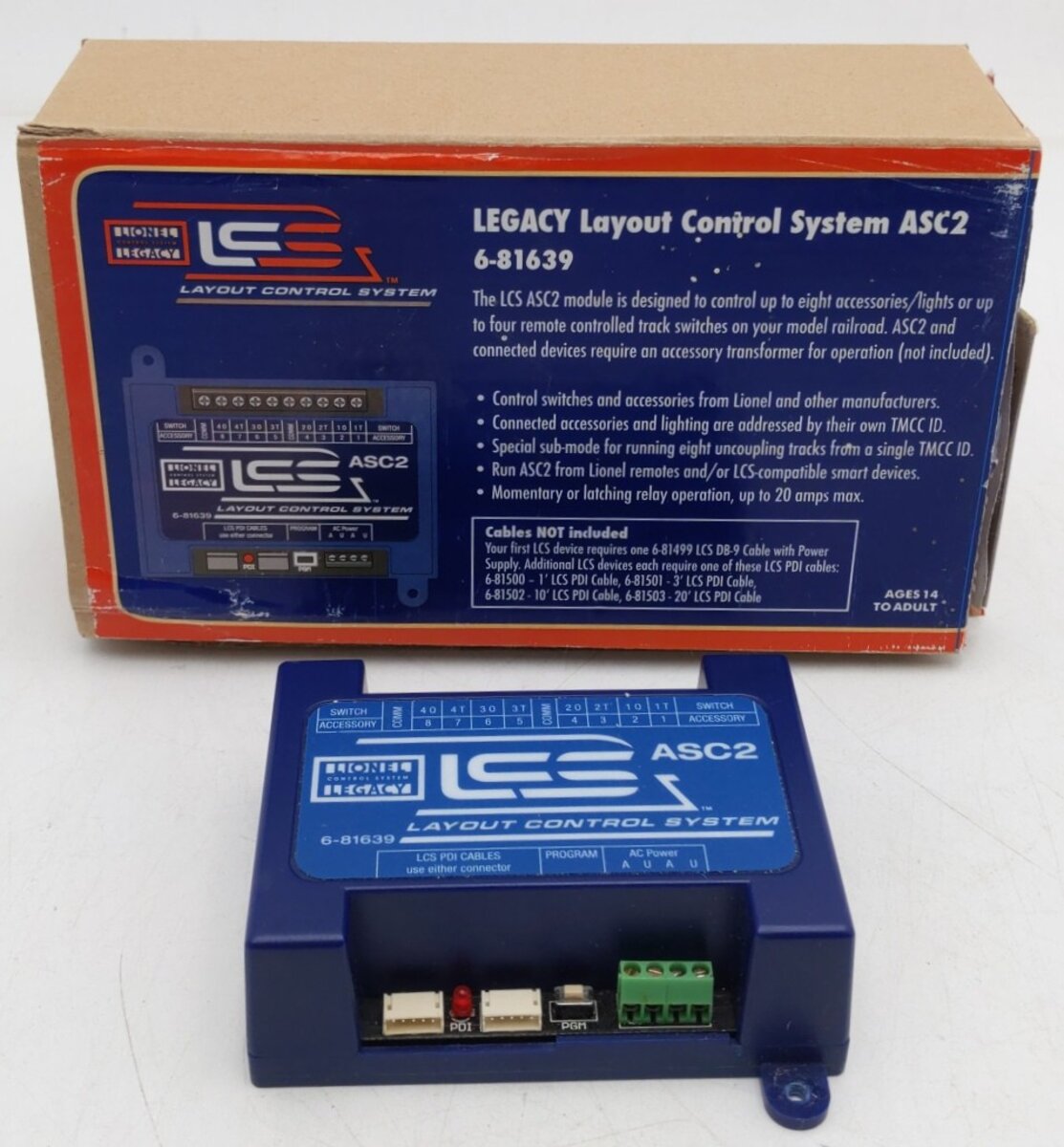

This is a Lionel 6-81639 Legacy LCS Accessory Switch Controller 2 (ACS2).
Add more functionality with Optional Add-on Component of the Layout Control System. The ASC2 can be configured to “switch mode” or two types of “accessory mode” operation.
Features
When configured in switch mode, an ASC 2 operates up to four remotely operated switches from Lionel and other manufacturers. The ASC2 has eight Normally Open relays, with four banks of two complementary outputs. One pair of relays will activate the THRU position with one set of contacts, and the other set of contacts will activate the OUT position. Each relay is rated at 20 amps. The starting TMCC SW address (0-96) is user configurable and the next three switches are assigned the three subsequent IDs.

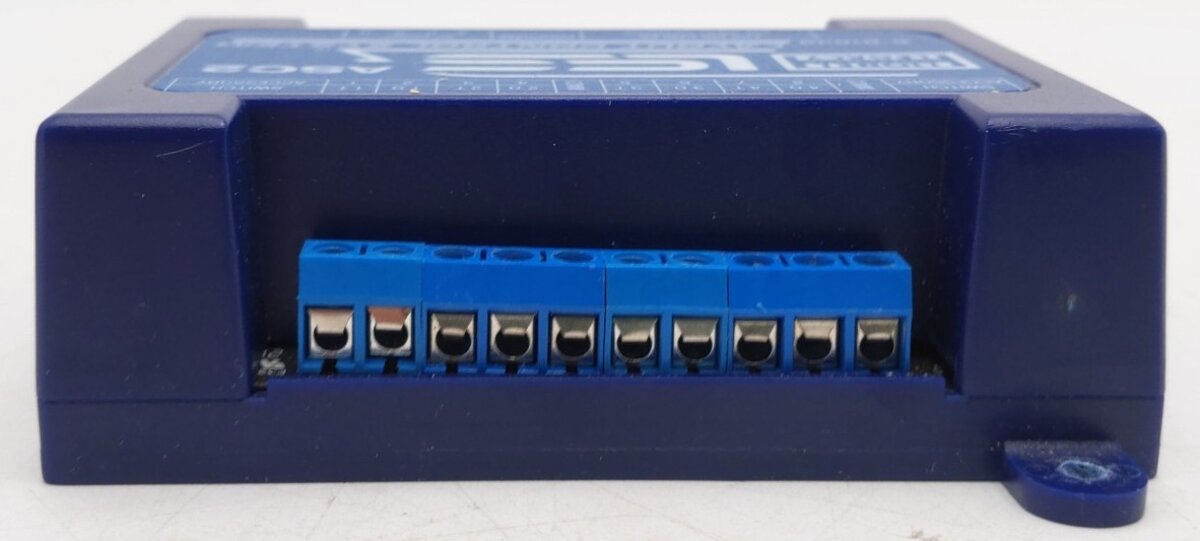

When configured in accessory mode, up to eight lights, uncoupling tracks or basic on/off accessories can be controlled. Accessory mode is configured as 8 normally open relays, split into two banks of four. Each of these two banks has a common terminal feed.
Two addressing schemes are supported in accessory mode. In single address, the user sets a single TMCC ACC ID (0-99) for all eight relays. In operation, the user selects that ID, then hits numeric keypad 1-8. This will pulse the relay to that numbered-relay for one second, then shut off. This is ideal for uncoupling track activation.
In eight address mode, the user sets a starting TMCC ACC ID for the first relay and the remaining seven are assigned subsequent TMCC IDs (up to ID 99 for the last relay). To operate, a given relay is addressed. Then, pressing the AUX1 key activates that relay as long as the key is held. AUX2 toggles the relay on or off, useful for operating lighting.
The ASC2 can be operated from Lionel CAB remotes and/or the LCS App+LCS WiFi. In all operating modes, the ASC2 is connected to the LCS system using an LCS PDI cable. This carries commands as well as power for the ASC2's control electronics. An additional AC power source is required for relay operation. This external AC can come from your track power or an accessory transformer (sold separately).
One 6-81499 LCS Power Supply and DB9 cable is required per LCS installation.

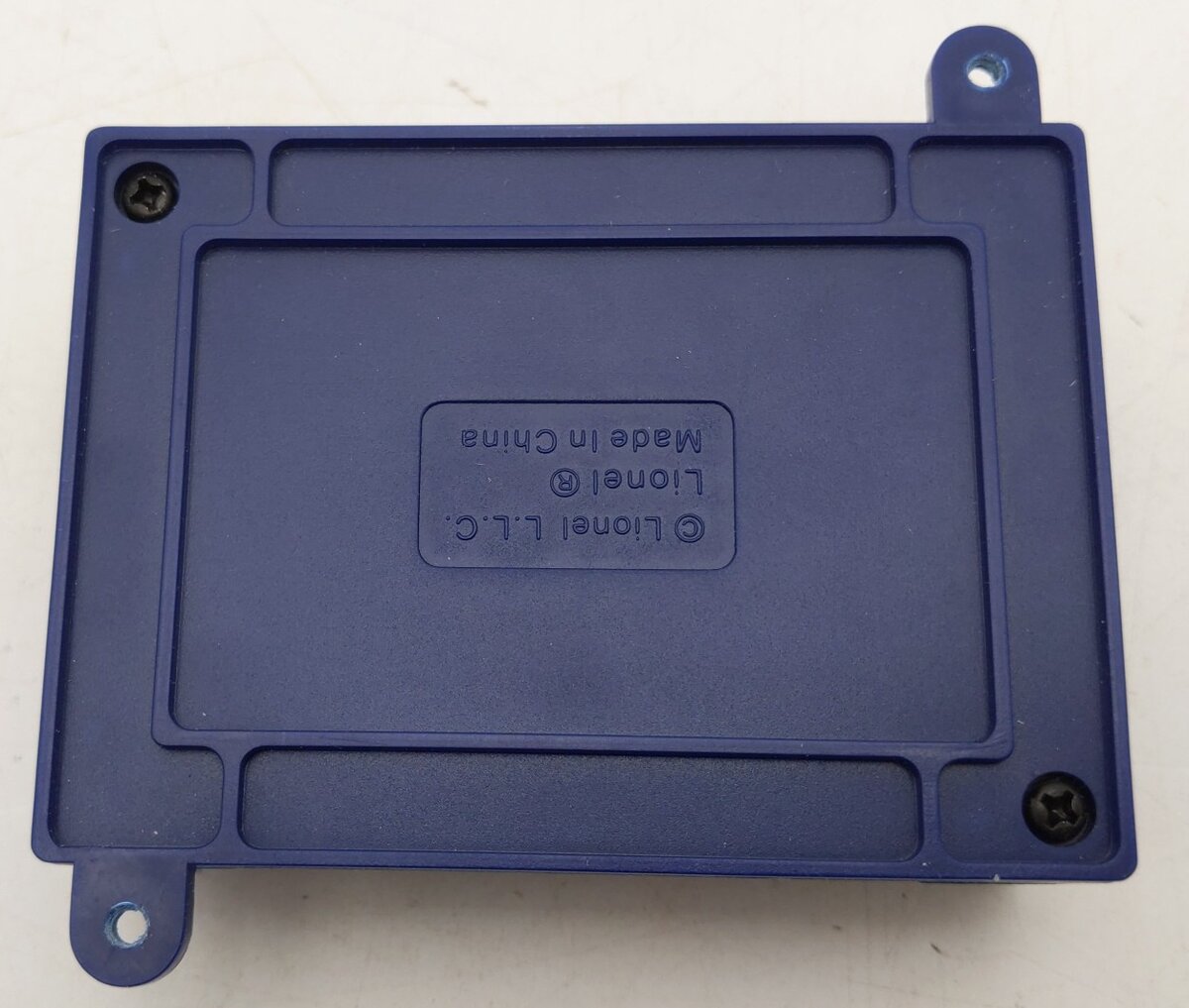

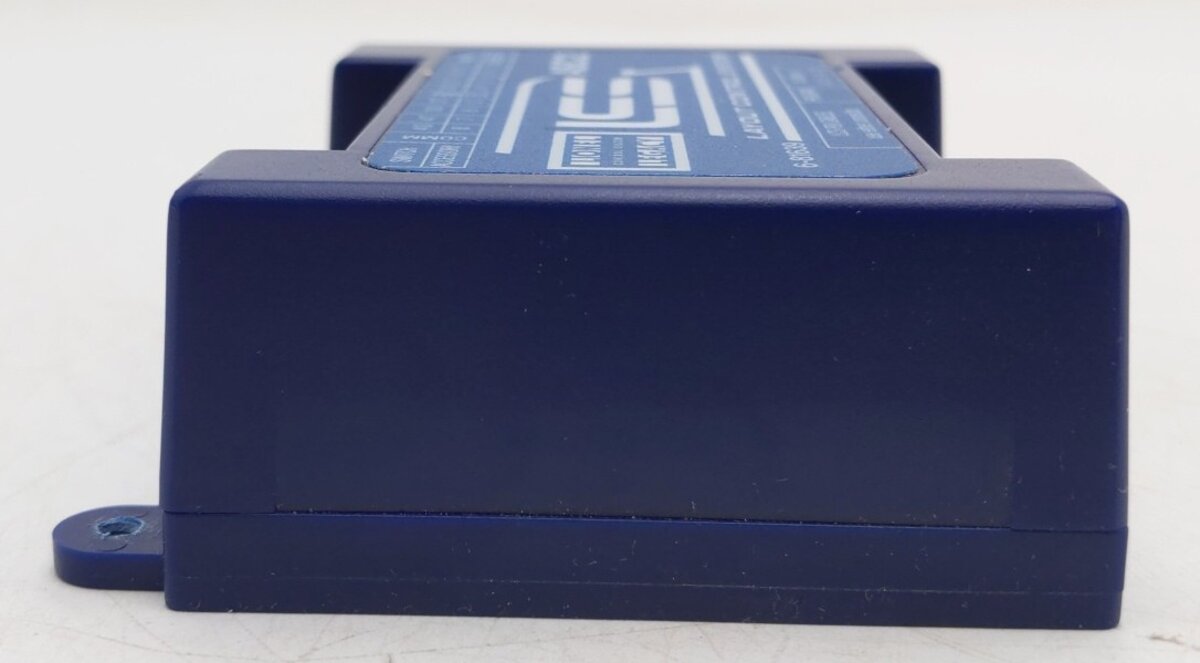

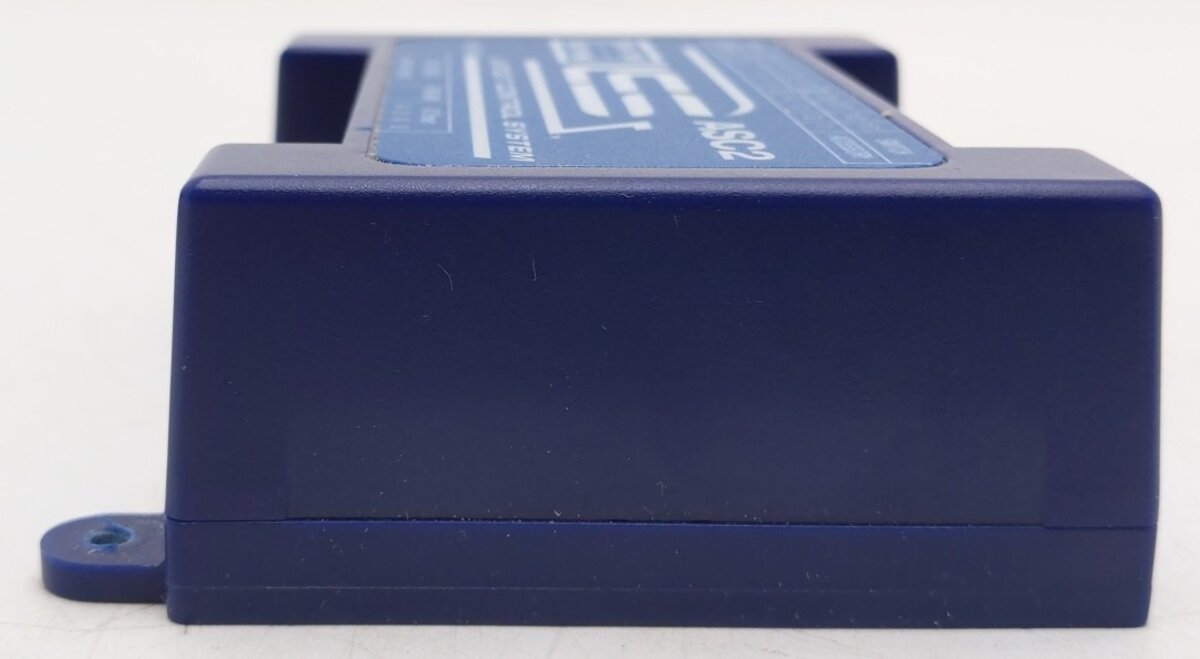

This item has been graded per TCA standards C-7: Excellent based on visual appearance. This item shows light scratches, nicks, and scrapes throughout various sections of the body and metal/plastic hardware pieces. The overall appearance of this item may be improved with a gentle and thorough cleaning. The instruction manual is included. The original box is included. Please check the photos for a detailed look at this item. Overall condition is Excellent.
Condition: Excellent (C-7All original: minute scratches and paint nicks; no rust or missing parts; no distortion of parts.
Standards for all toy train related accessory items apply to the visual appearance of the item and do not consider the operating functionality of the equipment.
Condition and Grading Standards are subjective, at best, and are intended to act as a guide. )
Operational Status: FunctionalThe condition of this item leads us to believe it is fully functional.
Original Box: Yes (P-6Minor abrasions, creases, small tears, color changes, soiling. Missing inner liners.)
Manufacturer: Lionel
Model Number: 6-81639
Road Name: **** No Road Name
Scale/Era: O Modern
Model Type: Track
Availability: Ships within 1 Business Day!
The Trainz SKU for this item is 6177675.
Trainz Product Id: 11981857
