Please note this is C2 Model only HDMI

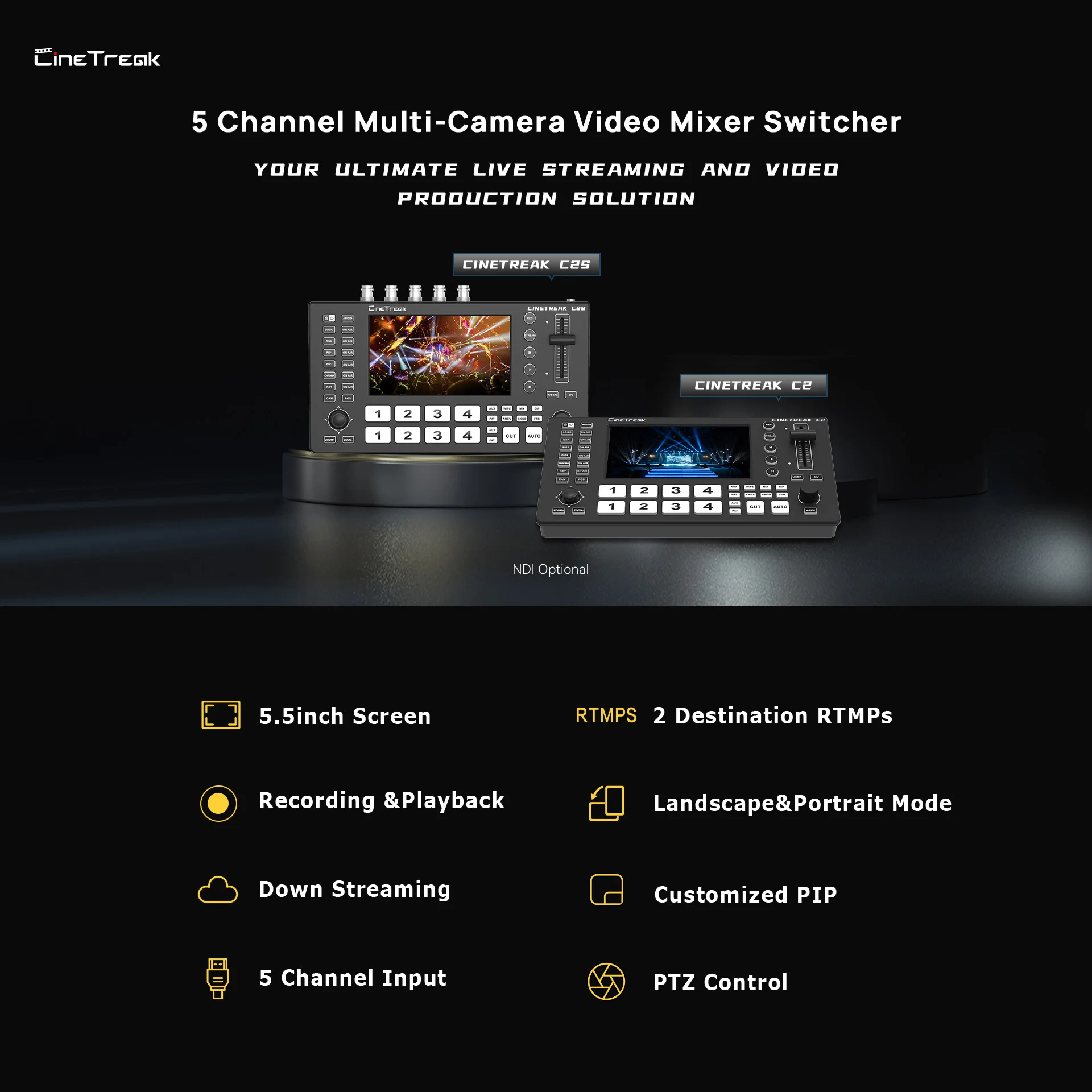

We are excited to unveil theCineTreak C2andCineTreak C2S, the latest additions to our professional live streaming switcher lineup. Building upon the success of the CineTreak C1 series, these upgraded models are designed to deliver enhanced performance, greater functionality, and improved efficiency for broadcasters and content creators.

CineTreak C2S

5.5inch High Precision Screen.
Aluminum Panel And Compact Design.
Customized Meeting Mode,Display 4 windows at same time.
4*HDMI Inputs or 4*SDI Inputs,1*PGM Out, 1*PVW Out（AUX).

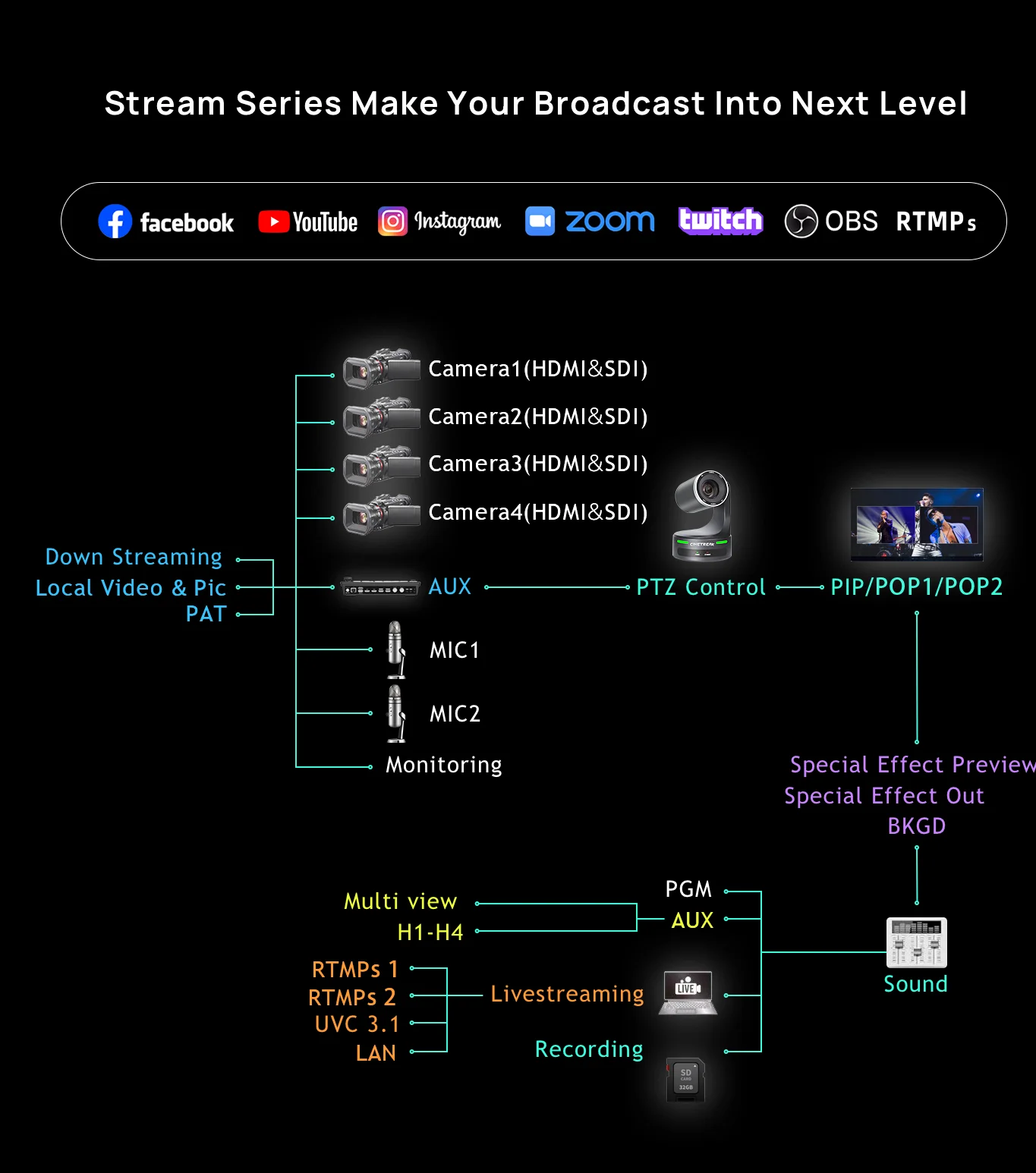

6 Inputs: 4 SDI or 4HDMI, 1 AUX, 1 Backdround and SD card & Down streaming.
Down Streaming: Get your extra video source online.
PTZ Control: Controls up to 4 PTZ cameras via VISCA.
Wireless IP control: Control your video mixer from PC,Phone,IPad.
Recording & Playback: Record H.264 files with instant playback.

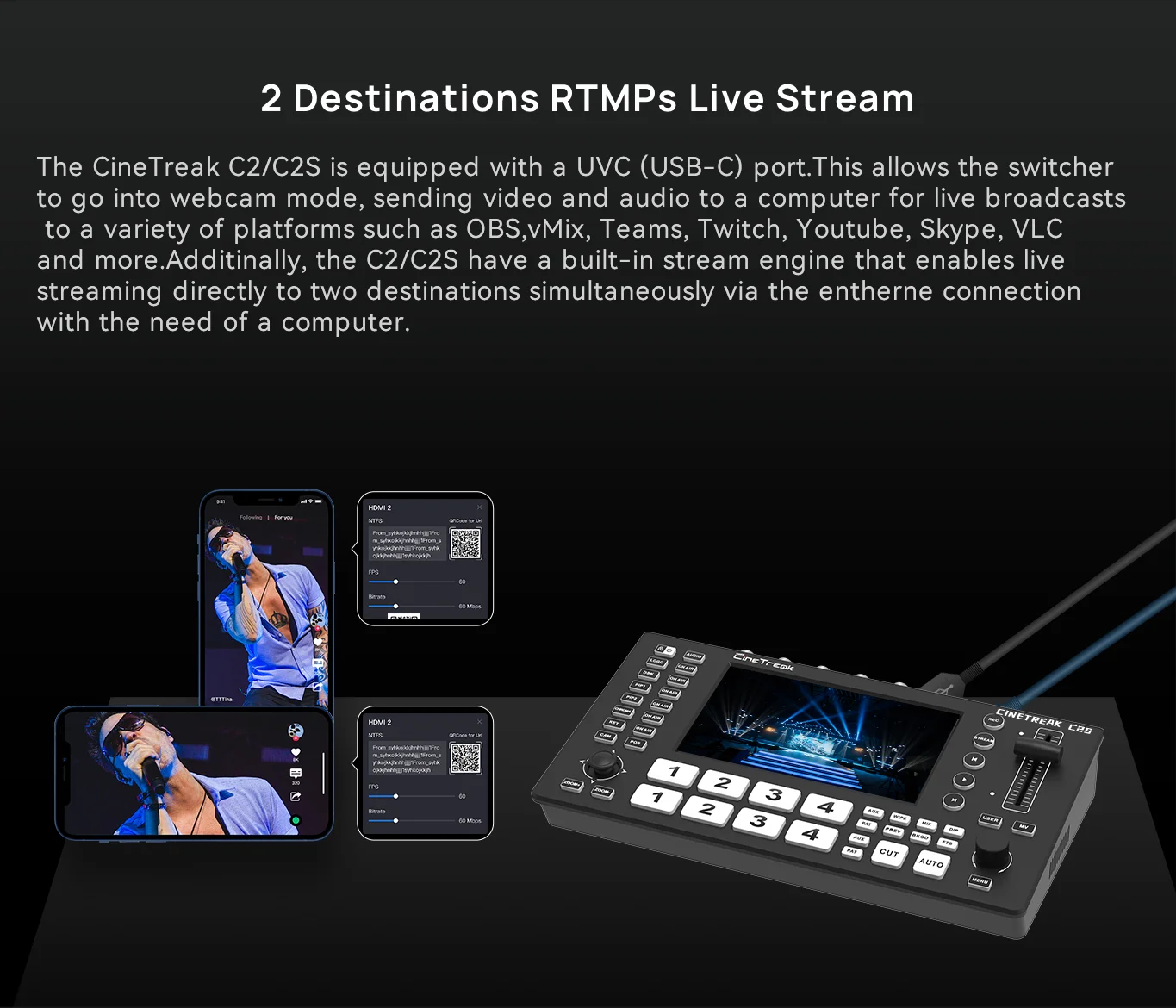

Dual RTMP Streaming: Stream to 2 RTMP destinations.

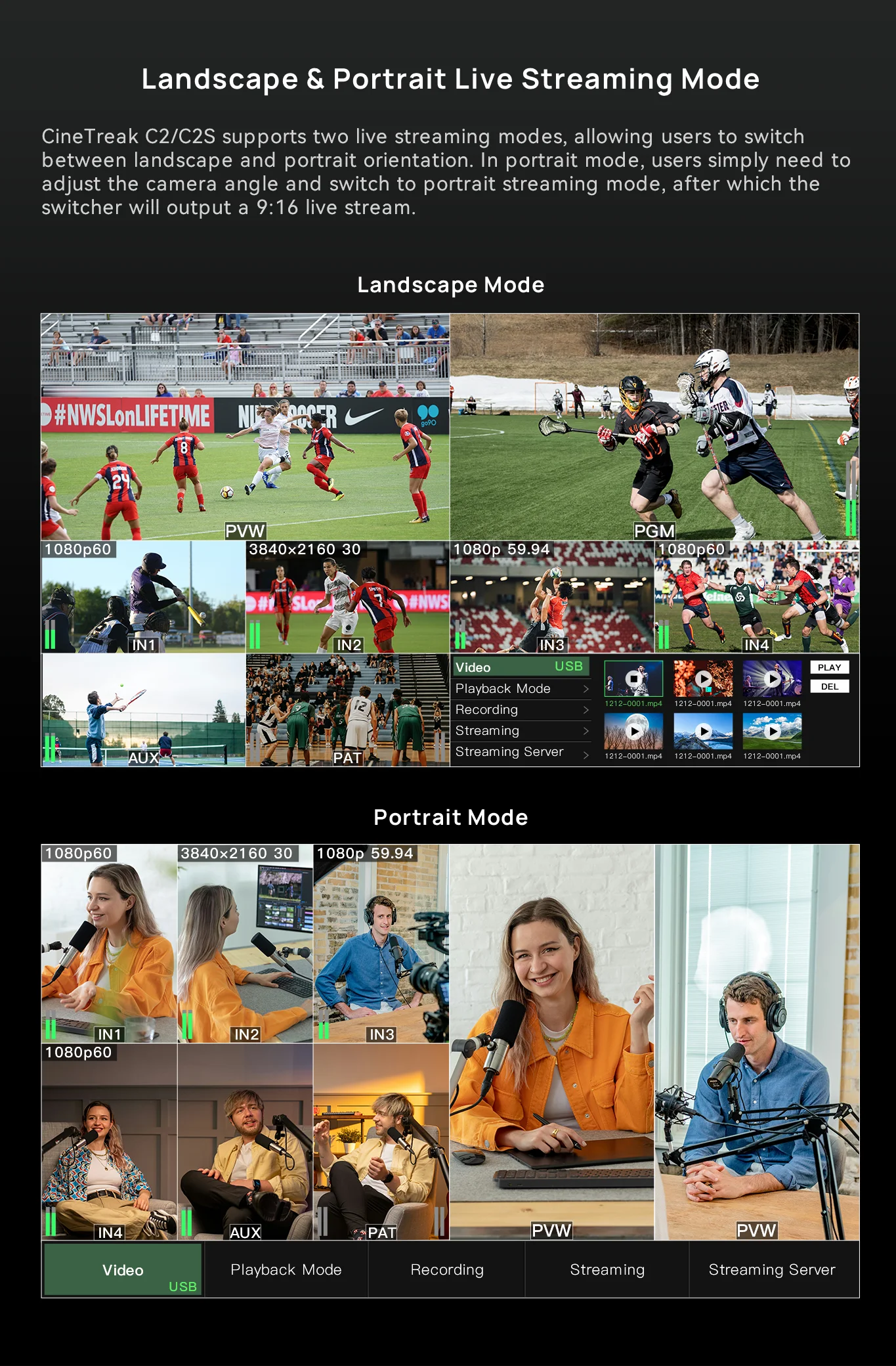

Landscape & Portrait Mode: Switch between landscape and 9:16 portrait modes.
Chroma & Luma Keying: Professional virtual studio effects.
PIP/POP: Customize 2 picture-in-picture streams.
NDI : NDI For Optional
HDMI and SDI input can be mixed, the maximum input signal (HDMI+SDI) can up to 4(Only SDI version)

CineTreak C2

5.5inch High Precision Screen.
Aluminum Panel And Compact Design
Customized Meeting Mode,Display 4 windows at same time.
4*HDMI Inputs ,1*PGM Out, 1*PVW Out（AUX).
Down Streaming: Get your extra video source online.
PTZ Control: Controls up to 4 PTZ cameras via VISCA.
Wireless IP control: Control your video mixer from PC,Phone,IPad.
Recording & Playback: Record H.264 files with instant playback.
Dual RTMP Streaming: Stream to 2 RTMP destinations.
Landscape & Portrait Mode: Switch between landscape and 9:16 portrait modes.
Chroma & Luma Keying: Professional virtual studio effects.
PIP/POP: Customize 2 picture-in-picture streams.
NDI : NDI For Optional

Key Upgrades and Features:

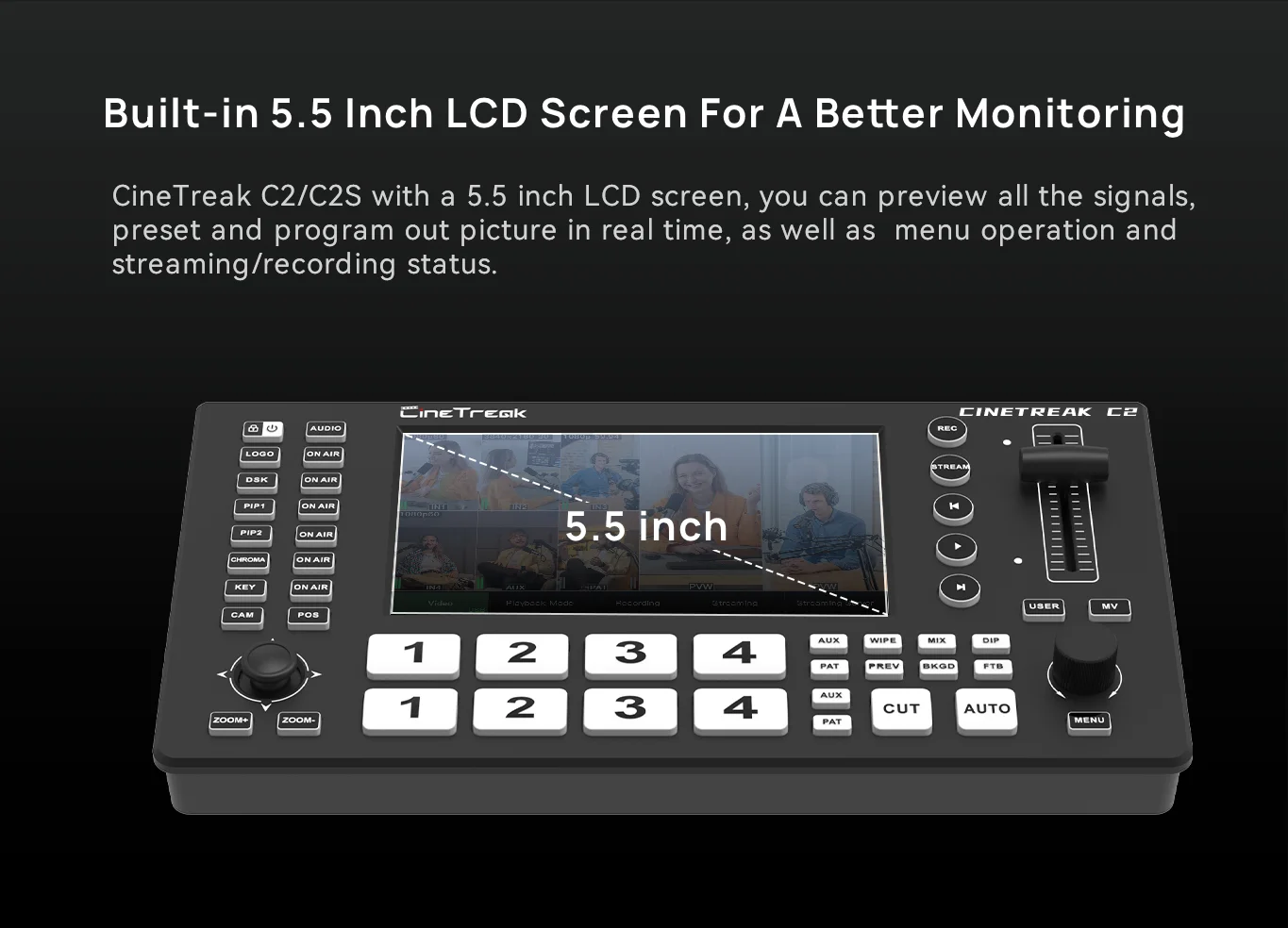

1. Larger High-Precision Screen: Both the CineTreak C2 and C2S feature an upgraded screen for better clarity and precision, making it easier to monitor and control your live productions.

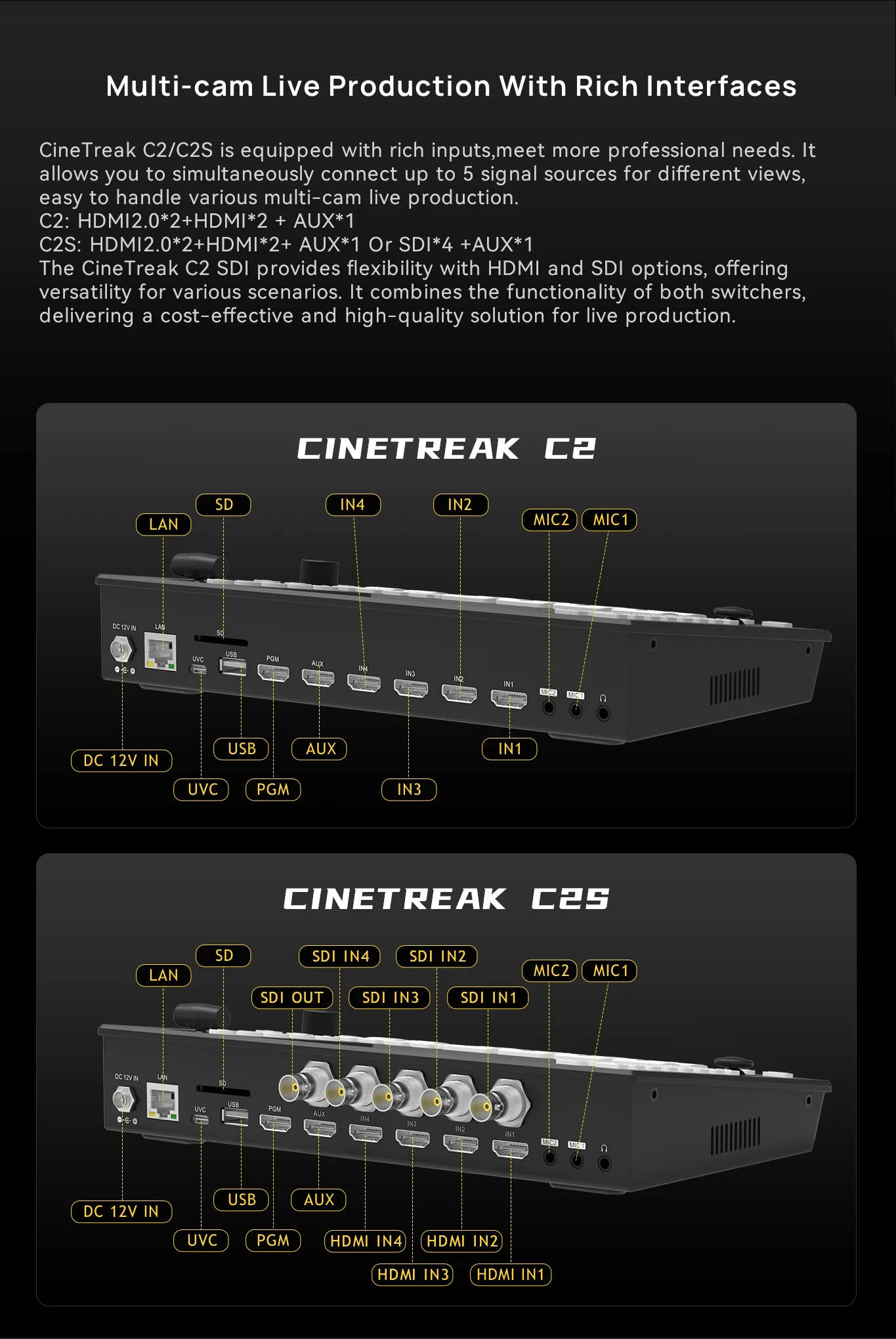

2. Flexible Input Options:

   • CineTreak C2: 4 HDMI inputs + 1 AUX

   • CineTreak C2S: 4 SDI inputs or 4 HDMI inputs + 1 AUX



1. AUX and Multi-Window Preview: The HDMI OUT now supports AUX functionality, allowing users to preview any channel or display multiple windows at once, making it easier to manage complex setups.

2. Energy Efficiency: The new generation consumes 20% less power than previous models, offering a more environmentally friendly and cost-effective solution.

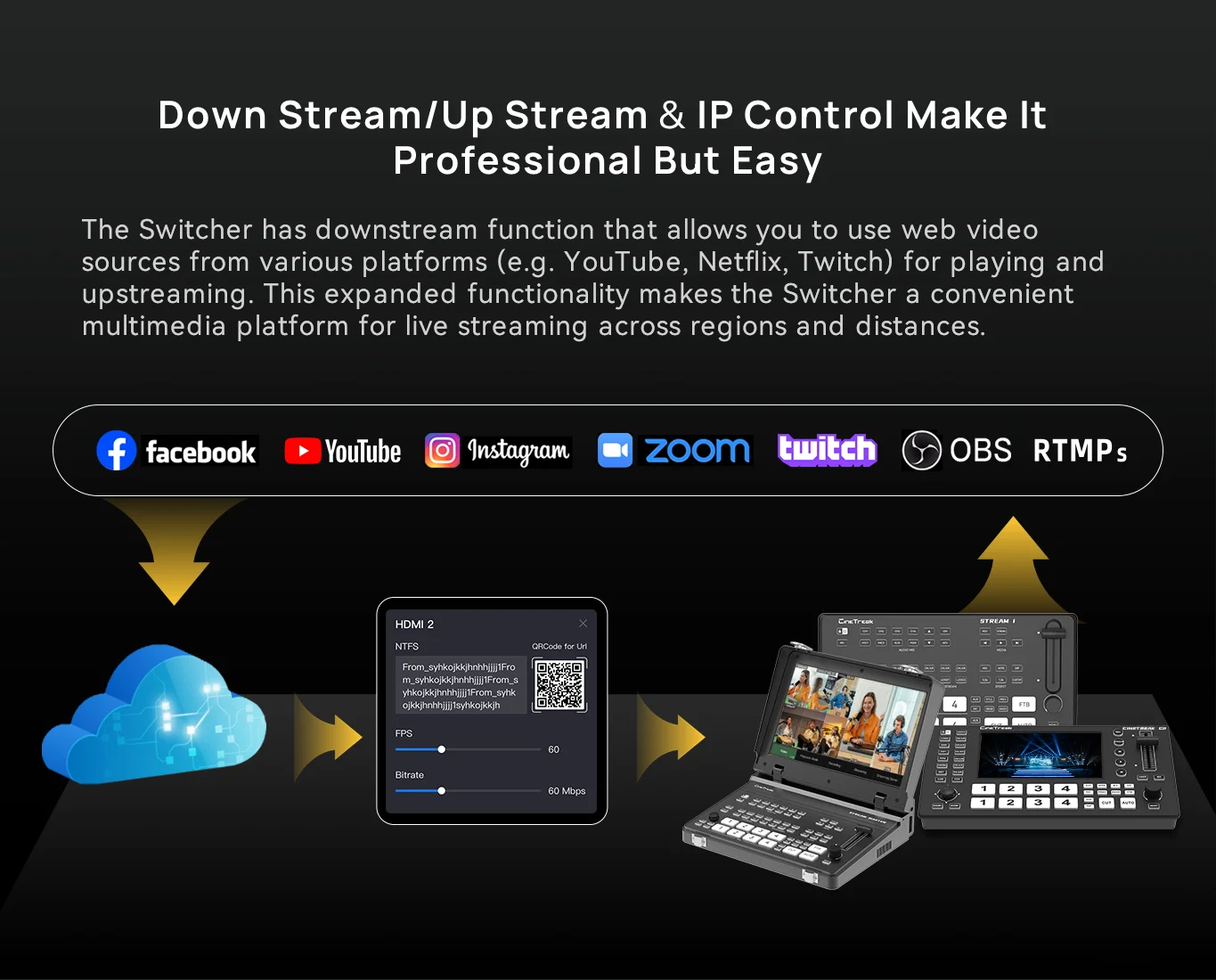

3. Down Streaming Feature: Incorporating pre-recorded media into live broadcasts is simpler than ever with the CineTreak C2/C2S. TheDown Streamingfeature enables input from HDMI sources as well as SD cards, allowing for seamless integration of external content.

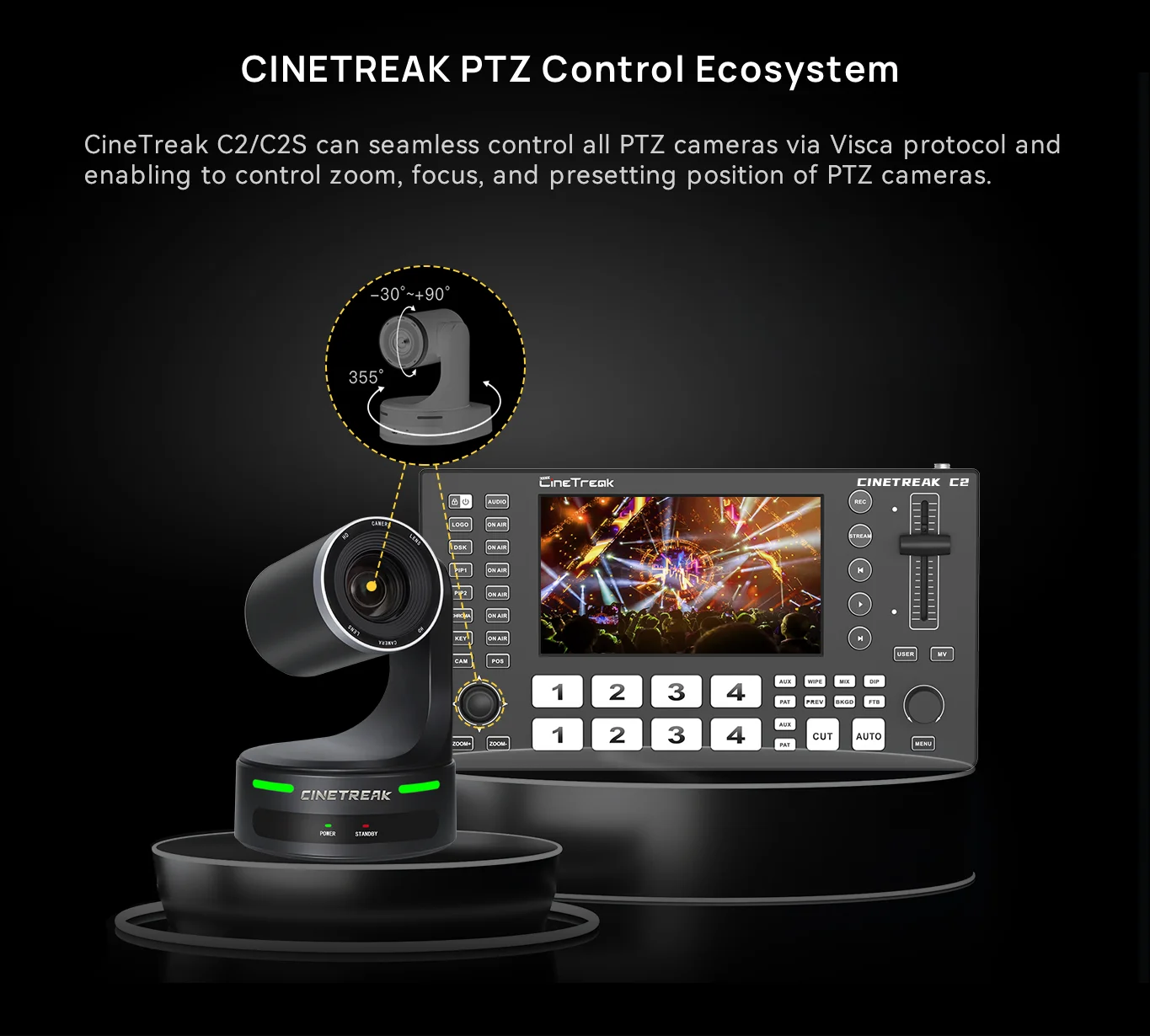

Built-In PTZ Control and Wireless IP Control:

The CineTreak C2/C2S supportsPTZ camera controlfor up to four cameras via the VISCA protocol, enabling precise camera movements and adjustments. Additionally, thewireless IP controlfeature lets users manage the switcher remotely from a PC, smartphone, or iPad, adding convenience and mobility to live production.
