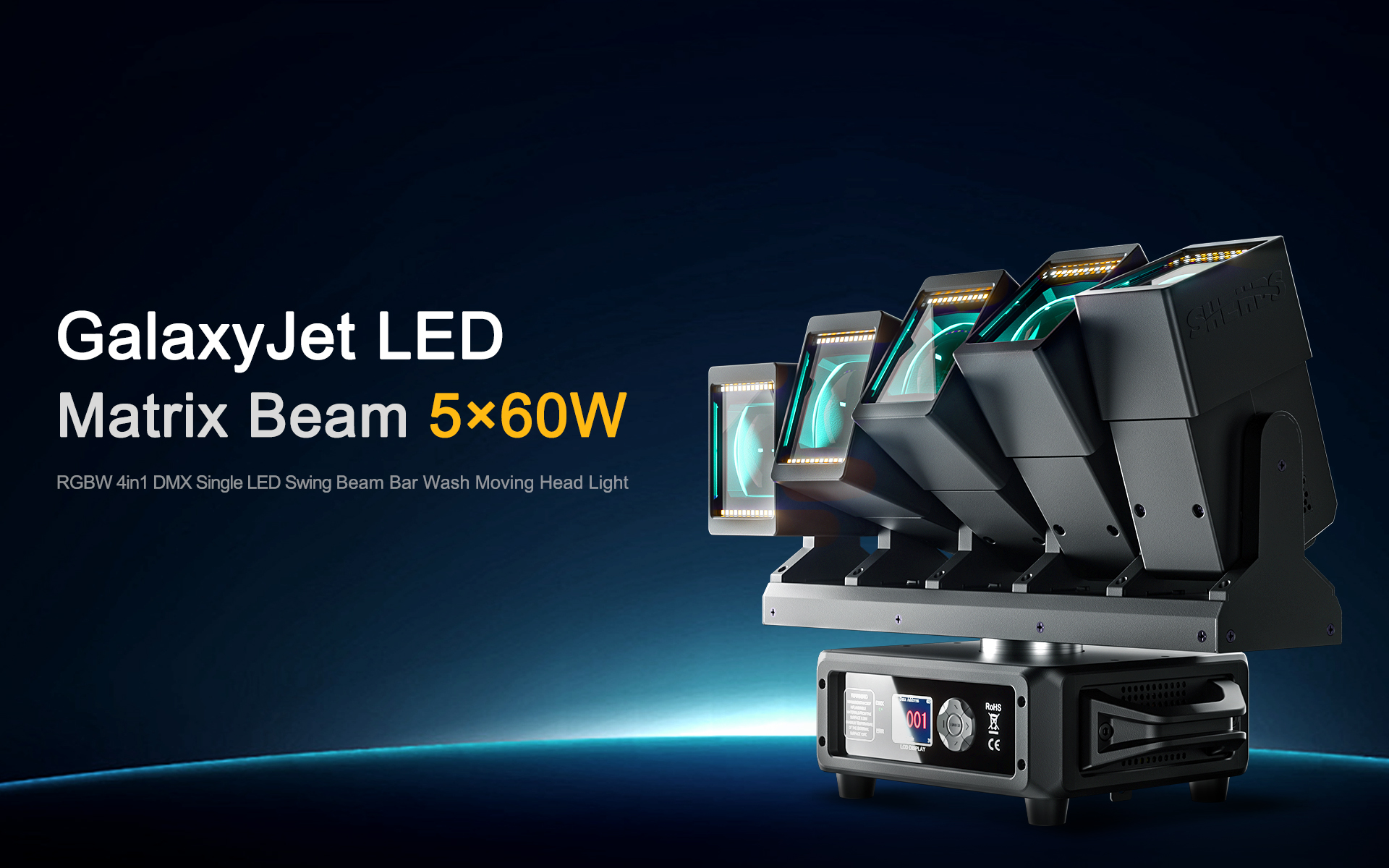

GalaxyJet LED Matrix Beam 5×60W
RGBW 4in1 DMX Single LED Swing Beam Bar Wash Moving Head Light

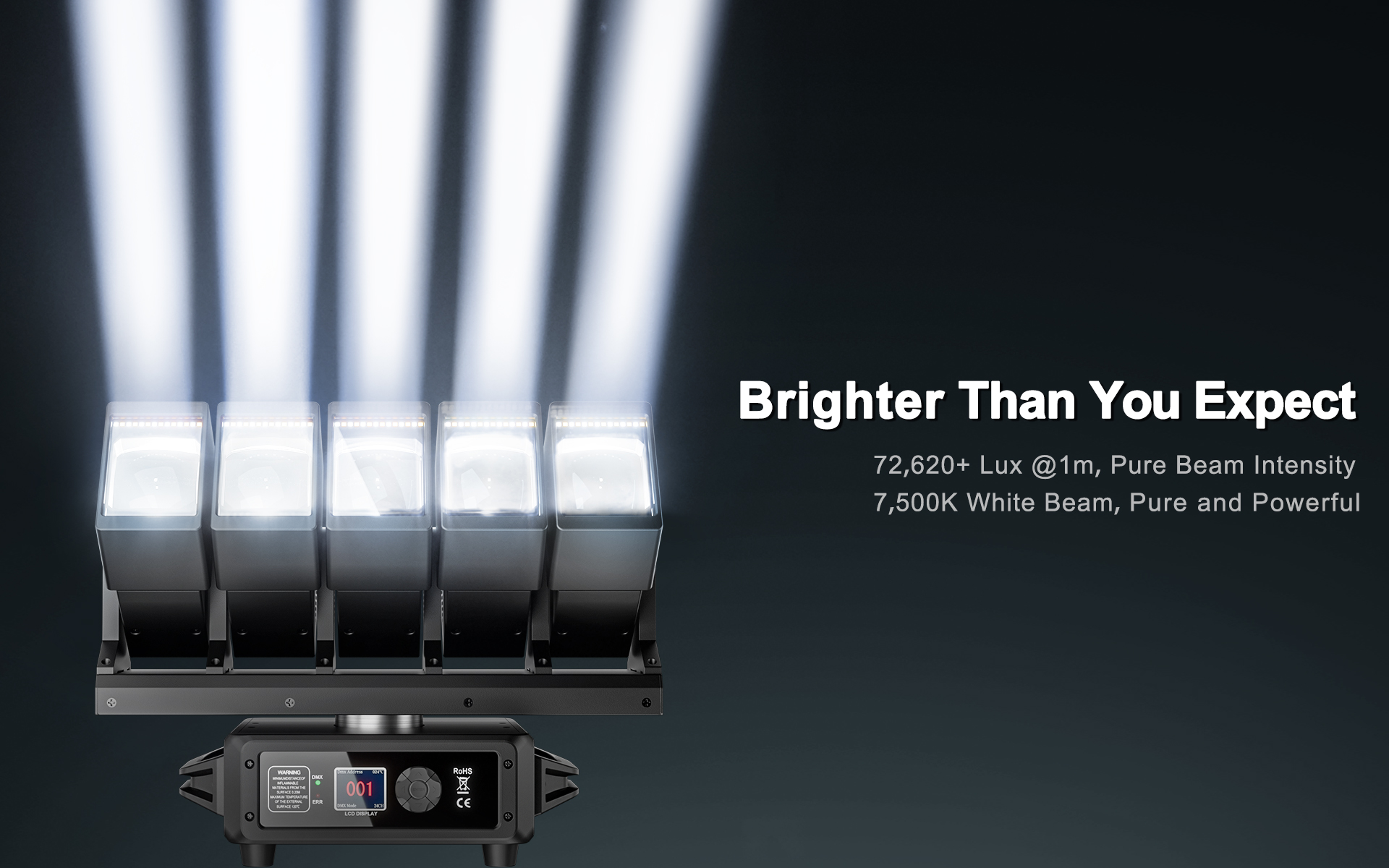

Brighter Than You Expect
72,620+ Lux @1m, Pure Beam Intensity
7500K White Beam, Pure and Powerful

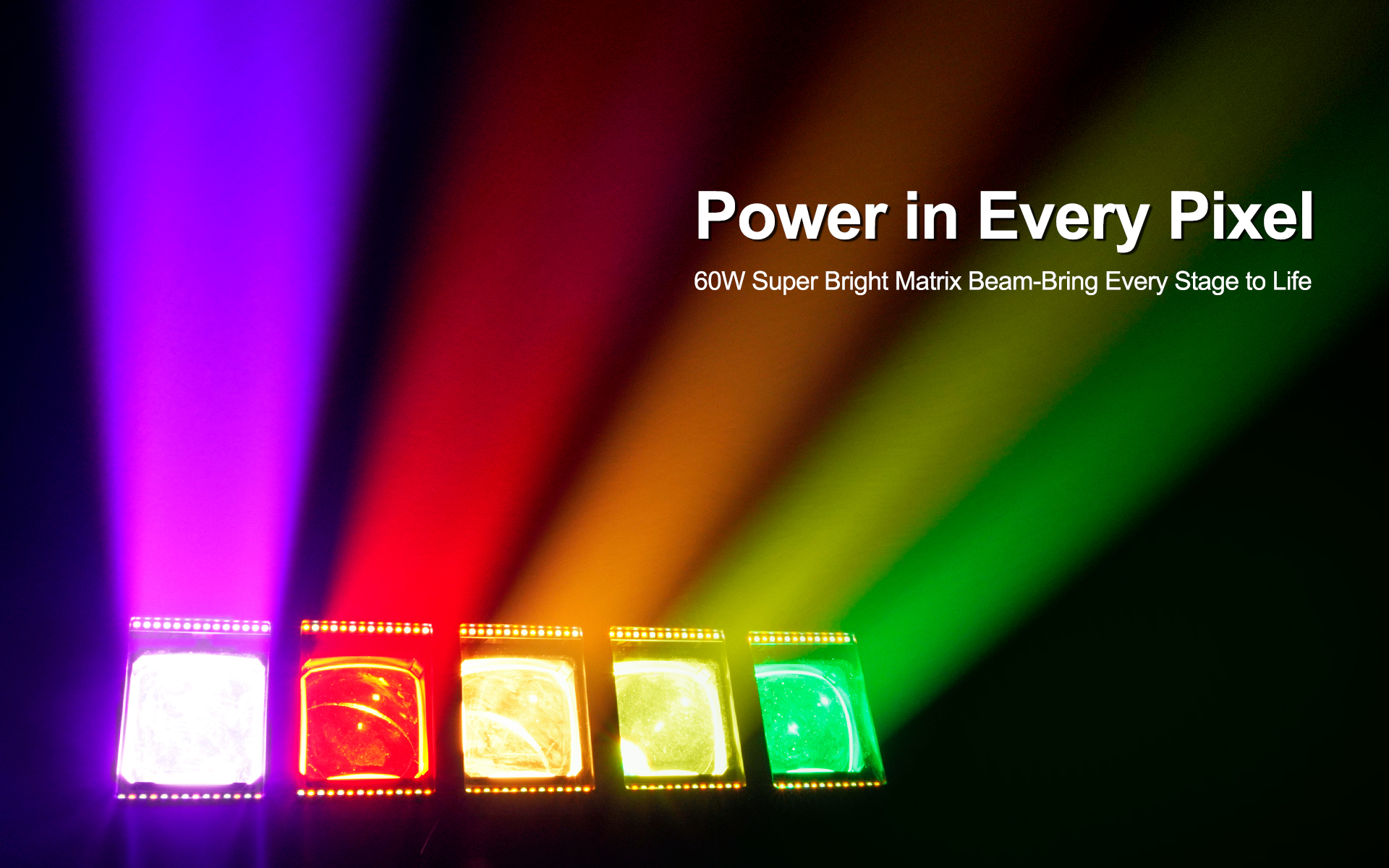

Power in Every Pixel
60W Super Bright Matrix Beam-Bring Every Stage to Life

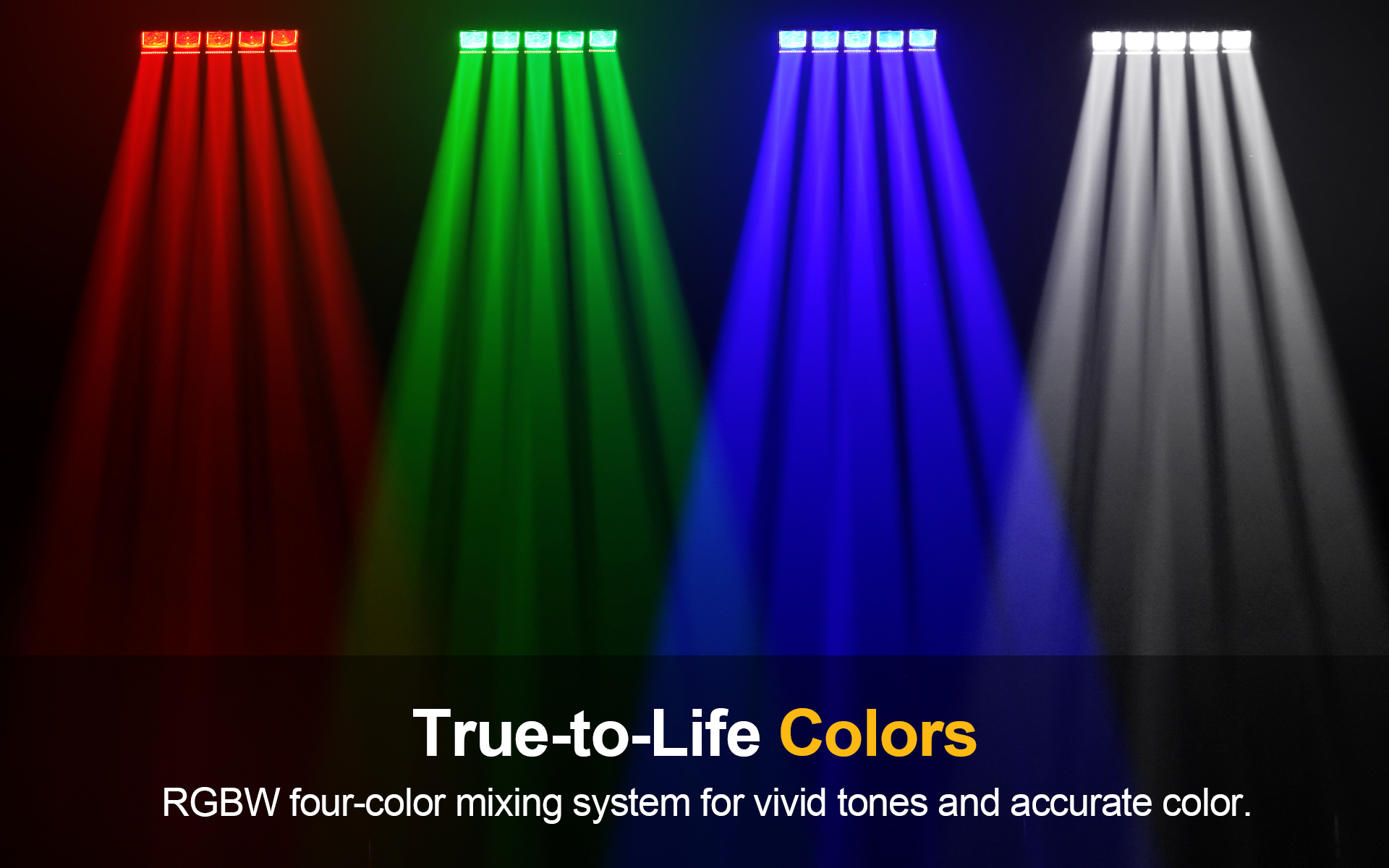

True-to-Life Colors
RGBW four-color mixing system for vivid tones and accurate color.

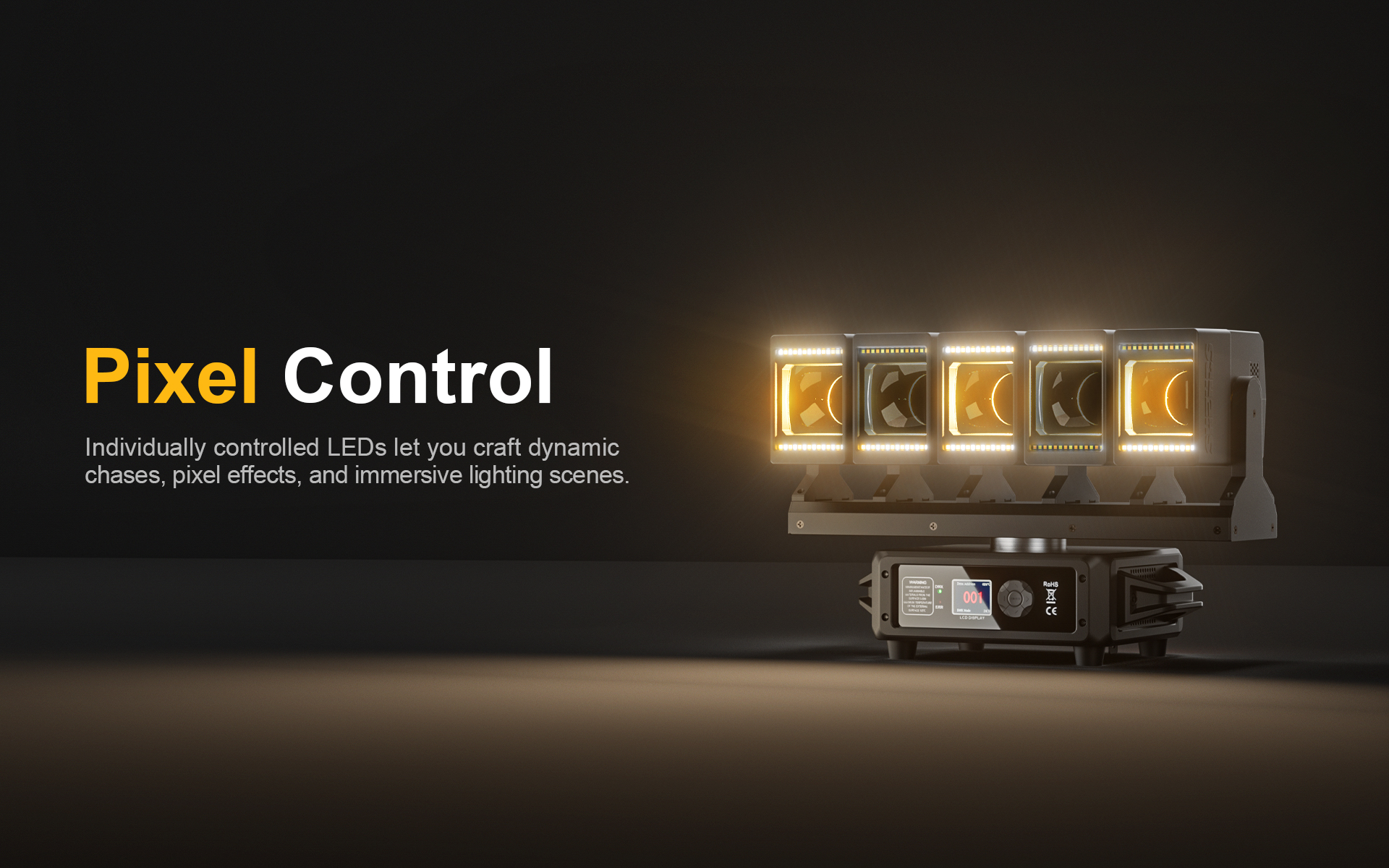

Pixel Control
Individually controlled LEDs let you craft dynamic chases, pixel effects, and immersive lighting scenes.

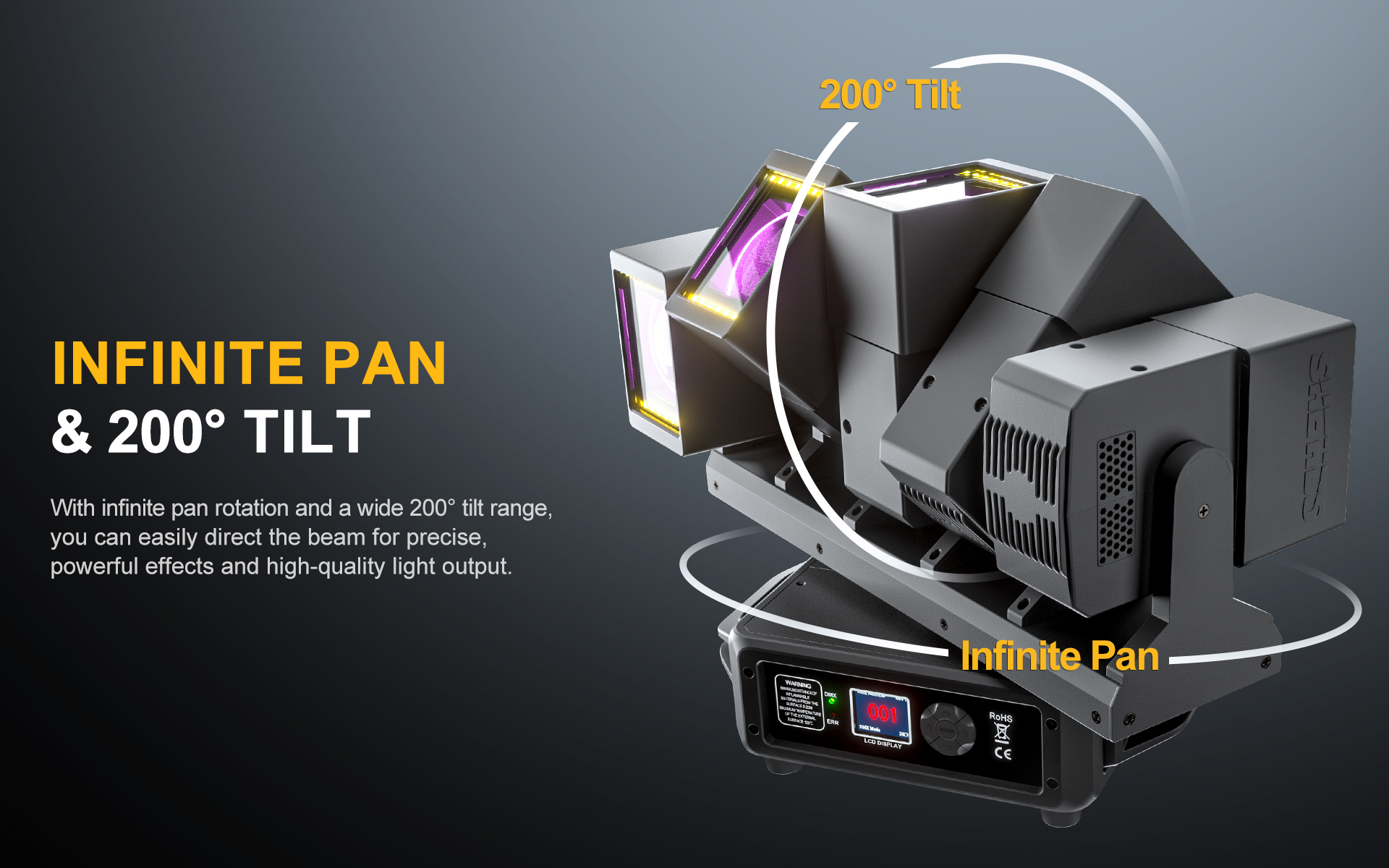

Infinite Pan & 200° Tilt
With infinite pan rotation and a wide 200° tilt range, you can easily direct the beam for precise, powerful effects and high-quality light output.
Flexible Beam Angle
Individually controllable tilting heads with a 2.8° to 31° zoom range
Technical Specifications
|
Light source parameters |
|
|
Dimmer: |
0-100% 16Bit mechanic |
|
Light Source: |
LED 5x60W RGBW color mixing |
|
Beam Lux: |
46350 lux @1m |
|
Zoom Angle: |
2.8~31 degrees |
|
CRI: |
65 |
|
Strobe: |
Flash rate 0-25HZ |
|
Colour temperature output: |
W/7151K |
|
Dimmer: |
0-100% Linear dimmer |
|
Security System |
|
|
Safety Item |
Over current and voltage protection |
|
Degree Of Protection |
IP20 |
|
Operating Temperature |
-25℃~45℃ |
|
Interface And Control System |
|
|
Control Interface |
DMX In/Out |
|
DMX Channel |
24/48/57/59 CH |
|
Power Interface |
PowerCon |
|
Noise (LED Full on): |
50dB@1m |
|
Noise (moving head): |
65dB@1m |
|
Signaling Protocol |
DMX512/RDM/Master-Slave/Auto/Sound/CTO |
|
Cooling System |
|
|
Cooling Method |
Passive heat dissipation |
|
Power Consumption |
|
|
Working Power |
350W |
|
Power Supply: |
350W AC100V ~ 240V / 50 ~ 60Hz |
|
Physical Parameters |
|
|
Tilt Movement: |
180° |
|
Material: |
High temperature resistant and flame retardant plastic housing |
|
Product Size |
44.7x22x36cm |
|
Product Weight |
15.95kg |
|
Package Size: |
51x28x42cm |
|
Package Weight |
18.8kg |

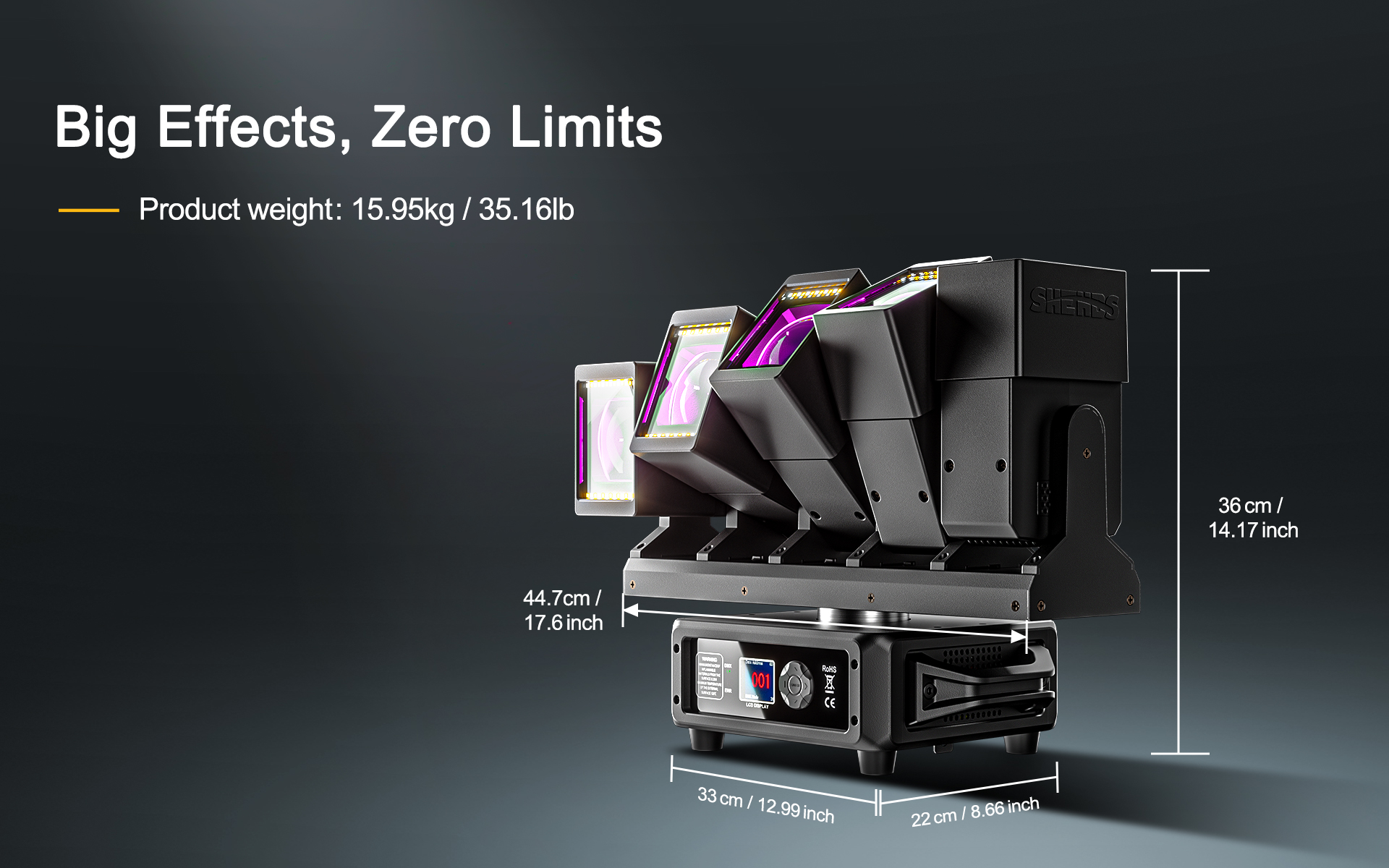

Big Effects, Zero Limits
Small in size but big in performance, this versatile moving head delivers professional-quality lighting for any venue or event.

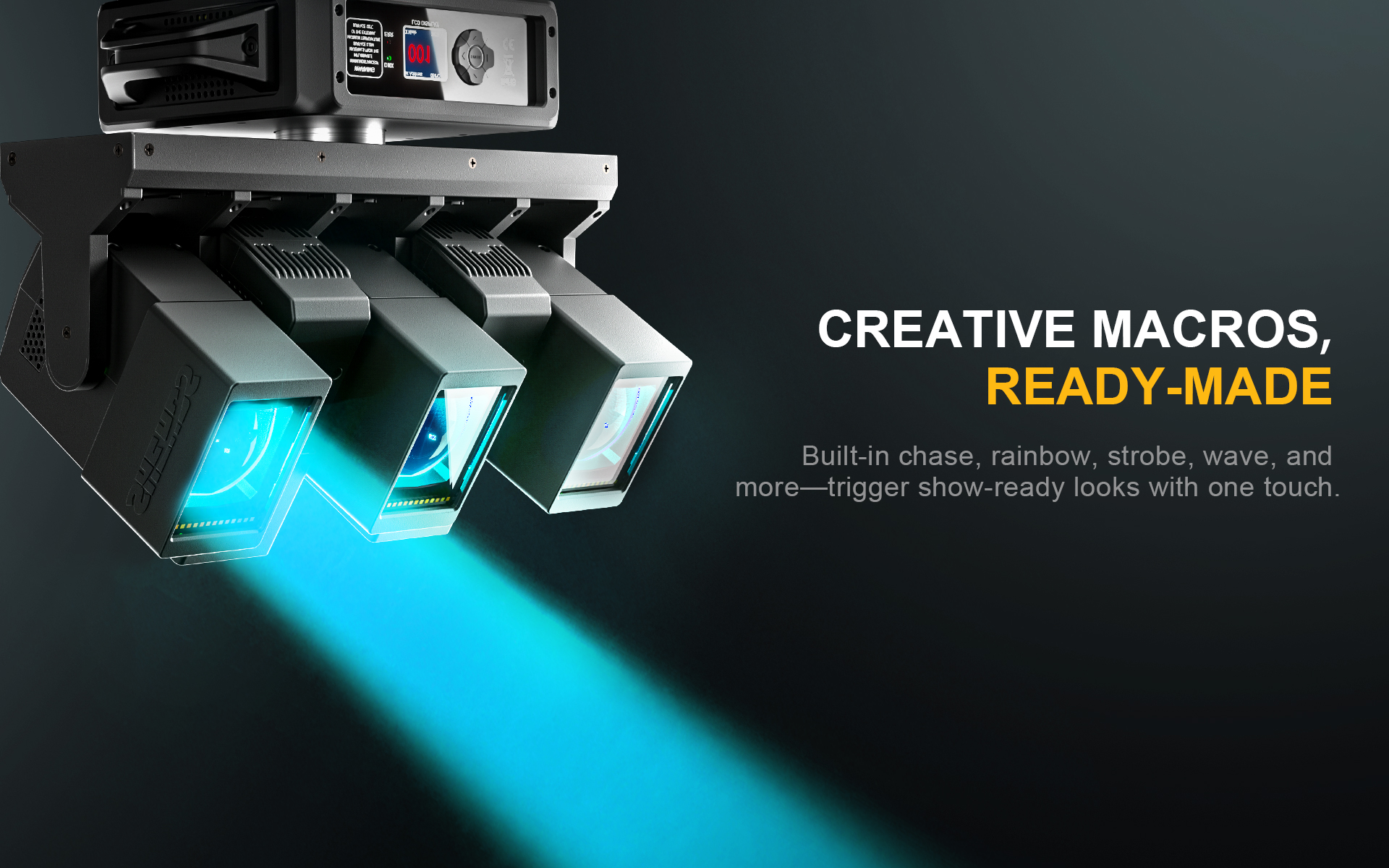

Creative Macros, Ready-Made
Built-in chase, rainbow, strobe, wave, and more—trigger show-ready looks with one touch.

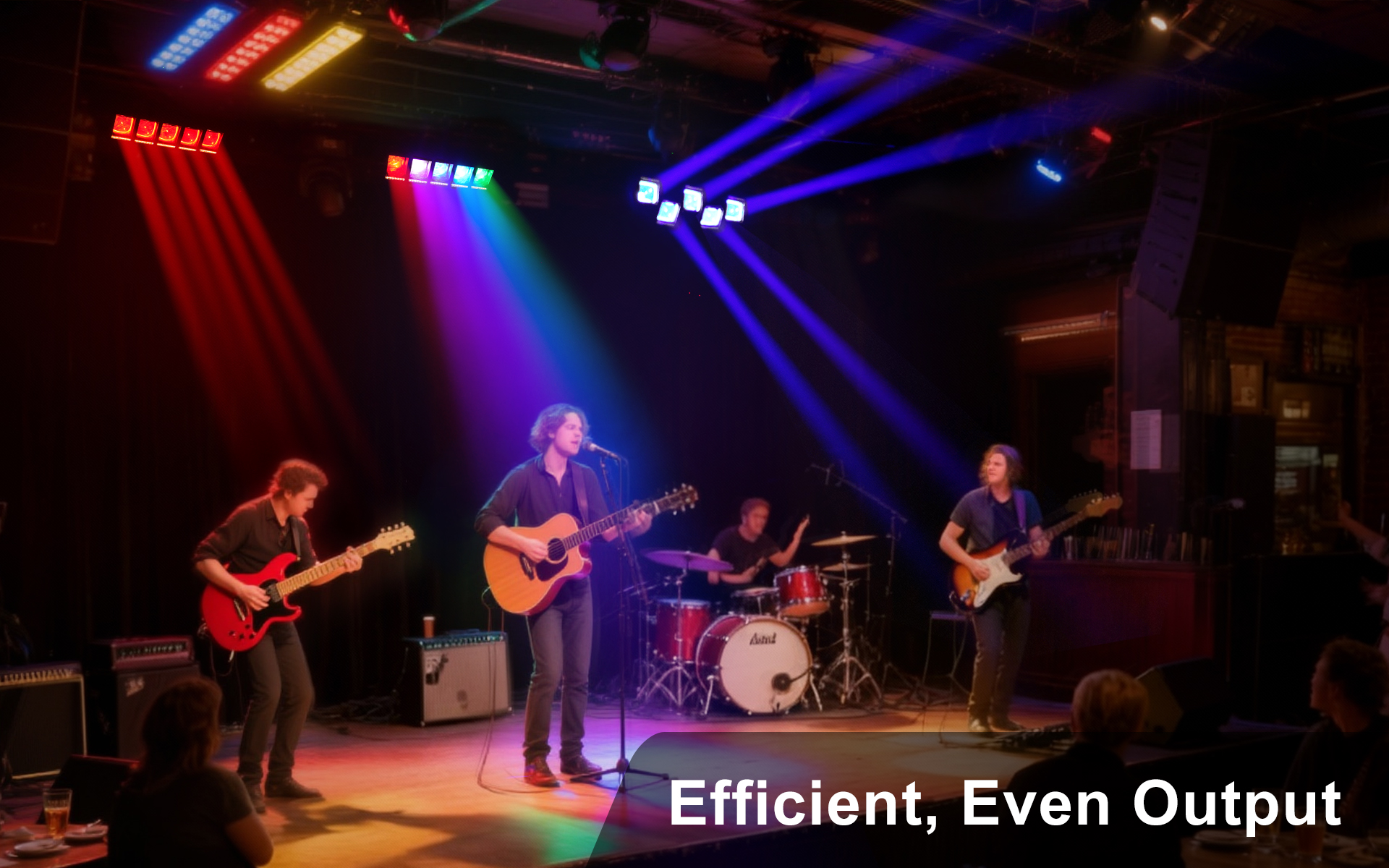

Efficient, Even Output
Composite optics for smooth color，RGBW works together to deliver saturated colors plus punchy true white-clean hues with minimal color cast.

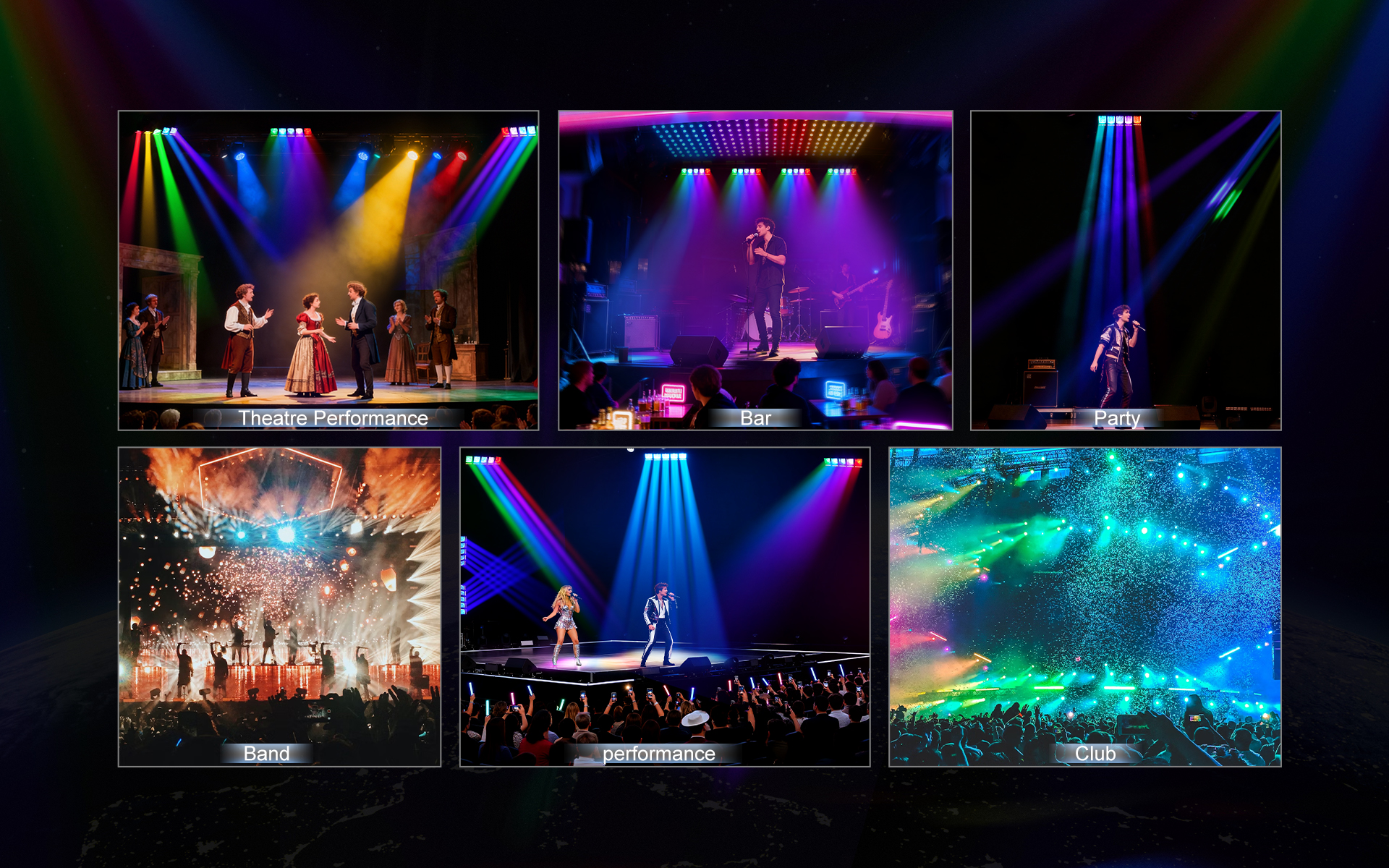

Various Applications
From DJ Booth to Festival Stage, Ready for Any Event
Silence Meets Power
Advanced Cooling System, Low Noise ≤65dB

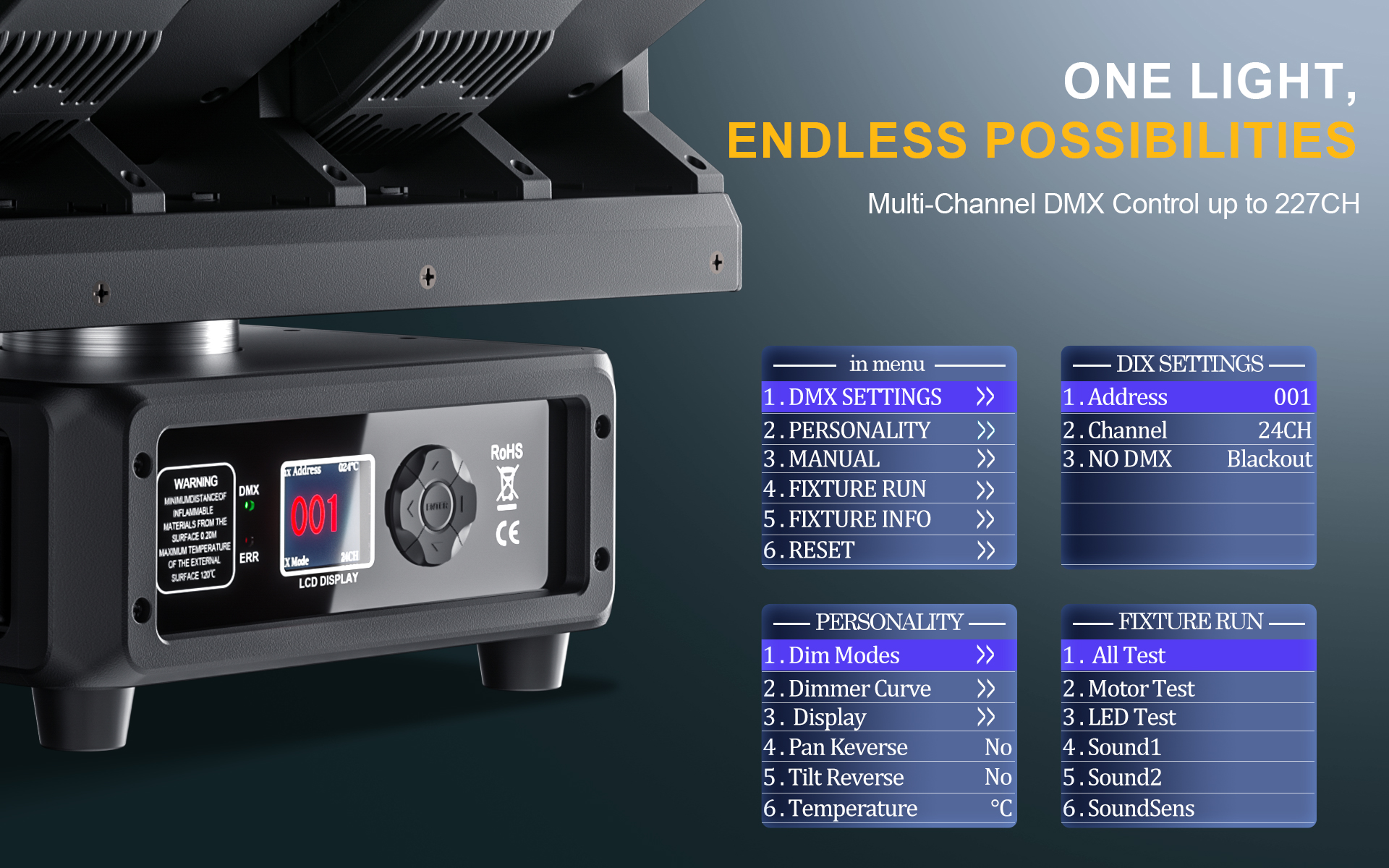

One Light, Endless Possibilities
Multi-Channel DMX Control up to 227CH

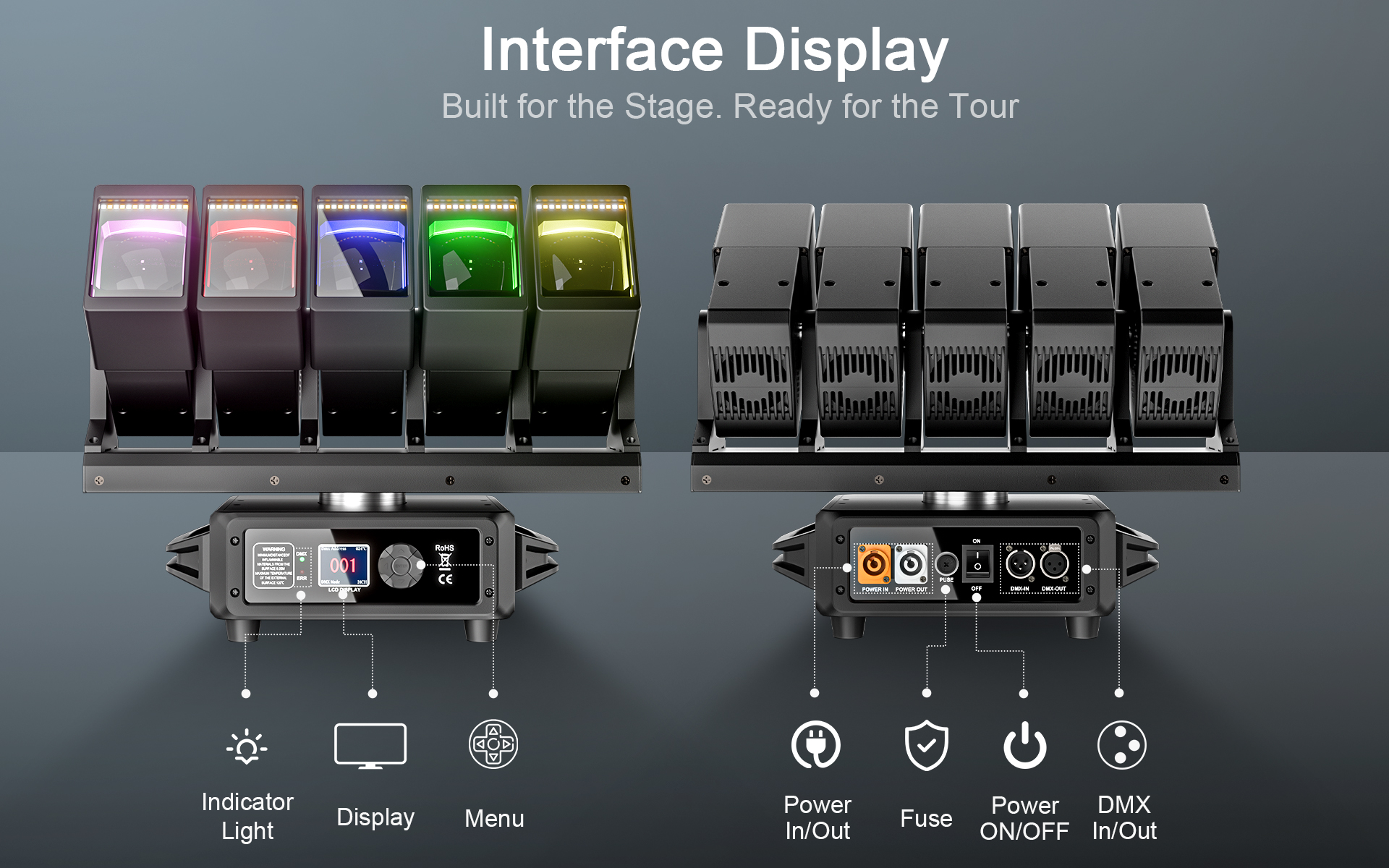

Interface Display
Built for the Stage. Ready for the Tour.
Rugged Aluminum Housing with Aviation Connectors

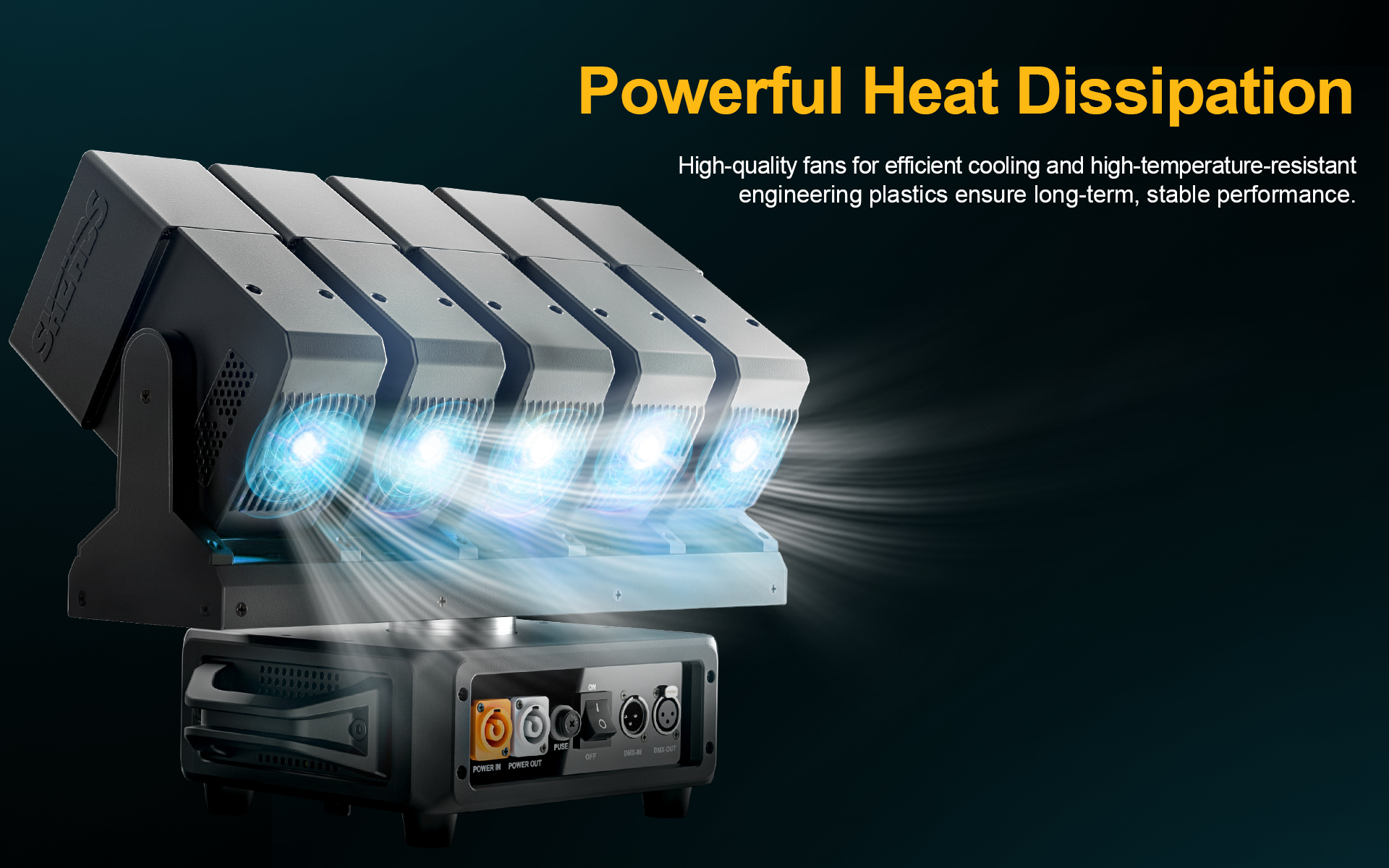

Powerful Heat Dissipation
High-quality fans for efficient cooling and high-temperature-resistant engineering plastics ensure long-term, stable performance.

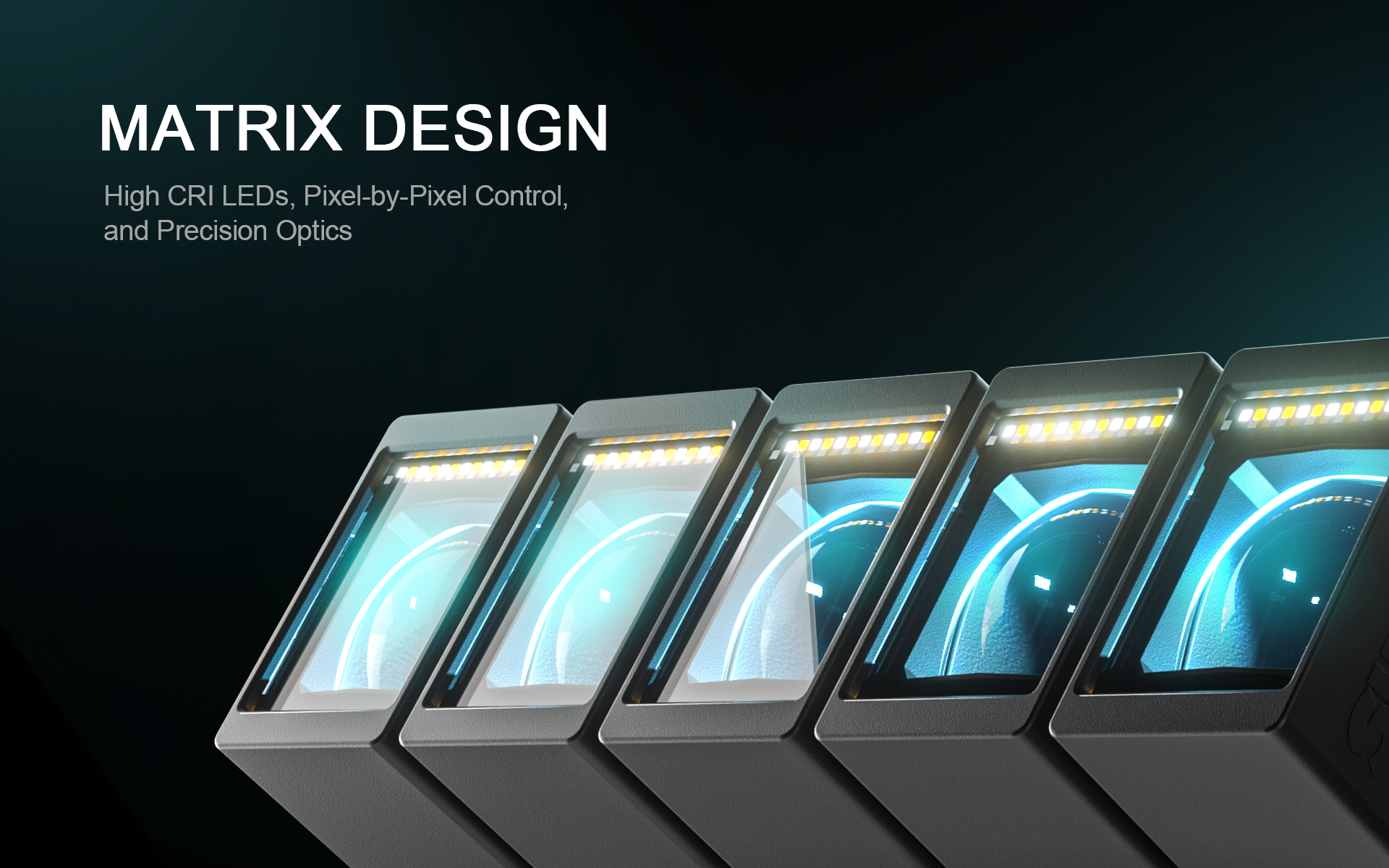

Matrix Design
High CRI LEDs, Pixel-by-Pixel Control, and Precision Optics
"

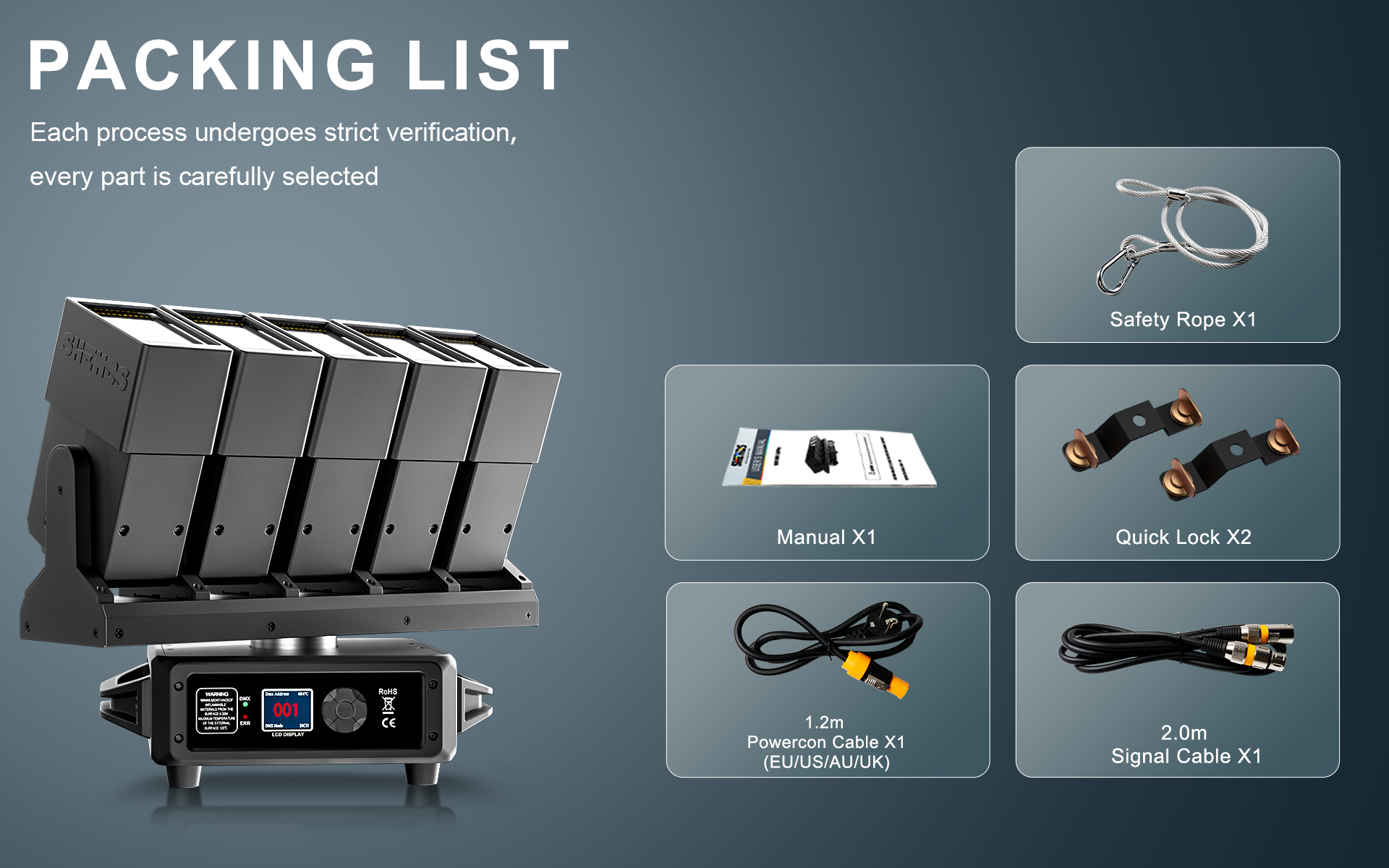

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.

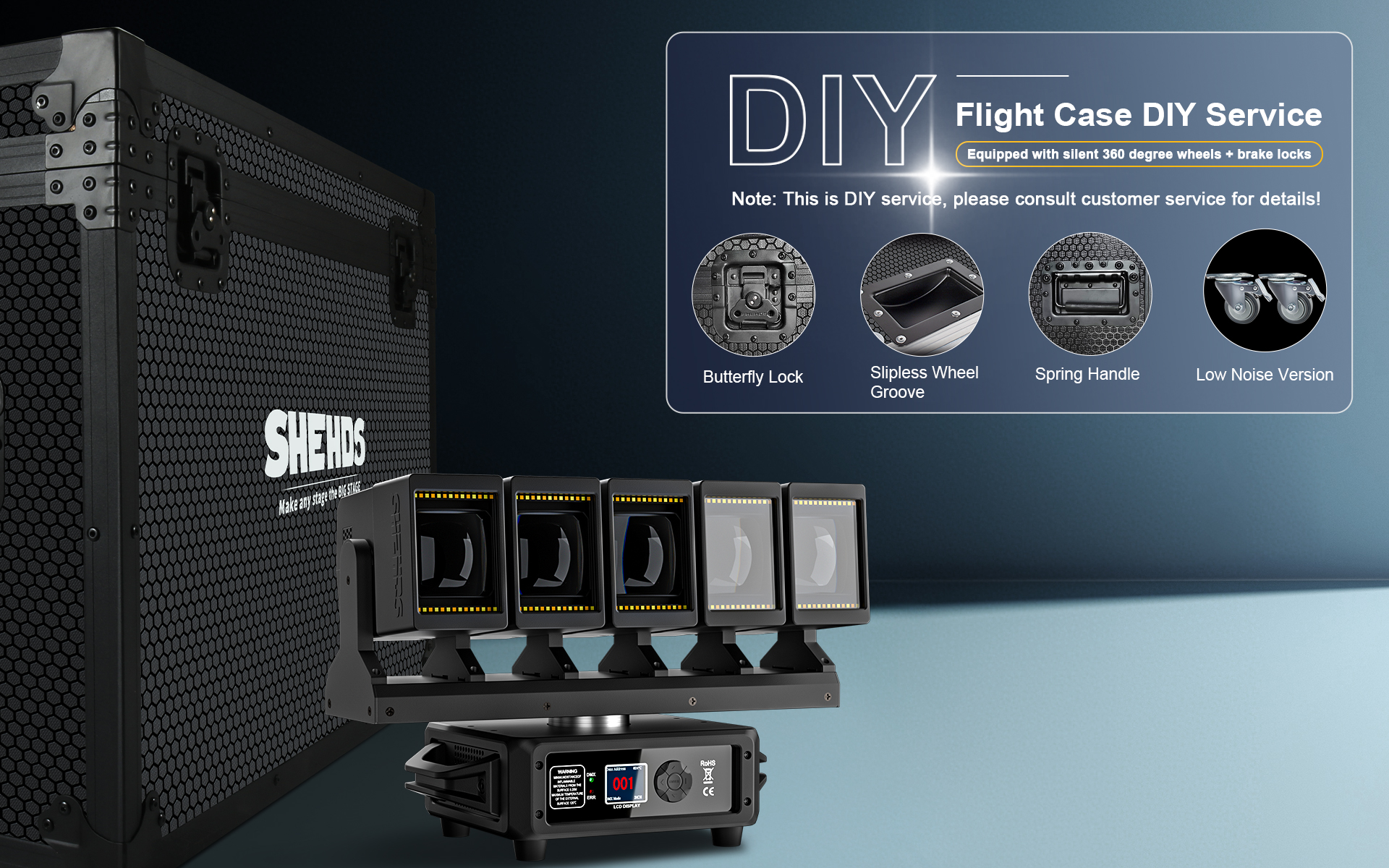

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
Our products comply with international safety standards and environmental requirements.
They have multiple voltage options to meet different voltage around the world.
In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
