Package Include: 1 X 4-Row AA5052 Aluminum Radiator 1 X CNC Machined Radiator Cap 1 X AA5052 Aluminum Shroud 2 X 10" Fans (Includes mounting kits)
1 X Thermostat Relay Kit Application: 1967-1969 Ford Mustang Base, 6.4L (V8) 390 CID ; Reasons for choose our AA5052 Aluminum Radiator： 1.Our Radiator is made of AA5052 aircraft aluminum, AA5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water). 2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay. 3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had. The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. AA5052 Aluminum Shroud+Fan： Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans. The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine. 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect. 2.S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. Thermostat Kit: Work with any 12 volt system. Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch.
BLUE wire goes to the Fans.
1967-1969 Ford Ranchero 500/500XL/GT, 6.4L (V8) 390 CID ;
1967-1969 Ford Fairlane 500, 4.7L 5.0L 6.4L 7.0L (V8) 289 302 390 428 CID ;
1968-1969 Ford Torino Base/Cobra/GT, 7.0L (V8) 428 CID ;
1969-1970 Ford Mustang Base/Grande/Mach I, 6.4L 7.0L (V8) 428 CID ;
1968-1969 Mercury Cougar XR-7, 6.4L (V8) 390 CID ;
1969-1970 Mercury Cougar XR-7, 7.0L (V8) 428 CID ;
Please confirm your radiators measurement before purchase
ONLY For 16" HIGH CORE - 24" WIDE CORE. PLEASE CHECK SPECIFICATIONS TO VERIFY FIT
Radiator Size:
Material:AA5052 Aluminum
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Radiator Flow: Down Flow
Core Dimensions (H x W): 16 1/4" x 24 "
Overall Dimensions (H x W): 20 3/4" x 25 1/4"
Hose Locations: IN: Passenger / OUT: Driver
Hose Fittings: IN: 1 1/2" - OUT: 1 3/4"
Trans Cooler: 1/8-27"NPT
Mounting Type: Bracket Mount
OEM Style Brass Petcock Drain
CNC machined filler neck and cap
- We accept PayPal and major credit cards (Visa, Mastercard, & American Express)
- Immediate payment is required after the purchase
All orders will be sent within one business day after payment received.
Note: Please contact for quote if international postage NOT display.
(shipping and handling charge is only for the lower 48 states in USA,
other states'[Alaska, Hawaii, and Puerto Rico etc.] shipping cost ,
please contact us for quote.)
A new return is considered a brand new item that you ended up not needing or perhaps you purchased incorrectly for your specific vehicle.
Please keep in mind that spending time before purchasing the part to confirm it is indeed exactly what you need can help prevent you from ordering the wrong part.
Please remember to email us which warehouse to send the item back
before return. And all returns must be shipped back in their original
factory packaging.
Shipping Damage
Shipping damage is any item/package suspected of being broken or damaged in anyway during the shipping process. We purchase full insurance for this, however the damage must be reported to us within 3 days of receiving the package.
Lifetime warranty against manufacture defect.
Replace/return are available if buyers receive wrong/damaged/defective items.
For replacement or return , buyer should keep the item in acceptable packing.
Before replace or return ,buyer should submit proof to us by pics if possible.
Anyway ,by nice communications ,we can find a way to make you satisfied
- We leave positive automatically by our system after received positive feedback.
- Please contact us if you are going to leave us a negative feedback,we will try our best to solve the problem.
Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 10" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Application:
1967-1969 Ford Mustang Base, 6.4L (V8) 390 CID ;
1967-1969 Ford Ranchero 500/500XL/GT, 6.4L (V8) 390 CID ;
1967-1969 Ford Fairlane 500, 4.7L 5.0L 6.4L 7.0L (V8) 289 302 390 428 CID ;
1968-1969 Ford Torino Base/Cobra/GT, 7.0L (V8) 428 CID ;
1969-1970 Ford Mustang Base/Grande/Mach I, 6.4L 7.0L (V8) 428 CID ;
1968-1969 Mercury Cougar XR-7, 6.4L (V8) 390 CID ;
1969-1970 Mercury Cougar XR-7, 7.0L (V8) 428 CID ;
Please confirm your radiators measurement before purchase
ONLY For 16" HIGH CORE - 24" WIDE CORE. PLEASE CHECK SPECIFICATIONS TO VERIFY FIT
Radiator Size:
Material:AA5052 Aluminum
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Radiator Flow: Down Flow
Core Dimensions (H x W): 16 1/4" x 24 "
Overall Dimensions (H x W): 20 3/4" x 25 1/4"
Hose Locations: IN: Passenger / OUT: Driver
Hose Fittings: IN: 1 1/2" - OUT: 1 3/4"
Trans Cooler: 1/8-27"NPT
Mounting Type: Bracket Mount
OEM Style Brass Petcock Drain
CNC machined filler neck and cap

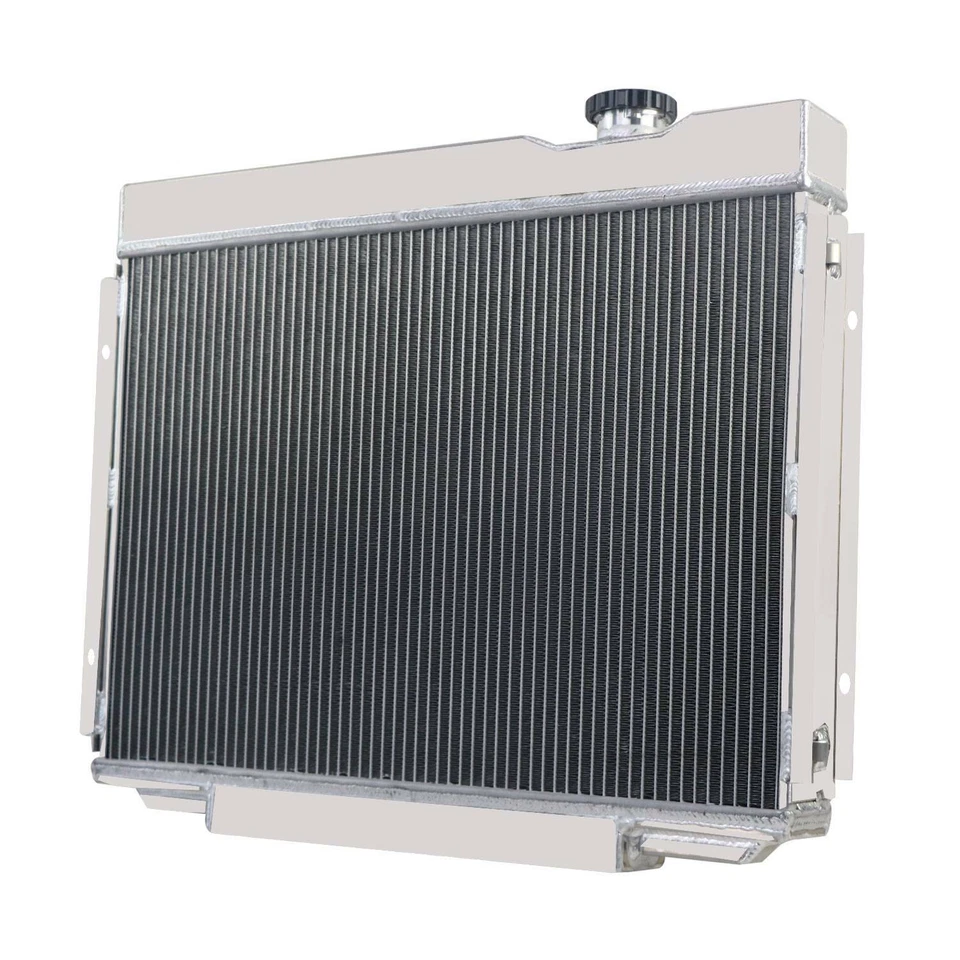

Reasons for choose our AA5052 Aluminum Radiator：
1.Our Radiator is made of AA5052 aircraft aluminum, AA5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.

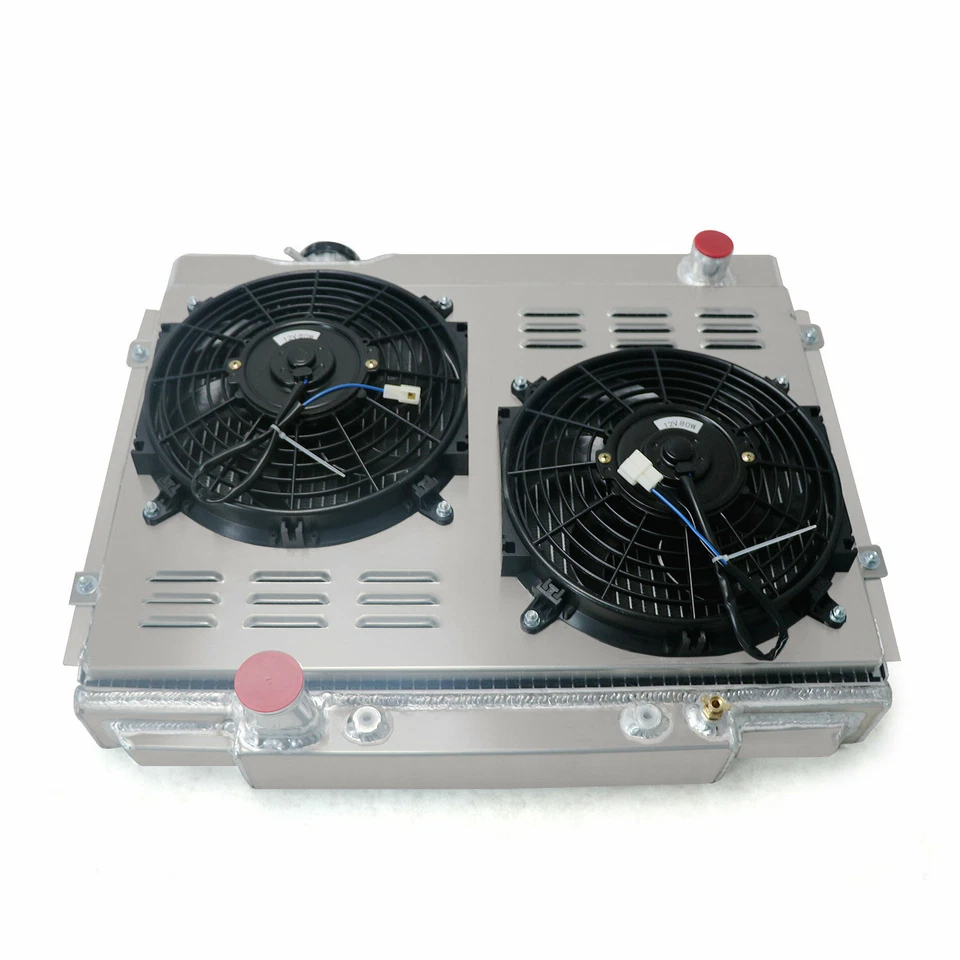

AA5052 Aluminum Shroud+Fan：
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2.S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
