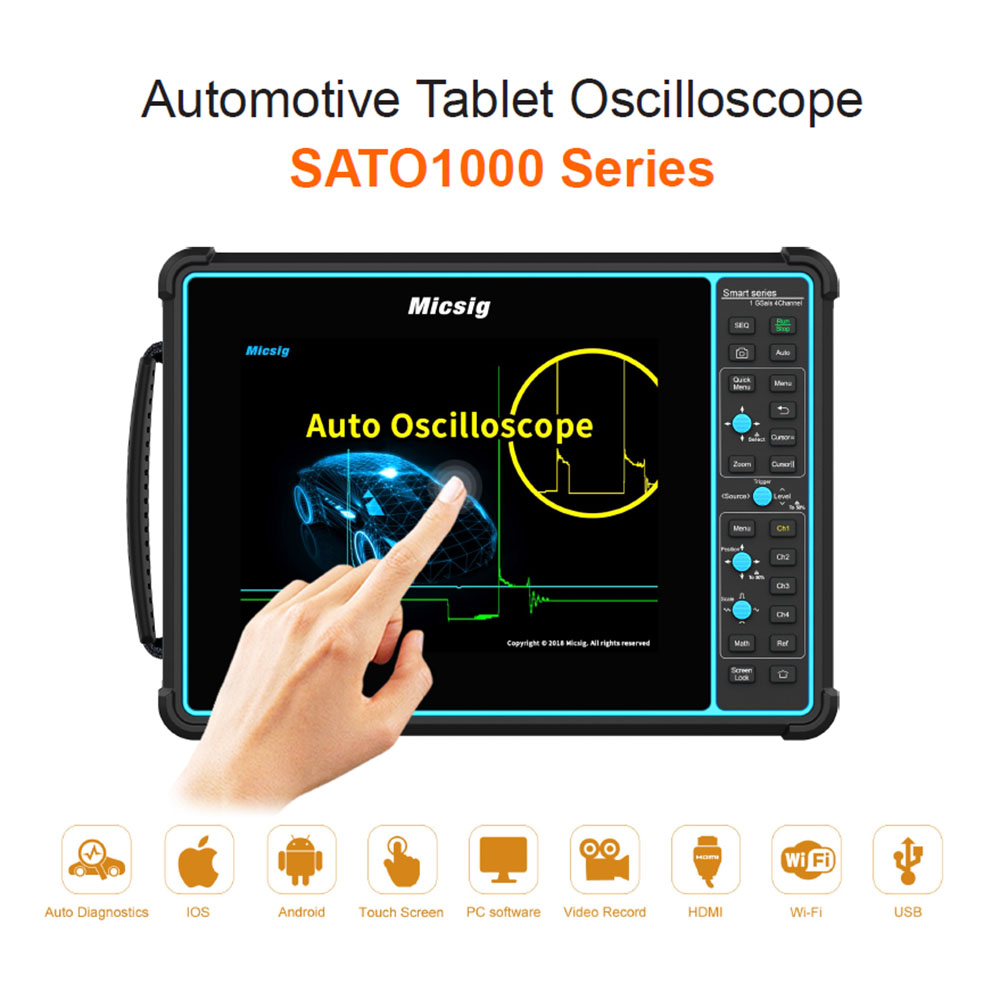

Micsig Tablet Oscilloscope Smart series SATO1000 adopts the newest integrated touch screen technology and newly upgraded hardware and software systmen,
it features 4 analog channels, available with 100MHz bandwidth, single channel has maximum 1G Sa/s sampling rate and 70Mpts of memory depth, waveform capture rate up to 130,000 wfms/s.
With a large 8-inch, 800x600 industrial capacitive touch screen, the STO1000 able to be used in 3 operation modes: Fulltouch operation, Physical button control panel, and the Mixture of both.
The SATO1000 equipped with highly sensitive digital trigger system, supports serial bus triggering and decoding;
has rich measurements and math functions, comes standard with a digital filter module, 256-level intensity grading and color temperature display functions;
also has WiFi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out connetions. Combined with Micsig's unique touch algorithm patented technology, the SATO1000 presents unparalleled operating experience to users.

Feature:
▶ Robust hardware design, intuitive Android operation system
▶ 32G internal storage to save large data / videos / screenshots
▶ Excellent connectivity: Wi-Fi, HDMI, USB 3.0/2.0 Host, USB Type-C
▶ Support various protocol decoding: UART, CAN, LIN, SPI, I²C
▶ 8" capacitive integrated screen brings premium touch experience
▶ Innovative PC & Smartphone App remote control
▶ Up to 5H battery life & compact size, perfect for field work
▶ BNC probe for stable signal resource getting.
▶ Special Power-off switch lock, safe to travel and store

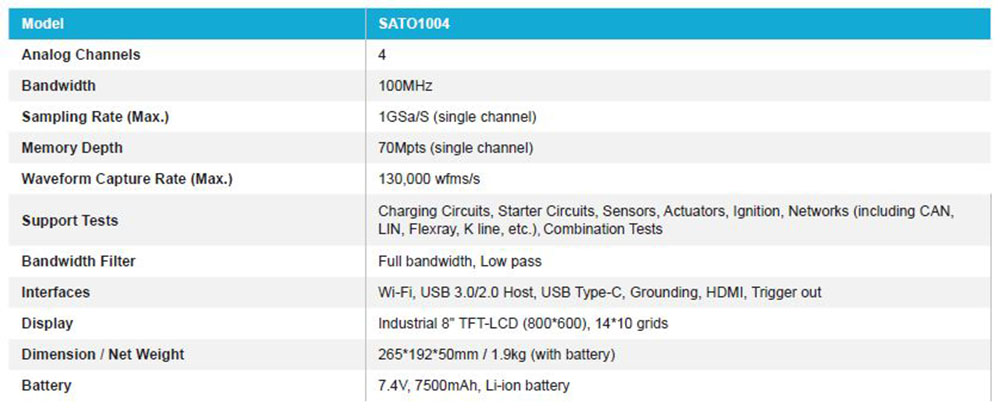

Specification:

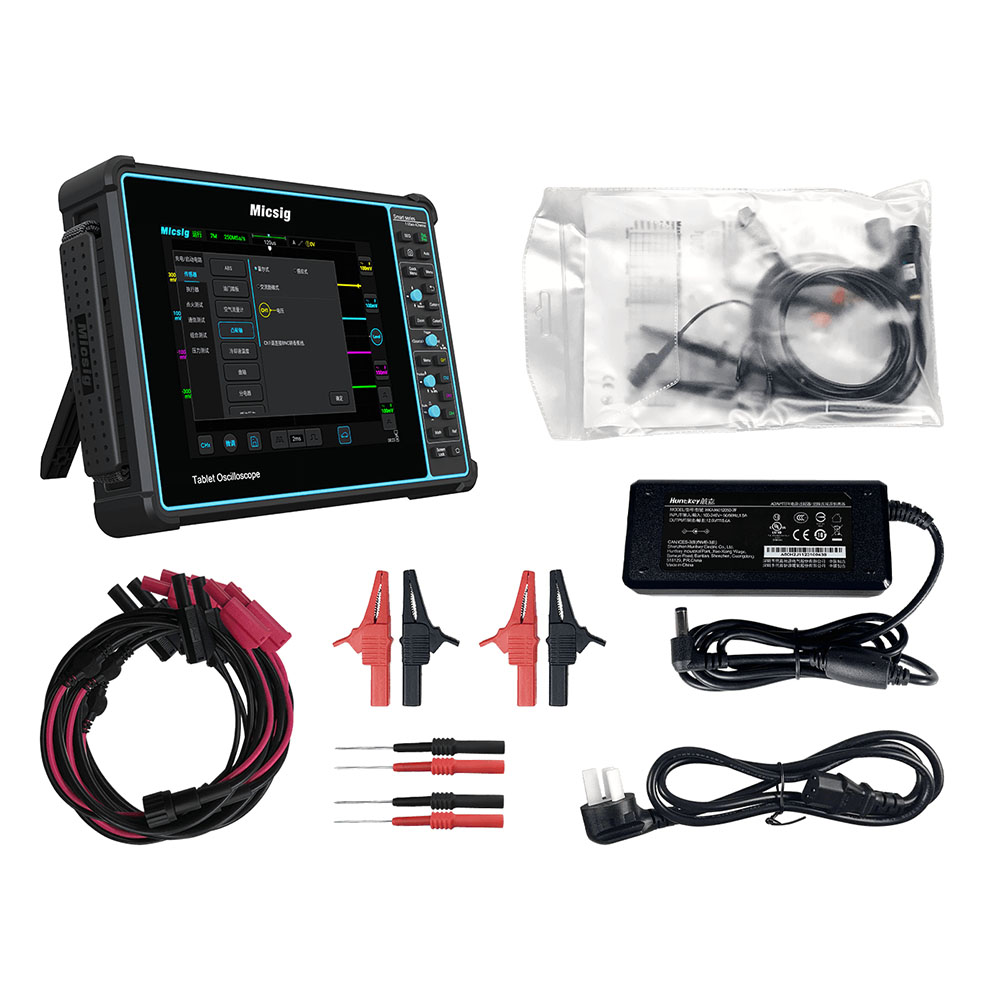

Package:
1 x mini touch oscilloscope
2 x Passive probe
4 x BNC banana line
2 x pair alligator clip
2 x pair test needle pin
1 x Power Adapter
1 x Power Cord

---
