Has below advantages:1. No spillage with steep angle conveying, long lifespan.
2. Larger production grain sizes can be handled.
3. Reduced energy consumption to save money for you.
4. Able to conveyor material at any angles up to 90 degree to save space for you.
5. Higher conveyance capacity.
6. Extremely high stability is provided in the traverse direction, good longitudinal flexibility.
7. Low maintenance requirements.
8. Hot vulcanization provides 5 times greater adhesion between the belt and sidewall, eliminating the need for bolting the
sidewall to the base belt.
9. Can be sealed and environmental friendly
The shipping price is by air, you will receive the machine in about 20 days after shipping.
If you prefer sea shipping, please send us message.
Product Overview
Product Description:

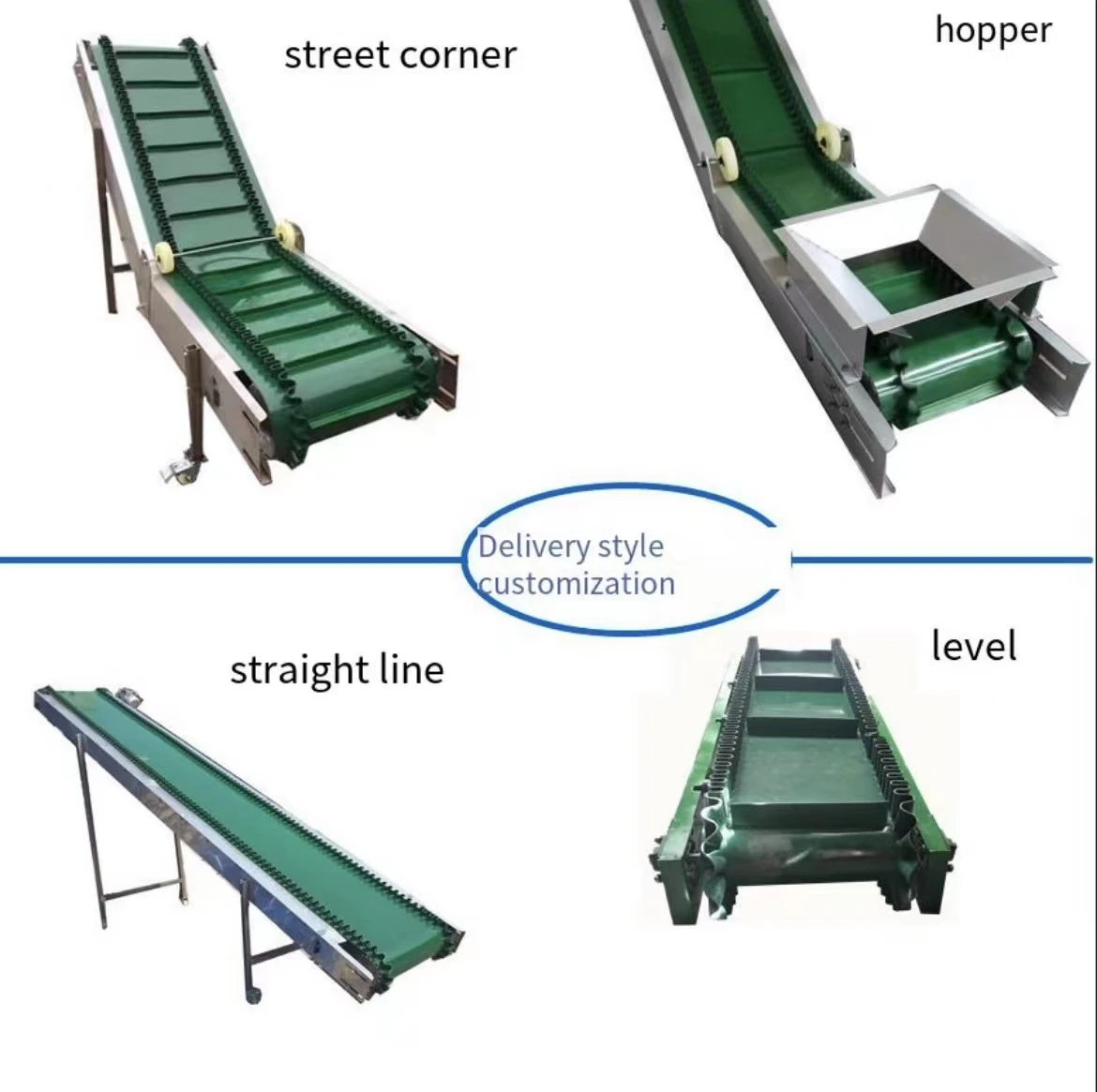

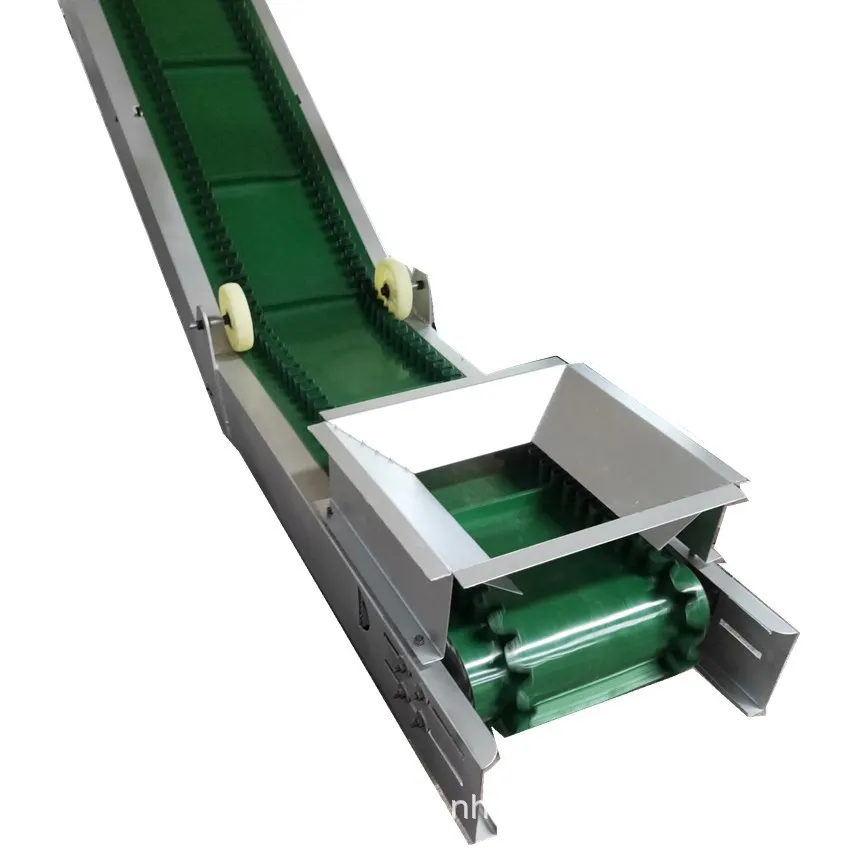

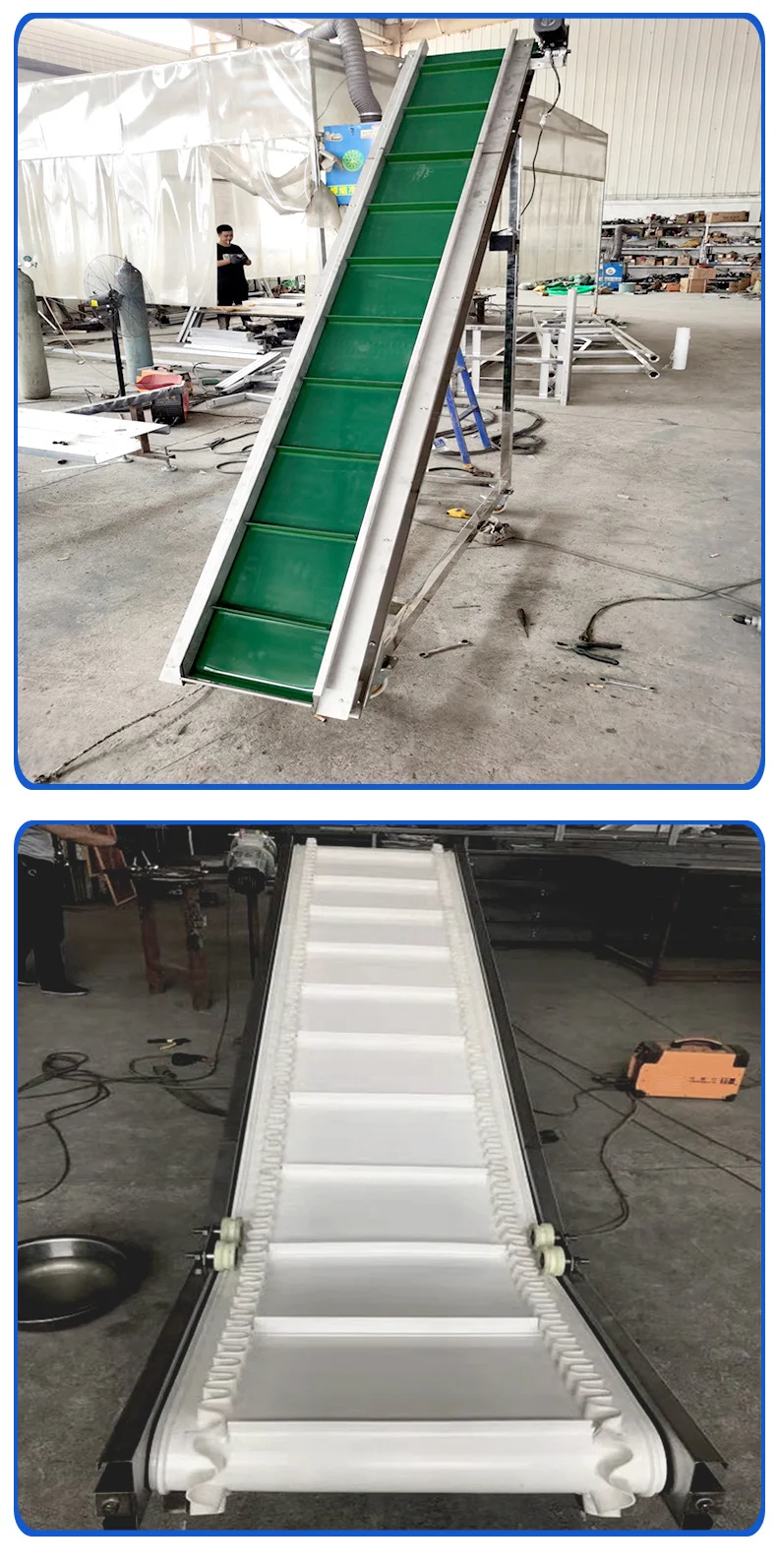

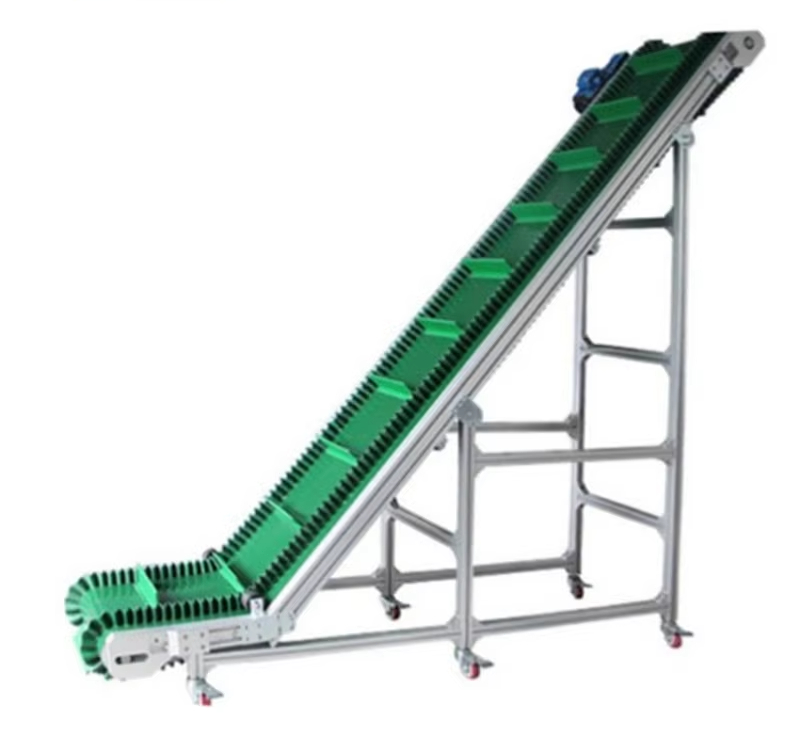

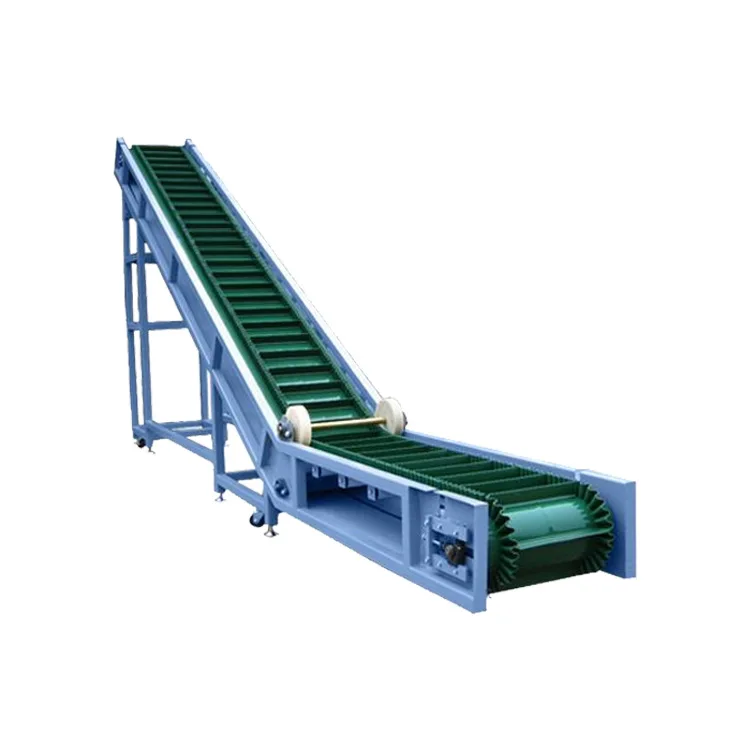

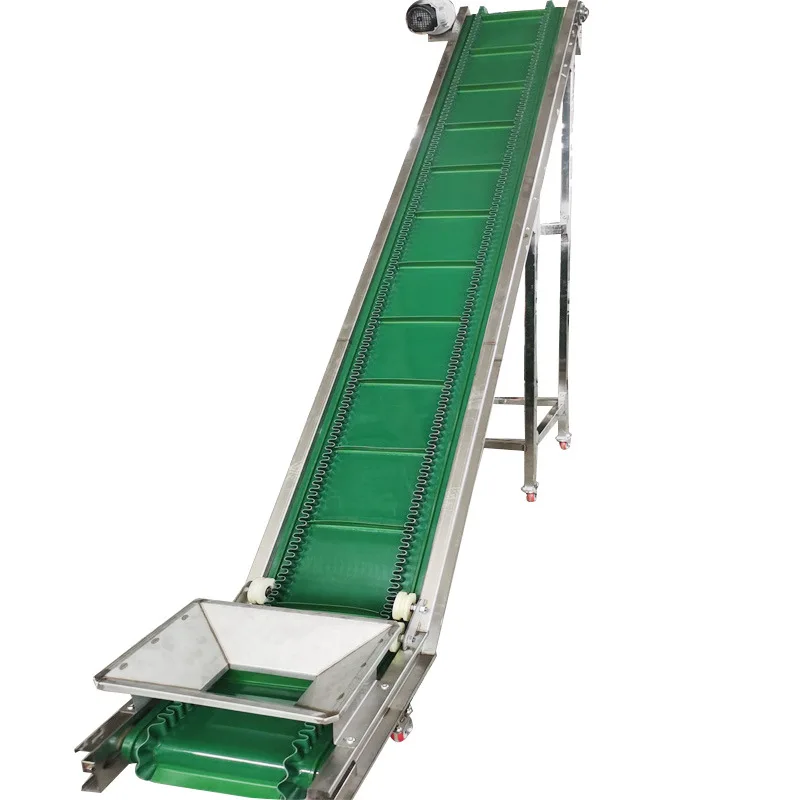

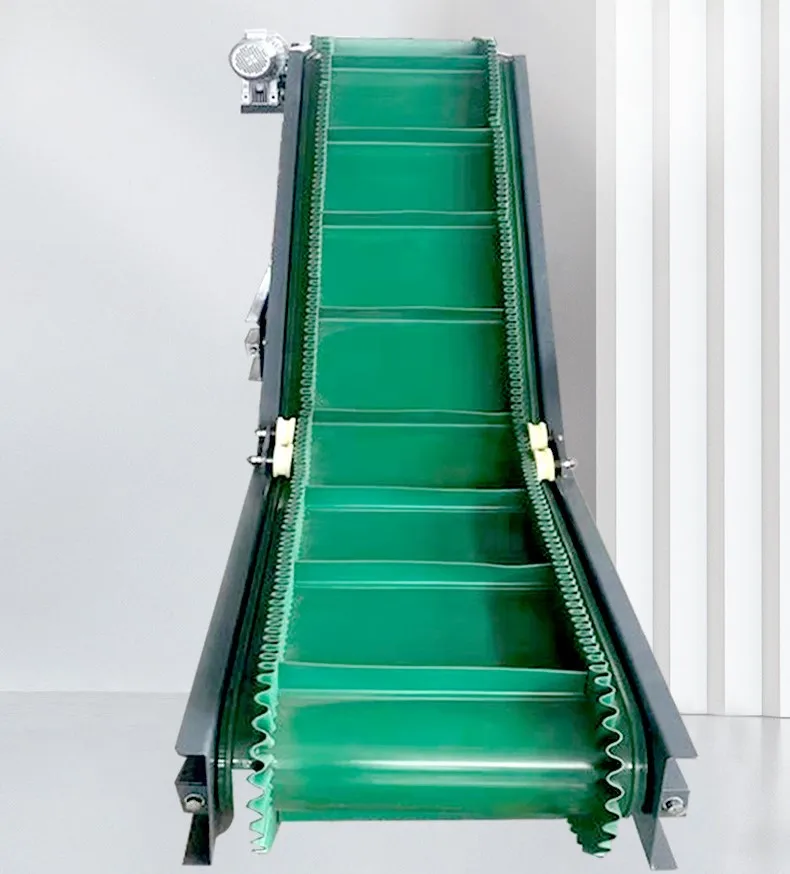

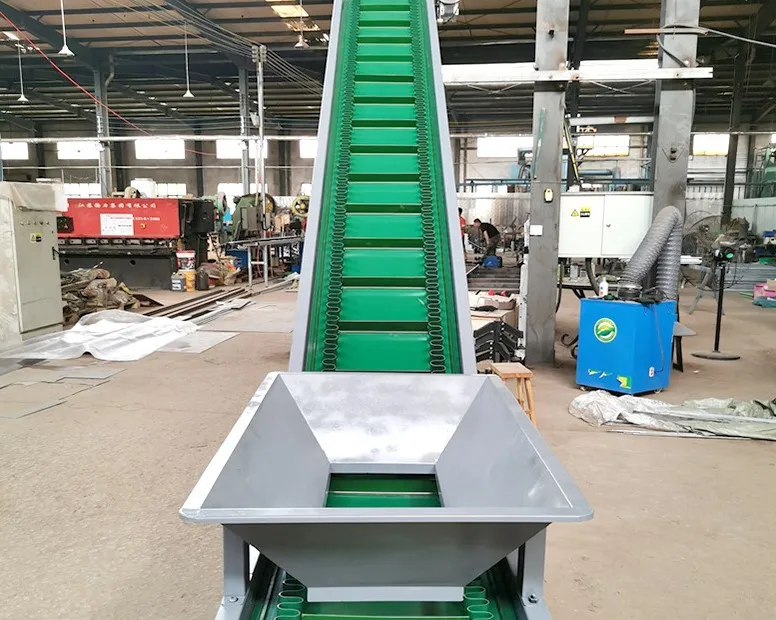

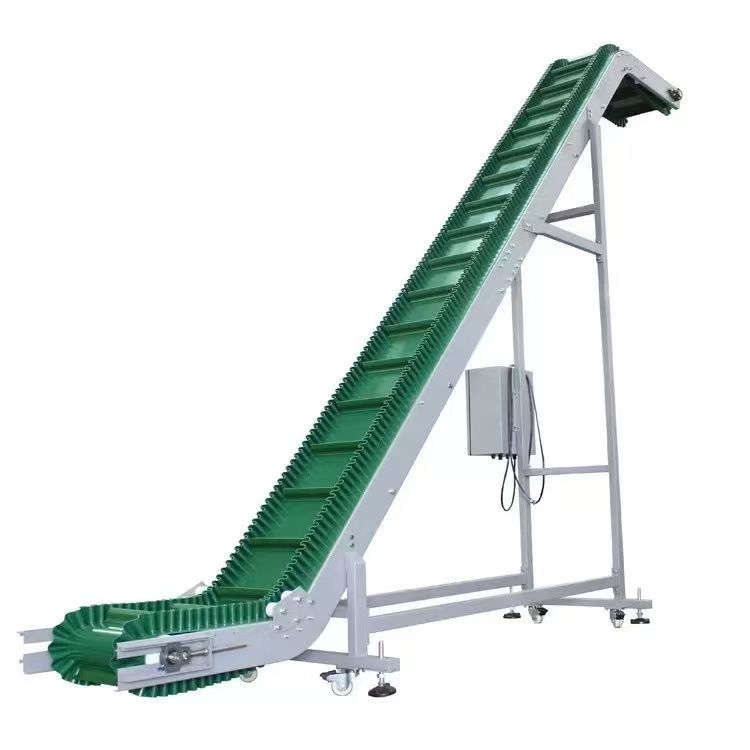

High Inclination Angle Industrial Sidewall Belt Conveyor with Bucket
Main functions of Sidewall Belt Conveyor with Bucket:
KUNJIE Belt conveyor with bucket with a large inclination (90 degrees vertical) transport, is the ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining, large dump trucks, metallurgy, electricity, coal, foundries, construction, food, cement works, fertilizer, etc. According to the type of belt, it can be divided into ordinary belt conveyor and PVC belt conveyor.
High Inclination Angle Industrial Sidewall Belt Conveyor with Bucket
Main functions of Sidewall Belt Conveyor with Bucket:
KUNJIE Belt conveyor with bucket with a large inclination (90 degrees vertical) transport, is the ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining, large dump trucks, metallurgy, electricity, coal, foundries, construction, food, cement works, fertilizer, etc. According to the type of belt, it can be divided into ordinary belt conveyor and PVC belt conveyor.
As this products is customized, more questions please send message and inquiry before place order.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Belt Width
(mm) |
Height of Sidewall
(mm) |
Belt Speed
(m/s) |
Angle of
Inclination (°) |
Capacity
(m³/h) |
|
500
|
80
|
0.8-2.0
|
30-90
|
84
|
|
|
100
|
|
|
112
|
|
|
120
|
|
|
98
|
|
650
|
100
|
0.8-2.0
|
|
156
|
|
|
120
|
|
140
|
|
|
|
160
|
|
186
|
|
|
800
|
120
|
0.8-2.5
|
|
186
|
|
|
160
|
|
318
|
|
|
|
200
|
|
360
|
|
|
1000
|
160
|
1.0-2.5
|
|
428
|
|
|
200
|
|
483
|
|
|
|
240
|
|
683
|
|
|
1200
|
160
|
1.0-3.15
|
|
535
|
|
|
200
|
|
765
|
|
|
|
240
|
|
1077
|
|
|
|
300
|
|
1358
|
|
|
1400
|
200
|
1.0-3.15
|
|
920
|
|
|
240
|
|
1298
|
|
|
|
300
|
|
1657
|
|
|
|
400
|
|
2381
|
|
|
1600
|
200
|
1.25-3.15
|
|
1074
|
|
|
240
|
|
1515
|
|
|
|
300
|
|
1953
|
|
|
|
400
|
|
2807
|
|
|
1800
|
240
|
1.25-4.0
|
|
2200
|
|
|
300
|
|
2724
|
|
|
|
400
|
|
4106
|
|
|
|
500
|
|
5036
|
|
