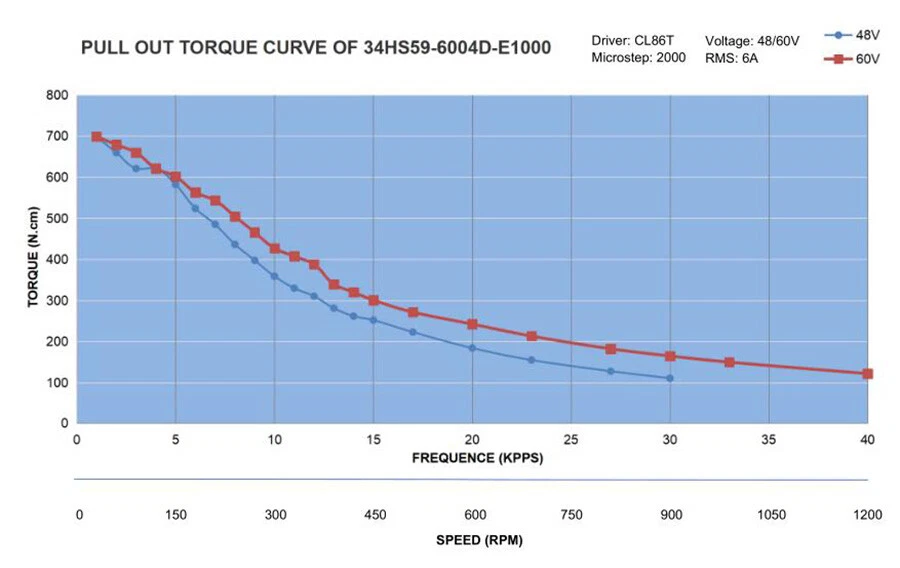

Nema 34 Closed Loop Stepper Motor 12.0Nm(1699.34oz.in) Encoder 1000PPR(4000CPR)
Electrical Specification:
- Manufacturer Part Number: 34HS59-6004D-E1000
- Number of phase: 2
- Step Angle: 1.8deg
- Holding Torque: 12.0Nm(1699.34oz.in)
- Rated Current/phase: 6.0A
- Phase Resistance: 0.53ohms± 10%
- Inductance: 4.8mH ± 20%(1KHz)
- Insulation Class: B 130°C[266°F];
Physical Specification
- Frame Size: 86 x 86mm
- Body Length: 175mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Shaft Length: 25mm
- Lead Length: 300mm
- Weight: 5.5kg
Encoder Specification
- Output Circuit Type: Differential type
- Encoder Type: Optical Incremental
- Encoder Resolution: 1000PPR(4000CPR)
- Output Signal Channels: 2 channels
- Supply Voltage Min: 4V
- Supply Voltage Max: 5V
- Output Current: 100mA
- Output High Voltage: 5V
- Output Low Voltage: 4.5V
- Output Frequency Max: 60kHZ
Connection
PIN | 1 | 2 | 3 | 4 |
Motor | A+ | A- | B+ | B- |
PIN | 2 | 3 | 1 | 13 | 11 | 12 |
Encoder | VCC | EGND | EA+ | EA- | EB+ | EB- |

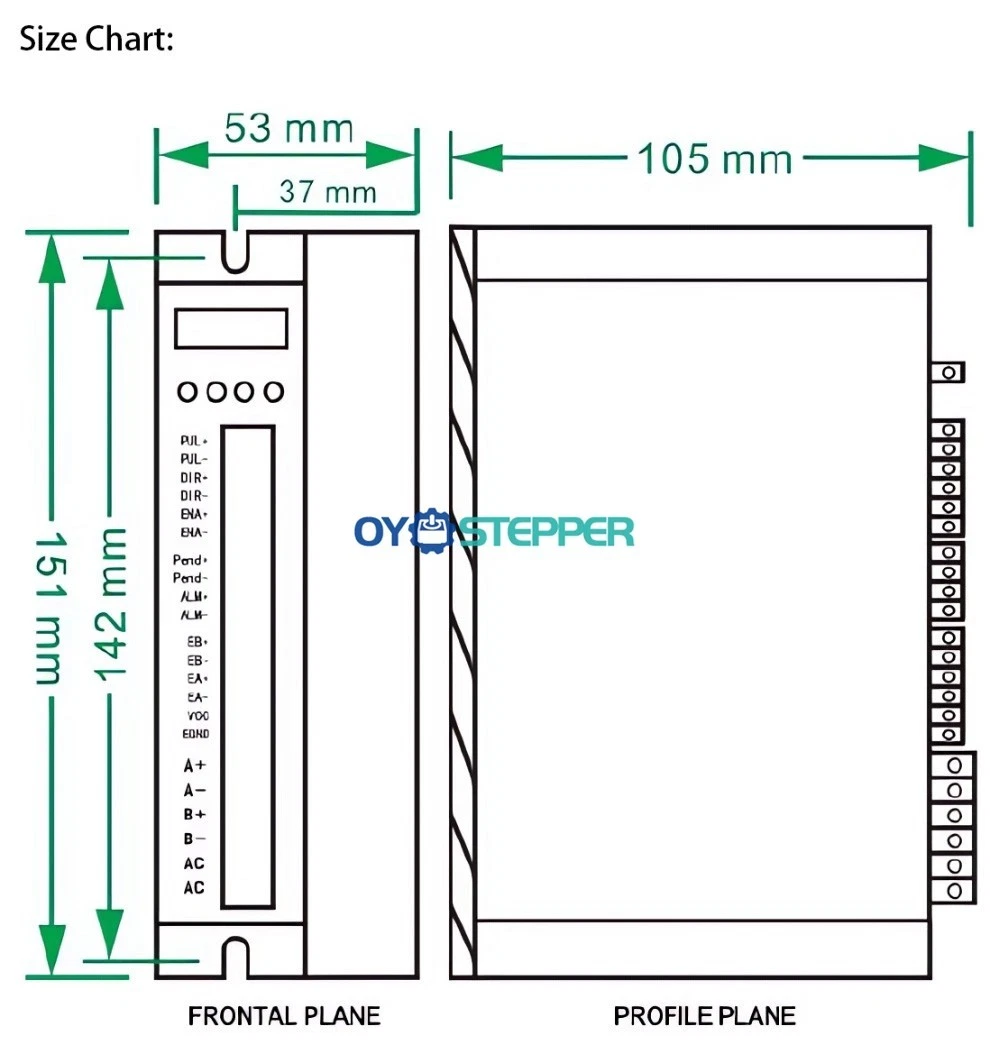

Model:OK2D86ECS
Power: Max 200W
Output Peak Current: 1~8A
Input Voltage: +18~80VDC (Typical 48VDC)
Logic Signal Current: 7~20mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Microstep(Steps/rev.):200~60000ppr
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:600g
Operating Environment and other Specifications:
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 50℃
Humidity: <80%RH (No-condensing, no frosting)
Operating Temperature: 70℃ MAX
Vibration: 5.9m/s2 Max
Storage Temperature: -20℃ －+80℃
350W 60V 5.9A 115/230V Switching Power Supply for Stepper Motor / CNC Machines
This professional 350W 60V 5.9A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosed by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling).
Features：
60V DC 5.9A output
AC input voltage range: 93~132V/176~264VAC
115V/230V AC selected by switch
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)
