2. Standard Diesel OBD & OBDII Protocols:

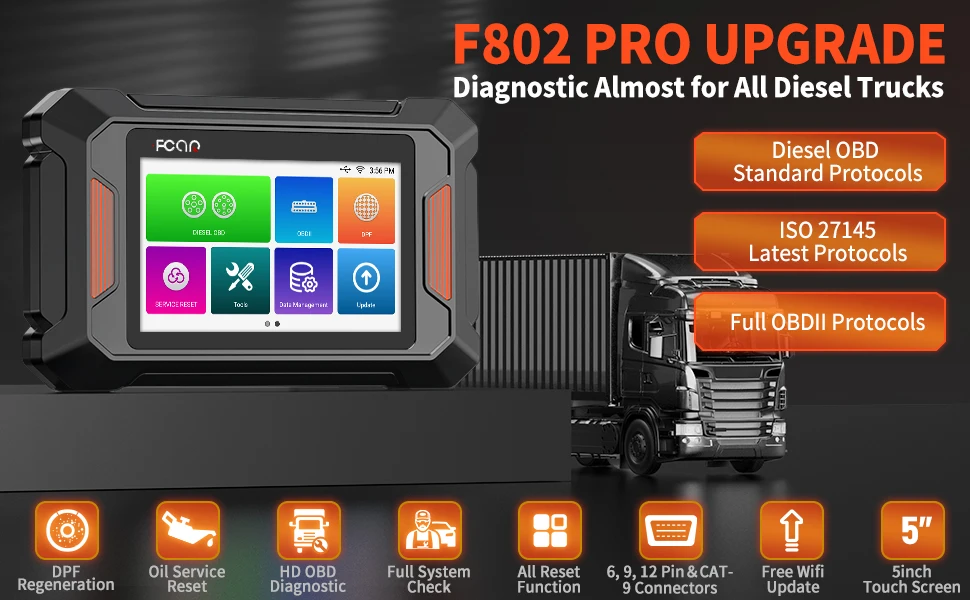

The F802 is a professional diagnostic platform for heavy-duty vehicles. It supports standard diesel HD OBD protocols (with the latest J27145) and standard OBDII protocols. This means that the models it covers are more comprehensive and offer more advantages than competitor products.

3. All System Diagnostic for Almost All Diesel Trucks:

F802 truck scanner is capable of reading and clearing trouble codes of all major systems of truck, including engine, airbag, transmission, VCS, ABS, SRS, EBS, DCU, AT, cluth system, brake system, meter system, battery system, inverter system, hybrid system, immobilizer system, ect.

4. Additional Functions:

It is designed with user-friendly operational features, which you cannot find in other truck scanner. One-click screenshot, one-click update, one-click printing, one-click feedback, create a test report with one click and send it by email,ect. More other valuable additional functions will bring you the ultimate experience.

5. "Simulate" + "DEMO" Menu:

In order to facilitate your understanding of certain functions and operating steps of the software, our engineers have developed a simulate menu. The data in it are all saved after our actual vehicle test. If you want to know, you can enter the "Simulate" or "DEMO" menu to browse.

6. Lifetime Free Update

F802 supports lifetime free updates online. For technical support and any problems with the order, please contact us via buyer-seller messages to solve the problem.

Service Reset (for Isuzu, Fuso)

If the car owner replaced the relevant parts, but does not reset maintenance lamp, it will not affect the performance of the vehicle, but it will bring trouble to the next replacement of the car parts: it is impossible to know exactly when the new parts are used. The intelligent maintenance system CBS permanently monitors oil levels and the degree of wear and tear on individual components of your vehicle. It also checks the time/mileage recommendations for fixed services and it analyses this data and tells you when a service is next due.

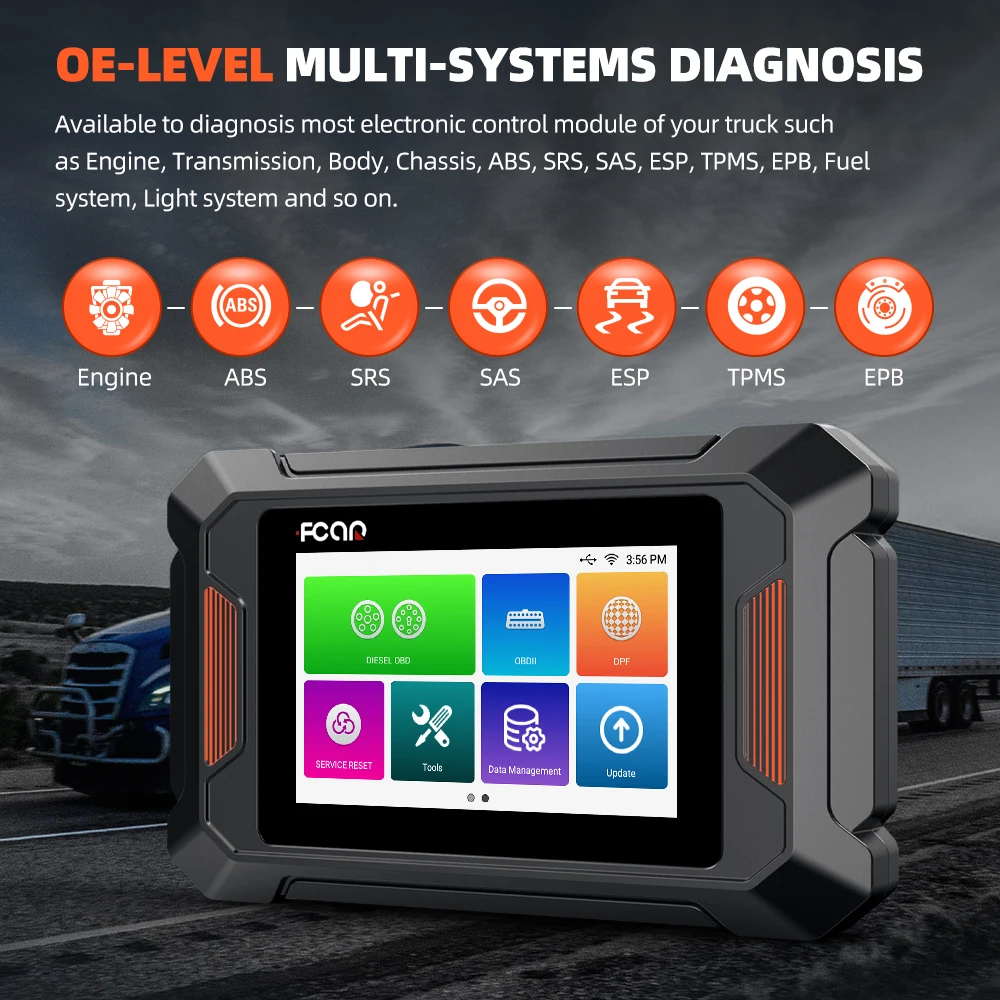

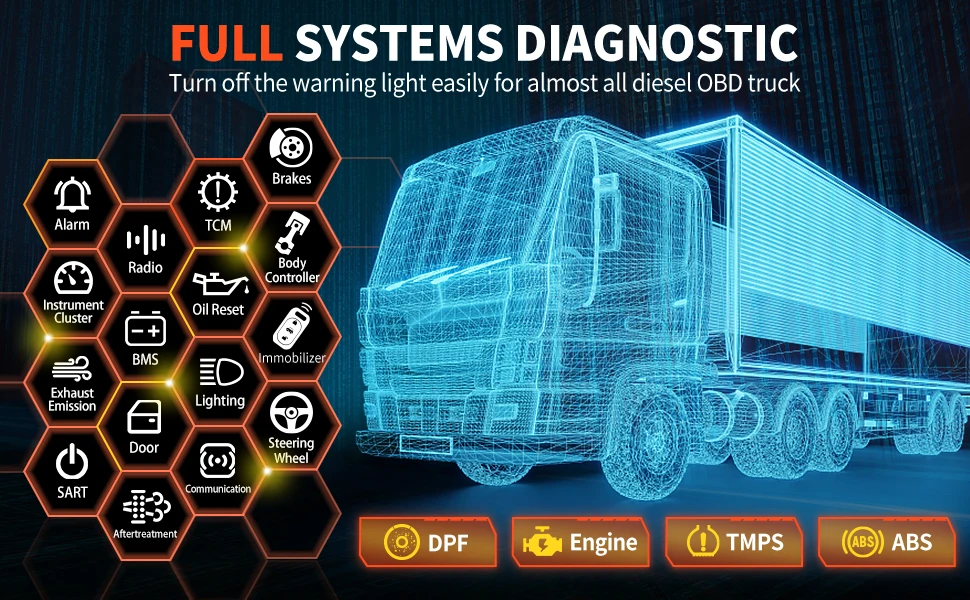

OEM-Level Full Systems Diagnostic

This truck scan tool Supports to scan full system.

You can get real time data related to system and do some repair by yourself using this truck tool, which will save much time and money for you.

Power Transmission:

Engine, Construction engine, Hybrid, VCS(Vehicle Computer Simulation), Transmission, Integrated Control, Integrated Security System, Motor Control, Battery/SCR.

Chassis:

Anti-lock braking system, EZGOC(Wheel Brake Special System), Retarder.

Carbody:

Immobilizer, SRS Airbag, SWS (Smart Writing System), Headlamp Auto-leveling, ABS, ASR, EBS, ESCOT, ESP, EPS, AT System, Smoother, HSA/ CFS, BCM, BCM(MIMAMORI), VIM(Vehicle Interface Module), UDS, Gas Treatment, DCU/ BCU, Instrument System, Suspension System, Pro-shift, Inverter, Kneeling, Drivetrain, Scanning Cruise/LDWS/PCS, Tire Pressure Monitoring System, Ldfing Stop System, Clutch System, Anti-theft devices, Blocker, PESS(Passive entry and start system), PIM(Powertrain interface module), Chassis ESC, Air Suspension, Headlamp Auto-leveling.

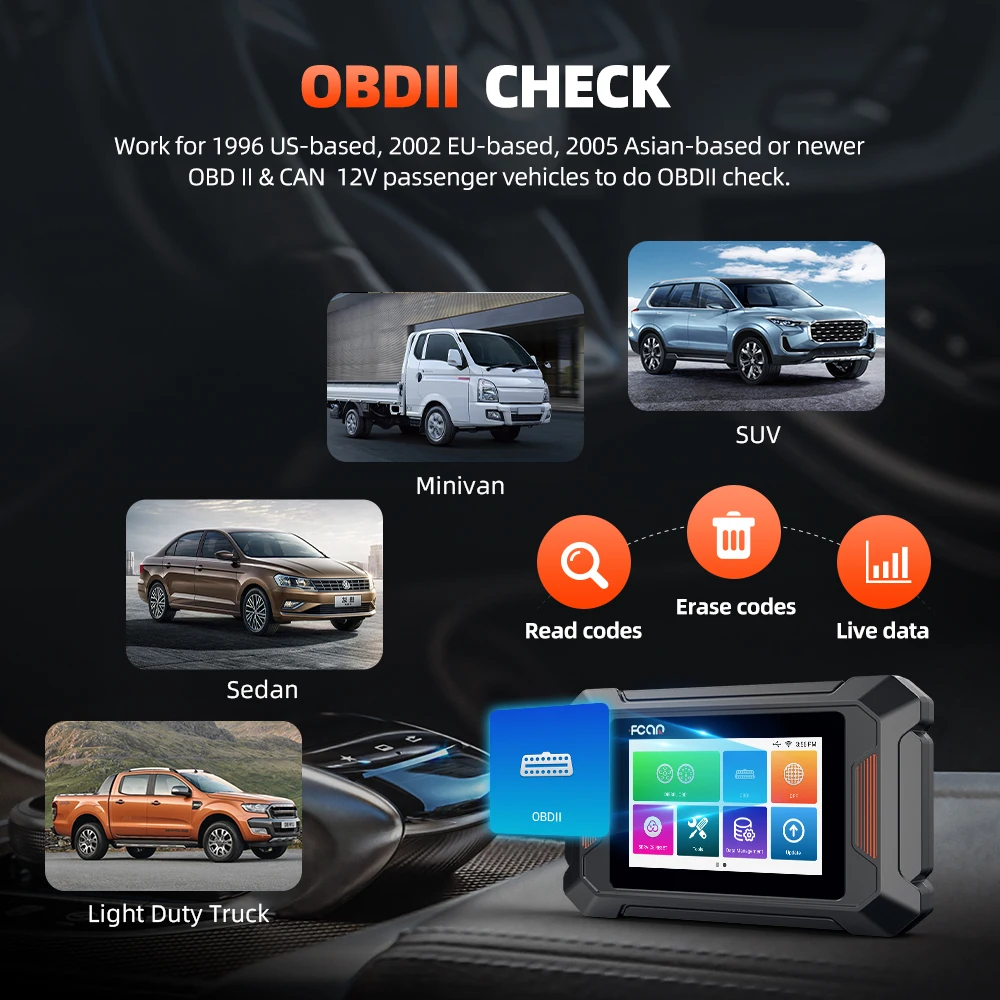

It not only can diagnose heavy duty trucks, also can be a OBD2 scanner for 12v vehicles to diagnose all OBD2 module of engine.

1. Read and clear fault codes, turn-off malfunction indicator light (MIL)

2. O2 sensor test to check fuel efficiency and vehicle emission

3. Display freeze frame data and retrieve vehicle information

4. EVAP test for fuel tank system (Carbon canister test)

5. Show live data in graph such as Engine Speed, ECU’s temperature and coolant temperatures. The live data can be store and playback

6. Display I/M readiness status (Non-continuously monitored system test )

7. Request On-Board Monitoring test results for specific monitored systems 8. Provide DTC Lookup function

How one-click to activate the F802?

Step 1: Simply plug into the OBD port on your car and turn the ignition on, after the vehicle power on, the device will automatically startup;

Step 2: Connect WIFI. Go to Settings>WIFI;

Step 3: After successfully connecting to WIFI, go to Settings>Activation, click "Activate".

Note:1. If the "Activation failed" prompt appears on the screen, please check whether your network connection is normal. 2. Click activate directly to use it, no registration is required.

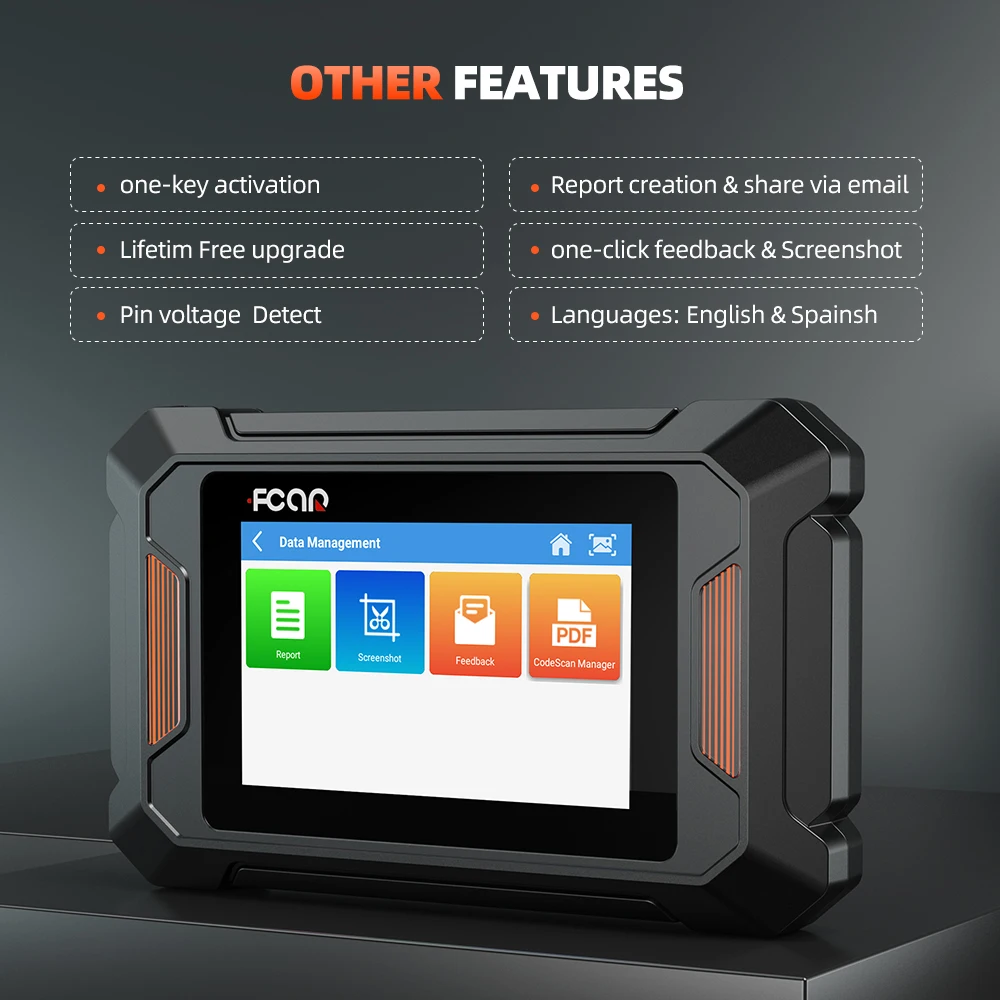

Faster operation, saving your diagnosis time

One-click Screenshot

This function allows you to save important information about vehicle diagnosis through one-click screenshots, and then you can view the screenshots in “DATA MANAGEMENT”.

One-click Printing

F802 scanner supports the printing function, which can print diagnostic report data such as vehicle information, fault codes, and data streams, and can also print software interface. Note: The printer and F802 PRO diagnostic scanner are sold separately. If you need to print data, you can buy the printer at the bundle link below the link.

One-click Feedback

This diagnostic tool supports one-click feedback. You can give us your feedback via this function if you have diagnostic problems, Fcar's professional technical team will provide you with excellent solutions.

One-click Upgrade

No need to update on computer. By connecting wifi, it will automatically search for the latest update programe, just click update, you will get the latest version (more car models, bug fix) of this scanner. You will enjoy lifetime update through one-key function.

Pin Detect

This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of the vehicle, click the main interface "Tools" to select pin detection. The program automatically measures the 16pin voltage of the OBD diagnosis interface, and judges the pin position of K-line and can line.

Note: The test requires ECU no response, please ask the customer to check whether the diagnostic interface has voltage

Support Print & Share Report

F802 scanner supports the printing function, which can print diagnostic report data such as vehicle information, fault codes, and data streams, and can also print software interface. You can share the health report of your car with others via email, and you can also send it to yourself. which is very convenient.

Note: The printer and F802 diagnostic scanner are sold separately. If you need to print data, you can buy the printer at the bundle link below the link.

Connection Modes

Please enter the menu "OBD-II" if you want to diagnostic 12V cars. Please kindly note that you should enter menu "Diesel OBD" if you want to diagnose heavy duty trucks.

The following is an operation description of these two connection modes:

1) Connection of standard OBD-II interface - The vehicle only needs to use the integrated main test line OBD connector, and no other connectors are needed.

2) Connection of Diesel 6/9 PIN interface - Vehicles need to connect the main test line with the corresponding special connector.

Language:

English,Spanish

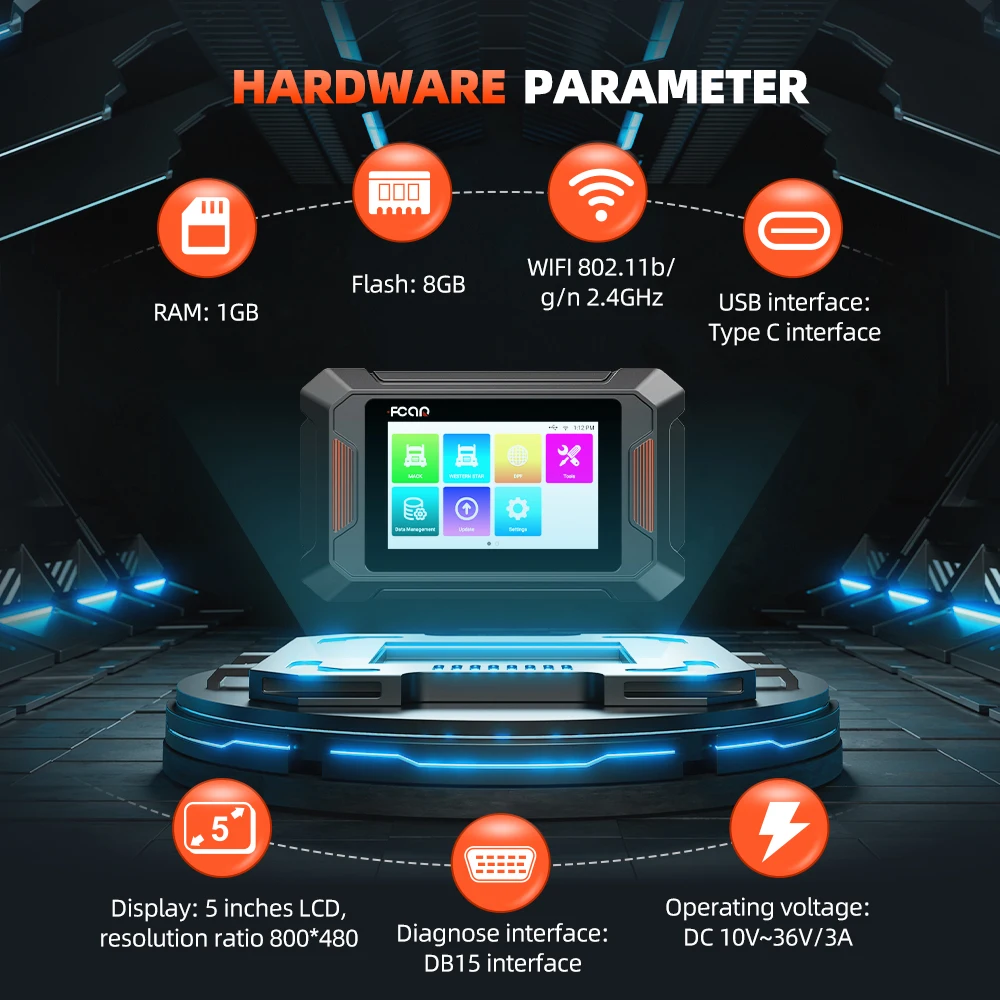

Product High Configuration Hardware

CPU Quad-Core ARM Cortex-A7
RAM 1GB
Flash 8GB
Display 5 inches LCD，resolution ratio 800*480
WIFI 802.11b/g/n 2.4GHz
USB interface Type C interface
Diagnose interface DB15 interface
Operating voltage DC 10V~36V/3A
Pinter Optional

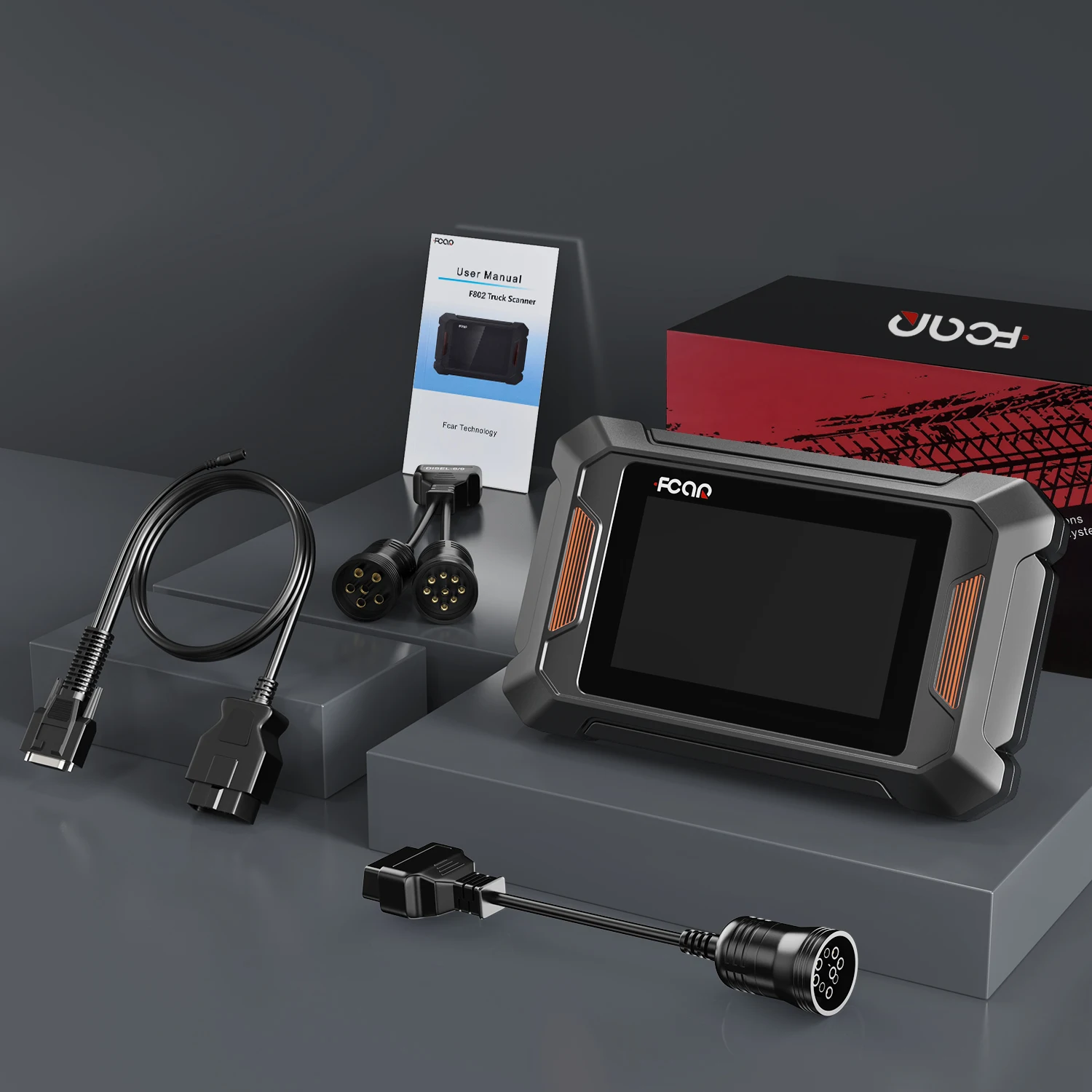

F802 Package List

1pc x F802
1pc x Packing box
1pc x User Manual
1pc x 6pin & 9pin Connector For Trucks
1pc x 16pin OBD2 Connector For Car
