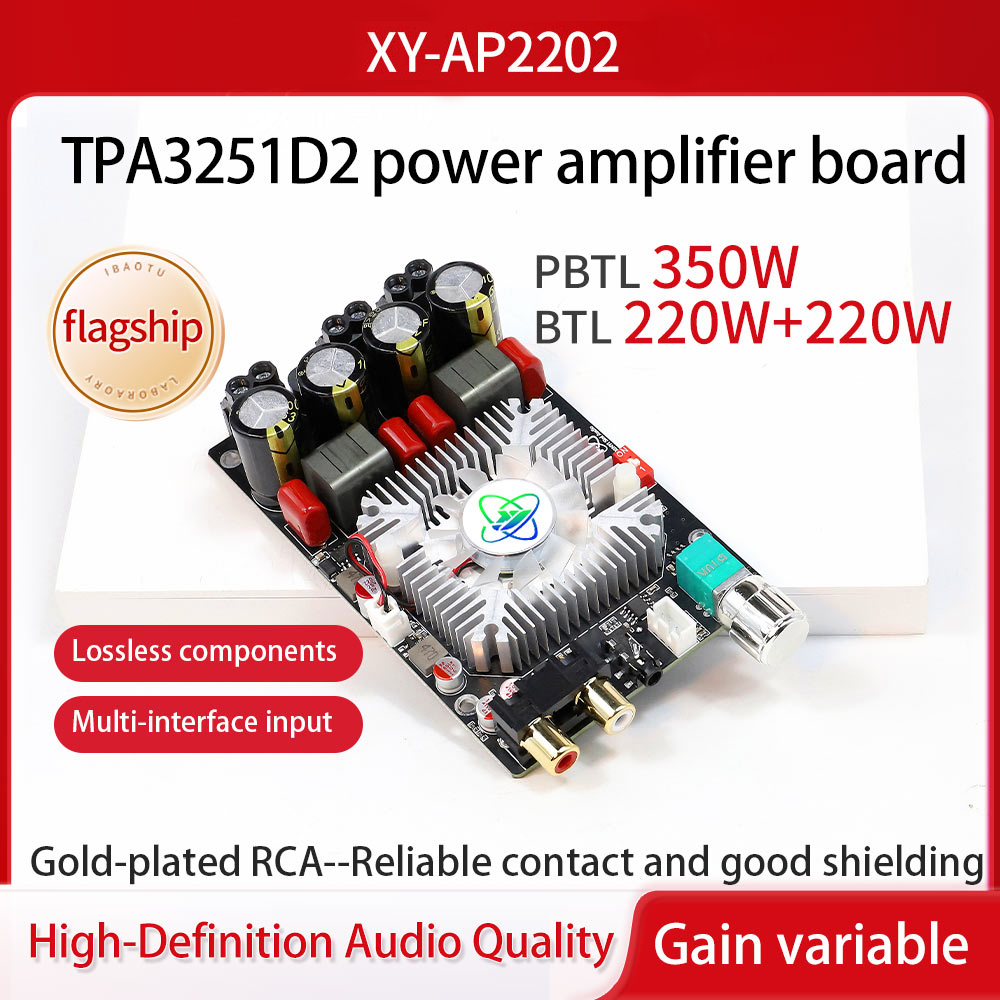

TPA3251D2 HiFi Digital Amplifier Board 220W+220W Power Amplifier Module Class D
Overview

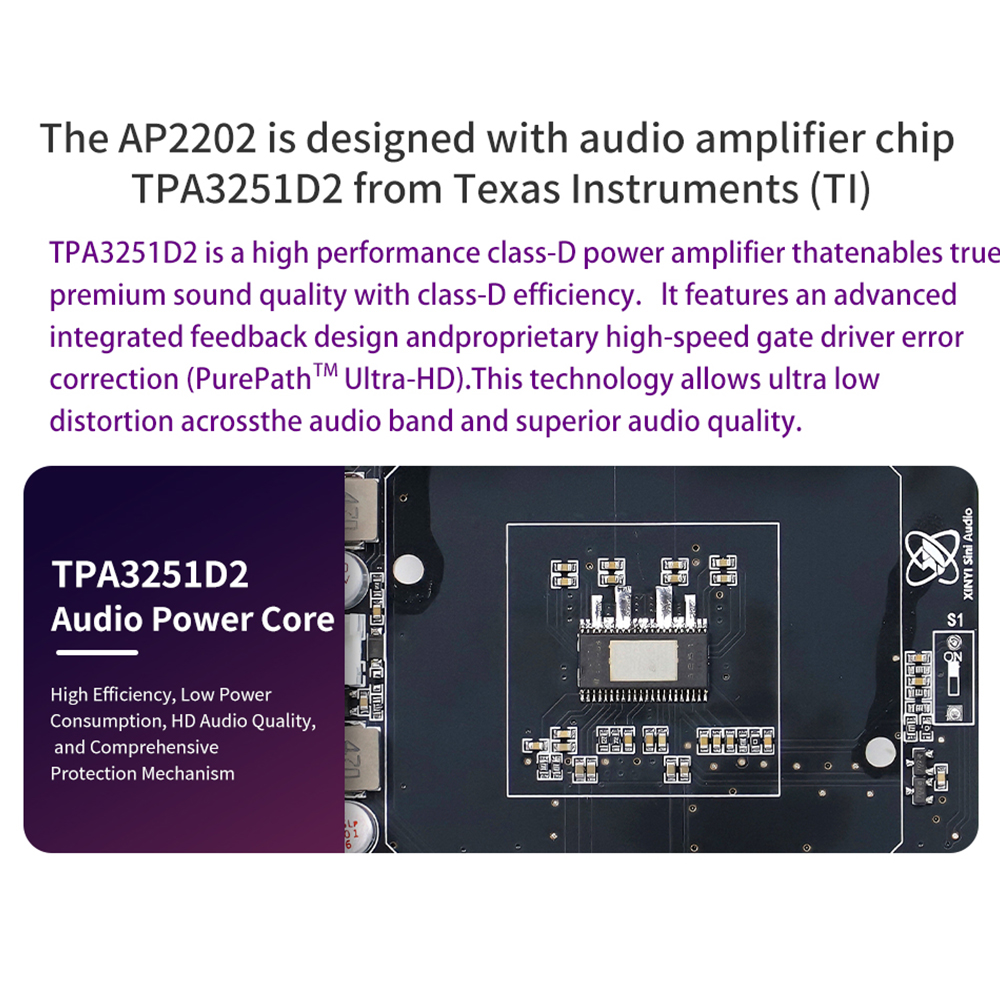

Designed with the TPA3251D2 amplifier chip, the TPA3251 is a high-performance Class D power amplifier that delivers Class D efficiency and true high-end sound quality. The device features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath “HD”). This technology allows the device to maintain ultra-low distortion across the entire audio frequency band while delivering high-definition sound quality.

Features
1. High power, dual-channel support 220W + 220W, the single largest bridge connected to the parallel output 350W.
2. External potentiometer, with switch, multi-input interface, solid materials, cost-effective.

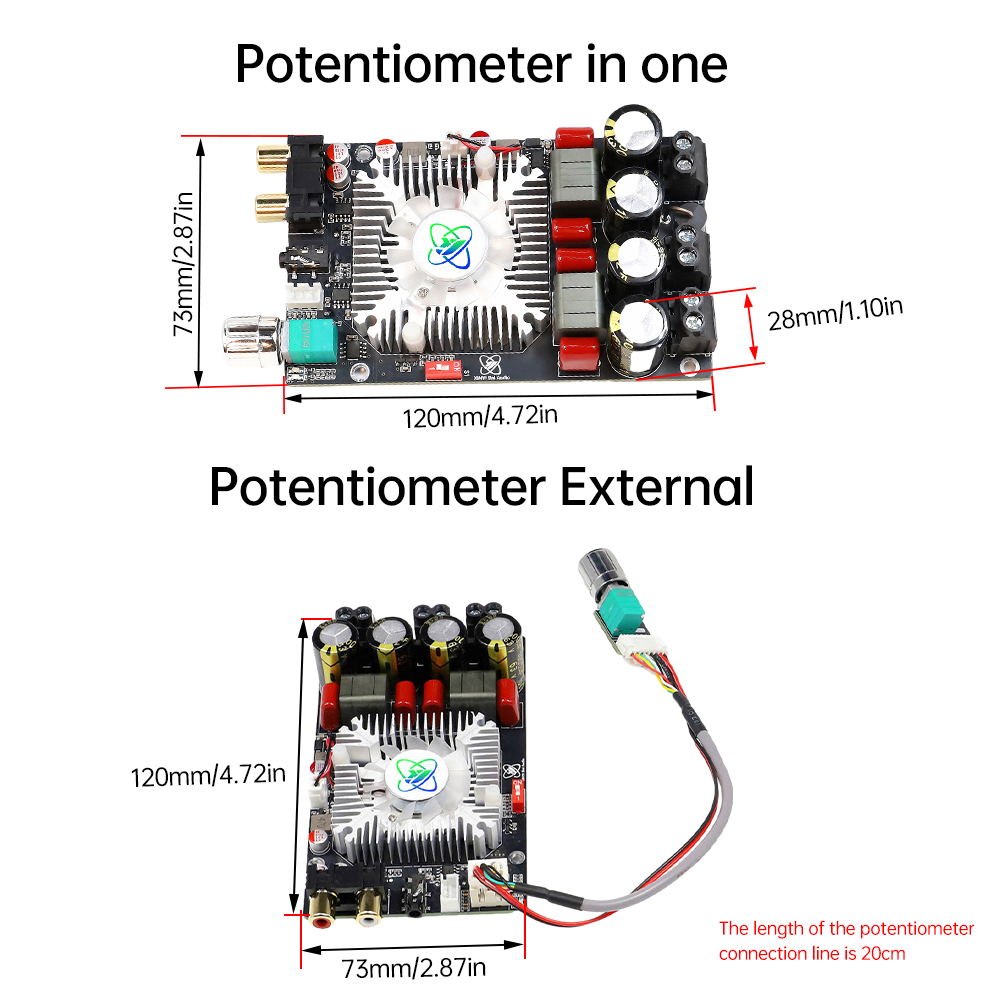

3.2 kinds of specifications can be selected, potentiometer integrated type / potentiometer external type can be selected.
4.TPA3251 is a high performance class D power amplifier, it has class D efficiency and can bring real high-end sound quality.

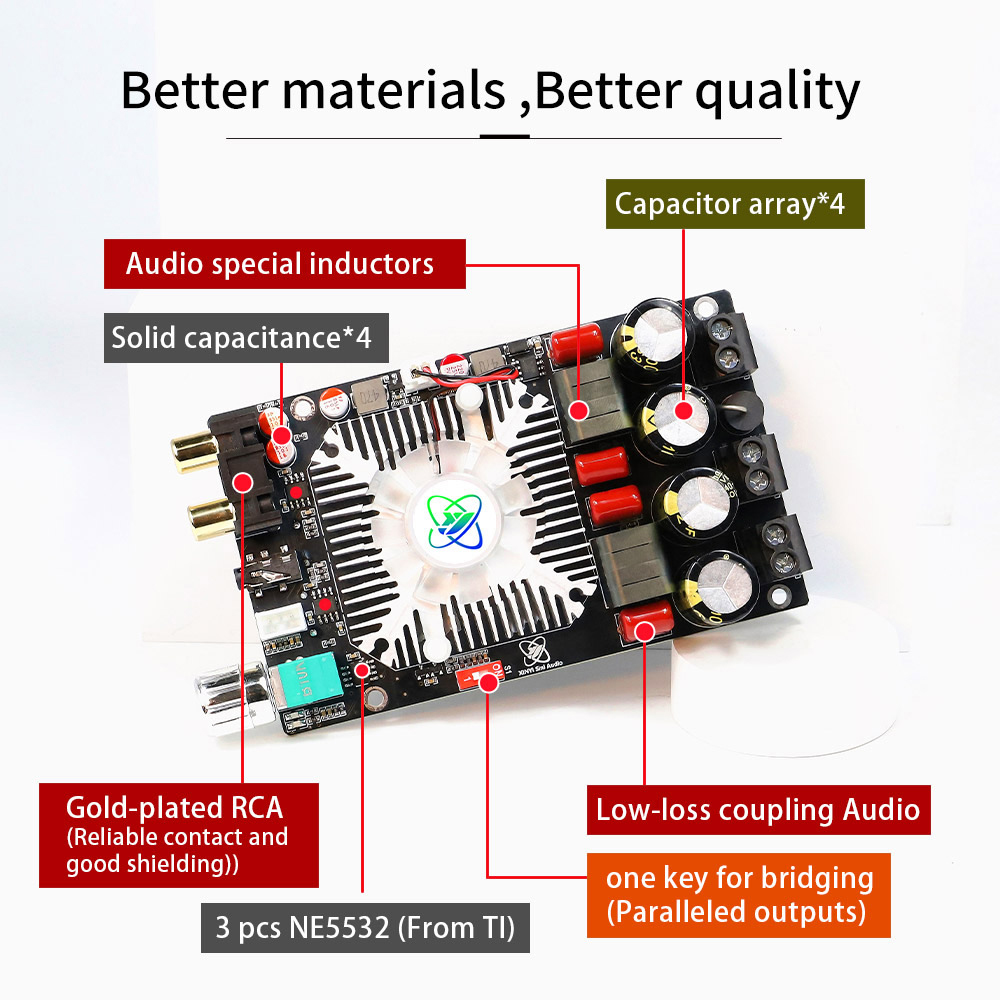

5. It adopts gold-plated lotus seat with reliable contact, good shielding, clean and powerful sound quality, and adjustable gain.

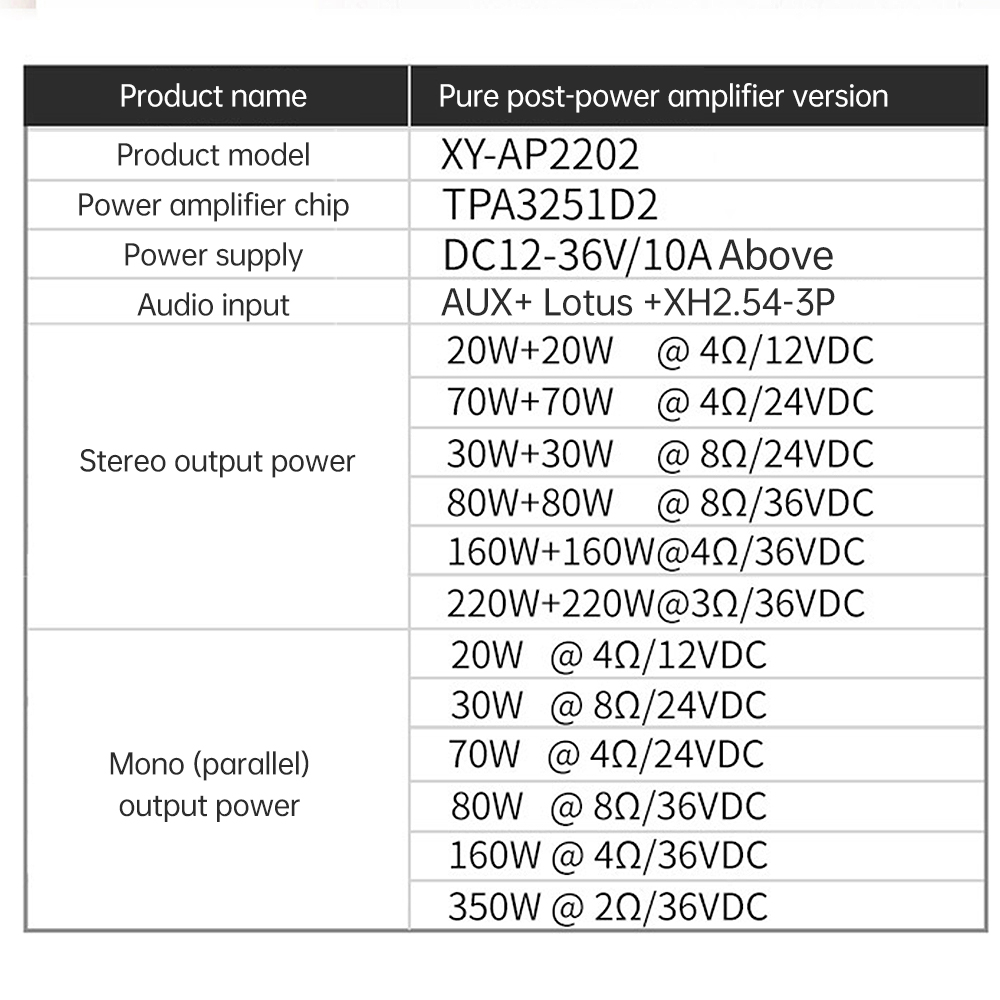

Specification
Product name: PurePath amplifier version
Product Model: XY-AP2202
Amplifier chip: TPA3251D2
Power supply: DC12-36V/10A or above
Audio input: AUX + Lotus + XH2.54-3P
Stereo output power:
20W+20W @ 4Ω/12VDC
70W+70W @ 4Ω/24VDC
30W+30W @ 8Ω/24VDC
80W+80W @ 8Ω/36VDC
160W+160W @ 4Ω/36VDC
220W+220W @ 3Ω/36VDC

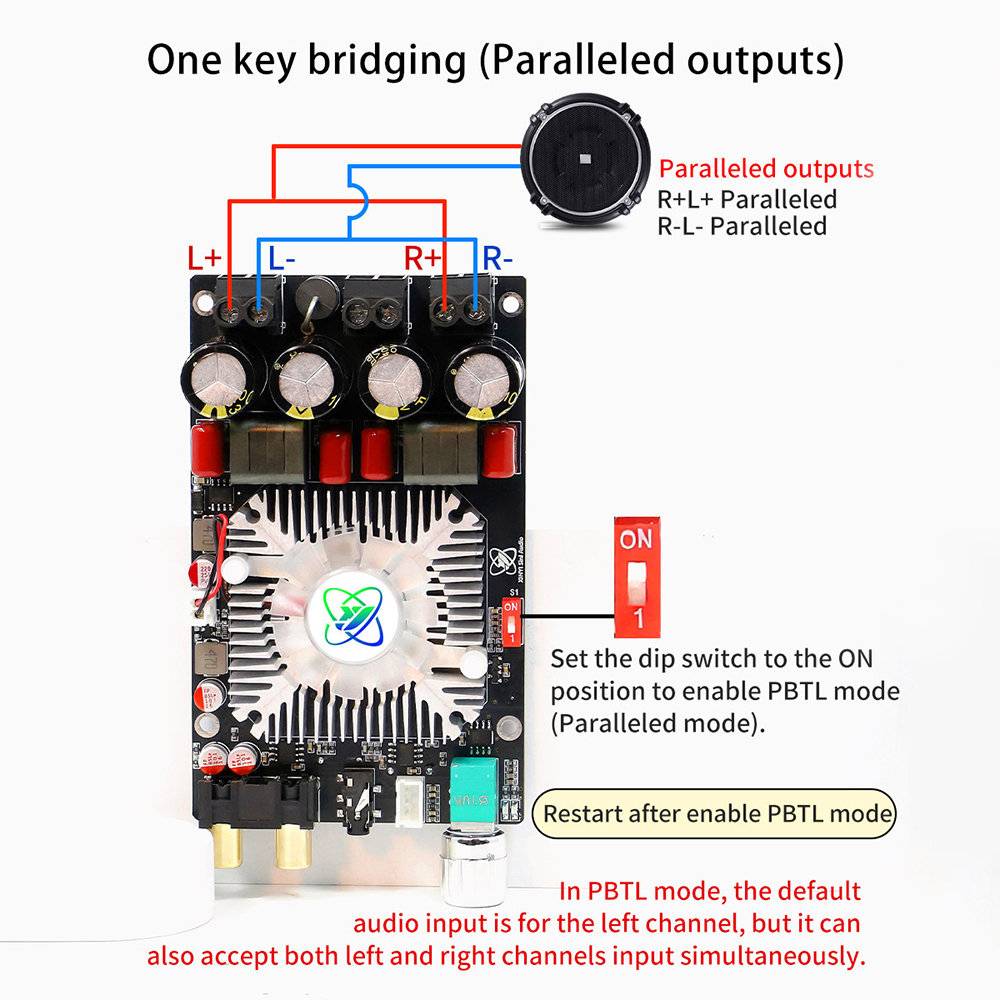

Mono (Parallel) Output Power.
20W@4Ω/12VDC
30W@8Ω/24VDC
70W@4Ω/24VDC
80W@8Ω/36VDC
160W @4Ω/36VDC
350W@2Ω/36VDC
Main body size: 120mm*73mm*28mm

Package Includes
1 x Amplifier board
