Description
With its powerful features and secure performance, this product will win your favor! The high power of 7.5HP can quickly pump water from rivers or reservoirs and provide sufficient power to achieve high-head irrigation for your garden, lawn, or farm. The air filter, impellers, and filter screen can reduce impurities in air and water, prevent blockage of the machine, and extend its service life. This is an ideal investment for improving irrigation efficiency!
Key Features
High Efficiency: The premium carburetor allows the fuel to fully burn, converting it into strong power. The 7.5HP high-power engine with 212cc displacement gives it a rotation speed of 3600rpm and provides a flow rate of up to 2119ft³ per hour to quickly pump water out of rivers or ponds, and provides a suction height of 23ft and a total lift height of 98ft, allowing you effortlessly to fully irrigate your farmland, improving your efficiency and saving you time.
Safety Guard:Multiple evenly distributed heat dissipation holes can timely dissipate the heat, and effectively guarantee safety during use to avoid burnout or breakdown. The four impellers can ensure excellent sealing performance and handle particles with a diameter of 1/3 inch, and the air filter can also reduce the risk of blockage. The built-in oil protector prevents cylinder pulling and bursting caused by not adding oil or insufficient oil, making it reliable and safe to use.
Sturdy and Durable: The aluminum alloy, carbon steel, and die-casting process make it resistant to rust, corrosion, impact, and deformation, allowing it to withstand repeated and extended use in various pumping scenarios.
High Stability: The thick carbon steel, anti-slip support feet, and sturdy construction can reduce vibration to a certain extent, and ensure the stability of the machine during operation, making it reliable to use.
Continuous Work: It is equipped with a 0.95 Gal fuel tank, which allows it to work continuously for about 5 hours, reducing frequent refueling, and allowing you to complete a large amount of pumping work at once without being interrupted.
Easy to Carry: The 19.29*14.76*15.95inch compact structure and handles make it convenient to take to different workplaces.
Low Noise:During operation, this product produces approximately 66dB of noise, equivalent to a normal conversation, providing you with a relatively comfortable working environment.
Guaranteed Customer Service:We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Details
Practical Filter: It can help filter impurities in water, prevent clogging of the machine, and reduce wear and cleaning trouble.
T-Shaped Puller: The T-shaped design makes it easy to grip, and the auxiliary spring inside can help you start the engine more easily.
Large Water Inlet and Outlet: The pump adopts a 3-inch large diameter water inlet and outlet, allowing large flow.
Clamps: They can help you firmly fix the water pipe and prevent it from loosening and leaking due to strong water impact.
Switch: You only need to press the switch to easily stop the machine, making it very easy to use.
Application
This product can be widely used in a variety of scenarios, such as long-distance water transmission in farmland, large-area sprinkler irrigation in gardens, water for firefighting, fishpond aquaculture, water exchange in swimming pools, and water extraction from deep wells.
How to Use
- Place the machine flat and pour in engine oil until there is just oil dripping out. Excessive or insufficient oil will affect operation.
- Add 92 # gasoline.
- Fill the pump head with water until there is water overflow at the outlet.
- Move the red flameout switch up to the ON position.
- Adjust the throttle switch to the left, adjust the air outlet to the left, and adjust the oil circuit switch to the right.
- Start the machine by pulling out a small section of the pull rope and then quickly pulling the pull rope.
- Connect the inlet and outlet pipes.
Specification
Model: WP30X, 170F-7.5HP
Color: Black, Red
Material: Aluminum Alloy, Carbon Steel
Processes: Die-casting
Assembly Required: Yes
Power Source: 92#Gasoline, 5W-40 Engine Oil
Max. Power: 4KW
Max. Torque: 12/250N.m/r/min
Inlet/Outlet Diameter: 80mm/3 in
Lift: 30m/98ft
Suction Height: 7m/23ft
Flow: 60 m³/2119ft ³/h
Engine Type: 4-stroke, Single Cylinder, Air-cooled
Engine Displacement: 212cc
Engine Power: 7.5HP
Power Speed: 3600rpm
Ignition Method: Contactless Transistor Ignition
Start Method: Manual Start
Fuel Tank Capacity: 3.6L/0.95 Gal
Oil Capacity: 0.6L/0.16 Gal
Noise: 66DB (A)
Fuel Tank Endurance: 5h
: 22.5kg/49.6 lbs
Pipe Length: 7.5m/24.61ft
Product Size: 49*37.5*40.5cm/19.29*14.76*15.95in
Package Size: 50.5*38.5*43cm/20*15*17in

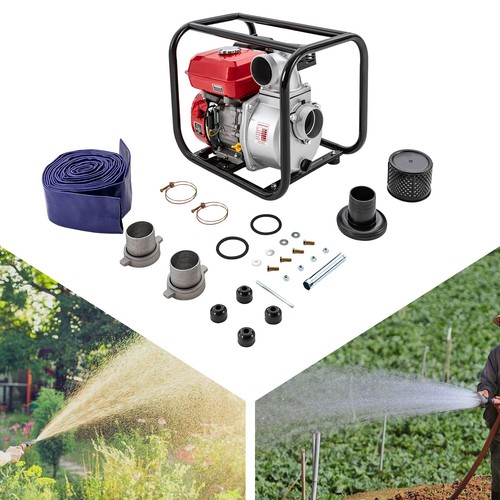

Package Included
1* 4-Stroke Gasoline Engine Water Pump
1* Water Pipe
1* English Instruction
All Accessories for Assembly
Notes
- Please read the operating manual completely before use. And pay particular attention to the safety instructions included. Please keep this product away from children.
- When using it for the first time, it is necessary to change the oil every 5-10 hours, otherwise, impurities in the oil will block the crankshaft.
- Fill the fuel tank of a four-stroke gasoline engine with 92 # or above gasoline, and add engine oil to the oil tank. Please check the oil level before each use.
- When a gasoline engine operates continuously, the temperature of the crankcase should not exceed 90°C. If it overheats, it should be stopped for 15-20 minutes before continuing to operate. Please add gasoline only when it is cooled. Please use the correct model of engine oil, genuine factory products, and clean engine oil. Gasoline should also be free of impurities.
- Gasoline engines are prohibited from stopping at high speeds and should be stopped when the throttle is lowered to the lowest possible level.
- The air filter element should be regularly inspected and replaced, and the dirty element should be cleaned with soapy water and dried in the shade before use. The cremation plug generally does not need to be replaced. If carbon accumulates, remove it and scrape it off with a knife
- The machine is ready to be out of use for a long time. Please do not directly turn off the gasoline engine switch, turn off the throttle switch, and consume all the gasoline in the carburetor; If not consumed completely, maintaining oil in the carburetor for a long time can lead to oxidation of the carburetor.
- Even if using a fan or opening doors and windows for ventilation, please do not operate this product in your home, garage, basement, crawling space, shed, or other partially enclosed spaces.
