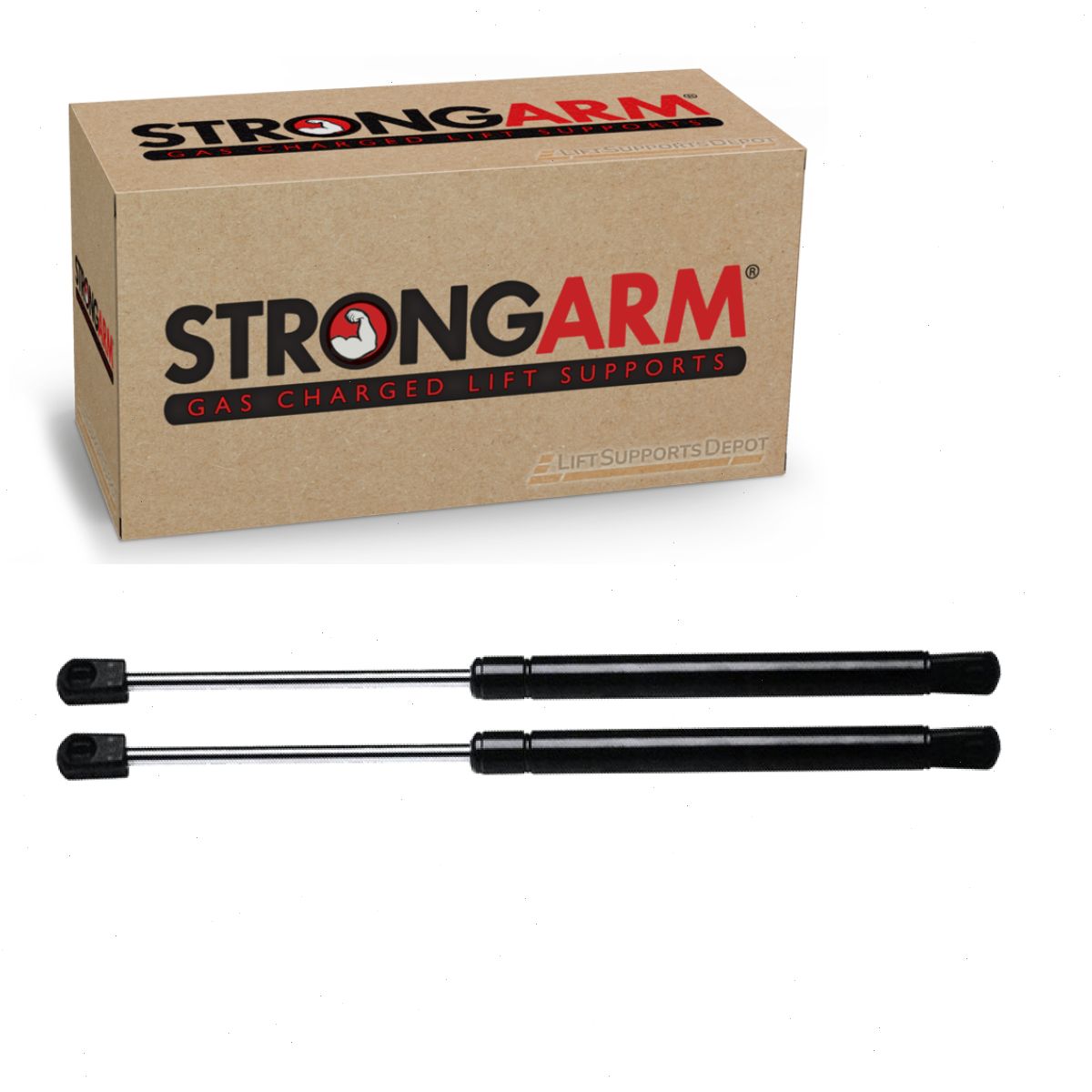

This Listing is for 2 Supports which fit the Following Applications: |
|
 |
Actual Compressed Length 11.21" |
 |
 |
|---|
 |
18.98" Actual Extended Length |
 |
Important Notes about Lift Supports
Each support is tested to perform as well as the original units and in many cases, to exceed the manufacturer's specification.
Please ensure you replace all the supports in the compartment at the same time to ensure proper performance.
Lift supports lose pressure over time, even sitting on shelves in most auto parts stores and many of the inventory liquidators on eBay. Our business is lift supports, and we sell newly produced units, keeping our inventory fresh and rotated. Quite a few vendors on eBay are advertising Stabilus part numbers but with different vendor names. Please take a moment and be sure that what they are offering are genuine Stabilus parts.
We stock several thousand different supports supplied by various quality manufacturers that are not listed here. We can build many units to your specifications if we don't have it. Don't hesitate to contact us with your requirements so we can research and find the best support suited to your needs. Special lengths, different pressures or ends - send us the information. Have an existing support with part numbers on it? Send us all the part numbers that you can find.
Installation Tips
"Shaft down" is the preferred orientation for mounting a Lift Support. An optimum design would permit the support to be oriented shaft down through its entire actuation. If this is not possible, then try to install it so that the shaft is pointing downward in the Closed Position.
There are several reasons for this:
- To achieve the damping or "cushion" at the end of the Lift Supports stroke, the piston assembly inside the Lift Support must travel through oil at the end of the stroke. "Shaft down" orientation ensures that the oil is in the proper location for damping to occur.
- "Shaft down" orientation ensures that the shaft and sealing components are lubricated with every stroke of the Lift Support. This reduces seal wear and helps to inhibit corrosion.
- Depending on the application, "shaft down" orientation may reduce the rate of gas permeation through the seal, which increases the usable life of the Lift Support.
Some reasons not to change the support orientation:
- Vehicles with power openers must be installed in the same direction as they came from the factory. Sensors on the door are adjusted to work in the way they were programmed. Installing in the opposite direction can cause them not to work properly.
- Some models of vehicles do not allow space for the cylinder to be reversed, and this will cause a binding when the door or window closes. An example of this is the Ford Excursion Rear Window (or liftgate)
Please remember that the more often a cylinder is used, the longer it will last. Sitting dormant for any period allows the shaft to bind to the seal and eventually tear. If the application remains dormant, open the lift supports very slowly the first time they are used.
Contact Lift Supports Depot
- If you have any questions, don't hesitate to get in touch with us.
- One of our outstanding customer service representatives from our US-based service centers will respond to your questions or feedback.
Shipping
- Your order will be processed and shipped within one business day.
- We strive to ship every order promptly. We will email you a tracking number when your order ships.
- Once the tracking number is generated, please allow 24-48 hours for tracking movement to appear.
- Our smaller items are shipped via USPS First Class or DHL, while larger, heavier items are shipped via FedEx Ground or UPS. Some items offer faster shipping for a small fee. Please see the Shipping and Payments eBay tab for more details on shipping rates and delivery times.
- Sorry, no local pickups are available.
- We participate in the eBay global shipping program. Please see the Shipping and payments eBay tab for details on the countries we ship to outside of the U.S.
Customer Satisfaction
- Lift Supports Depot stands for value, selection, and quality. Our goal is to provide a 5-star shopping experience.
- We give all our customers positive eBay feedback. Please contact us if you have a problem before leaving negative feedback.
Returns
- If you would like to return your new, unopened, and uninstalled part:
- From within My eBay, click Purchases.
- Find the item you ordered.
- Below the Leave Feedback button, click [More Actions] > [Return This Item].
- Select a reason. The most common reason is Doesn't Fit.
- Add details like I tried installing this part, but it didn't fit.
- Click [Request a Return].
- Returned parts will be inspected, and a refund will be given within 5 business days if the part is new, unopened, and uninstalled. Original shipping costs and a restocking fee may be deducted from your refund.
- If the item has been opened, installed, or used, we cannot accept a return due to safety concerns.
About Us
Lift Supports Depot is the best source for lift supports, struts, gas springs, and accessories. We pride ourselves on our vast inventory of lift supports - stocking more than 6,000 parts to ensure you get what you need when you need it. Our parts cover cars, trucks, travel trailers, campers, toolboxes, and other lift support applications.
We understand that finding the right replacement parts can be a headache, even for industry professionals. We have set up our business to make it easy for anyone — experienced or not — to find parts that fit properly and last for years.
As a family-owned auto parts retailer, we feature a U.S.-based customer service team, a 100% fitment guarantee, and warehouses nationwide to ensure you get your parts fast. Over 99% of orders ship within one business day! Give us a try today, and reach out for any help you need finding the right parts for your ride.
- Free, Fast Shipping*
- 100% Fitment Guarantee**
- 1-Year Limited Warranty on all Lift Supports Depot-branded parts
- US-Based Customer Service Team
- Always Genuine OEM-Replacement Parts
- All Parts Ship from the United States within 1 Business Day
- 5-Star Rated on Google, Sitejabber, and A+ Rated by the BBB
* Free shipping applies to lift support orders delivered to the lower 48 states. Certain items may require additional surcharges. ** We guarantee all parts sold under the Lift Supports Depot brand will fit the vehicles they are advertised to fit.
