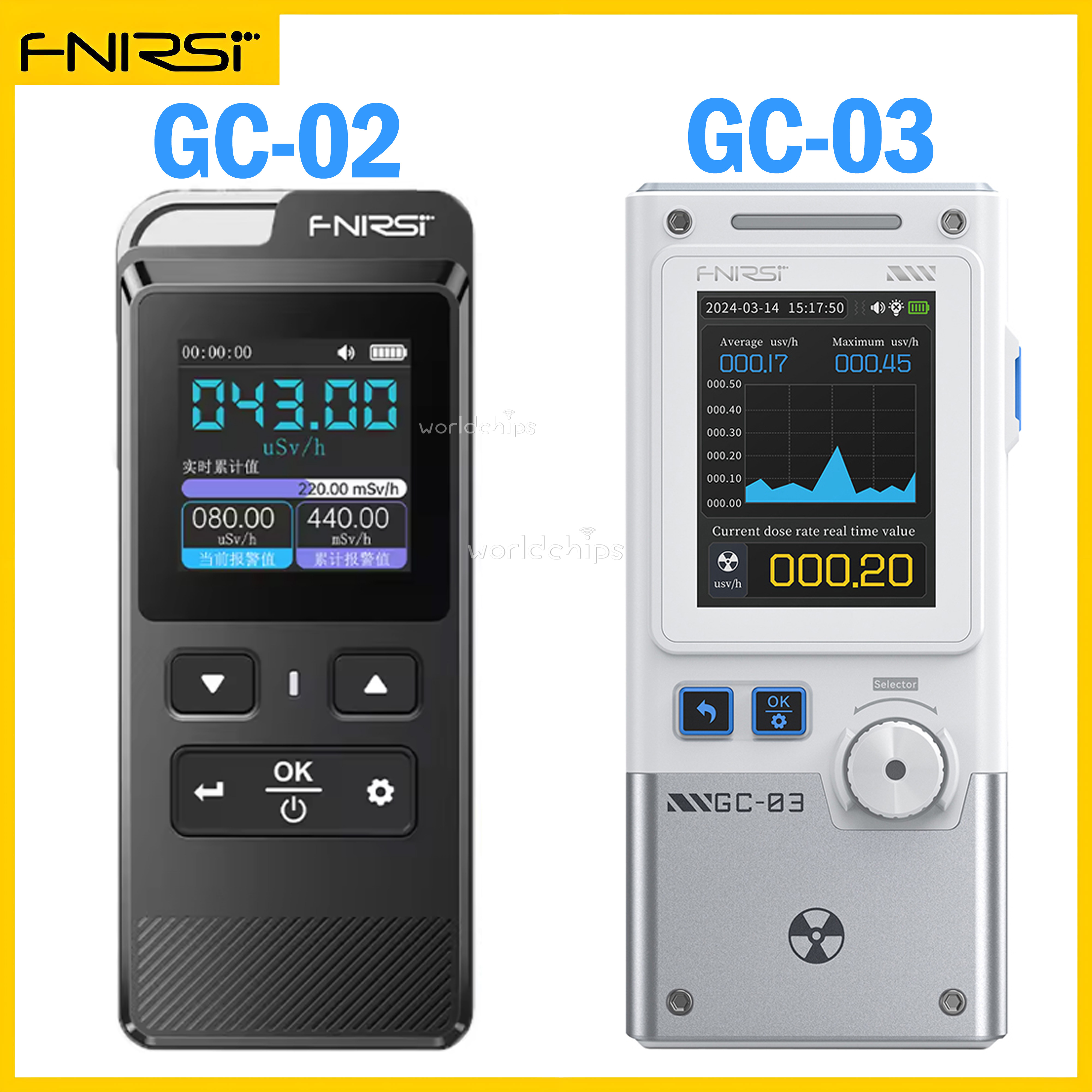

Model: GC-03
Description

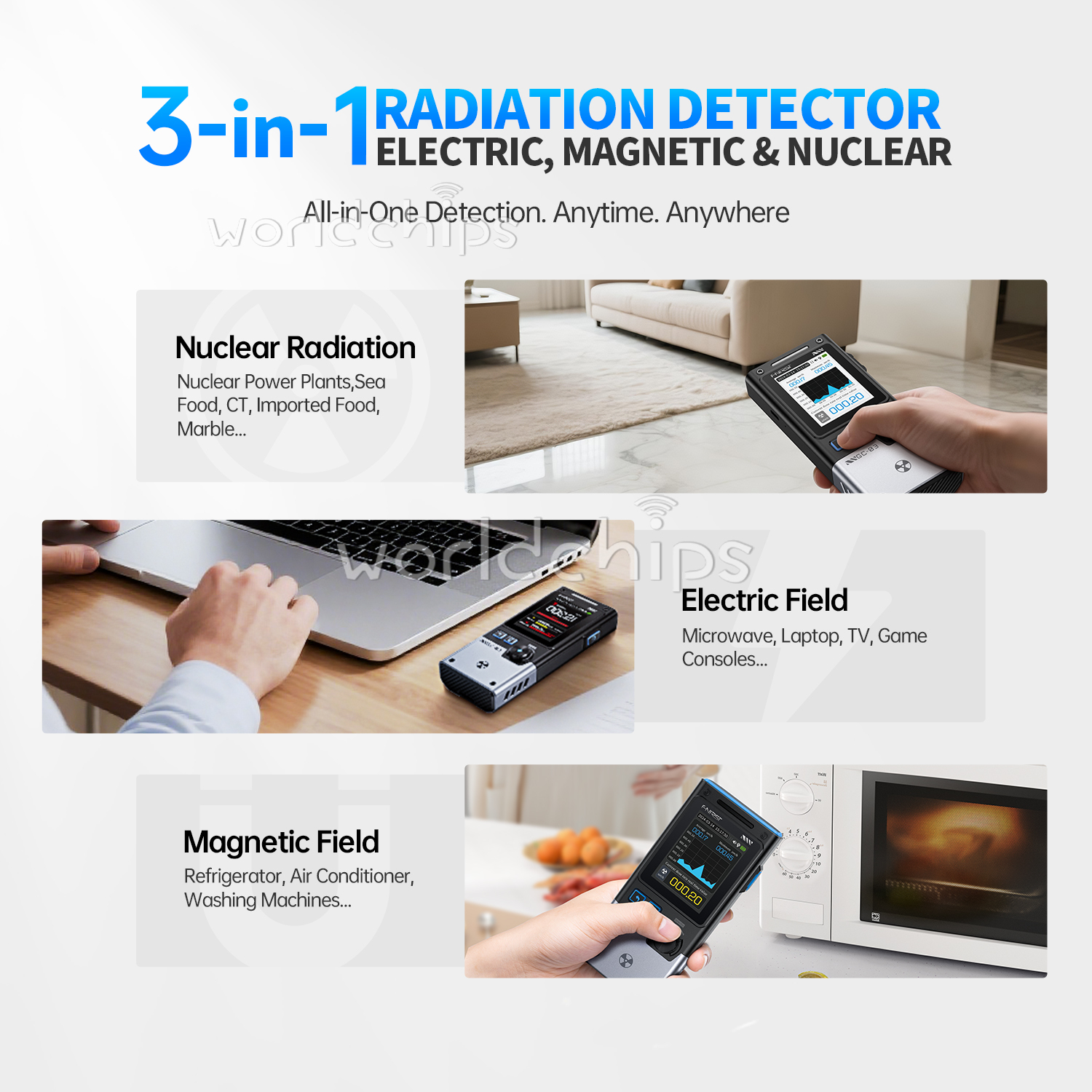

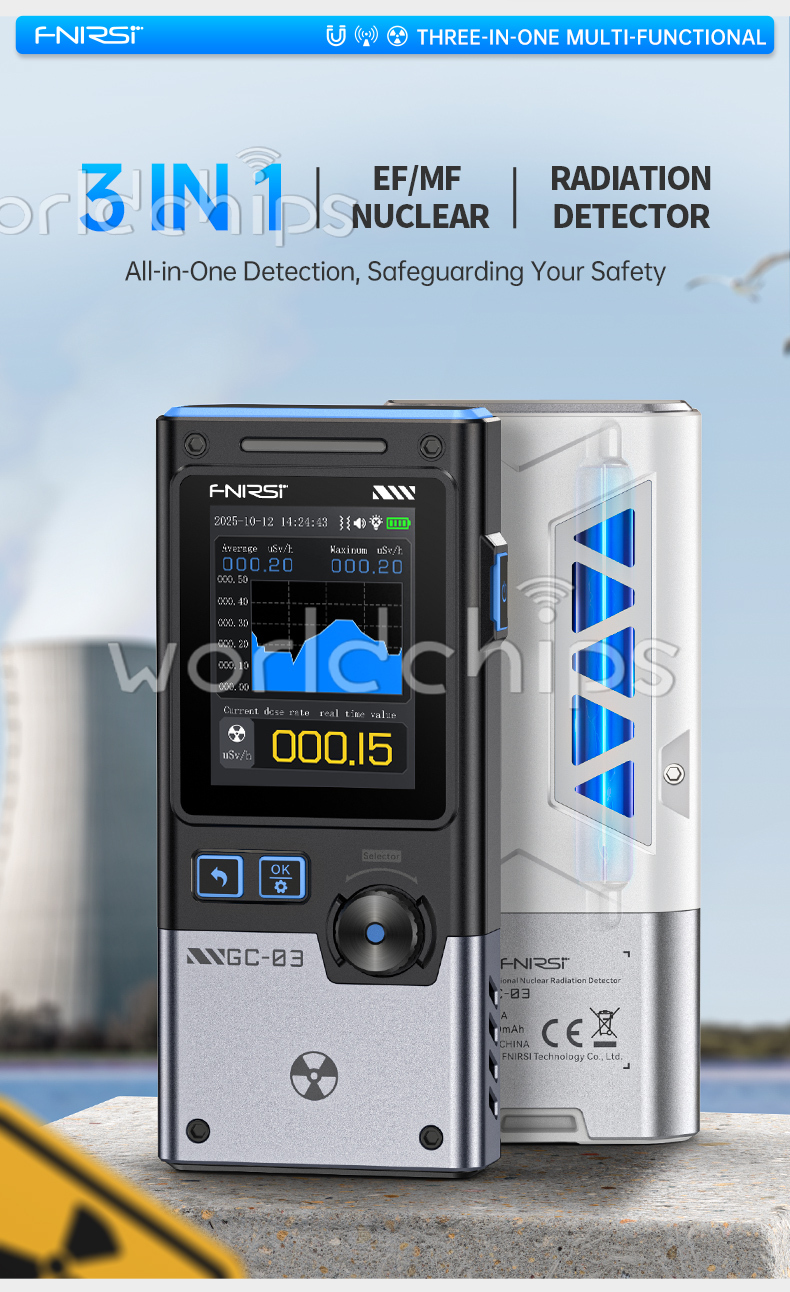

GC-03 is a multifunctional radiation detector, a professional instrument for measuring nuclear radiation, mainly used in various occasions such as home, office, outdoor environment, etc. It uses a 2.4-inch high-definition color screen and supports real-time monitoring of nuclear radiation, electric field strength, and magnetic field strength.
GC-03 is a multifunctional radiation detector, a professional instrument for measuring nuclear radiation, mainly used in various occasions such as home, office, outdoor environment, etc. It uses a 2.4-inch high-definition color screen and supports real-time monitoring of nuclear radiation, electric field strength, and magnetic field strength.
Key Features:
1. Real-time measurement and alarm function:
The device continuously monitors and displays the measured values of radiation, electric field strength and magnetic field strength and their corresponding units. And evaluates the danger level according to the alarm threshold set for each measured value.
1. Real-time measurement and alarm function:
The device continuously monitors and displays the measured values of radiation, electric field strength and magnetic field strength and their corresponding units. And evaluates the danger level according to the alarm threshold set for each measured value.
2.Flexible radiation unit settings
The device allows users to select the radiation measurement unit. Available units include μs v/h, uGy/h, mR/h, CPS, CPM, etc.
This function ensures that users can choose the most appropriate unit based on their specific measurement needs and industry standards.
The device allows users to select the radiation measurement unit. Available units include μs v/h, uGy/h, mR/h, CPS, CPM, etc.
This function ensures that users can choose the most appropriate unit based on their specific measurement needs and industry standards.

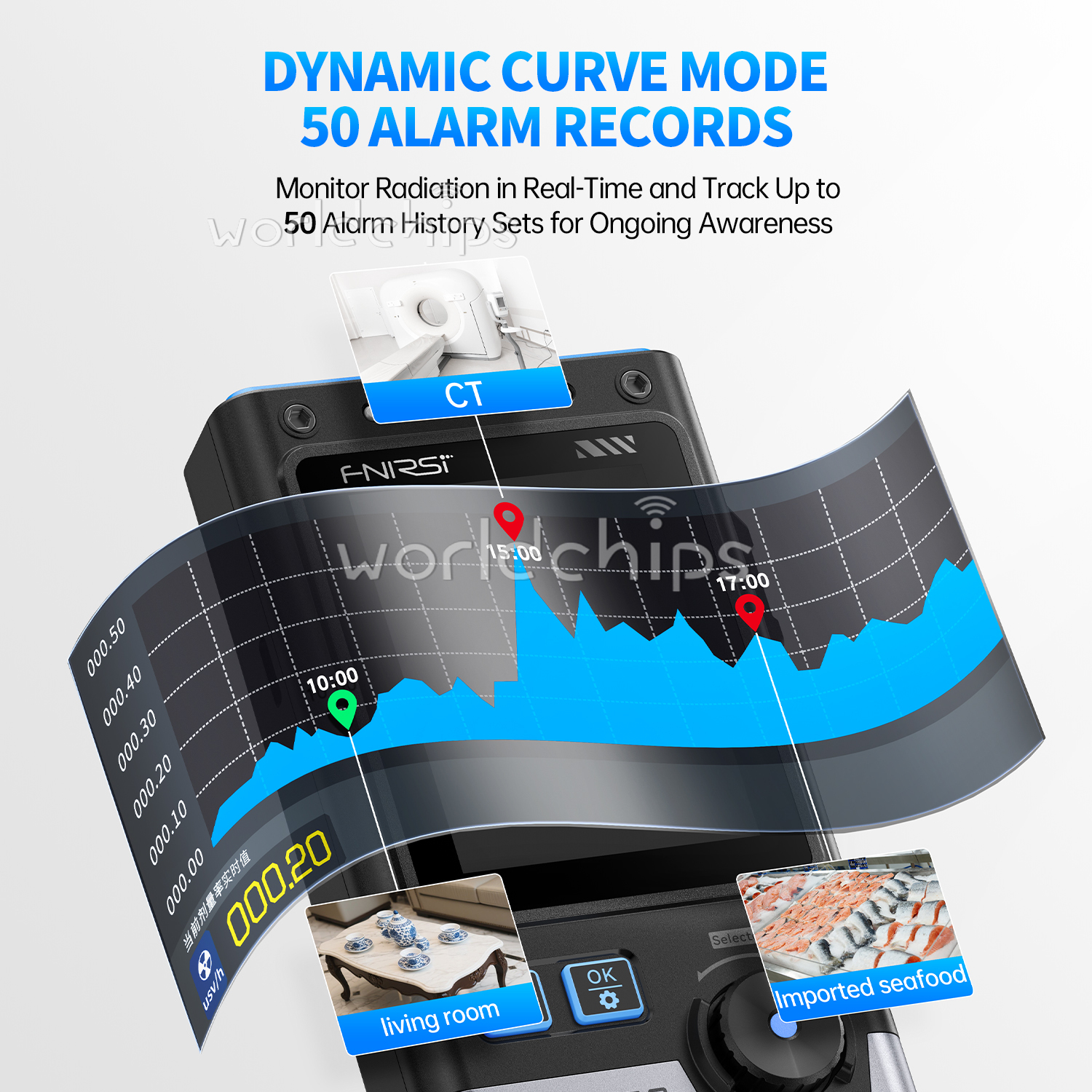

3. Alarm record display function:
The alarm record page displays the alarm records in sequence, with the serial number increasing from the oldest to the latest. Each record contains the type of data that triggered the alarm (for example, radiation, electric field strength, magnetic field strength) and the specific date and time when the alarm was triggered.
The alarm record page displays the alarm records in sequence, with the serial number increasing from the oldest to the latest. Each record contains the type of data that triggered the alarm (for example, radiation, electric field strength, magnetic field strength) and the specific date and time when the alarm was triggered.

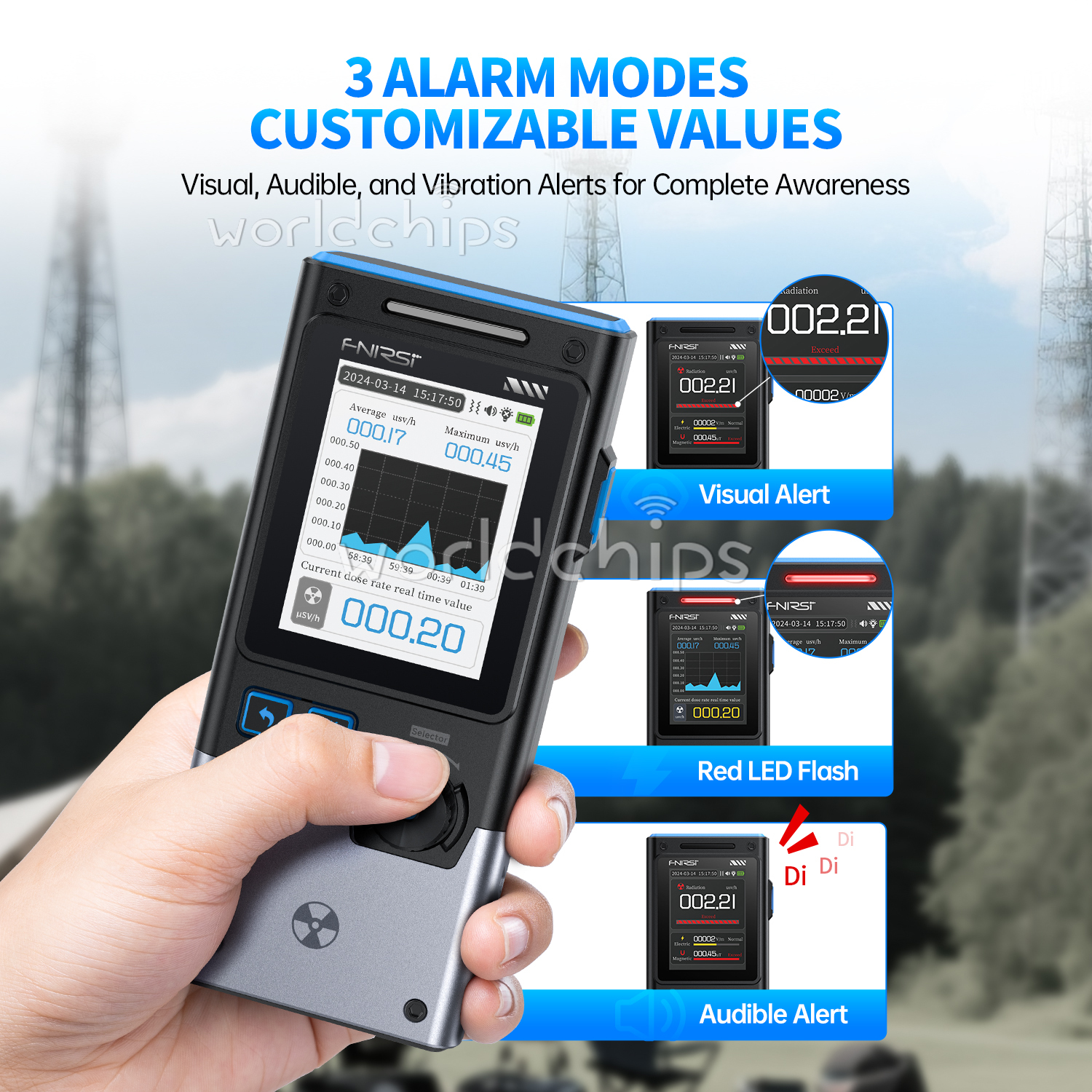

4. Various alarm modes
This area is highlighted, indicating that the alarm mode setting is entered and the corresponding setting content is displayed. There are three alarm modes: indicator light, vibration, and volume alarm. The three can be matched with each other and selected according to the user's wishes.
This area is highlighted, indicating that the alarm mode setting is entered and the corresponding setting content is displayed. There are three alarm modes: indicator light, vibration, and volume alarm. The three can be matched with each other and selected according to the user's wishes.
Basic Parameters
1.Screen material: 2.4-inch color screen
2.Backlight: Brightness Adjustable
3.Power supply: TYPE-C (5V/1A)
4.Battery: 1500mAh
5.Languages: Chinese, English
6.Product size: ≈138×63×32mm
7.Net weight: ≈141g
1.Screen material: 2.4-inch color screen
2.Backlight: Brightness Adjustable
3.Power supply: TYPE-C (5V/1A)
4.Battery: 1500mAh
5.Languages: Chinese, English
6.Product size: ≈138×63×32mm
7.Net weight: ≈141g
Measurement Parameters
1.Nuclear Radiation
Range: 0.01usv/h-999.99usv/h
Units: usv/h
Accuracy: 0.01usv/h
2.Electric Field
Range: 1V/m - 1999V/m
Units: V/m
Accuracy: 1V/m
3.Magnetic Field
Range: 0.01μT-99.99μT
Units: μT
Accuracy: 0.01μT
4.Radiation Power: 0.2-1000mW/m²
1.Nuclear Radiation
Range: 0.01usv/h-999.99usv/h
Units: usv/h
Accuracy: 0.01usv/h
2.Electric Field
Range: 1V/m - 1999V/m
Units: V/m
Accuracy: 1V/m
3.Magnetic Field
Range: 0.01μT-99.99μT
Units: μT
Accuracy: 0.01μT
4.Radiation Power: 0.2-1000mW/m²

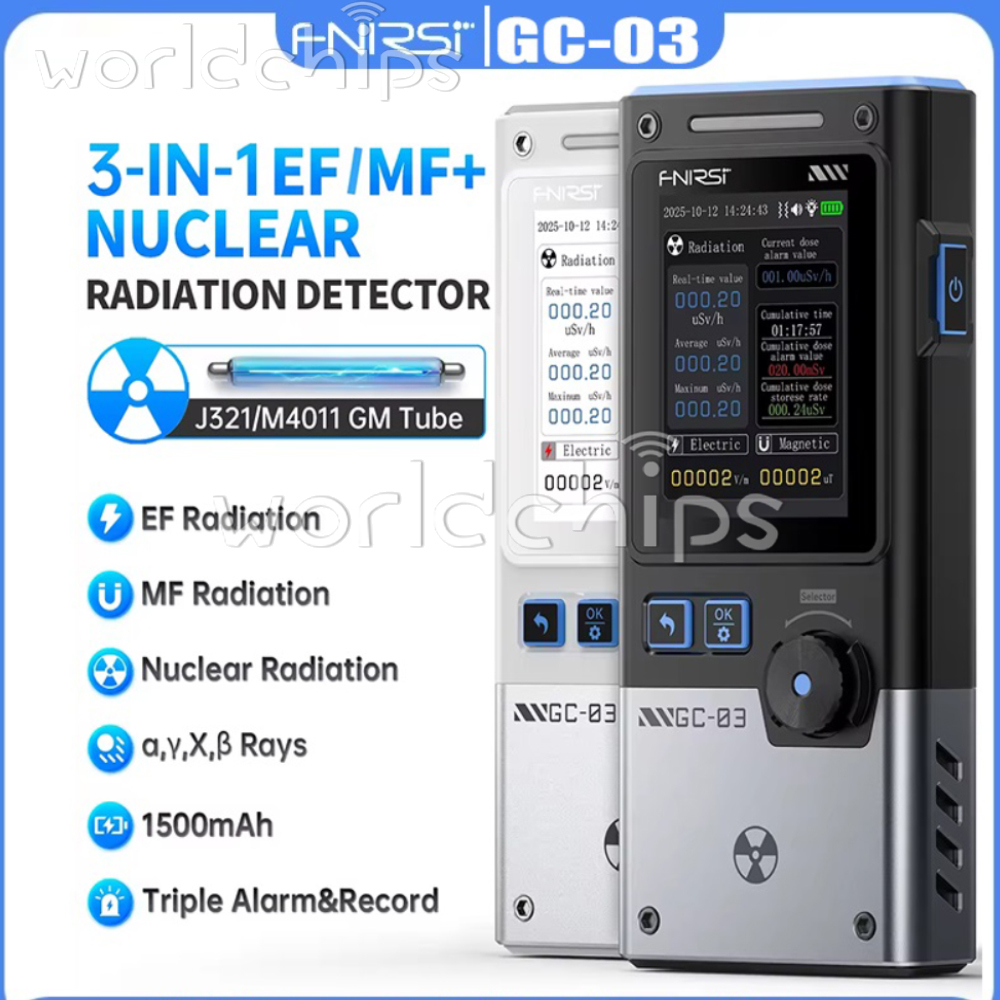

Nuclear Radiation Detection
1.Detection Radiation Type: Ionizing radiation (gamma rays, etc.)

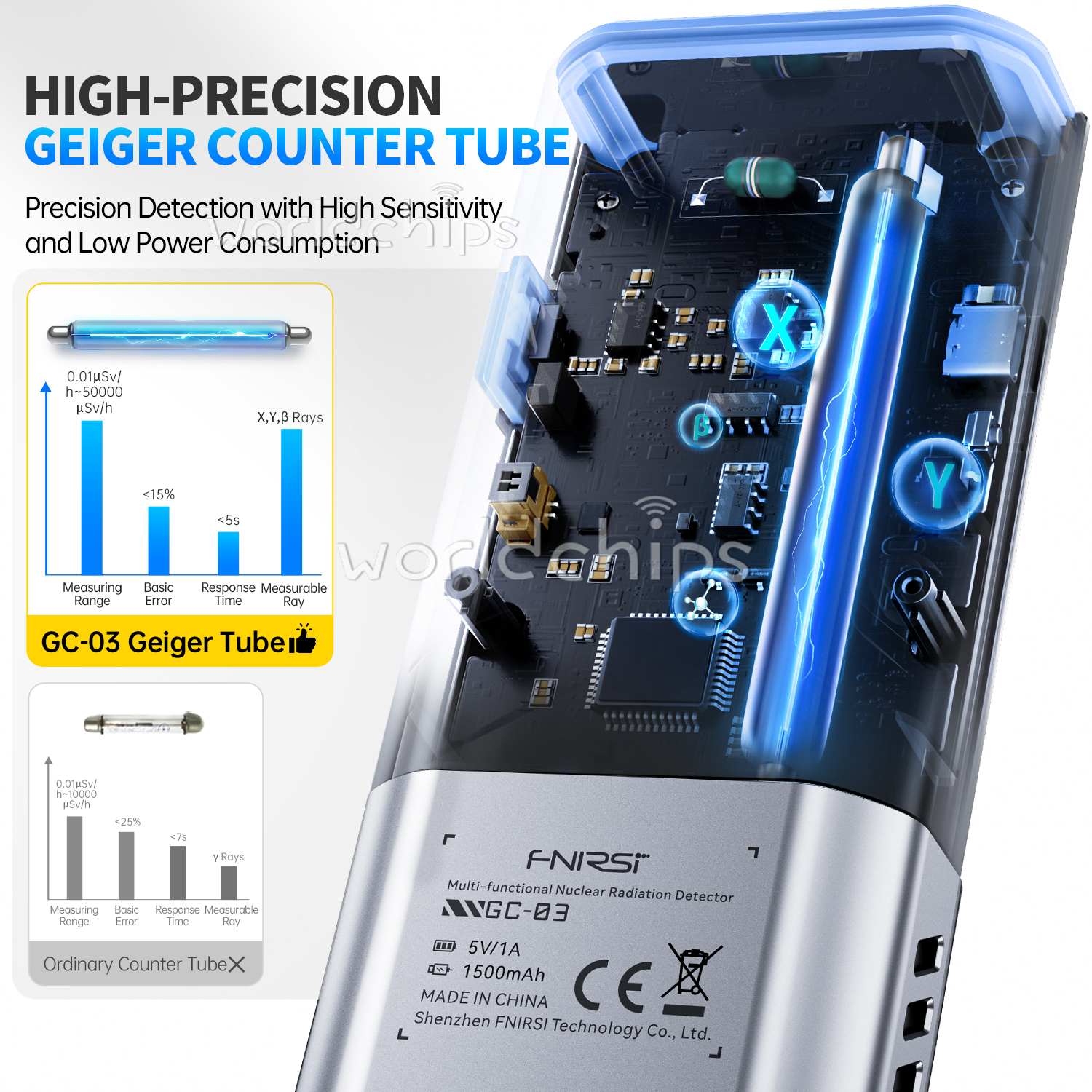

2.Detector: Energy compensation GM tube (Geiger counter tube)
3.Dose Current Rate: 0.00-10000uSv/h (10mSv/h)
4.Cumulative Dose Equivalent: 0.00uSv-500.0mSv
5.Energy Range: 48keV-1.5MeV ≤ ±30% (for 137Cs-)
6.Sensitivity: 80CPM/uSv
7.Dose Unit: uSv/h, uGy/h, mR/h, cps, cpm
8.Alarm Mode: Light, vibration, sound
1.Detection Radiation Type: Ionizing radiation (gamma rays, etc.)
2.Detector: Energy compensation GM tube (Geiger counter tube)
3.Dose Current Rate: 0.00-10000uSv/h (10mSv/h)
4.Cumulative Dose Equivalent: 0.00uSv-500.0mSv
5.Energy Range: 48keV-1.5MeV ≤ ±30% (for 137Cs-)
6.Sensitivity: 80CPM/uSv
7.Dose Unit: uSv/h, uGy/h, mR/h, cps, cpm
8.Alarm Mode: Light, vibration, sound

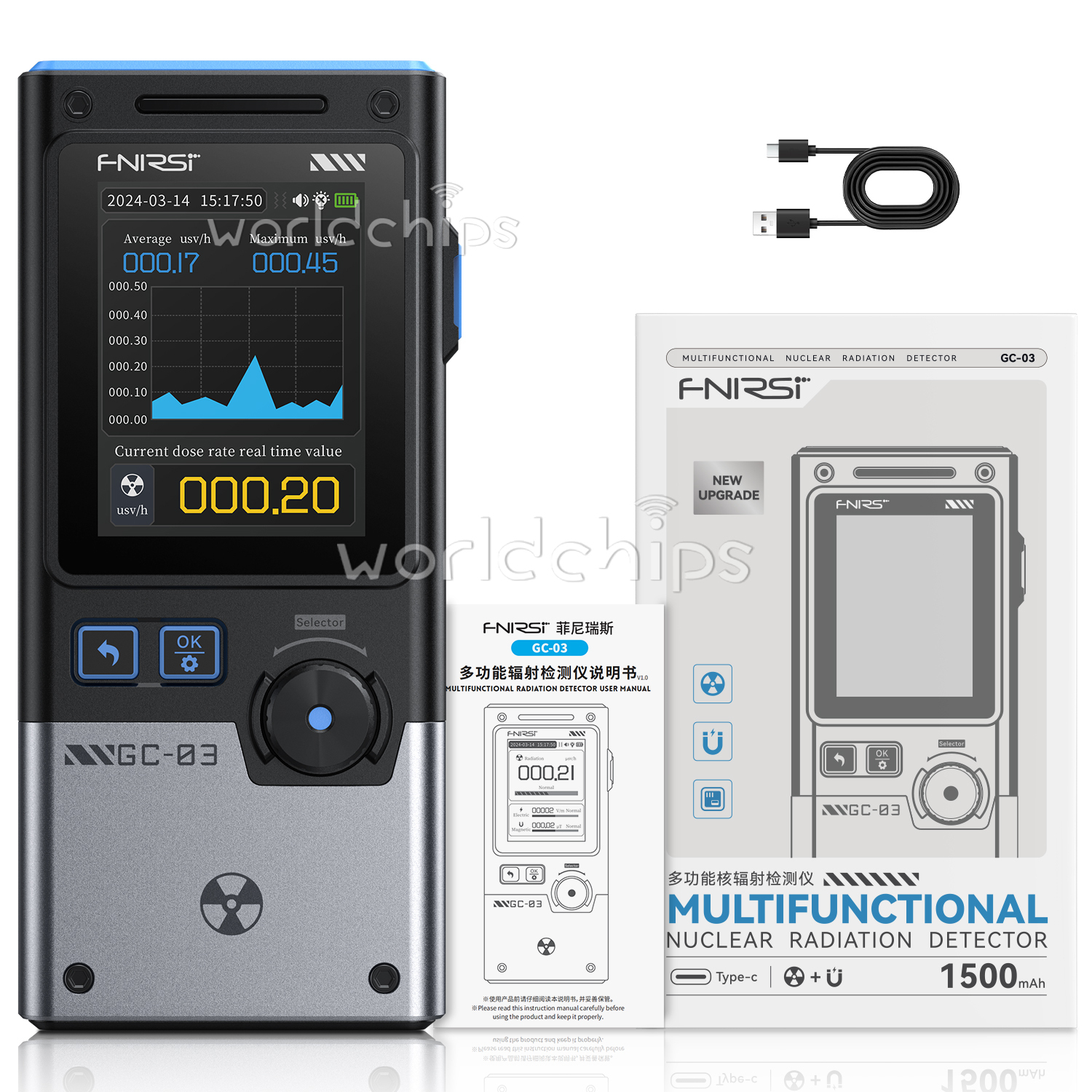

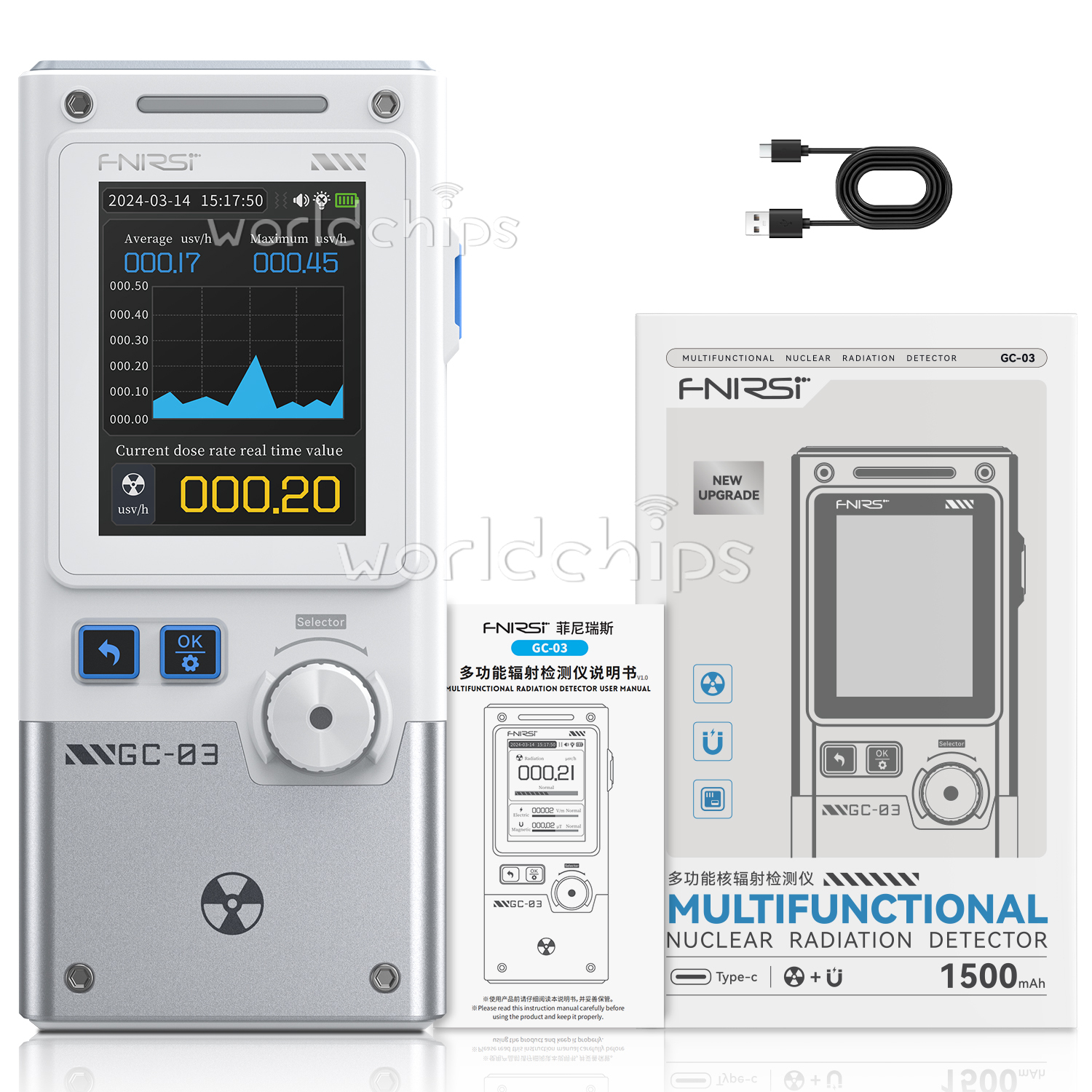

Package list
GC-03 Host*1
User Manual *1
Data Cable*1
Model: GC-02
User Manual *1
Data Cable*1
Model: GC-02

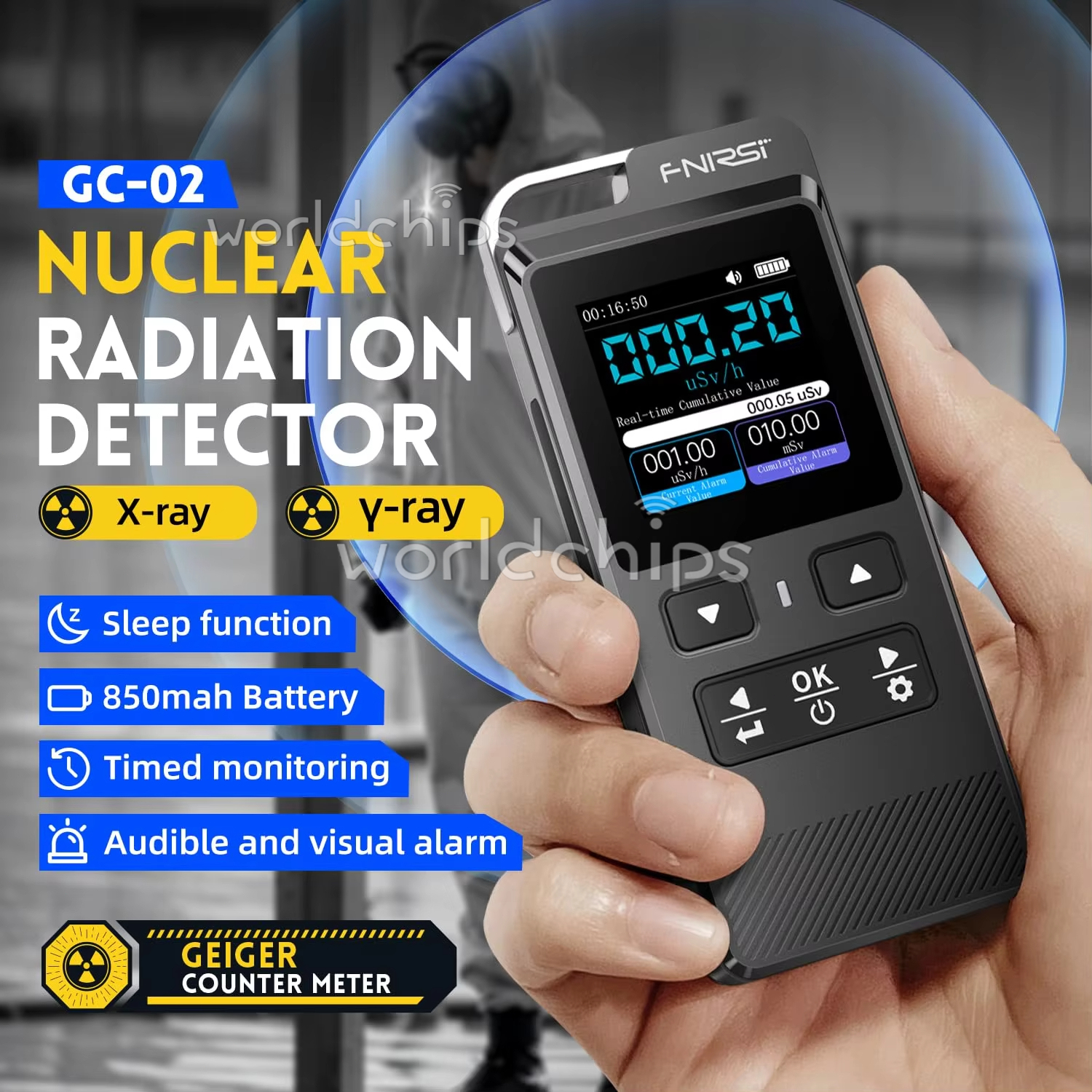

FNIRSI GC-02 Nuclear Radiation Detector Professional Geiger Miller Counter Tube for Radiation Testing
Description:
- The GC-02 is a nuclear radiation detector, featuring exquisite exterior design, compact size, and strong portability.
- Using high-precision Geiger Miller counters to accurately detect ionizing radiation (γ The intensity of radiation, X-rays, etc.).
- Equipped with a 1.5-inch IPS high-definition LCD screen, the interface is clean and tidy, and the data is clear at a glance. You can view real-time values, average values, maximum values, and cumulative values.
- It can also set alarm values, customize sleep and shutdown times, and support switching between 8 languages. Added timed monitoring mode and history view, capable of recording 10 sets of data, save without losing. Built in 850mA rechargeable lithium battery, with battery endurance of up to 6 hours.
- GC-02 is the ideal tool for detecting nuclear radiation anytime, anywhere, making you feel at ease, accurate, and convenient.
Package Included:
- 1 x Detector
- 1 x String
- 1 x Charging Cable
- 1 x User Manual
- 1 x Packaging Box
Description:
- The GC-02 is a nuclear radiation detector, featuring exquisite exterior design, compact size, and strong portability.
- Using high-precision Geiger Miller counters to accurately detect ionizing radiation (γ The intensity of radiation, X-rays, etc.).
- Equipped with a 1.5-inch IPS high-definition LCD screen, the interface is clean and tidy, and the data is clear at a glance. You can view real-time values, average values, maximum values, and cumulative values.
- It can also set alarm values, customize sleep and shutdown times, and support switching between 8 languages. Added timed monitoring mode and history view, capable of recording 10 sets of data, save without losing. Built in 850mA rechargeable lithium battery, with battery endurance of up to 6 hours.
- GC-02 is the ideal tool for detecting nuclear radiation anytime, anywhere, making you feel at ease, accurate, and convenient.
Package Included:
- 1 x Detector
- 1 x String
- 1 x Charging Cable
- 1 x User Manual
- 1 x Packaging Box
-
