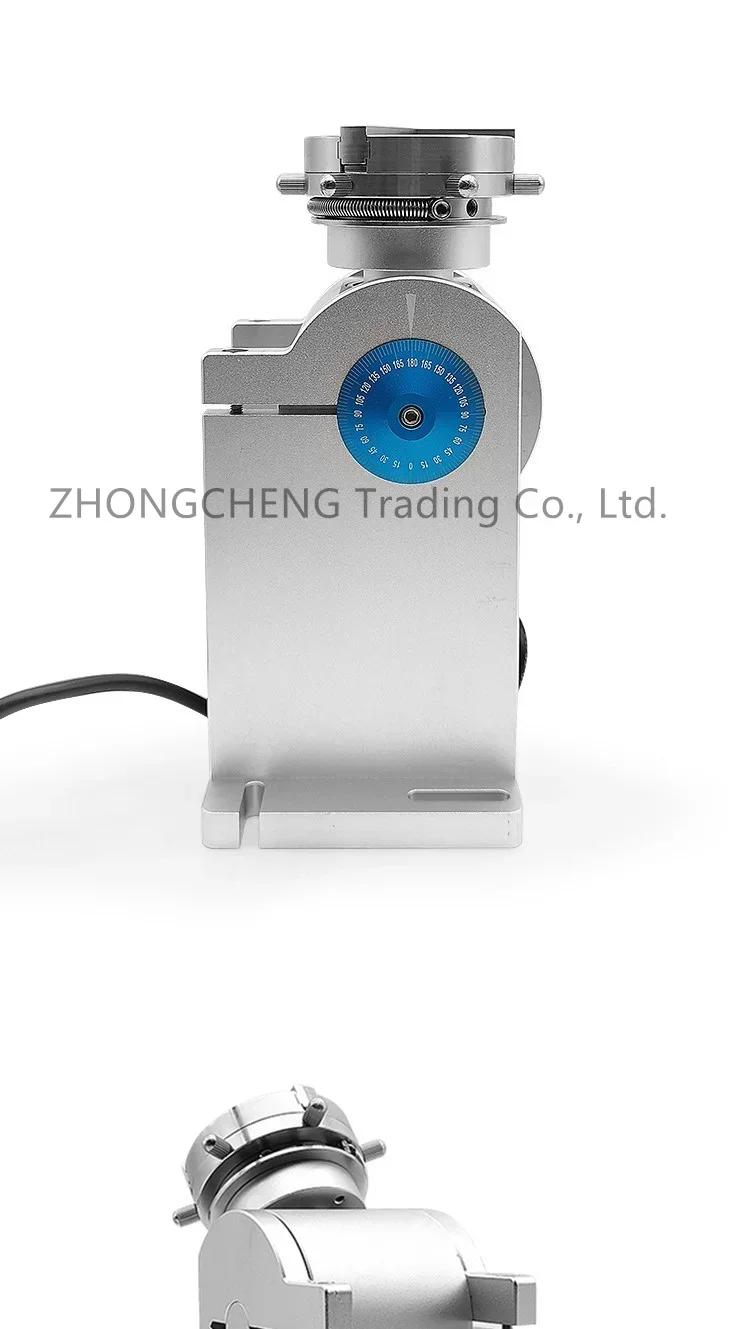

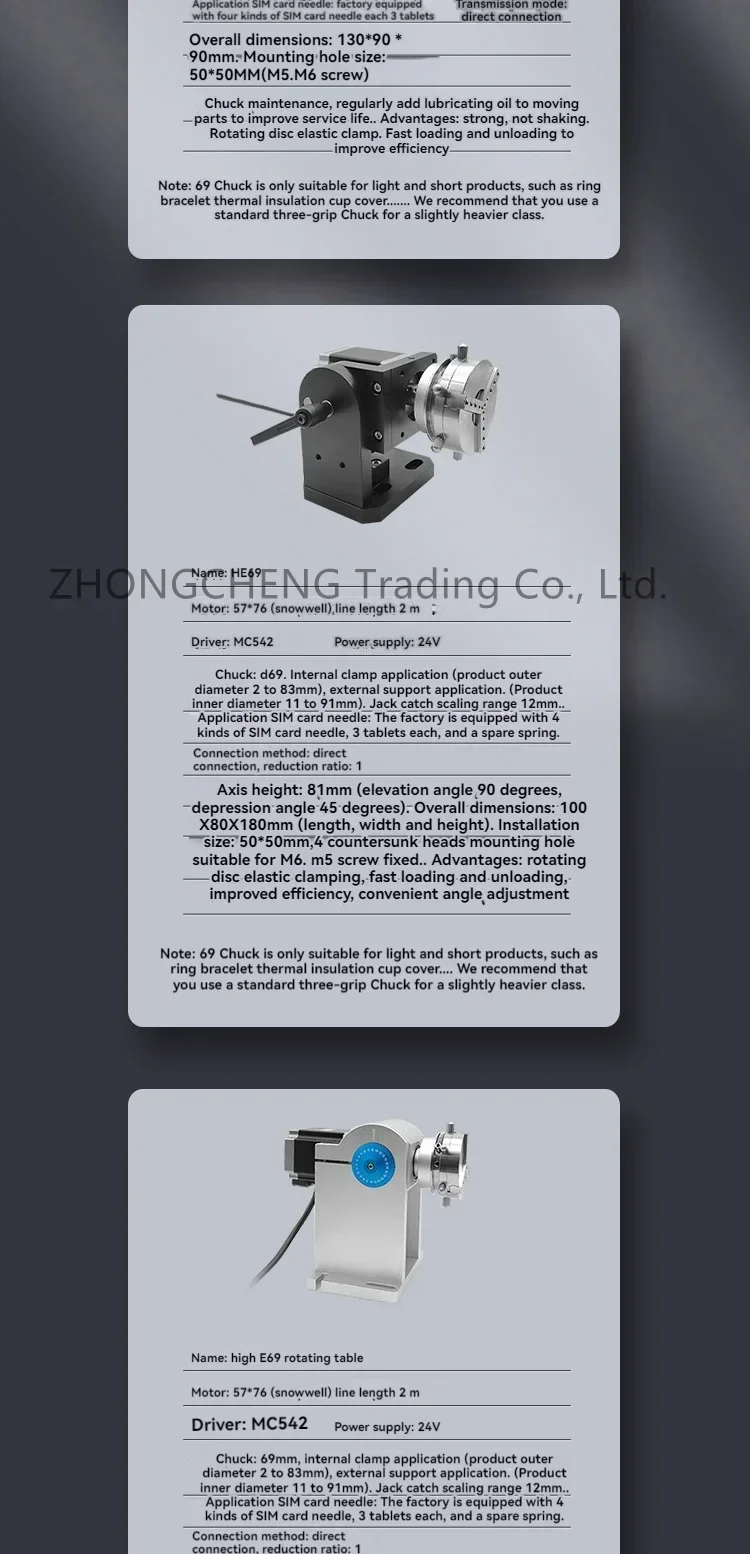

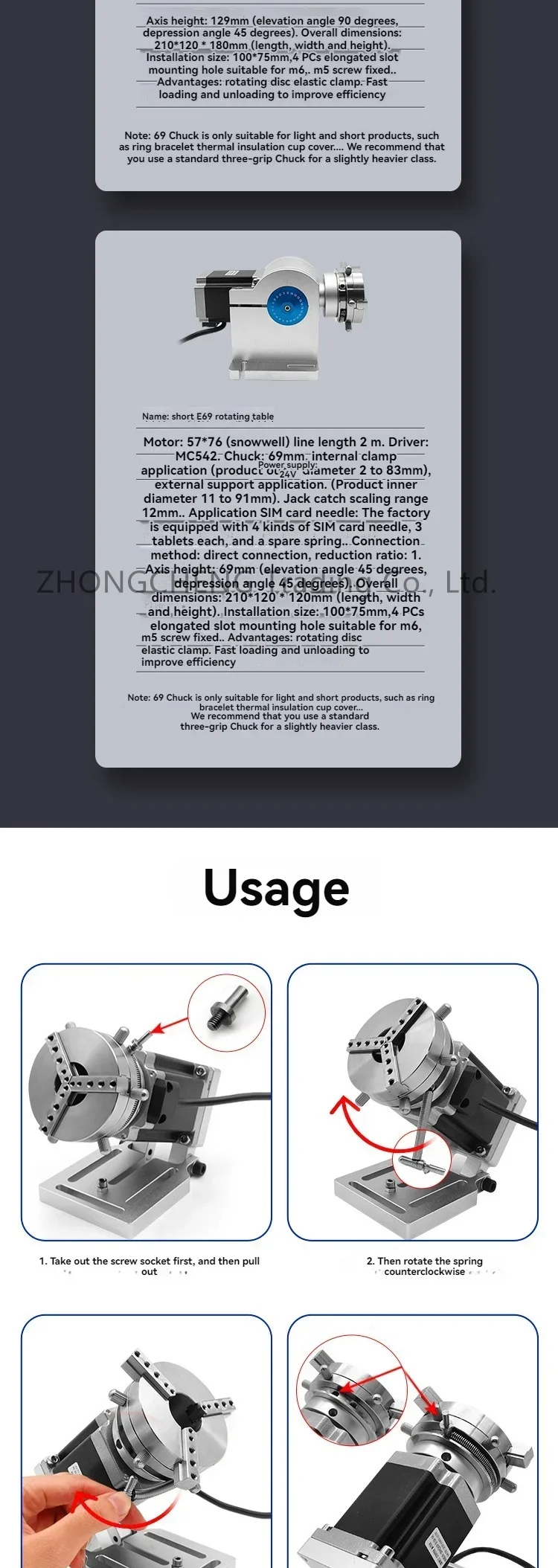

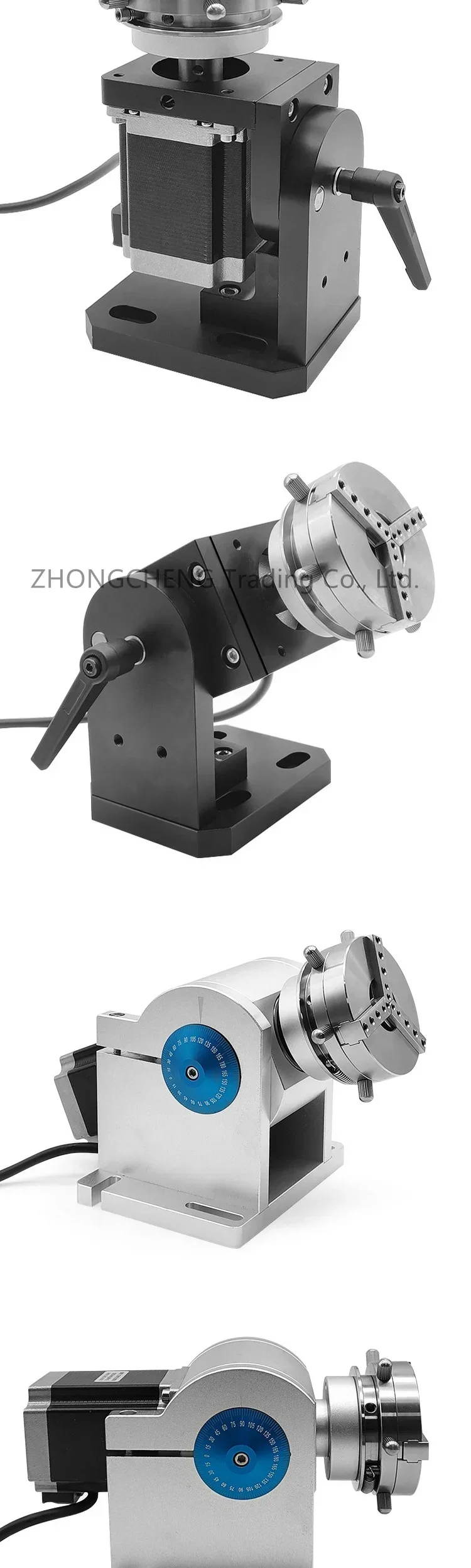

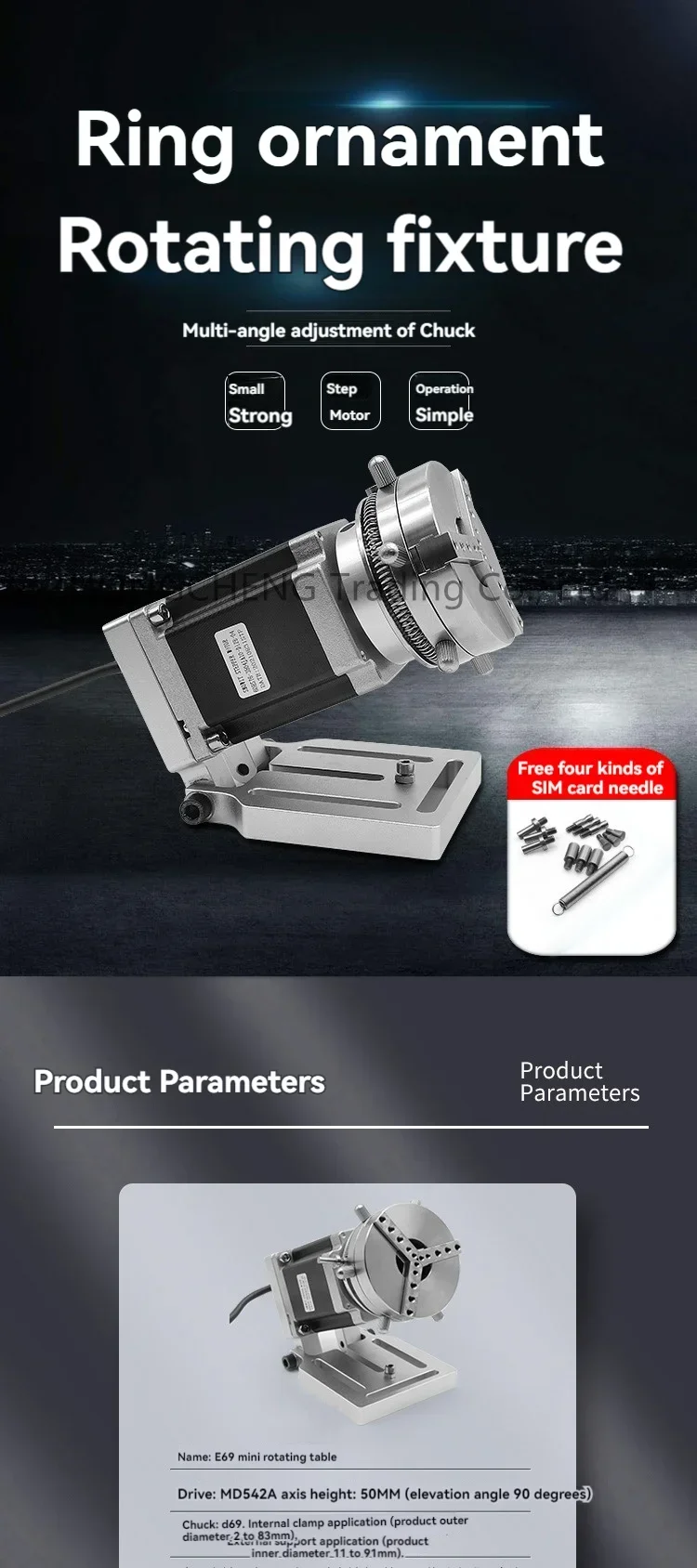

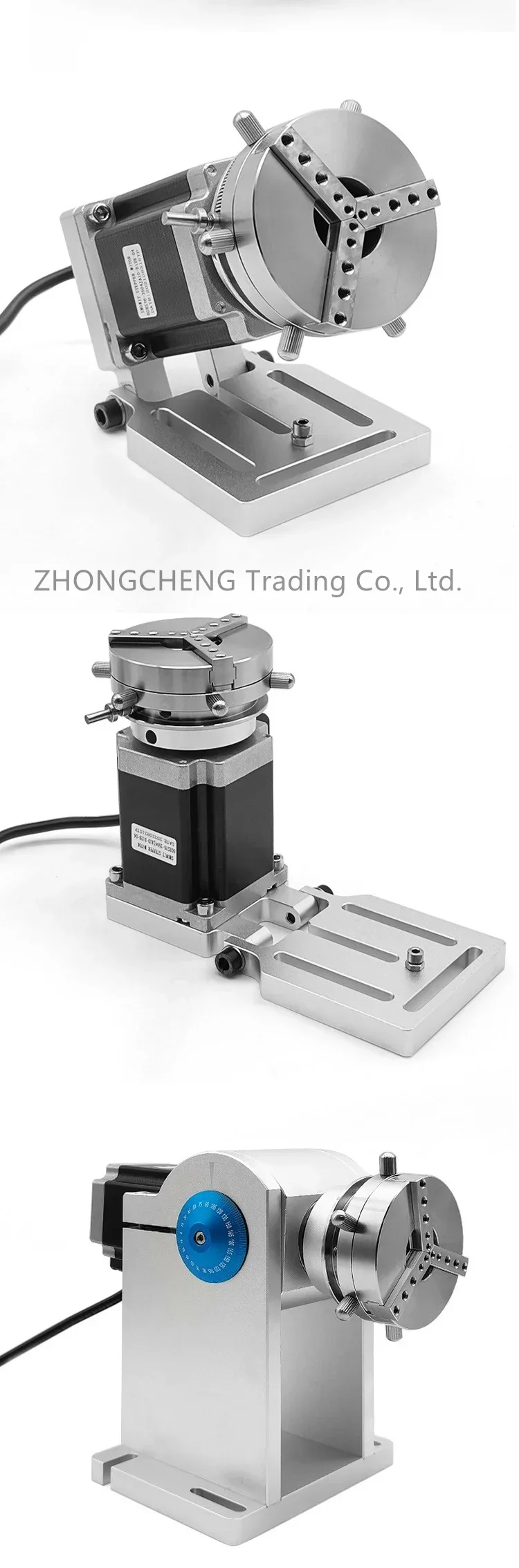

Name: High-end E69 Rotary Table

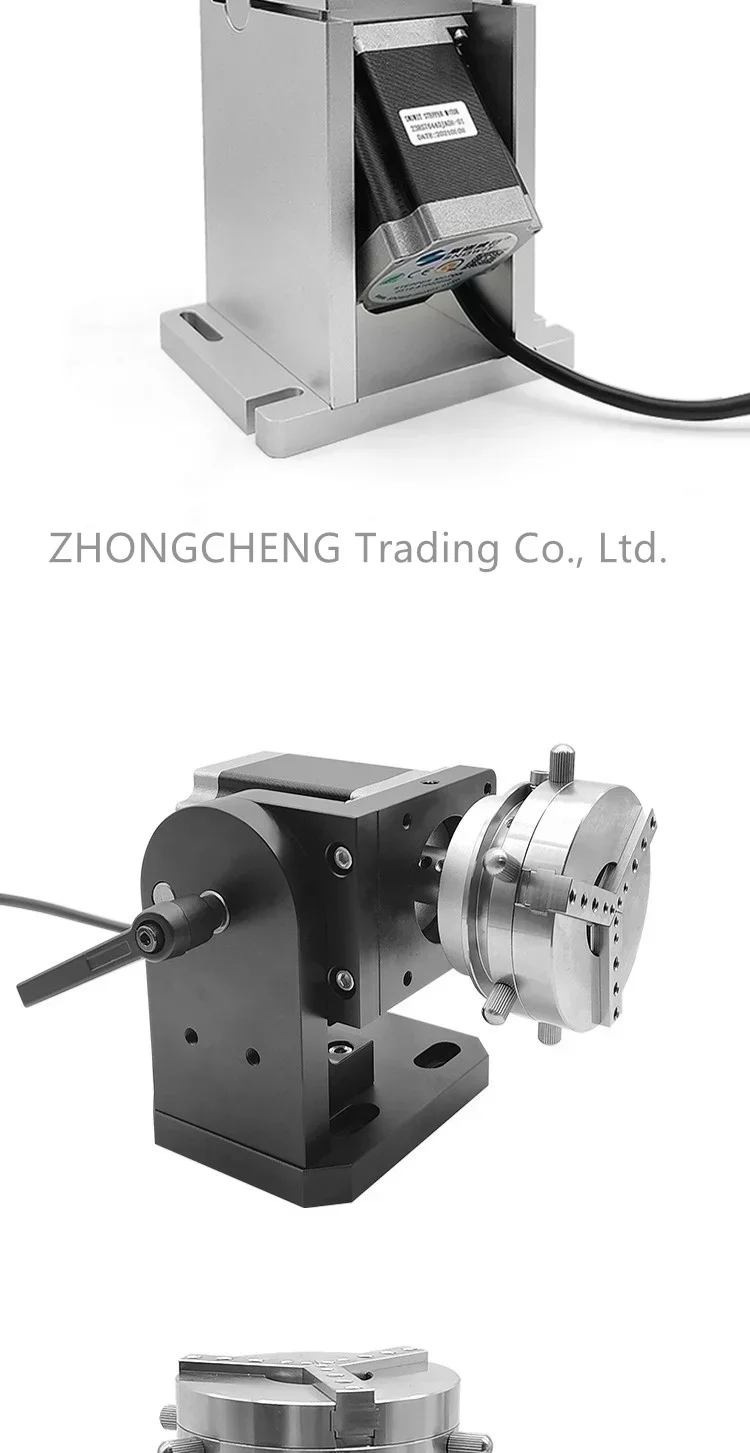

Motor :57*76, wire length 2 meters

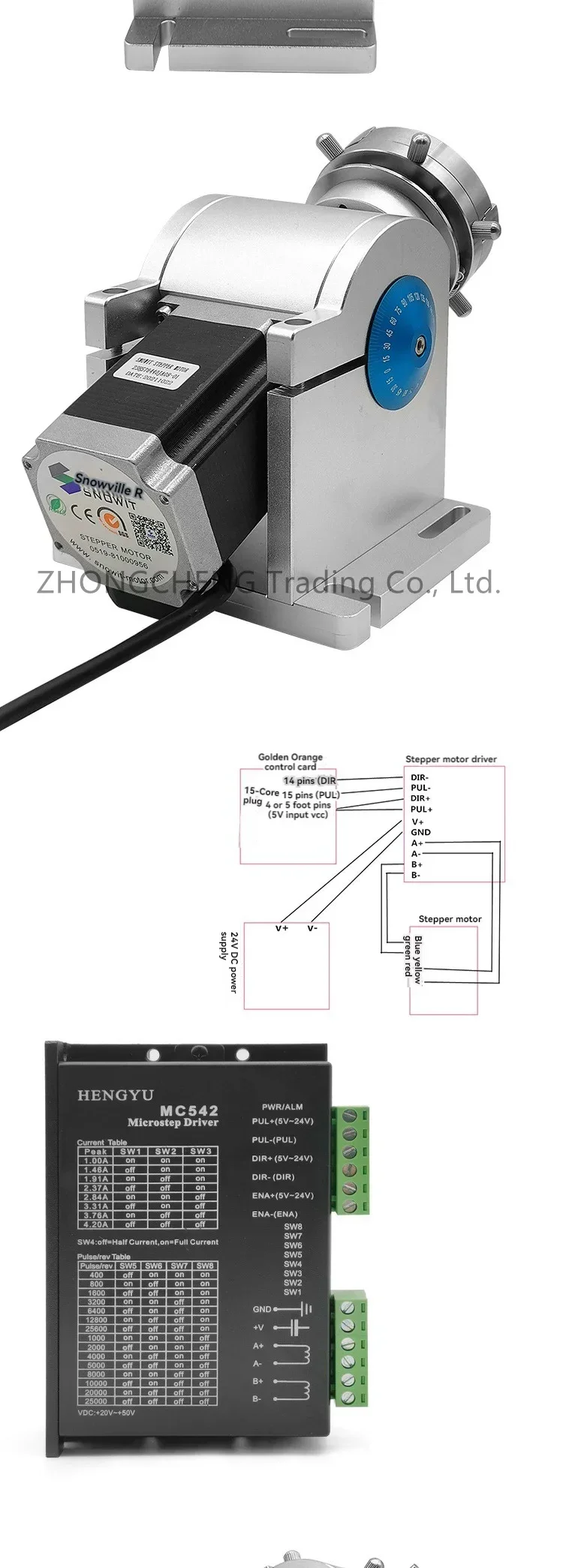

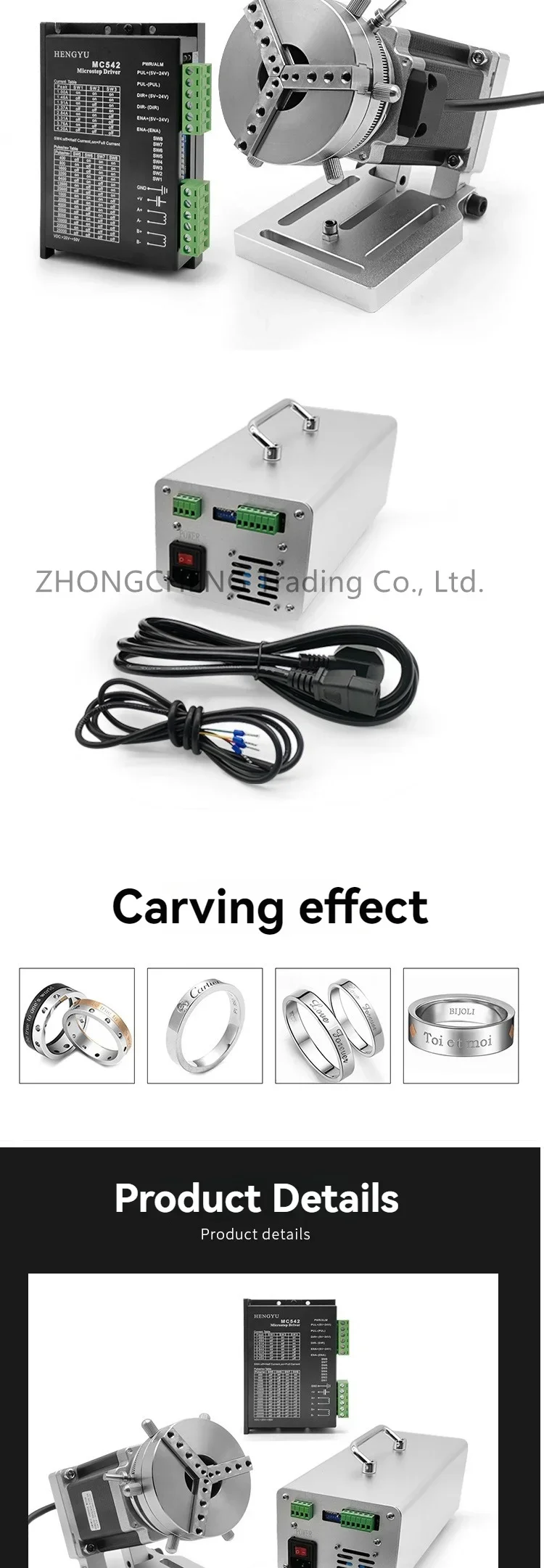

Driver :MC542 Power Supply :24v

Chuck :69mm, inner clamping application (product outer diameter 2 to 83mm), outer support application (product inner diameter 11 to 91mm). The telescopic range of the jaws is 12mm.

Application pin: The factory comes with three pins of each of the four types and one spare spring.

Connection method: Direct connection, reduction ratio :1

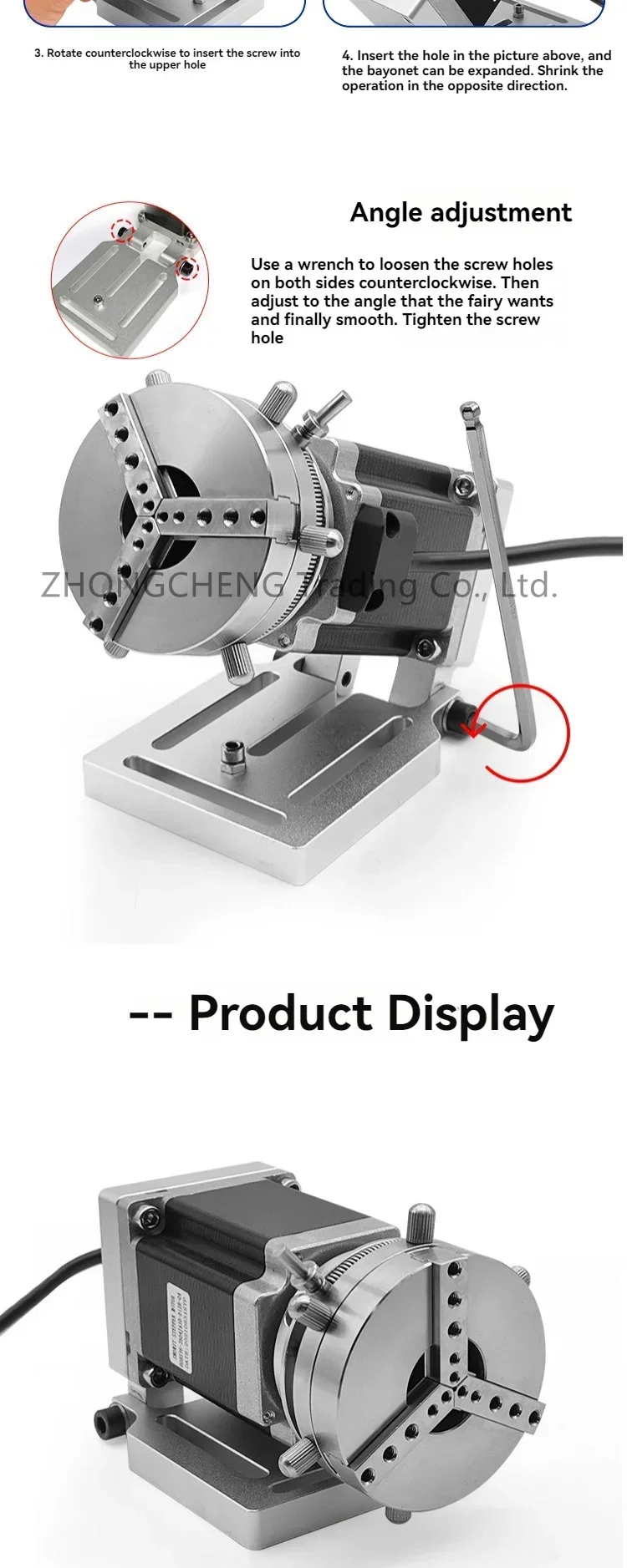

Axis height :129mm(Adjustable elevation Angle 90 degrees and depression Angle 45 degrees)

Overall dimensions :210*120*180mm(length, width, height)

Installation dimensions :100*75mm, with 4 long slot installation holes suitable for m6 and m5 screw fixation.

Advantage: Rotary elastic clamping. Fast loading and unloading, improving efficiency

Weight: 6kg

Note: The 69 chuck is only suitable for light and short products such as rings, bracelets, insulated cups, and LIDS. For slightly heavier items, it is recommended to use standard three-jaw chucks
