Installation Instructions for Automotive Power Pump
1、 Preparation before installation
（1） Tool preparation
Basic tools: socket wrench (including Phillips/open-end wrench), torque wrench, screwdriver (Phillips/Phillips), adjustable wrench, pliers;
Special tools: belt tensioner tool, puller (if old pump pulley needs to be disassembled), sealant (compatible with engine oil/hydraulic oil), oil pipe joint wrench;
Auxiliary tools: oil basin, cloth, gloves, protective goggles, funnel (for adding oil).
（2） Material preparation
Core components: new booster pump (to be fully matched with the vehicle model and engine model), booster pump belt (recommended to be replaced synchronously, check for model compatibility), pulley (if the new pump is not pre installed);
Consumables: power assist oil (strictly follow the designated model in the vehicle manual, such as ATF III/IV or specialized power assist oil), sealing rings/gaskets (new pump matching or separately adapted model), thread tightening glue (optional, used for key bolt anti loosening).
（3） Vehicle and environmental preparation
Vehicle status: Park the vehicle on a level surface, apply the handbrake, shift to P gear (shift to 1st gear in manual mode), turn off the engine and cool for at least 30 minutes to avoid high temperature burns;
Safety protection: Disconnect the negative terminal of the vehicle battery (to prevent short circuits in the circuit), lay protective pads to protect the paint surface of the vehicle body;
Environmental requirements: Choose a well ventilated and well lit area to prevent dust and debris from entering the oil or pipelines.
（4） Inspection before dismantling the old pump
Record the installation location of the old pump, the direction of the oil pipe, and the winding method of the belt (photos can be taken for retention) to avoid errors during installation;
Check whether the power assisted oil pot and oil pipe are aging, damaged, or leaking. If there are any problems, they need to be replaced simultaneously.
1、 Preparation before installation
（1） Tool preparation
Basic tools: socket wrench (including Phillips/open-end wrench), torque wrench, screwdriver (Phillips/Phillips), adjustable wrench, pliers;
Special tools: belt tensioner tool, puller (if old pump pulley needs to be disassembled), sealant (compatible with engine oil/hydraulic oil), oil pipe joint wrench;
Auxiliary tools: oil basin, cloth, gloves, protective goggles, funnel (for adding oil).
（2） Material preparation
Core components: new booster pump (to be fully matched with the vehicle model and engine model), booster pump belt (recommended to be replaced synchronously, check for model compatibility), pulley (if the new pump is not pre installed);
Consumables: power assist oil (strictly follow the designated model in the vehicle manual, such as ATF III/IV or specialized power assist oil), sealing rings/gaskets (new pump matching or separately adapted model), thread tightening glue (optional, used for key bolt anti loosening).
（3） Vehicle and environmental preparation
Vehicle status: Park the vehicle on a level surface, apply the handbrake, shift to P gear (shift to 1st gear in manual mode), turn off the engine and cool for at least 30 minutes to avoid high temperature burns;
Safety protection: Disconnect the negative terminal of the vehicle battery (to prevent short circuits in the circuit), lay protective pads to protect the paint surface of the vehicle body;
Environmental requirements: Choose a well ventilated and well lit area to prevent dust and debris from entering the oil or pipelines.
（4） Inspection before dismantling the old pump
Record the installation location of the old pump, the direction of the oil pipe, and the winding method of the belt (photos can be taken for retention) to avoid errors during installation;
Check whether the power assisted oil pot and oil pipe are aging, damaged, or leaking. If there are any problems, they need to be replaced simultaneously.
2、 Dismantling steps for old booster pump
*Discharge power assist oil: Open the power assist oil pot cover, place the oil receiving basin under the power assist pump, remove the inlet/return oil pipe joint (loosen the joint buckle or nut first), release the old oil and dispose of it properly (do not dump it at will);
*Dismantling the drive belt: Use a belt tensioner tool to press the tensioner wheel, release the belt tension, and remove the power pump drive belt (if the belt is shared with other components, mark the winding path);
*Dismantling fixing bolts: Use a socket wrench to unscrew the fixing bolts (usually 3-4) connecting the booster pump to the engine cylinder block, paying attention to the installation position and length of the bolts to avoid confusion;
*Remove the old pump: Gently shake the booster pump, separate the mating surface with the engine cylinder block, and remove the old pump (if there is residual sealant on the mating surface, keep a small amount as a reference);
*Cleaning the installation surface: Use a cloth to wipe the installation fitting surface on the engine cylinder block, remove residual sealant, oil stains, and impurities, and ensure that the fitting surface is flat and clean (do not use sharp tools to scrape, to avoid damaging the contact surface).
*Discharge power assist oil: Open the power assist oil pot cover, place the oil receiving basin under the power assist pump, remove the inlet/return oil pipe joint (loosen the joint buckle or nut first), release the old oil and dispose of it properly (do not dump it at will);
*Dismantling the drive belt: Use a belt tensioner tool to press the tensioner wheel, release the belt tension, and remove the power pump drive belt (if the belt is shared with other components, mark the winding path);
*Dismantling fixing bolts: Use a socket wrench to unscrew the fixing bolts (usually 3-4) connecting the booster pump to the engine cylinder block, paying attention to the installation position and length of the bolts to avoid confusion;
*Remove the old pump: Gently shake the booster pump, separate the mating surface with the engine cylinder block, and remove the old pump (if there is residual sealant on the mating surface, keep a small amount as a reference);
*Cleaning the installation surface: Use a cloth to wipe the installation fitting surface on the engine cylinder block, remove residual sealant, oil stains, and impurities, and ensure that the fitting surface is flat and clean (do not use sharp tools to scrape, to avoid damaging the contact surface).
3、 Installation steps for new booster pump
*Pre installation preparation: Check the appearance of the new booster pump for damage and the interface for burrs. If the new pump is not pre installed with a pulley, use a special tool to fix the pulley on the pump shaft (ensure that it is installed in place and not loose);
*Apply sealant: Apply a thin layer of sealant evenly on the installation fitting surface (or engine cylinder fitting surface) of the new pump (with a width of about 2-3mm to avoid excessive sealant blocking the oil passage). If there is a sealing gasket, it can be installed directly;
*Fixed booster pump: Align the new pump with the installation hole of the engine cylinder block, manually screw in the fixing bolts for initial positioning, and ensure that the pump body is installed smoothly and without tilting; Then use a torque wrench to tighten the bolts in sequence according to the specified torque in the vehicle manual (usually 25-35N · m, depending on the vehicle model) (diagonally tighten to avoid uneven force);
*Connecting oil pipes: Connect the inlet and return oil pipes to the interface of the booster pump, ensure that the joints are aligned, install buckles or tighten nuts (torque of about 10-15 N · m), apply a small amount of booster oil to the connection to enhance sealing, and check for no leakage;
*Install the drive belt: According to the previously recorded winding path, use a tensioner tool to press the tensioner wheel, insert the belt into the power pump pulley, release the tensioner, ensure that the belt is moderately tensioned (press the belt by hand, with a deflection of about 1-2cm), and check that the belt is not offset or has no abnormal noise;
*Add power assist oil: Open the cover of the power assist oil pot, slowly add the specified model of power assist oil through the funnel, and add it to the mark between "MAX" and "MIN" of the oil pot (it is recommended to be slightly lower than MAX). Close the oil pot cover tightly.
*Pre installation preparation: Check the appearance of the new booster pump for damage and the interface for burrs. If the new pump is not pre installed with a pulley, use a special tool to fix the pulley on the pump shaft (ensure that it is installed in place and not loose);
*Apply sealant: Apply a thin layer of sealant evenly on the installation fitting surface (or engine cylinder fitting surface) of the new pump (with a width of about 2-3mm to avoid excessive sealant blocking the oil passage). If there is a sealing gasket, it can be installed directly;
*Fixed booster pump: Align the new pump with the installation hole of the engine cylinder block, manually screw in the fixing bolts for initial positioning, and ensure that the pump body is installed smoothly and without tilting; Then use a torque wrench to tighten the bolts in sequence according to the specified torque in the vehicle manual (usually 25-35N · m, depending on the vehicle model) (diagonally tighten to avoid uneven force);
*Connecting oil pipes: Connect the inlet and return oil pipes to the interface of the booster pump, ensure that the joints are aligned, install buckles or tighten nuts (torque of about 10-15 N · m), apply a small amount of booster oil to the connection to enhance sealing, and check for no leakage;
*Install the drive belt: According to the previously recorded winding path, use a tensioner tool to press the tensioner wheel, insert the belt into the power pump pulley, release the tensioner, ensure that the belt is moderately tensioned (press the belt by hand, with a deflection of about 1-2cm), and check that the belt is not offset or has no abnormal noise;
*Add power assist oil: Open the cover of the power assist oil pot, slowly add the specified model of power assist oil through the funnel, and add it to the mark between "MAX" and "MIN" of the oil pot (it is recommended to be slightly lower than MAX). Close the oil pot cover tightly.
4、 Commissioning and inspection after installation
Exhaust operation:
*Start the engine and let it idle for 1-2 minutes (keep the engine idle stable);
*Turn the steering wheel left and right to the limit position (stop for no more than 10 seconds each time to avoid overloading the pump body), repeat 3-5 times, and exhaust the air in the pipeline;
*Turn off the engine, let it stand for 5 minutes, check the power assist oil level, and if it is below the MIN mark, replenish it to the standard range;
Leakage inspection:
Observe whether there is any oil leakage on the installation fitting surface, oil pipe joint, and oil pot interface of the booster pump. If there is any leakage, tighten the corresponding joint or bolt, and reapply sealant if necessary;
Functional testing:
*Start the engine, turn the steering wheel lightly, and feel if the steering assistance is smooth, even, and without any heaviness or jamming;
*Run for 5-10 minutes and check if there is any abnormal noise (such as whistling or knocking) from the booster pump, and if the belt is slipping or overheating;
*Check the level of the booster oil again to ensure that there is no obvious drop and no foam in the oil (if there is foam, it may be that the air has not been completely discharged, and it needs to be re discharged).
Exhaust operation:
*Start the engine and let it idle for 1-2 minutes (keep the engine idle stable);
*Turn the steering wheel left and right to the limit position (stop for no more than 10 seconds each time to avoid overloading the pump body), repeat 3-5 times, and exhaust the air in the pipeline;
*Turn off the engine, let it stand for 5 minutes, check the power assist oil level, and if it is below the MIN mark, replenish it to the standard range;
Leakage inspection:
Observe whether there is any oil leakage on the installation fitting surface, oil pipe joint, and oil pot interface of the booster pump. If there is any leakage, tighten the corresponding joint or bolt, and reapply sealant if necessary;
Functional testing:
*Start the engine, turn the steering wheel lightly, and feel if the steering assistance is smooth, even, and without any heaviness or jamming;
*Run for 5-10 minutes and check if there is any abnormal noise (such as whistling or knocking) from the booster pump, and if the belt is slipping or overheating;
*Check the level of the booster oil again to ensure that there is no obvious drop and no foam in the oil (if there is foam, it may be that the air has not been completely discharged, and it needs to be re discharged).
5、 Precautions
*The model of the booster pump must be matched with the vehicle to avoid installation failure or damage to other components due to non-compliance with specifications;
*During the disassembly and installation process, it is prohibited to strike the pump body or shaft of the booster pump to prevent damage to the internal precision components;
*The power assist oil should use the model specified in the vehicle manual and should not be mixed with different brands or specifications of oil, otherwise it will affect the power assist effect and even damage the pump body;
*The exhaust operation must be thorough, otherwise residual air in the pipeline can cause heavy steering, abnormal pump body noise, and in severe cases, damage to the power pump;
*All bolts must be tightened to the specified torque. If they are too loose, they may cause leakage and abnormal noise. If they are too tight, they may damage the threads or pump body;
*If there are problems such as heavy steering, abnormal noise, leakage, etc. after installation, stop using immediately and check for installation errors (such as reversed oil pipe connection, loose/tight belt, incomplete air discharge, etc.);
*After installation, it is recommended to avoid severe steering and prolonged damage to the steering wheel during the initial driving period (50-100 kilometers), and observe the working status of the power assist system.
*The model of the booster pump must be matched with the vehicle to avoid installation failure or damage to other components due to non-compliance with specifications;
*During the disassembly and installation process, it is prohibited to strike the pump body or shaft of the booster pump to prevent damage to the internal precision components;
*The power assist oil should use the model specified in the vehicle manual and should not be mixed with different brands or specifications of oil, otherwise it will affect the power assist effect and even damage the pump body;
*The exhaust operation must be thorough, otherwise residual air in the pipeline can cause heavy steering, abnormal pump body noise, and in severe cases, damage to the power pump;
*All bolts must be tightened to the specified torque. If they are too loose, they may cause leakage and abnormal noise. If they are too tight, they may damage the threads or pump body;
*If there are problems such as heavy steering, abnormal noise, leakage, etc. after installation, stop using immediately and check for installation errors (such as reversed oil pipe connection, loose/tight belt, incomplete air discharge, etc.);
*After installation, it is recommended to avoid severe steering and prolonged damage to the steering wheel during the initial driving period (50-100 kilometers), and observe the working status of the power assist system.

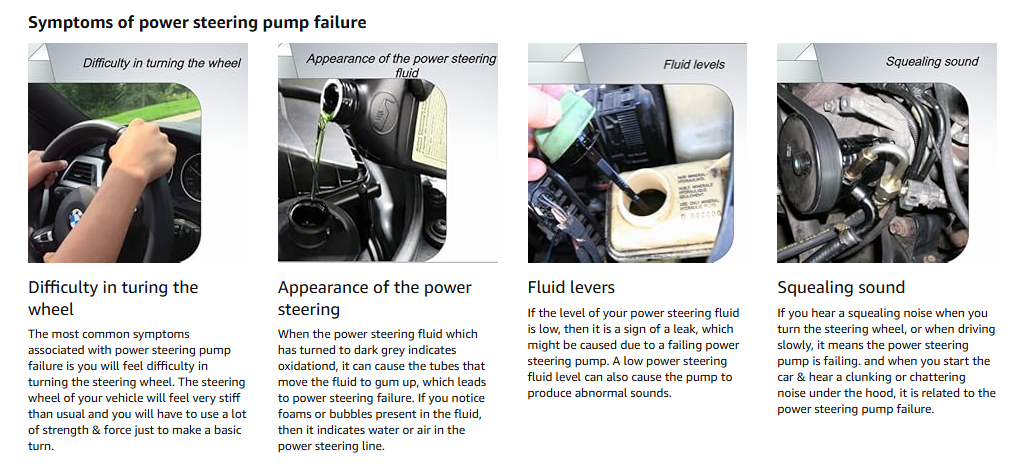

6、 Common problem troubleshooting
*Heavy steering: It may be due to reversed oil pipe connection, insufficient power oil, incomplete air discharge, loose belt or skewed pump installation, which need to be checked and corrected one by one;
*Abnormal noise from the pump body: It may be due to incomplete air discharge, insufficient power oil, belt slippage, or damaged pump shaft bearings. First, replenish the oil and exhaust again. If it is ineffective, check the belt tension or replace the pump body;
*Oil leakage: It may be due to uneven application of sealant, loose joints, or aging sealing rings. It is necessary to reapply sealant, tighten joints, or replace sealing rings;
*Belt slippage: It may be due to insufficient belt tension or belt aging, and the tensioner needs to be adjusted or a new belt needs to be replaced.
*Heavy steering: It may be due to reversed oil pipe connection, insufficient power oil, incomplete air discharge, loose belt or skewed pump installation, which need to be checked and corrected one by one;
*Abnormal noise from the pump body: It may be due to incomplete air discharge, insufficient power oil, belt slippage, or damaged pump shaft bearings. First, replenish the oil and exhaust again. If it is ineffective, check the belt tension or replace the pump body;
*Oil leakage: It may be due to uneven application of sealant, loose joints, or aging sealing rings. It is necessary to reapply sealant, tighten joints, or replace sealing rings;
*Belt slippage: It may be due to insufficient belt tension or belt aging, and the tensioner needs to be adjusted or a new belt needs to be replaced.
Tips: If you do not have professional repair experience, it is recommended to have professional auto repair personnel operate to avoid power assist system failures caused by improper installation, which may affect driving safety. Before installation, you can refer to the vehicle maintenance manual to confirm the specific model, torque parameters, and special installation requirements.
Item Description
As the power core component of the steering system, the car power pump's core function is to reduce the driver's steering operation force through hydraulic or electric means, and improve the vehicle's handling stability and driving comfort. In the era of traditional fuel vehicles, the power pump is a key component of the chassis system, directly affecting the steering feel and driving safety; With the advancement of the "new four modernizations" in automobiles, although their technological forms have undergone iterations, they still play an important role in ensuring the precise operation of the steering system. Product quality and performance are directly related to the overall driving experience and safety rating of the vehicle.
Specification
Item Type: Power Steering Pump
Condition: Brand New
Warranty: One Year Warranty
OE Number: 20-386, 9L343A674BE, 36P0081, 9L3Z3A674B, AA120386P1
- Quantity Included: One Piece
Note: w/o Reservoir, w/o Pulley
Vehicle Information:
