DMX Terminal Resistor

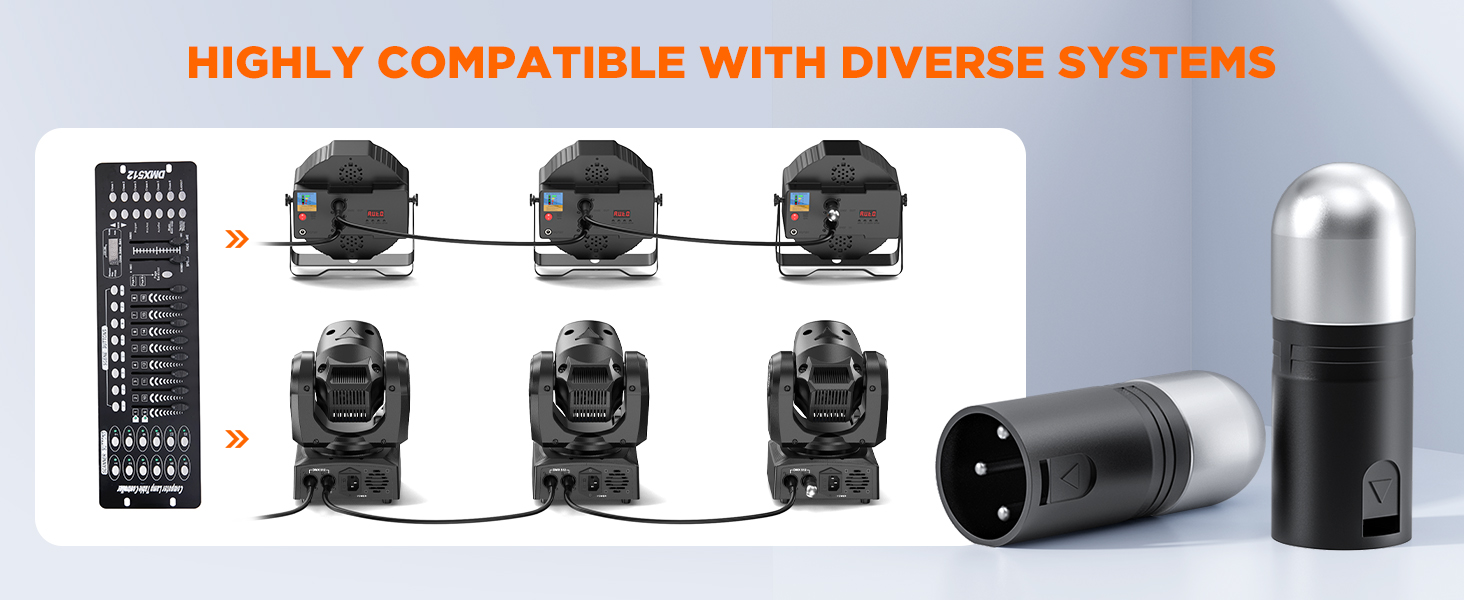

Highly Compatible With Diverse Systems

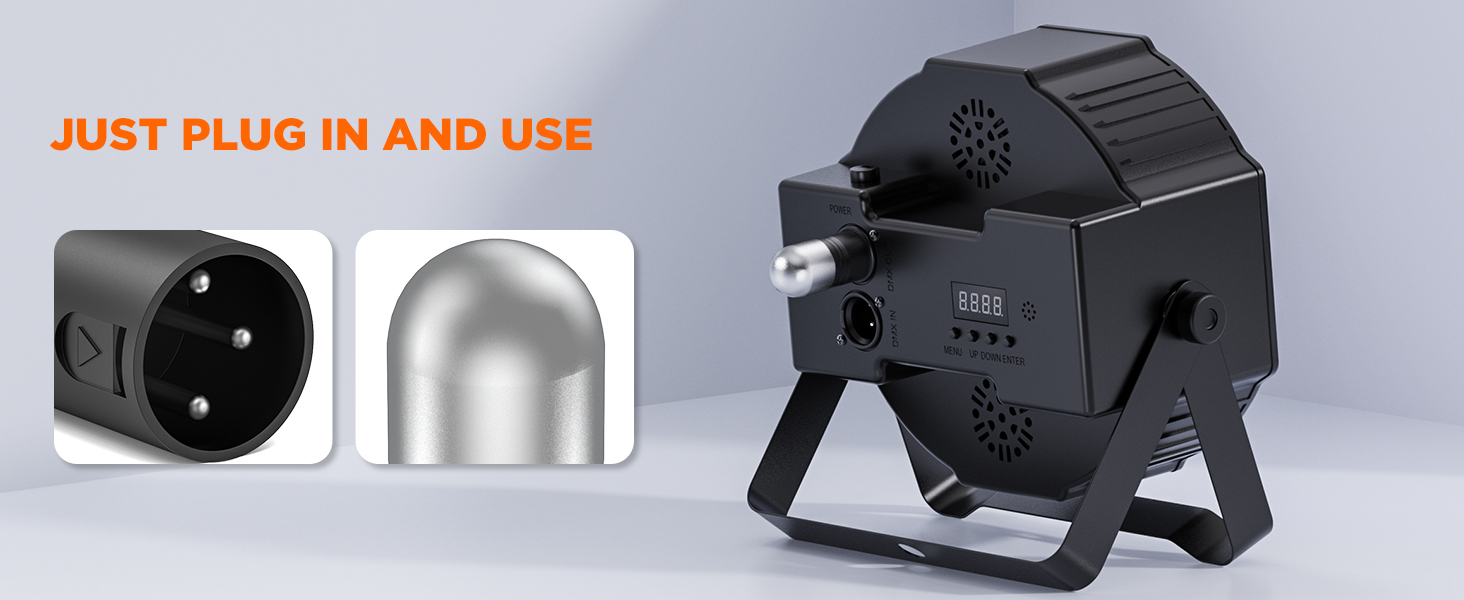

Just Plug In And Use
Use For
Packing List
DMX terminal resistor*6

Instruction manual*1

Specifications:
Model: ZQ14028X2

Protection level: IP20

Working environment: -20℃-40℃

Stainless steel

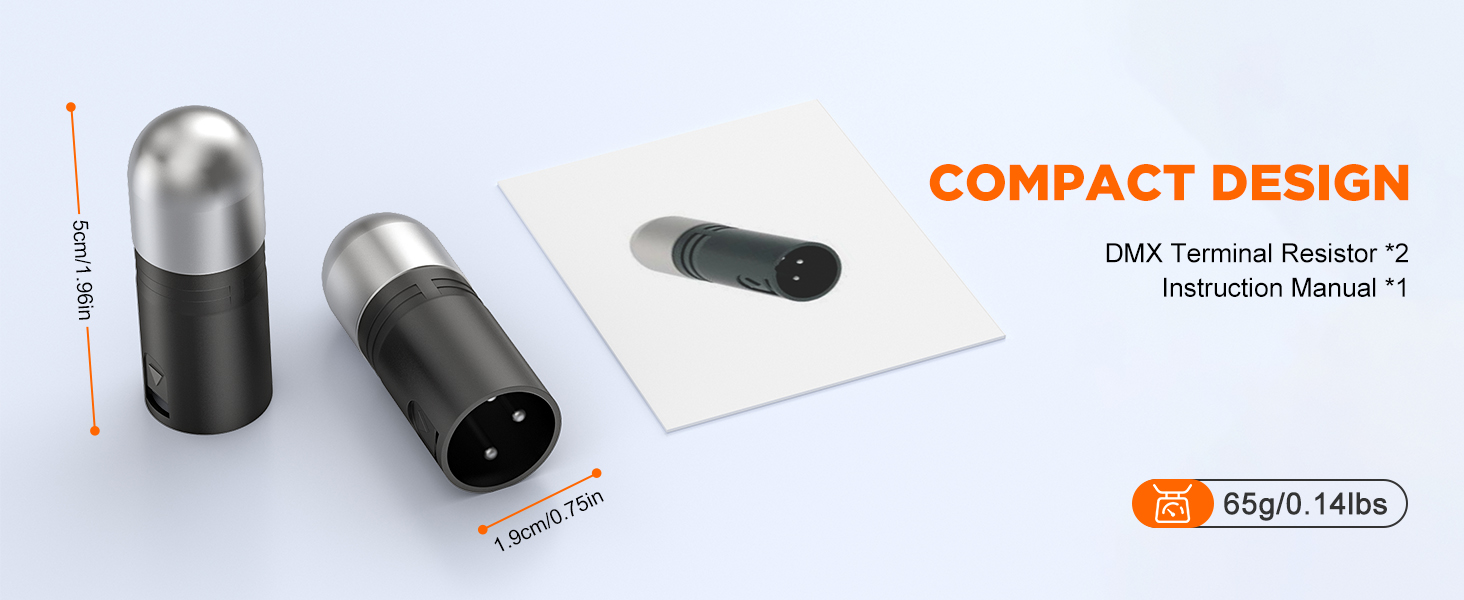

Product size: 5*1.9cm

Inner box size: po bag 12*5.5cm

Gross weight: 70g Net weight: 65g

Product Introduction :
The main function of the DMX terminating resistor is to reduce signal reflection and ensure the stability and reliability of signal transmission. When high - frequency signals are transmitted in a transmission line, if the end of the transmission line is not properly terminated, the signal will reflect back at the end, causing signal waveform distortion and affecting the communication quality. The DMX terminating resistor prevents signal distortion by absorbing these reflected signals, thus ensuring the integrity and accuracy of the signal.

Product Features:

Prevent signal reflection: The terminating resistor can absorb the reflected signals, reducing signal distortion and interference during transmission, and ensuring the stability and reliability of signal transmission.
Match impedance: The terminating resistor can match the impedance of the transmission line and the load, ensuring maximum power transfer and communication quality. In high - frequency signal transmission, the role of the terminating resistor is particularly important because it can eliminate the reflected wave and avoid signal interference.
Improve anti - interference ability: By reducing signal reflection, the terminating resistor can improve the anti - interference ability of the system, ensuring that the signal is not affected by external interference during transmission.

Application scenarios DMX terminating resistors are widely used in occasions that require high - quality signal transmission, such as the DMX512 stage lighting control system. In the DMX512 stage lighting fixture system, the terminating resistor is an essential component, used to ensure the stable transmission of signals on the bus and avoid signal distortion and interference caused by reflection.


Packing List:
DMX terminal resistor*4

Instruction manual*1
