Product Description
The controller is designed specifically for hybrid wind solar street light system, which can make the wind solar hybrid street light system of various resources to achieve the best configuration, of course, the controller with some simple Settings can also be used in household system.
Intelligent design succinct structure,powerfulcontroll, stable performance, safety and reliability of the products.Choose MPPT Wind turbine charging ways, charging more efficiency than ordinary PWM way more superior. The boost charge function, solve the low charging efficiency problem of low wind speed (optional). Professional digital intelligent control.
Features：
Ø Wind generator MPPT boost charging function.
Ø Dual power supply function: Battery + solar power supply.
Ø LCD displays parameters such as voltage and current of wind, solar and load .
Ø PWM stepless high-frequency soft unloading
Ø High performance and stable chip control.
Ø The inner circuit board of the controller is sprayed to prevent dust, moisture and static electricity.
Ø 12V/24V Automatic identification system voltage.
PACKING LIST:

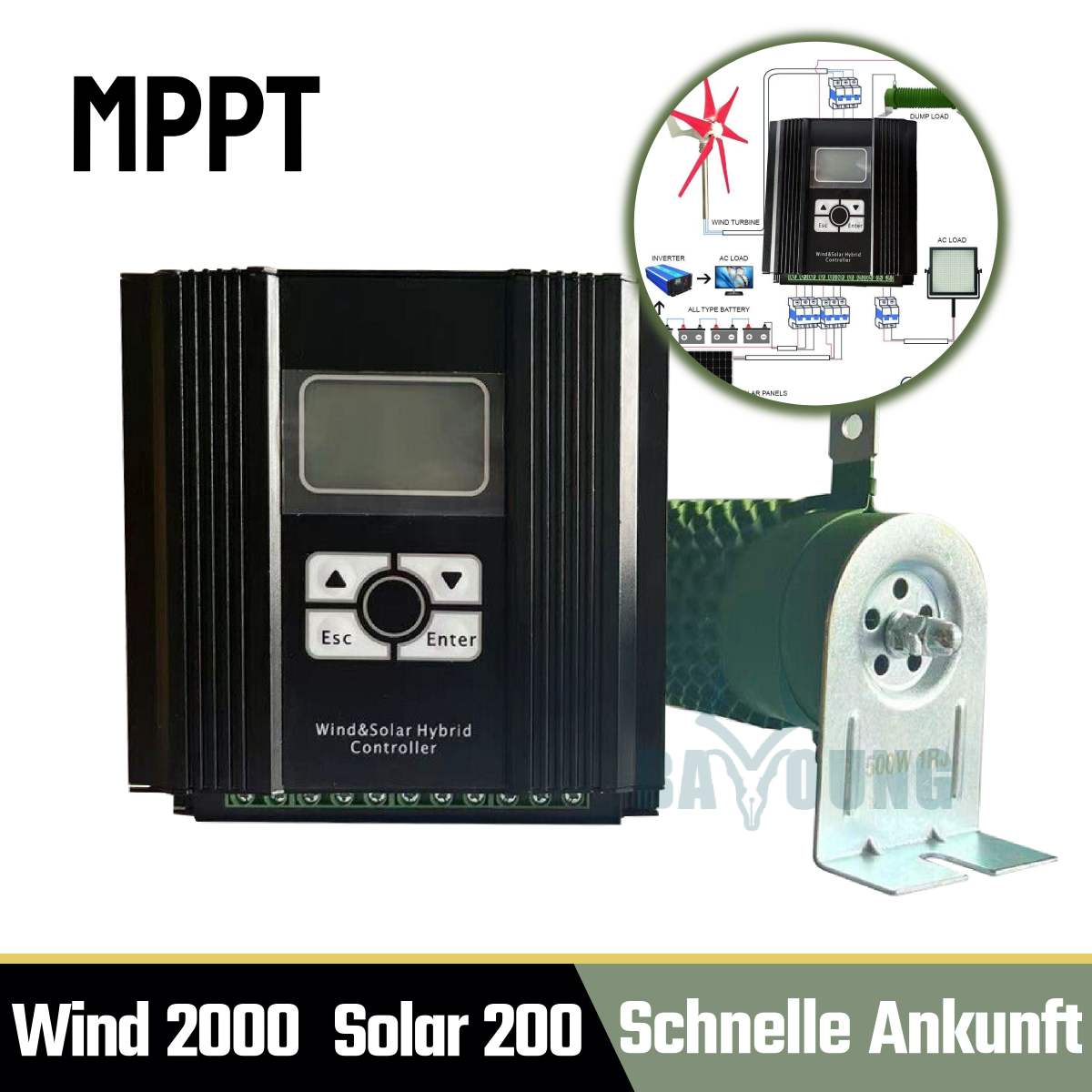

MPPT controller 1 piece. & Dump load 1 piece
|
|
|
|
Battery parameters |
|
|
Applied battery voltage |
12/24V |
|
Battery protect method |
Reverse connection protection (do not burn any components, with voice prompt); over voltage protection, under voltage protection (for street light and such kind of load) |
|
Voltage at the over voltage protection point |
29.0V±0.2V |
|
Voltage at the over voltage recovery point |
27.5V±0.2V |
|
Voltage at the under voltage protection point |
21.0V±0.2V |
|
Voltage at the under voltage recovery point |
23.0V±0.2V |
|
Battery temperature compensation |
5mv/℃/2V |
|
Wind turbines input parameters |
|
|
Rated power of applied Wind turbines |
3000W/12-24V |
|
Rated power of the terminal |
30A dc (after rectification) |
|
Max. input current of the terminal |
40A dc (after rectification) |
|
The default speed of the Wind turbines generation with limited speed |
500 Rpm |
|
The default current of the Wind turbines generation with limited current |
30A |
|
Wind turbines protection method |
over rev protection, over current protection, induction lightening protection |
|
Unloading method |
PWM stepless high-frequency soft unloading (built-in) |
|
MPPT function |
Boost MPPT model ( automatic tracking or 5 segments curve tracking) |
|
Input current of MPPT channel |
12A |
|
PV input parameters |
|
|
Rated input current of applied PV |
1000w/12-24V
|
|
Rated input current of terminal |
15A（standard）
|
|
Charging voltage drop |
<0.2V |
|
PV protection methods |
Reverse connection protection (voice prompt) |
|
Unloading method |
Open circuit unloading |
|
Discharge the output port parameters |
|
|
output |
2 outputs |
|
Current of each output |
12A |
|
Output protection methods |
Over current protection (15A/30sec. 18A/0.4sec.), short-circuit protection (current > 150A) |
|
Output control methods |
light control, time control, reverse output, PWM output (250HZ, only the 2nd output has it) |
|
Others |
|
|
Auxiliary function |
Monitor of air temperature inside controller, temperature of unloading parts and Wind turbines MPPT components, and also the monitor of control terminals installed on the inversion (with voice prompt) |
|
Display mode |
Liquid crystal (LCD) display |
|
|
|
|
Displayed parameters |
Wind turbines input voltage/current/power/generated energy/rev/unloading current PV input voltage/current/power/generated energy Battery voltage/charging current/power/total charging capacity/battery status information output current/power/abnormal information of the 2nd output port |
|
Power consumption in standby mode(screen backlight closed) |
About 20ma /24V system |
|
Operating mode |
3M foil key operation (4 keys) |
|
Working temperature / humidity range (environment) |
-40~+80℃/20~85%RH（non condensing） |
|
Protection grade |
IP41 |
|
Controller size (L*W*H) |
175mm*148mm *84mm |
|
Net weight |
1.8KG |
