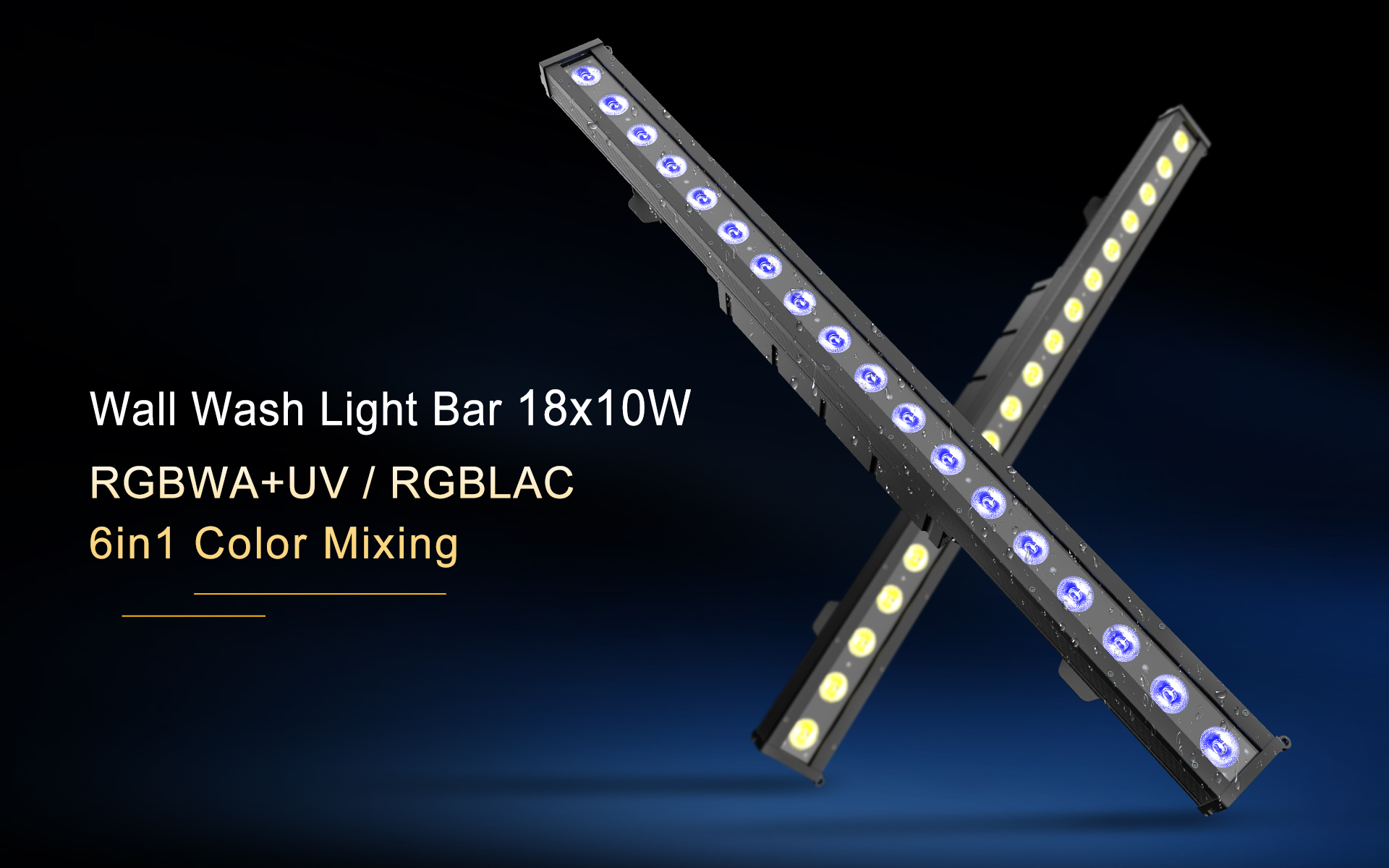

IP65-Waterproof LED 18x10W RGBWA+UV/ RGBLAC 6in1 Wash Wall Light
A new type of freely spliced wall washing lamp independently developed by SHEHDS, with a light source composed of 18x10W LED,
The linearly adjustable color temperature of RGBLAC creates the most realistic stage scene environment,
Bringing a strong visual impact to the performance.
Product Features
With excellent performance and user-friendly design, we will become your powerful assistant in stage lighting.

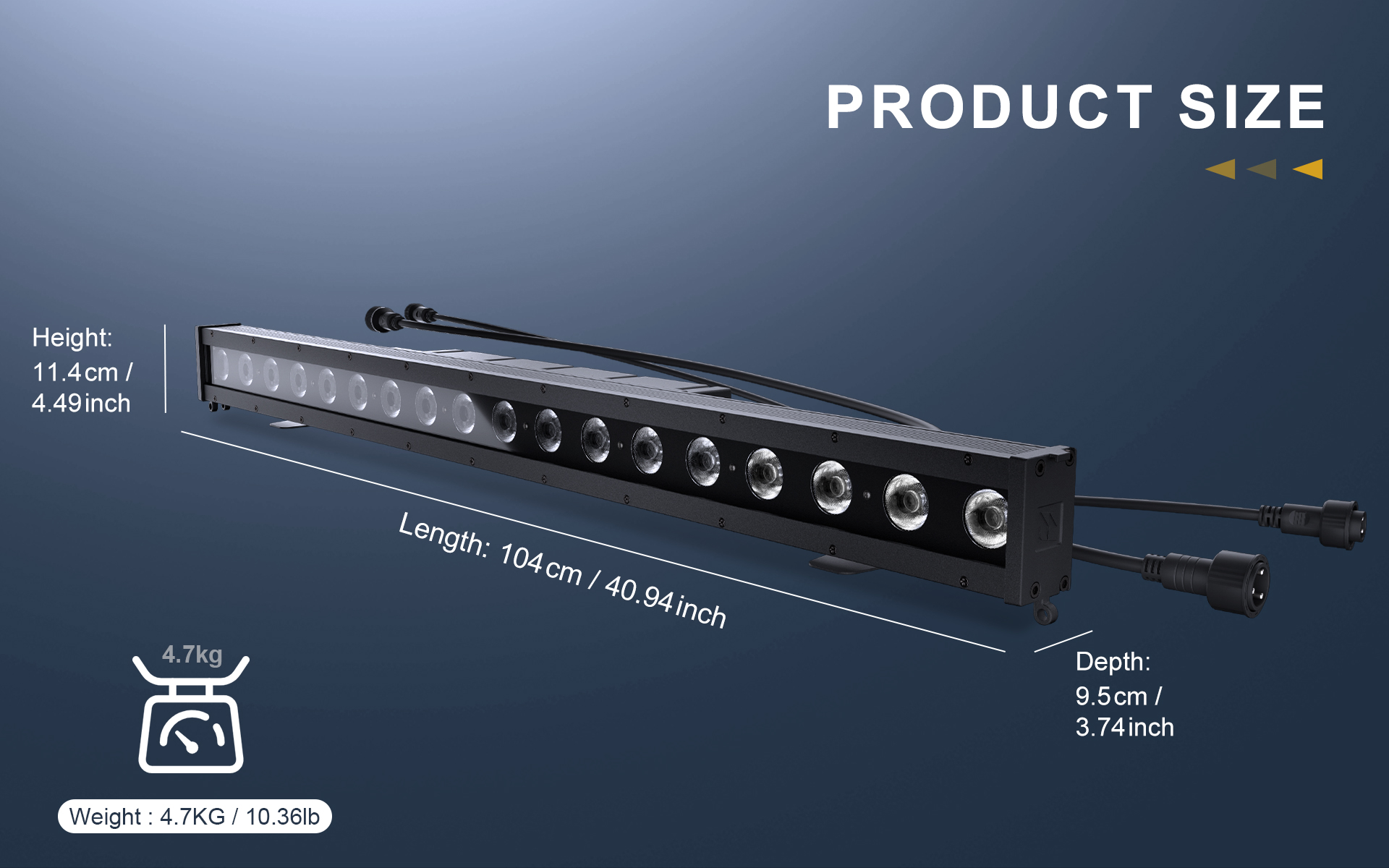

Product Size
| Light source parameters | |
| Dimmer: | 0-100% 16Bit mechanic |
| Light source: | 18x10W RGBWA UV/ / RGBLAC 6in1 mixing |
| Beam Lux: | 3264 Lux / 2m |
| Beam angle: | 25 degrees° |
| Strobe: | Flash rate 0-25HZ |
| Color: | RGBWAUV / RGBLAC 6in1 mixing color |
| Security System | |
| Safety Item | Over current and voltage protection |
| Degree Of Protection | IP65 |
| Operating Temperature | -20℃~45℃ |
| Interface And Control System | |
| Control Interface | DMX In/Out |
| DMX Channel | 12/108/120 CH |
| Power Interface | Neutrik PowerCon |
| Cooling System | |
| Cooling Method | Passive heat dissipation |
| Power Consumption | |
| Working Power | 100~240V AC 50/60HZ |
| Physical Parameters | |
| Material: | Aluminum alloy |
| Product Size | 104cmx9.5cmx11.4cm |
| Product Weight | 4.9kg |
| Package Size | 109cm*15cm*17.5cm |
| Package Weight | 5.18kg |

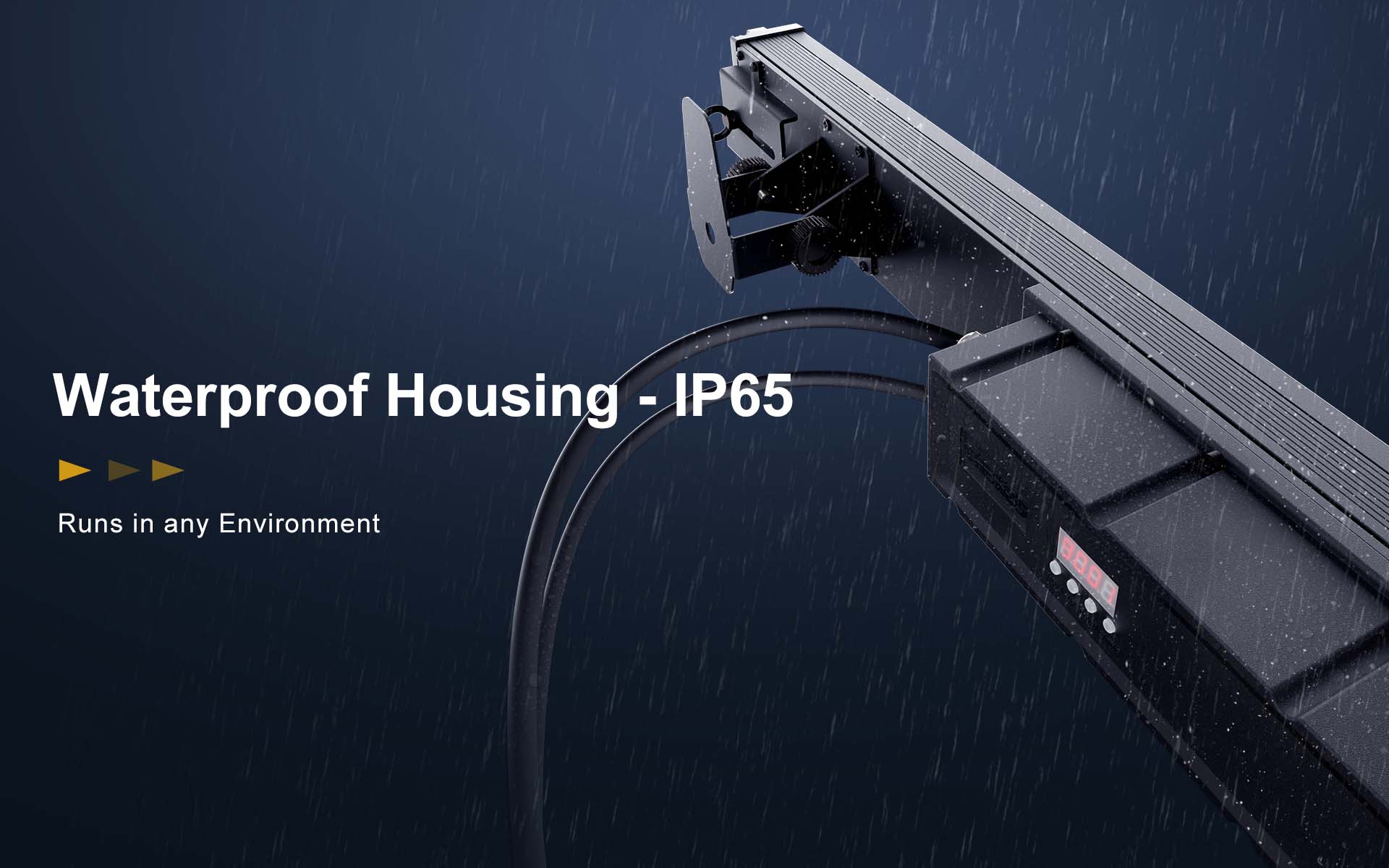

Waterproof performance
Through rigorous laboratory testing, it can work continuously in environments ranging from -20 ℃ to 50 ℃ and adapt to different climatic conditions in the north and south.Whether the outdoor music festival encounters rainstorm or the humid environment near the bar fountain, the lights can operate stably.

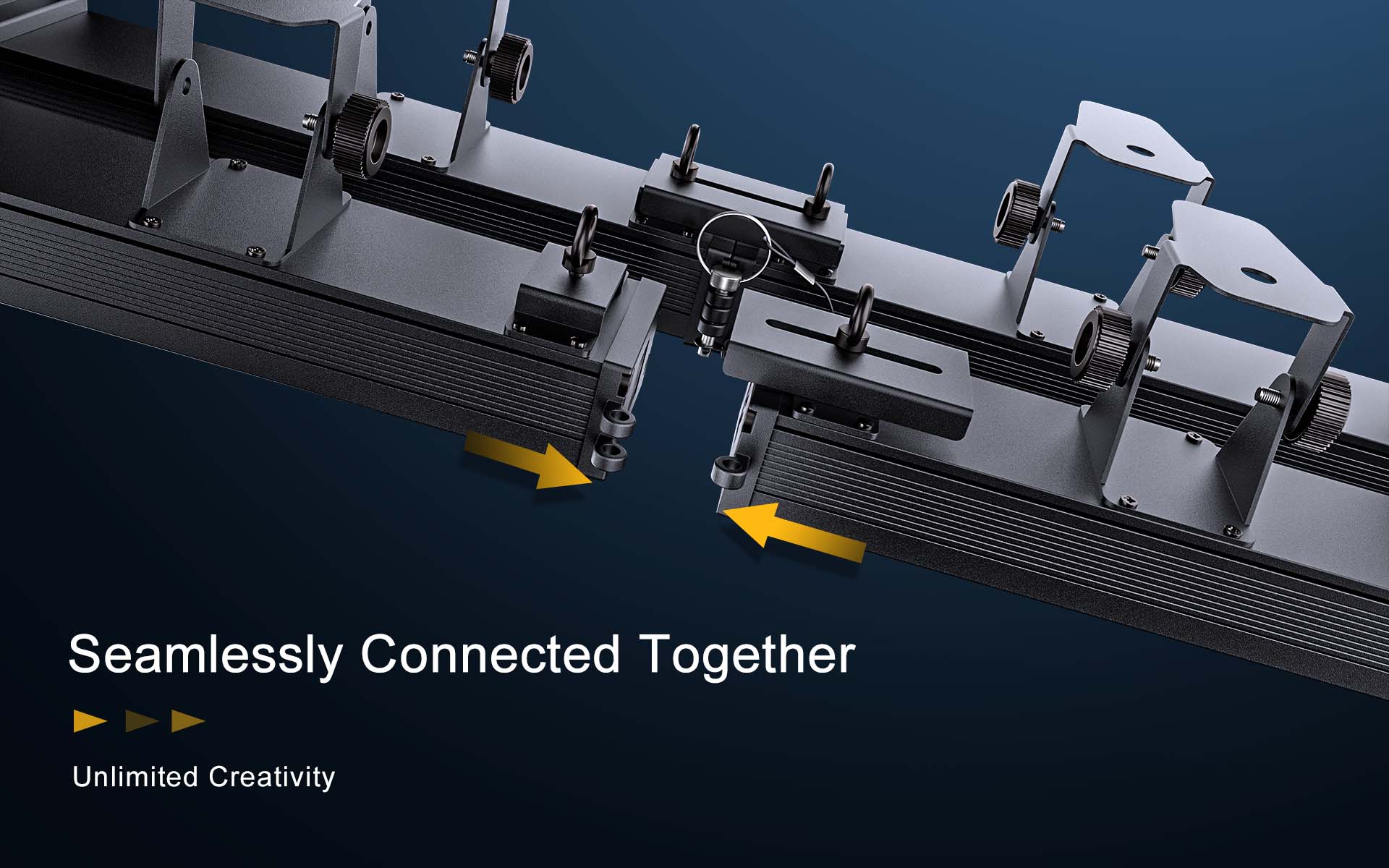

Free Splicing, Unlimited Creativity
The stage wall washing lamp supports horizontal or vertical splicing installation, making it more convenient for you to arrange the stage.
Whether it's a large theater or a small performance, you can easily handle it and create the ideal light and shadow effect in your mind.
Waterproof Power Cord & Signal Line
IP68 waterproof rating ensures stable operation both outdoors and underwater

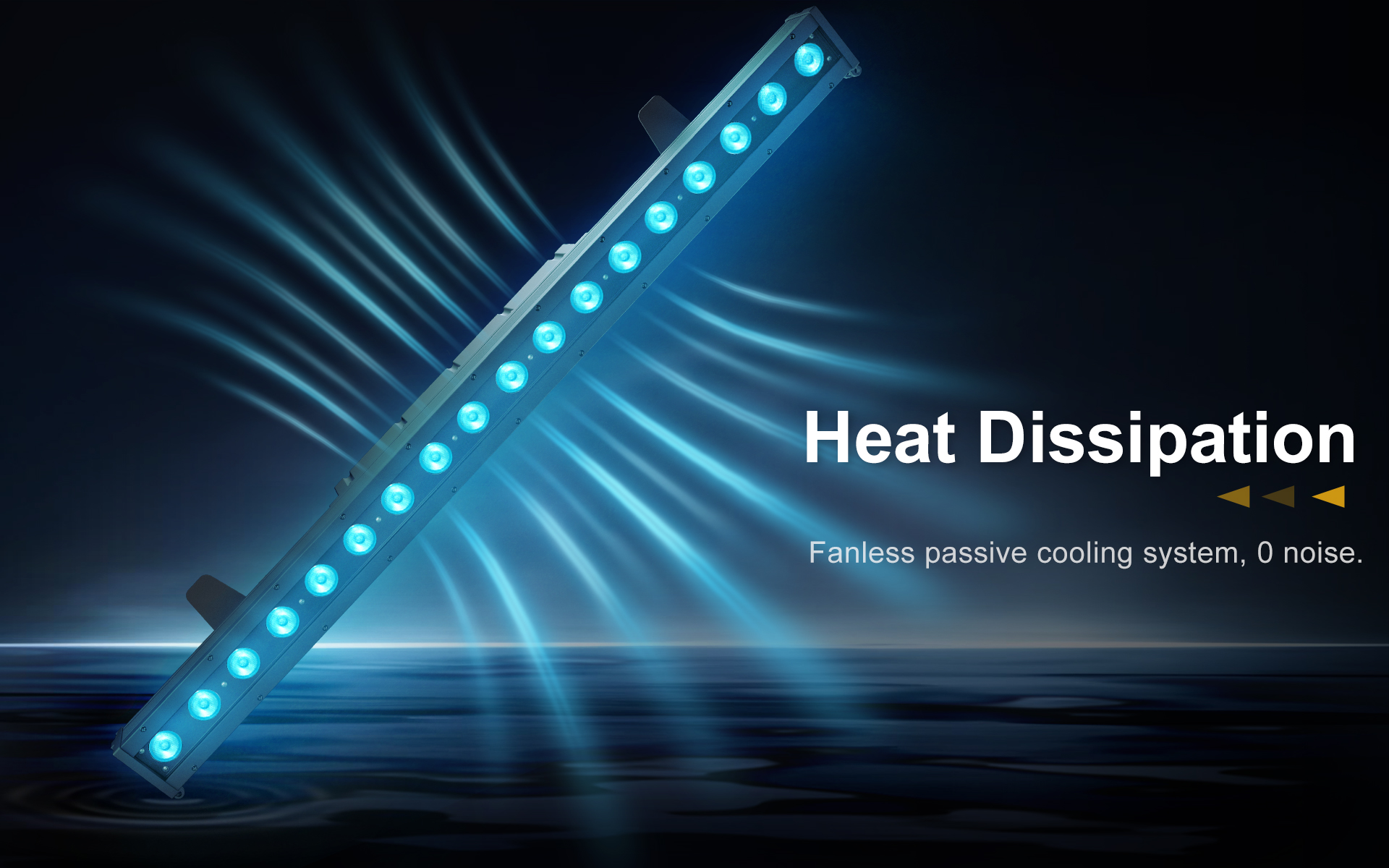

0 Noise Heat Dissipation
Aviation aluminum fin type heat dissipation structure, fanless passive heat dissipation, achieving zero noise operation and long service life!
Eliminate fan noise interference in the original sound performance.

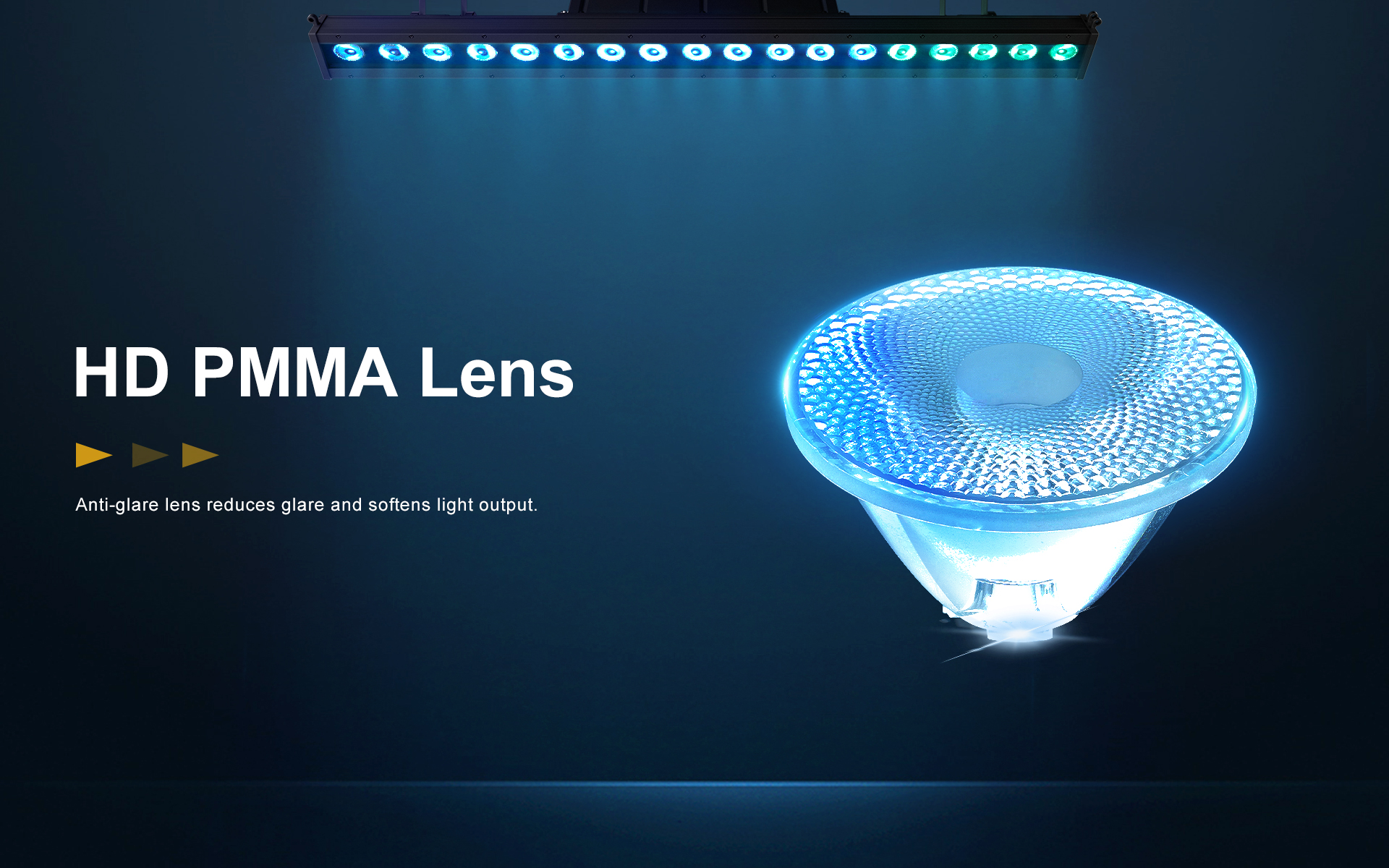

Optical Lens Display
Adopting customized PMMA acrylic material lenses to achieve a 98% reflectivity and higher lighting efficiency
More uniform color mixing effect

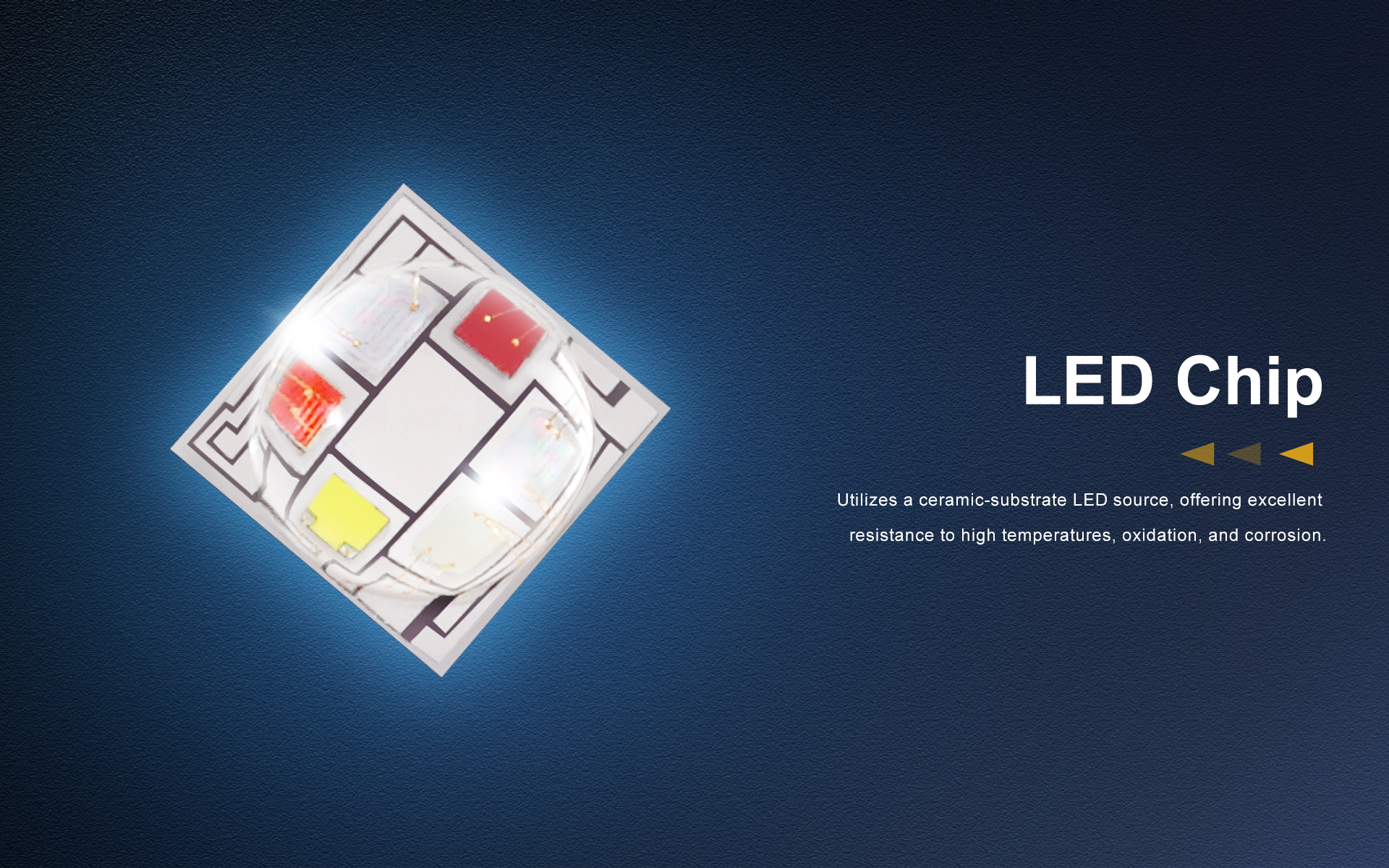

LED Light Source
Using ceramic substrate LED Source,
Has properties such as high temperature resistance, oxidation resistance, and corrosion resistance
So as to adapt to different lighting environments and customer needs.

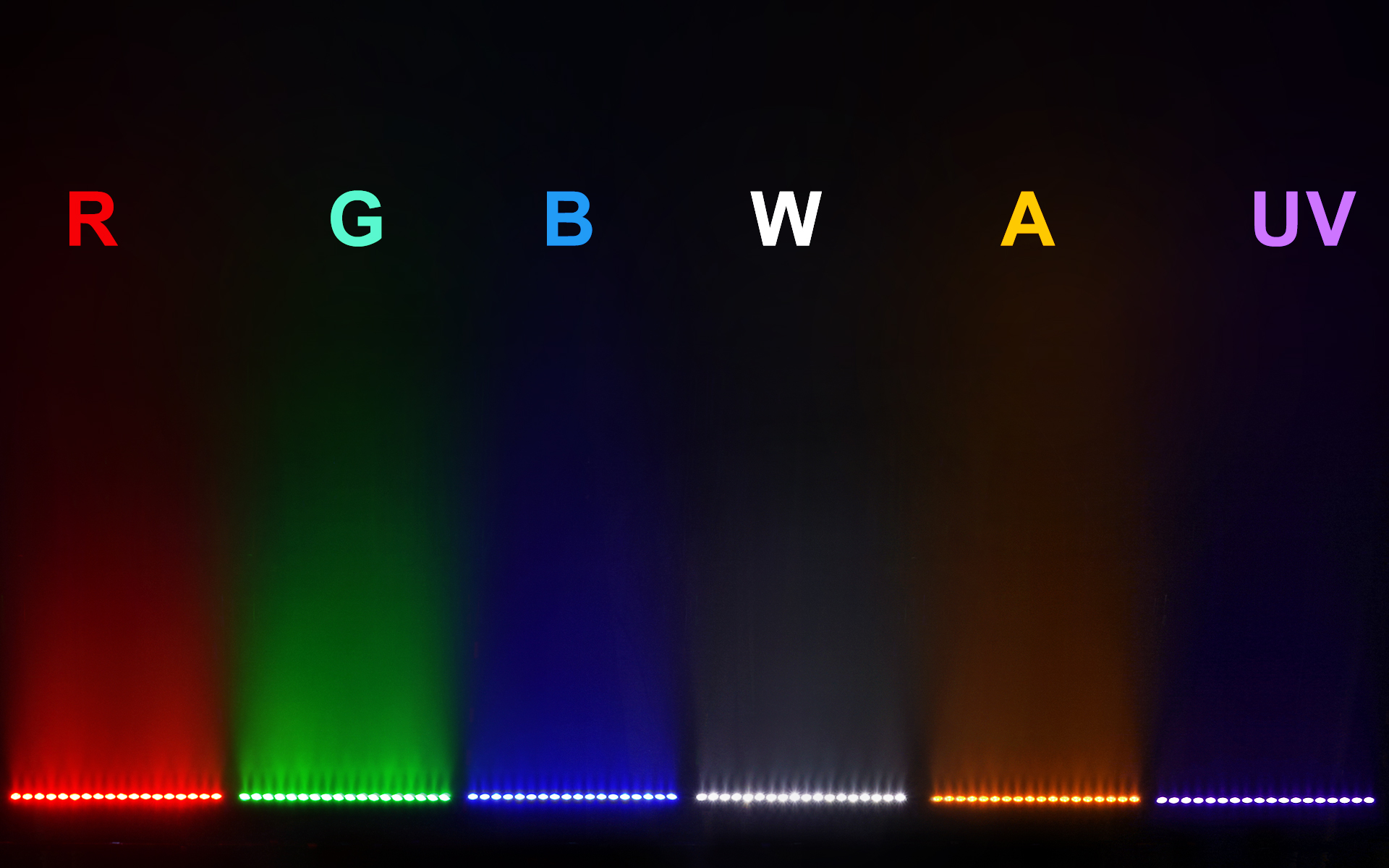

RGBWA UV 6in1 Color Mixing
Different colors of light can gradually transition or quickly switch over time, creating dynamic visual effects.
Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.

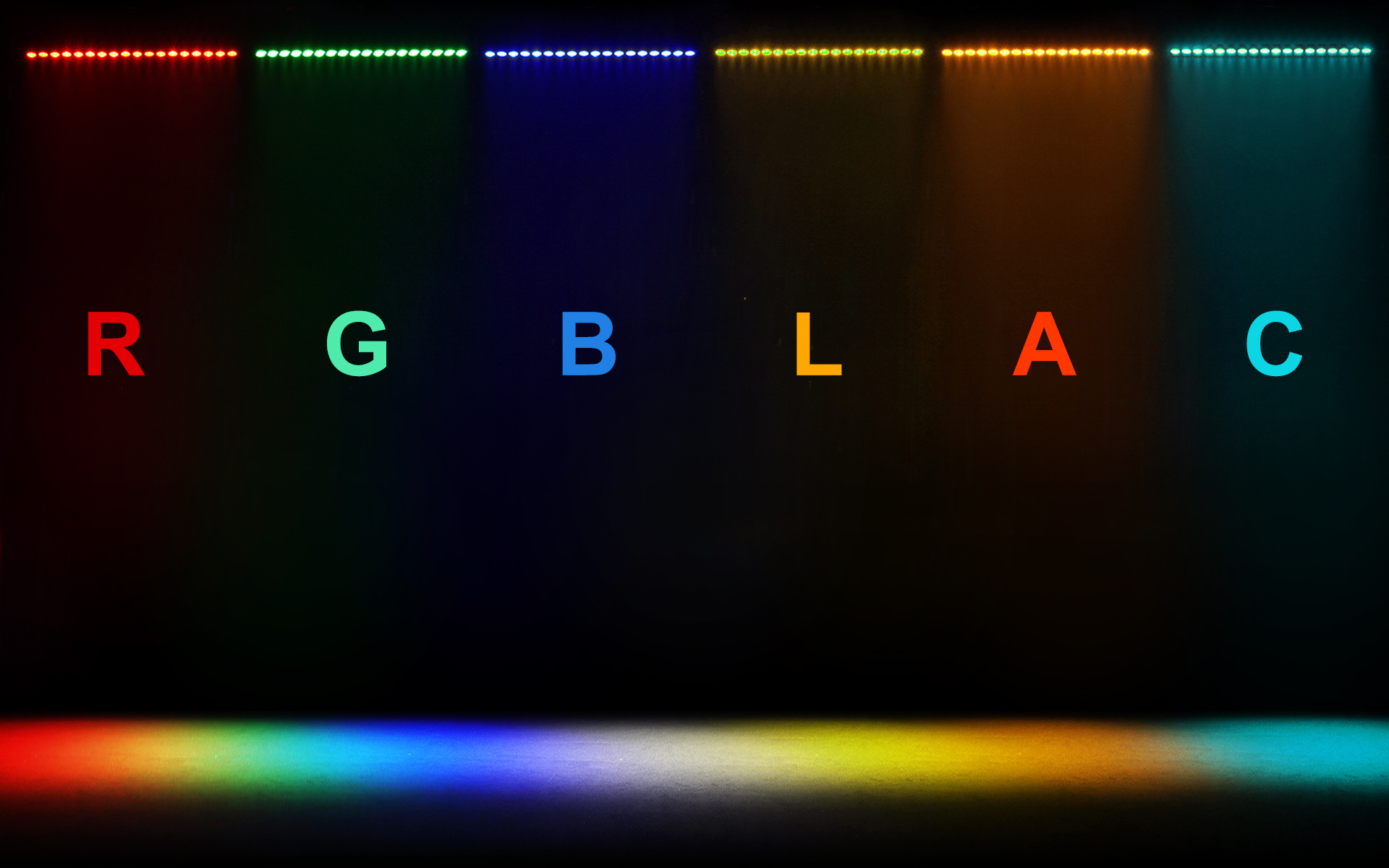

RGBLAC 6in1 Color Mixing
Both lights have rich color effects and can be used in any environment

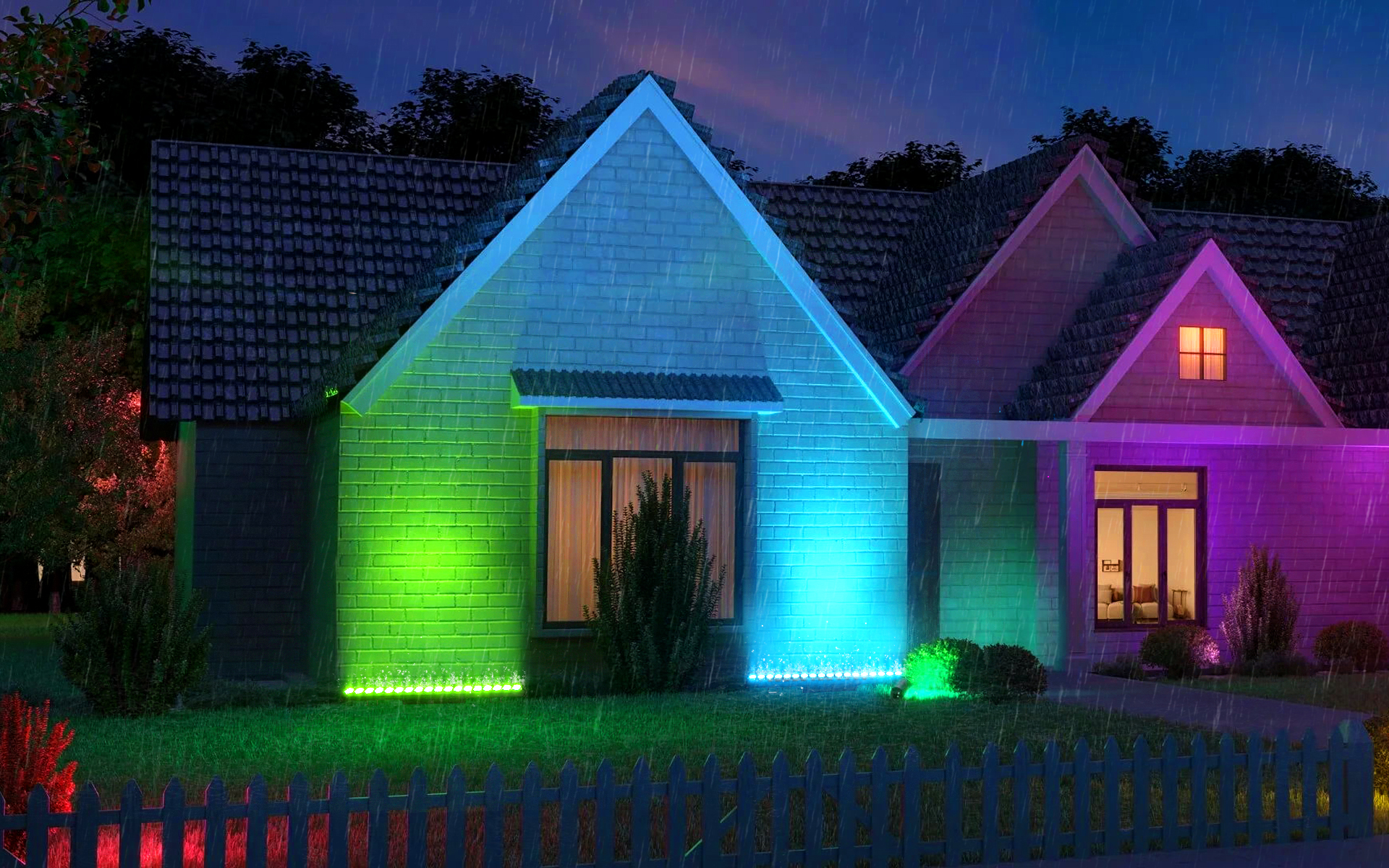

Applicable Scene
Both lamps have waterproof effect, with a waterproof rating of IP65，
Whether the outdoor encounters rainstorm or the humid environment near the bar fountain, the lights can operate stably.
Parameter comparison
LED 18x6W RGBWA UV 6in1 Wash Wall Light
LED 18x6W RGBWLAC 6in1 Wash Wall Light
Both lamps have waterproof effect and support indoor and outdoor use. They have rich color mixing effects and are suitable for any scene

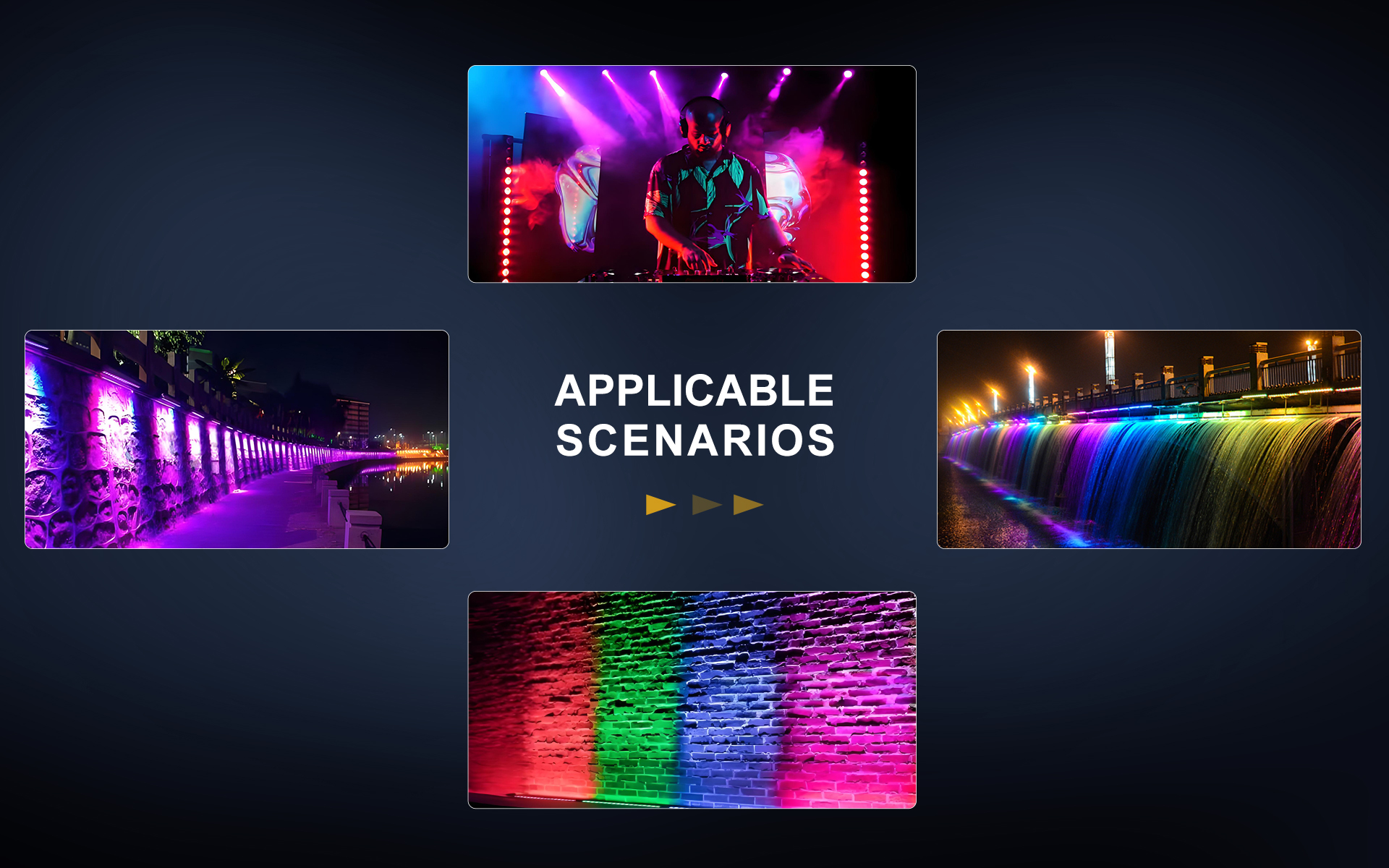

Applicable Scene
Stage performances - background lighting effects for dramas, dances, and concerts to enhance visual depth;
Commercial space - retro themed decorative lighting for bars, restaurants, and cafes;
Outdoor landscape - gardens, building facades, and night scenes of swimming pool areas illuminated

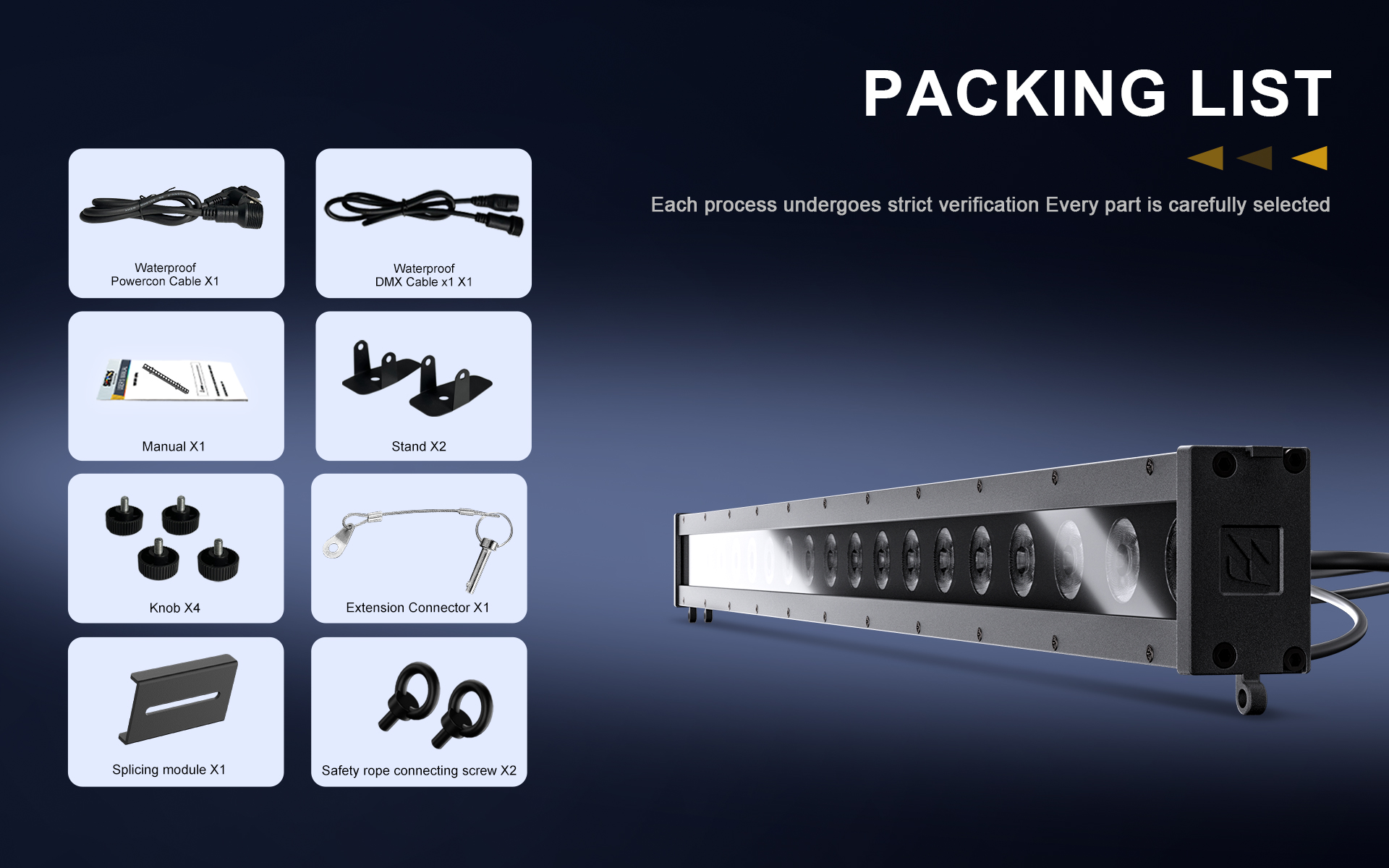

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.

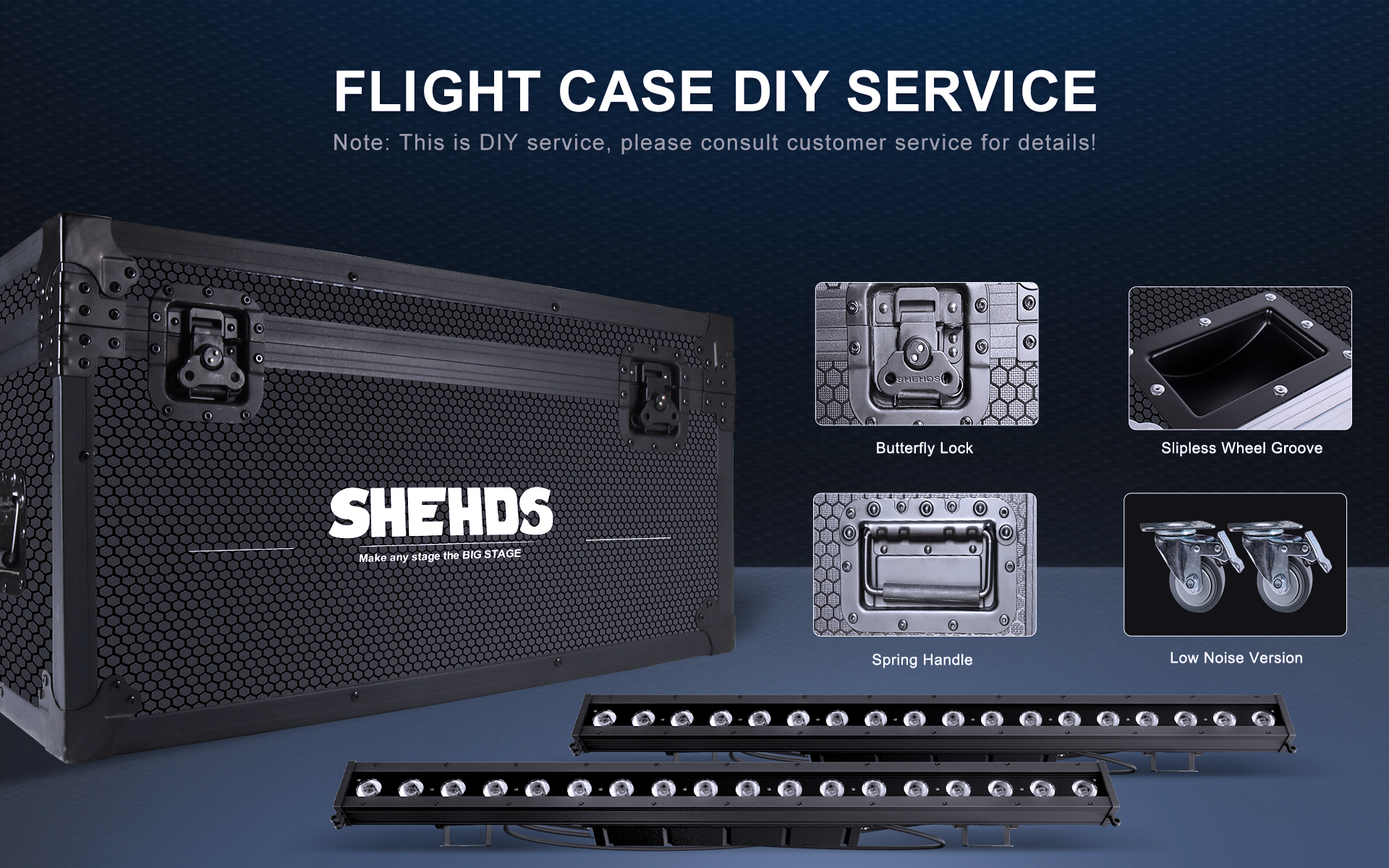

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods,
our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials,
providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
