Fixaball sells quality drop-in anchor, setting tools.

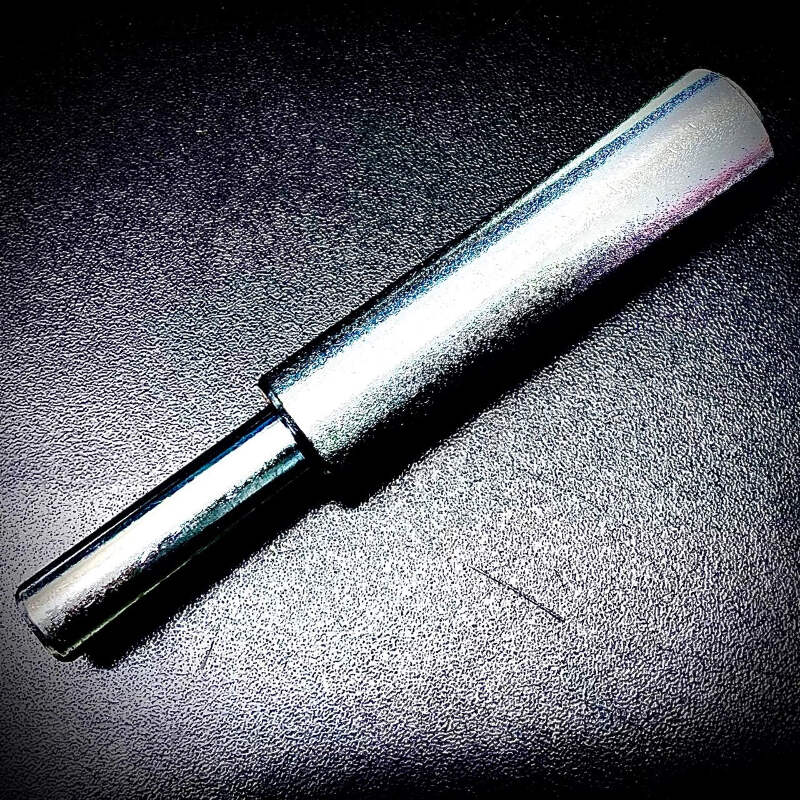

How to use a Drop-in Anchor setting tool
Use our drop in anchor setting tool to activate your drop in anchor's grip and fix with confidence. Once your expansion, wedge anchor is in position (plopped into the pre-drilled hole) you place the tool, touching the centre of the anchor and strike it square with a hammer. This will force the masonry anchor's, nut downwards, expand the sides and create a secure hold from the bottom of the hole.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Drop In Anchor, Setting Tool Sizes Available:
| Setting Tool For M6 Wedge/ Drop In Anchors |
| Setting Tool For M8 Wedge/ Drop In Anchors |
|
Setting Tool For M10 Wedge/ Drop In Anchors |
|
Setting Tool For M12 Wedge/ Drop In Anchors |
| Setting Tool For M16 Wedge/ Drop In Anchors |
|
Setting Tool For M20 Wedge/ Drop In Anchors |
Drop in Anchor Installation:
Bolt Length:
When the drop-in anchor is set flush with the base material, the minimum bolt length required equals the internal thread length of the anchor, plus the thickness of the material to be fastened, plus the thickness of any washers to be uséd.
If the anchor is set deeper into the concrete, adjust the length accordingly, by adding the additional depth to the minimum anchor length.
Anchor Spacing:
The forces on a Drop-In Anchor are transferred to the material in which it is installed. If the anchors are installed too close together, it can cause an interaction of the forces, thus reducing the holding power of the anchors. Minimum spacing between anchors and minimum edge distances for the concrete drop-in anchor are as follows:
Table: Shows important drop-in masonry anchor sizes/ measurements
|
All Measurements in mm |
|||
|
Screw Diameter |
Masonry Drill Diameter |
Hole Depth |
Minimum Screw Embedment |
|
M6 |
8 |
26 |
11 |
|
M8 |
10 |
32 |
13 |
|
M10 |
12 |
42 |
17 |
|
M12 |
16 |
53 |
22 |
|
All specifications are true with correct installation |
Image is for illustrative purposes only.
