Fixaball sells 1st, 2nd and 3rd metric fine thread, machine/ hand taps.
Machine/ Hand Taps
Machine/ Hand Taps are uséd to create a thread in a pre-drilled hole so that a fastener with the same size/ type of thread can be screwed into it to secure a component/ part. they should be uséd with a suitable lubricant for better quality threads and to prolong the life of the tap.
Orders placed before 2pm are dispatched next day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please choose your size and pack quantity from the drop down menus.
Metric Fine Osborne Hand/ Machine Thread Tap Sizes Available
M3 X 0.35 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M4 X 0.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M4 X 0.5 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M4 X 0.5 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M4.5 X 0.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M5 X 0.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M5 X 0.5 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M5 X 0.5 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M6 X 0.75 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M6 X 0.75 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M6 X 0.75 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M7 X 0.75 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M7 X 0.75 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M8 X 1.0 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M8 X 1.0 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M8 X 1.0 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M10 X 1.25 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M10 X 1.25 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M10 X 1.25 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M11 X 1.0 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M11 X 1.0 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M12 X 1.25 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M12 X 1.25 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M12 X 1.25 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M14 X 1.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M14 X 1.5 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M14 X 1.5 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M16 X 1.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M16 X 1.5 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M16 X 1.5 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M18 X 1.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M18 X 1.5 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M18 X 1.5 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M20 X 1.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M20 X 1.5 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M20 X 1.5 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M22 X 1.5 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M22 X 1.5 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M22 X 1.5 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M24 X 2.0MM MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M24 X 2.0MM SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M24 X 2MM MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M27 X 2.0 MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M27 X 2.0 MF SECOND LEAD HAND TAP OSBORN HAND & ISO TAPS
M27 X 2.0 MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
M30 X 2MM MF TAPER LEAD HAND TAP OSBORN HAND & ISO TAPS
M30 X 2MM MF BOTTOM LEAD HAND TAP OSBORN HAND & ISO TAPS
* RED = 7-10 day lead
1st/ Taper Taps
Taper tap, also known as, 'starter taps' or ,'1st taps', have a longer/ larger champfered end to ease the forming tool through the pre drilled hole. The taper is so to ease a tap better into an untapped hole. eg. Using a bottoming tap 1st would damage the first threads and possibly the thread at the start of the hole.
2nd/ Intermediate Taps
2nd taps are intermediate taps which assist in aligning and starting of the tap into an untapped hole. The number of tapered threads typically ranges from 3 to 5.
3rd/ Bottoming Taps
A bottoming, or, 'plug', tap has no tapered, front edge. Instead it's tip is ground to a cutting edge meaning that it can create a thread to the bottom of a blind hole.
Metric Threads
Metric Coarse threads are in Millimetre (mm/ 1000ths of a metre) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a metric fine threads has more. A Coarse thread (most common/ standard thread) is uséd for heavier loads and fine is uséd for lighter loads prone to vibrations.

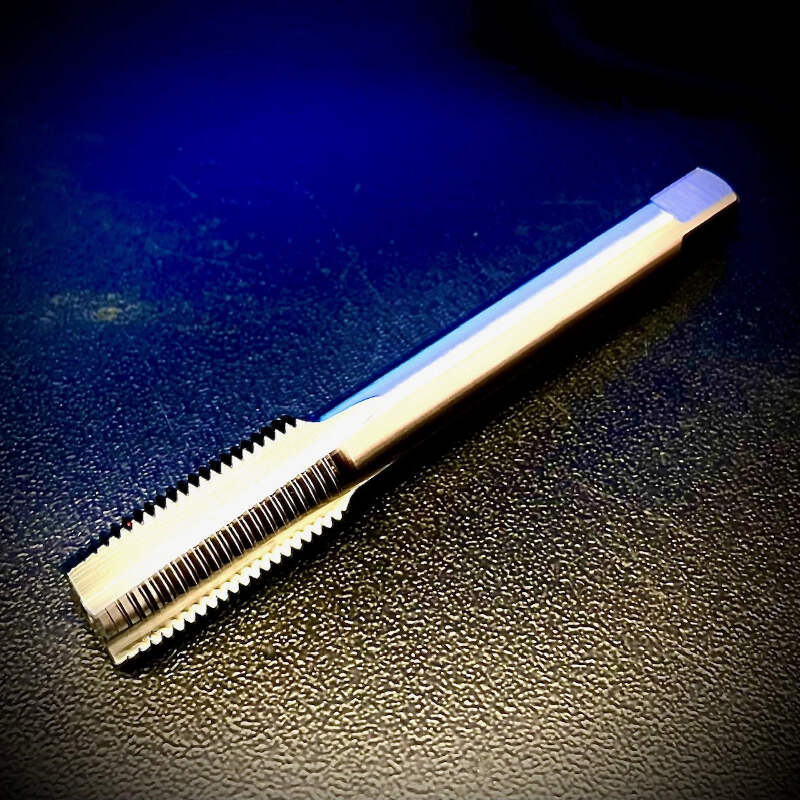

Image is for illustrative purposes only.
