Fixaball sell all lengths of M18 hexagon head, bolts with nyloc and washers.
Hexagon Head Bolt
Bolt is the term uséd for a partially threaded fastener (bolt with shoulder/ part plain shank bolt), with a head; designed to be uséd with a nut and washer.
Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.
Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.
M18 Hexagon Bolt Lengths Available
| M18-2.50x65 MM,(PT) HEXAGON BOLT 8.8 DIN 931 COARSE ZINC CR+3 Plus Nyloc and 2 Washers |
| M18-2.50x80 MM,(PT) HEXAGON BOLT 8.8 DIN 931 COARSE ZINC CR+3 Plus Nyloc and 2 Washers |
| M18-2.50x90 MM,(PT) HEXAGON BOLT 8.8 DIN 931 COARSE ZINC CR+3 Plus Nyloc and 2 Washers |
| M18-2.50x100 MM,(PT) HEXAGON BOLT 8.8 DIN 931 COARSE ZINC CR+3 Plus Nyloc and 2 Washers |
| M18-2.50x120 MM,(PT) HEXAGON BOLT 8.8 DIN 931 COARSE ZINC CR+3 Plus Nyloc and 2 Washers |
| M18-2.50x130 MM,(PT) HEXAGON BOLT 8.8 DIN 931 COARSE ZINC CR+3 Plus Nyloc and 2 Washers |
| M18-2.50x150 MM,(PT) HEXAGON BOLT 8.8 DIN 931 COARSE ZINC CR+3 Plus Nyloc and 2 Washers |
Standard Metric Coarse thread dimensions are measured in Millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm than a Metric Fine Thead. Coarse is uséd for heavier loads and fine is uséd for lighter loads prone to vibrations.
Bolt Thread
The thread length of a shoulder bolt/ plain shank bolt tends to be 2.5 times the diameter of the fastener. Please ask for exact measurements if the shoulder is crucial.
Bolt vs Screw
A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank)
Zinc/ BZP Coating
Zinc coats the fastener to add moisture resistance to the steel to slow down the oxidisation (rusting) of the metal. It does not make the steel waterproof. Zinc is uséd for inernal application for an aesthetic shine (chrome type finish) or where there is likely to be moisture on the screw e.g. garage. Self-colour (no coating) is ok to use with a light covering of oil/ grease, when the fastener is not on show or its appearance is not important.
|
Diameter |
Width Across Flat (s) |
Thread Length |
||||||||
|
DIN 931 |
ISO 4014 |
DIN 931 Length (in MM) |
ISO 4014 Length (in MM) |
|||||||
|
Min |
Max |
Min |
Max |
≥125 |
>125≥200 |
≥200 |
≥125 |
>125≥200 |
≥200 |
|
|
M18 |
26.67 |
27.00 |
26.67 |
27.00 |
42 |
48 |
61 |
42 |
48 |
- |
Spanner Sizes
|
FIXABALL – Specialist Fixings and Fasteners Spanner Sizes METRIC - Hexagon Head Bolts/ Sets |
|
|
Thread Size/ Diameter |
Spanner Size |
|
M18 (18mm) |
27mm |
|
Metric Threads/ Pitches |
|
|
Fixaball – Specialists in Fixings and Fasteners |
|
|
Thread Pitch (mm) |
|
|
Size |
Standard/ Coarse |
|
M18 |
2.5 |

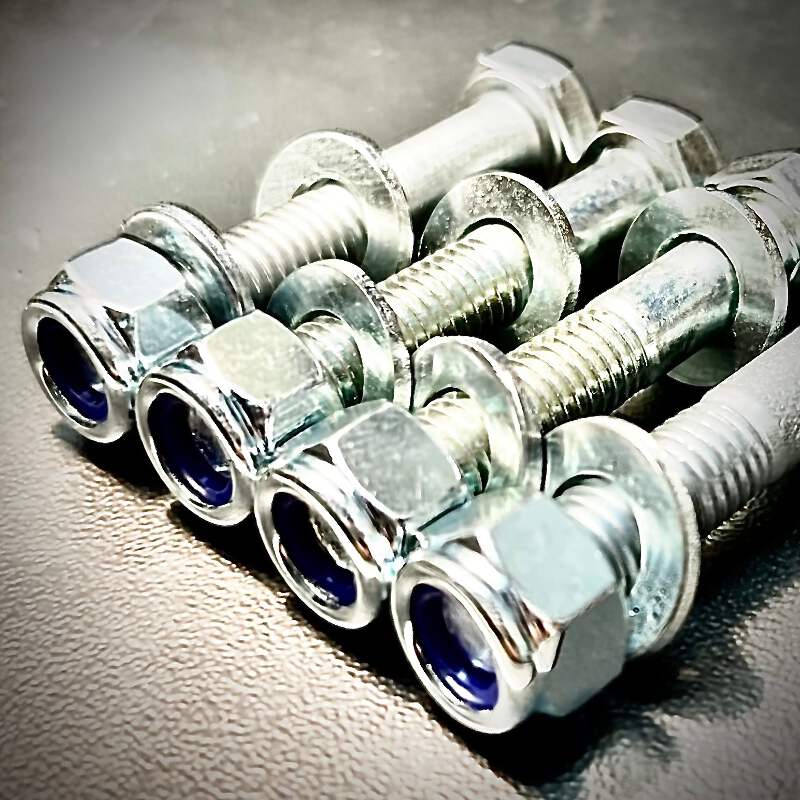

Image is for illustrative purposes only.
