ADL5801 Mixer 10M~3G Without Transformer, 6G Differential Output (LF~600MHz)

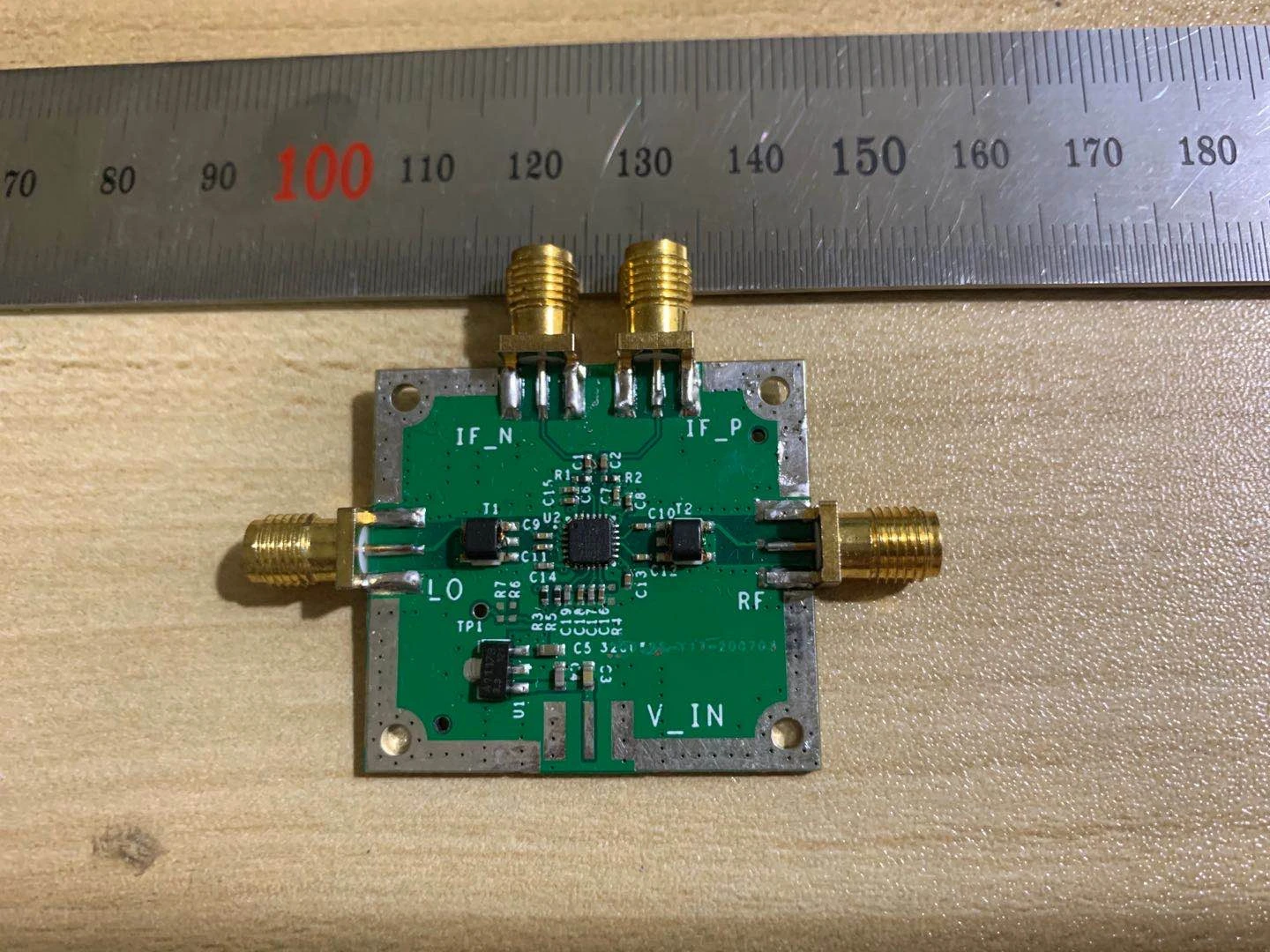

ADL5801 Mixer board

Power supply voltage 5V

IF Differential output,Frequency available fromLFTo600MHz,(Load200RIf so2GNo problem)

LO And RF Input 10Mhz~3000MHz OnboardRFTransformer ，No transformer can be installed6GHz

LO  RF  InputMax 13dBm  (P1dB)

Can be used for measuring equipment and communication equipment

Plate: 4 Layers RF4 PCB
