Cobalt 9084 HD/SD-SDI RGB Color Corrector w/ YCbCr Video Proc and Frame Sync
Cobalt 9084 HD/SD-SDI RGB Color Corrector w/ YCbCr Video Proc and Frame Sync
Cobalt 9084 HD/SD-SDI RGB Color Corrector w/ YCbCr Video Proc and Frame Sync
Functional Condition: Fully Functional
Cosmetic Condition: Good
CONDITION:
Functional: Fully Functional
Cosmetic: Good
Scroll down for additional photos
Overview:

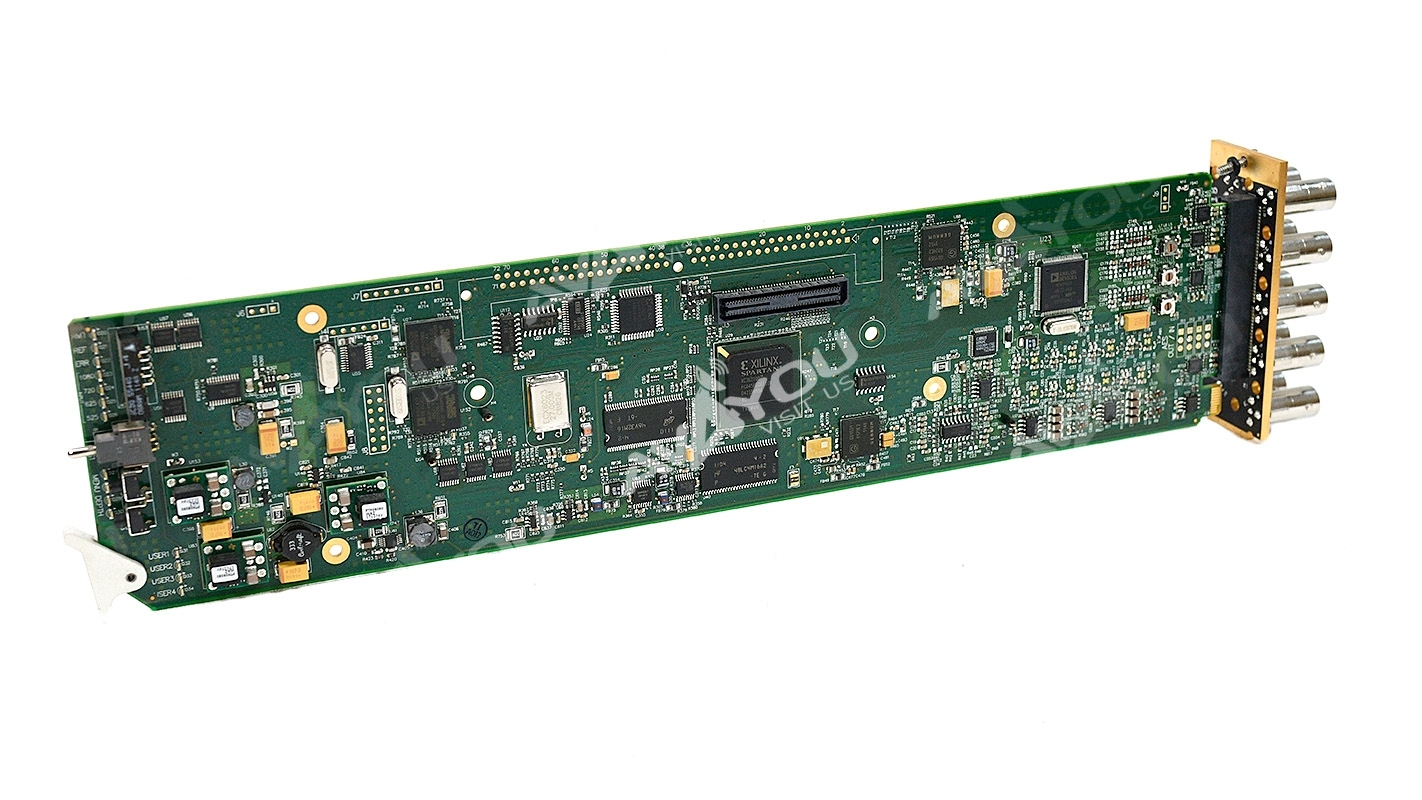

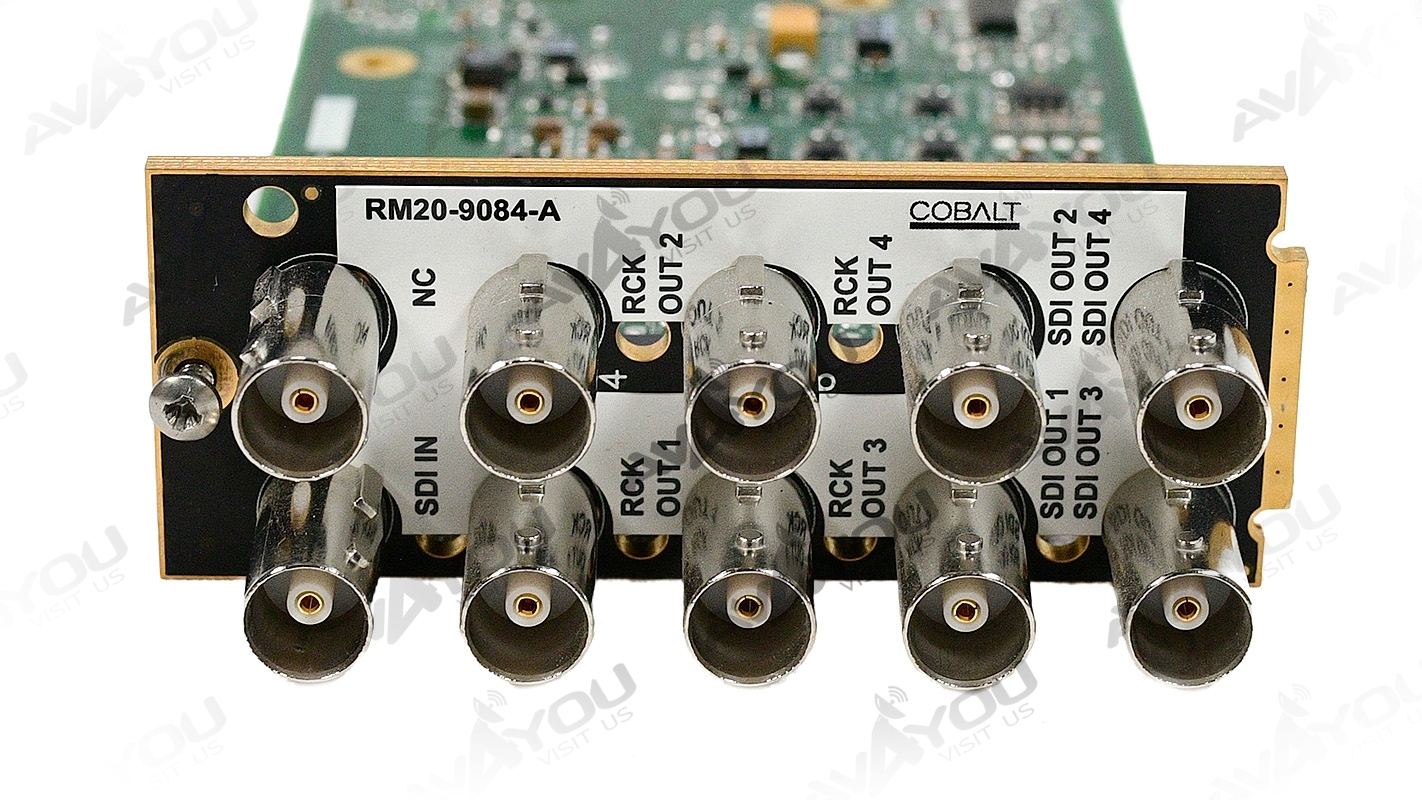

For sale is ONE (1) used 9084 Color Correction board in good condition. Board comes with a corresponding backplane. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. If you are looking for any other Cobalt modular cards - we probably have them. Thousands of cards available. Check out our inventory.
SKU# 7124
Description:

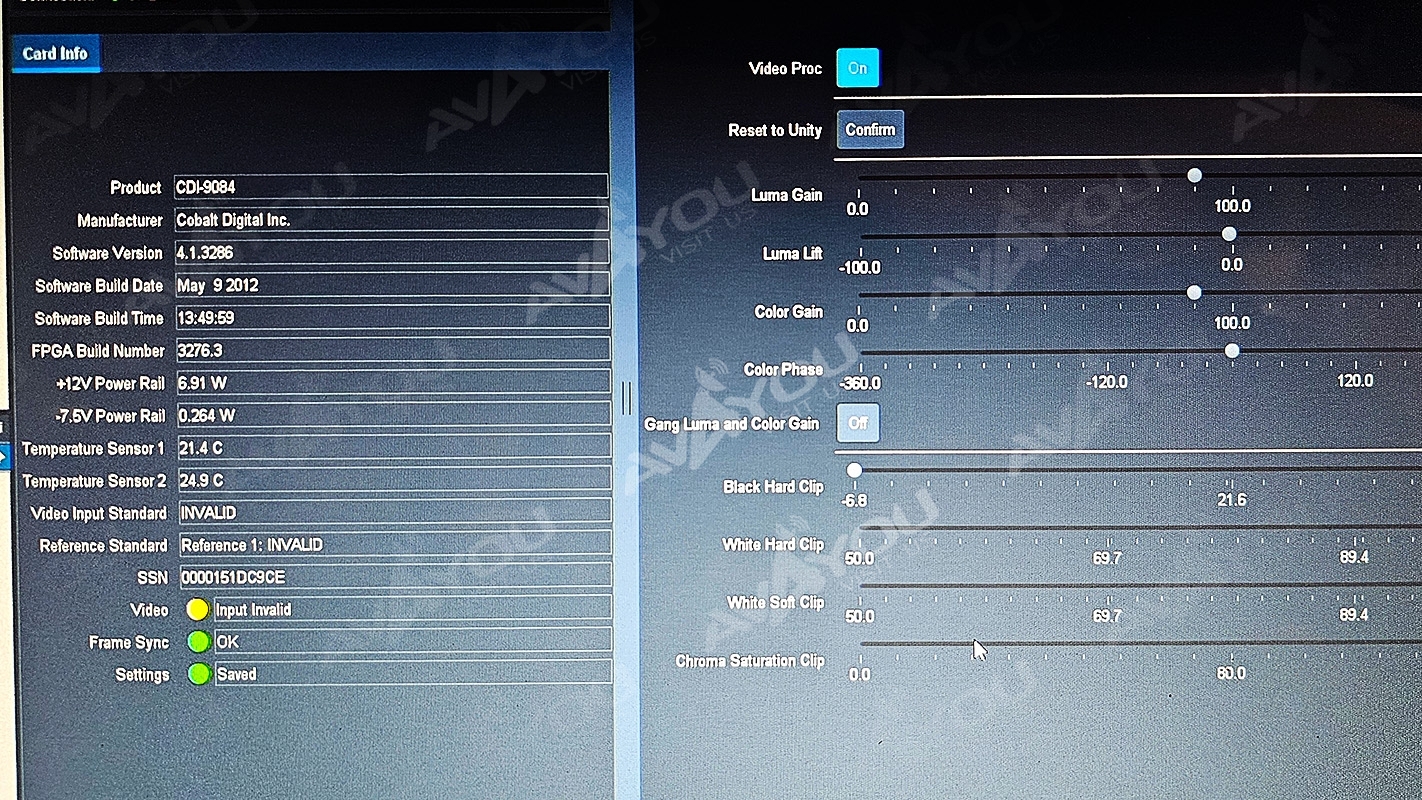

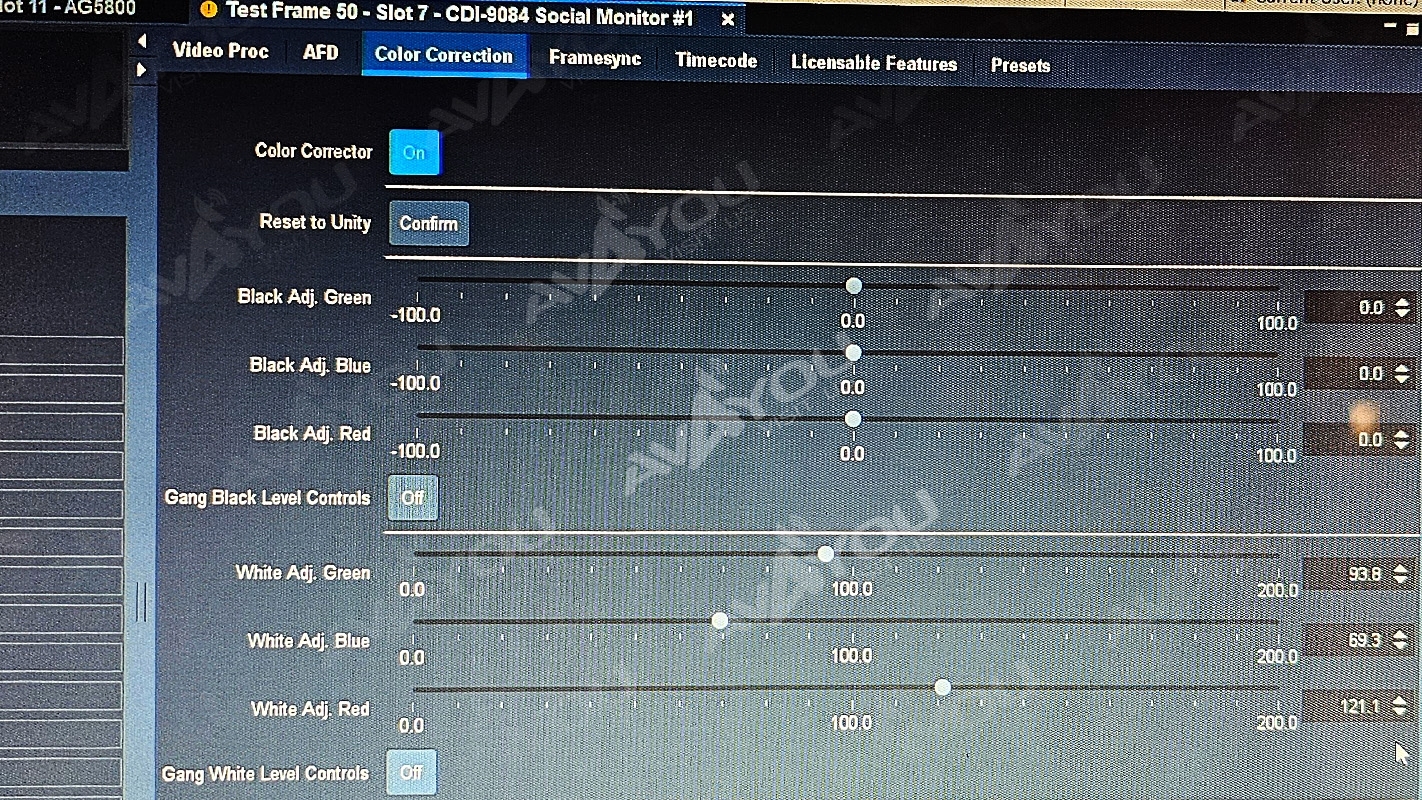

The 9084 offers RGB-space color correction with YCbCr proc features and frame sync for HD/SD-SDI video streams. The RGB processing controls provide full offset, gain and gamma adjustments. The YCbCr proc controls provide lift, gain, saturation, phase, white clip (hard and soft), black clip, and color saturation clip – all with user memory. Parameter updates are smooth and responsive, providing real-time adjustments. Even though the card provides extensive control of the signal from the RGB perspective, it will continue to pass those signals that fall outside of the RGB gamut. Pluge and YCbCr limit ramp signals pass without modification. When the CbCr saturation clip is activated, the saturation limiting operation will not affect the color phase.
Features:
  • Full RGB color corrector (offset, gain, gamma)
  • Passes all ancillary data, including embedded audio
  • Passes entire YCbCr gamut in unity gain configuration
  • 10-bit gamma LUT
  • Extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip
  • Phase preserved when applying saturation clip
  • One button bypass of color correction for comparison purposes
