Fixaball sells all sizes of Zinc Plated, Cr3, BZP, Standard Coarse Thread, Metric, T-Type (thin/ short) nyloc (nylon insert) nuts.
Nyloc Nuts
A nyloc nut is a nut that, ‘locks,’ in a sense or is self-sticking and is less likely to loosen due to vibrations or stress. This is achieved through the addition of the nylon insert that has a diameter slightly smaller than the nuts’ thread. A fastener screwed into the nut cuts a thread into the plastic, therefore increasing the compressive force/ friction around it (tighter join). A nyloc nut is effective up to 121°C.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your 'No. of Items in Pack', 'Diameter' and 'Quantity' of packs selection from the drop down menus.
Nyloc Descriptions. Size Diameters and Thread Pitch (METRIC = millimetre/ mm)
M5-0.80 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M6-1.00 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M8-1.25 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M10-1.50 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M12-1.75 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M14-2.00 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M16-2.00 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M18-2.50 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M20-2.50 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M22-2.50 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M24-3.00 NYLON INSERT LOCKING NUT CLASS 10 COARSE DIN 985 ZINC CR+3
M30-3.50 DIN 985 NYLON INSERT LOCKING NUT CLASS 8 COARSE ZINC CR+3
Thread Information
|
Fixaball – Specialist Fixings and Fasteners Suppliers METRIC Threads (All Fixaball Listings are Standard Coarse Thread Unless Metric Fine is Stated) ISO 261 standard preferred threads |
||||||||
|
Nominal DIAMETER D (mm) |
Thread Pitch |
Nominal DIAMETER D (mm) |
Thread Pitch |
|||||
|
1st |
2nd |
Standard Coarse |
Fine |
1st |
2nd |
Standard Coarse |
Fine |
|
|
1 |
0.25 |
0.2 |
16 |
2 |
1.5 |
|||
|
1.2 |
0.25 |
0.2 |
18 |
2.5 |
2 or 1.5 |
|||
|
1.4 |
0.3 |
0.2 |
20 |
2.5 |
2 or 1.5 |
|||
|
1.6 |
0.35 |
0.2 |
22 |
2.5 |
2 or 1.5 |
|||
|
1.8 |
0.35 |
0.2 |
24 |
3 |
2 |
|||
|
2 |
0.4 |
0.25 |
27 |
3 |
2 |
|||
|
2.5 |
0.45 |
0.35 |
30 |
3.5 |
2 |
|||
|
3 |
0.5 |
0.35 |
33 |
3.5 |
2 |
|||
|
3.5 |
0.6 |
0.35 |
36 |
4 |
3 |
|||
|
4 |
0.7 |
0.5 |
39 |
4 |
3 |
|||
|
5 |
0.8 |
0.5 |
42 |
4.5 |
3 |
|||
|
6 |
1 |
0.75 |
45 |
4.5 |
3 |
|||
|
7 |
1 |
0.75 |
48 |
5 |
3 |
|||
|
8 |
1.25 |
1 or 0.75 |
52 |
5 |
4 |
|||
|
10 |
1.5 |
1.25 or 1 |
56 |
5.5 |
4 |
|||
|
12 |
1.75 |
1.5 or 1.25 |
60 |
5.5 |
4 |
|||
|
14 |
2 |
1.5 |
64 |
6 |
4 |
|||

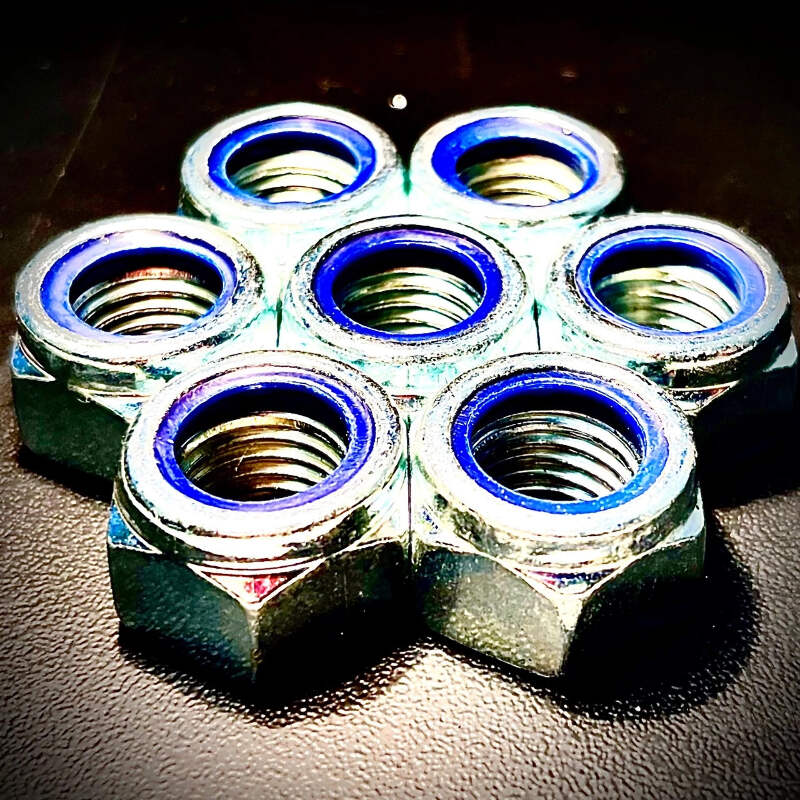

Image is for illustrative purposes only.
