Shure QLXD14 Bodypack Wireless System, X52: 902-928MHz

Like New: Open box product with no signs of use.

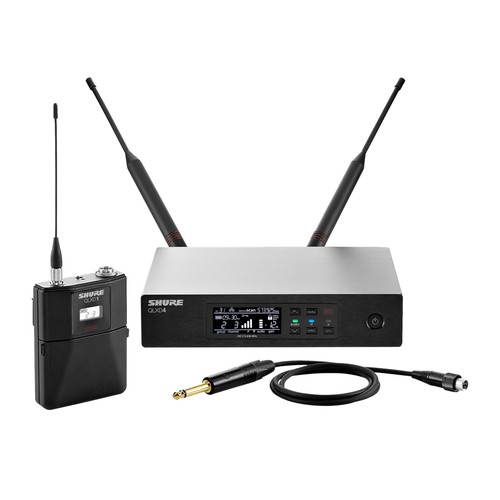

Shure QLXD14 Wireless Bodypack System, X52 902 - 928 MHz

The QLXD14 Bodypack Wireless System is part of the QLX-D wireless systems family.

QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

Technical Specifications

Includes
QLXD1, QLXD4, instrument cable, power supply, 2 AA batteries, two 1/2 wave antennas, 2 BNC cables, zipper bag, 2 BNC bulkhead adapters, rackmount kit, and user guide

Mic Offset Range
0 to 21 dB (in 3 dB steps)
Battery Type
Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
Battery Runtime @ 10 mW
Shure SB900: up to 10 hours
Alkaline: up to 9 hours
Dimensions
86 mm × 65 mm × 23 mm (3.38 in. × 2.57in. × 0.92 in.) H × W × D
Weight
138 g (4.9 oz.), without batteries
Housing
Cast aluminum
Audio Input Connector
4-pin male mini connector (TA4M)
Configuration
Unbalanced
Impedance
1 M ohm
Maximum Input Level
1 kHz at 1% THD
8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN) System Gain Setting >= +20
120 dBV, A-weighted, typical-
RF Output Connector
SMA
Antenna Type
1/4 wave
Impedance
50 ohm
Occupied Bandwidth
<200 kHz
Modulation Type
Shure proprietary digital
Power
1 mW or 10 mW

Dimensions
41 mm × 197 mm × 151 mm (1.63 in. × 7.75 in. × 5.94 in.), H × W × D
Weight
777 g (1.71 lbs), without antennas
Housing
Steel
Power Requirements
12 V DC @ 0.4 A, supplied by external power supply (tip positive)
RF Input:
Spurious Rejection
>80 dB, typical
Connector Type
BNC
Impedance
50 ohm
Audio Output:
Gain Adjustment Range
-18 to +42 dB in 1 dB steps
Configuration
1/4 inch (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance
1/4 inch (6.35 mm): 100 OHM (50 OHM Unbalanced)
XLR: 100 OHM
Full Scale Output
1/4 inch (6.35 mm): +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
Mic/Line Switch
30 dB pad
Phantom Power Protection
1/4 inch (6.35 mm): Yes
XLR: Yes
Networking:
Network Interface
Single Port Ethernet 10/100 Mbps
Network Addressing Capability
DHCP or Manual IP address
Maximum Ethernet Cable Length
100 m (328 ft)
