48V-72V 3000W 60A 18MOSFET Sine WaveIntelligent Controller for eBike Electric Bike

Very important Notice:

This controller can only work without display or with our display, please never use it with your own display (because program is different)

Parts Including:

1. 48V 52V 60V 72V 60A 18 MOSFET Universal Voltage 3000W Sine Wave Controller

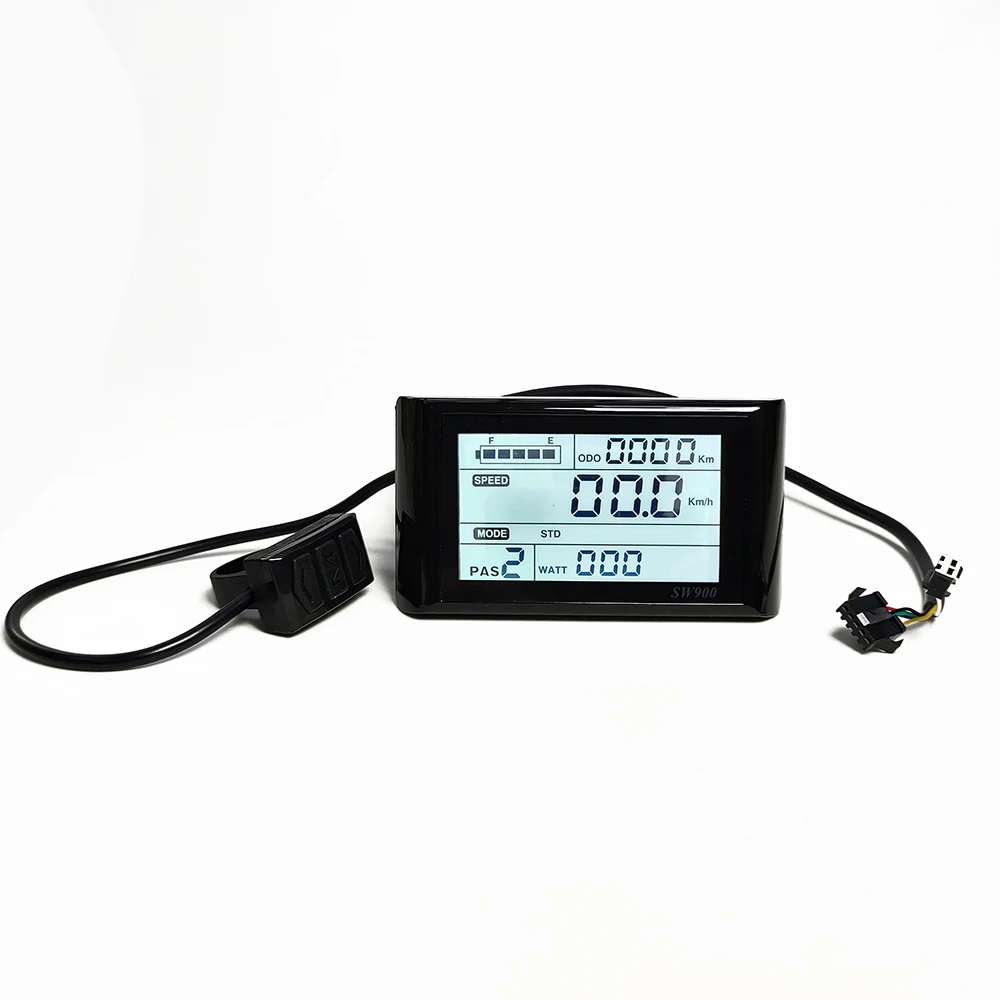

2. 48V, 52V, 60V, 72V UKC1 Colorful Display, SW 900 Display (Optional)

Technical Data of the Controller:

1. Rated Power: 48V 1382W/ 52V 1498W/ 60V 1320W/ 72V 2073W

2. Brake: Low Voltage Brake

3. Alarm: Low Voltage Alarm

4. Rotor Position Detecting Method: Hall sensor

5. Size: 233*81*48mm

6. Waterproof Grade: IP65

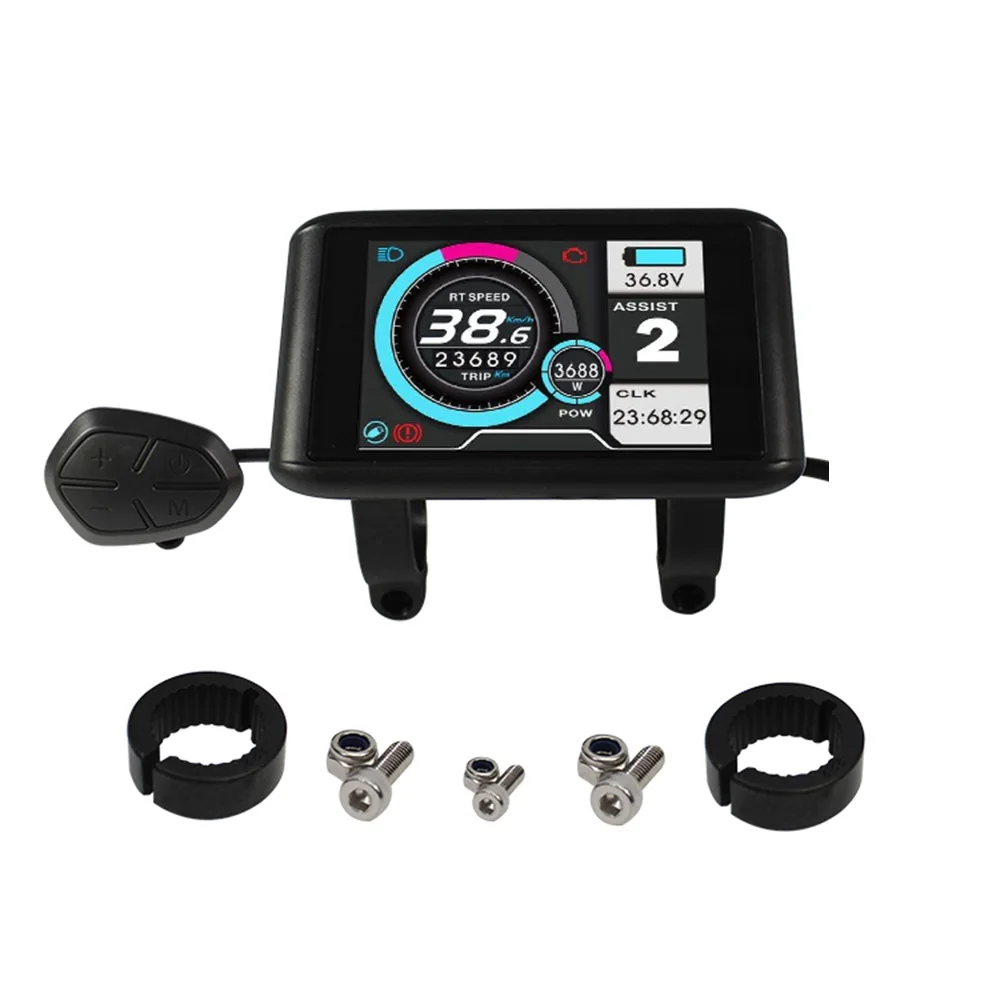

UKC1 LCD Color Display Specification: 3.5 inch IPS screen

1) 24V/36V/48V/52V/60V/72V input

2) Rated operating power : 1W

3) Max operating power : 5W

4) USB charging port : 5V 500mA

5) Off leakage current < 1uA

6) Support current to controller : 100mA

7) Size:111.1*66.8*82.8mm

8) Waterproof grade:IP65

9) Operating temperature : -20~70℃,

10) Storage temperature : -30~80℃
