For Automotive 250V 15A Switch 2 Position Switch High Temperature Resistance
DESCRIPTION

Features:
Precise Design & Reliable Performance: This sleek SPST toggle switch features 2-position (ON/OFF) operation and a 12mm mounting hole for secure installation. Equipped with 2 screw terminals and a self-locking mechanism, it ensures stable performance, a smooth toggle action, low contact resistance (≤50mΩ), and high insulation resistance (1000MΩ). Rated for 250V/15A.
Lasting Build with Black Waterproof Cap: Crafted from high-quality materials, this toggle switch boasts a long service life, capable of over 50,000 cycles. Its robust housing is heat-resistant, wear-resistant, flame-retardant, and offers excellent mechanical strength and high-temperature resistance for lasting durability.
Safe & Efficient Operation: Featuring a 1NC+1NO contact configuration, this switch ensures safe and efficient power control. The integrated self-locking mechanism prevents accidental toggling, providing an added layer of safety in demanding environments.
Easy Installation & Secure Connections: Designed with mechanical screw connectors, this switch allows for quick and convenient wiring and easy soldering. This design guarantees stable and reliable electrical connections every time.
Wide Range of Applications: Its rugged construction makes it perfect for automotive, marine, and industrial use. Perfect for cars, boats, yachts, ships, and any other equipment requiring a dependable switching solution.

Specification:
Part Name: Toggle switch
Color: Orange
Model: E-TEN1021
Product type: 2 Pin 2 Position
Operating structure: self-locking
Rated voltage : 250V
Rated current : 15A
Contact type: 1NC+1NO
Hole size: 12mm
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000MΩ
Size: As show
Wiring way: screw foot
Protection level: IP54
Shell material: flame retardant shell

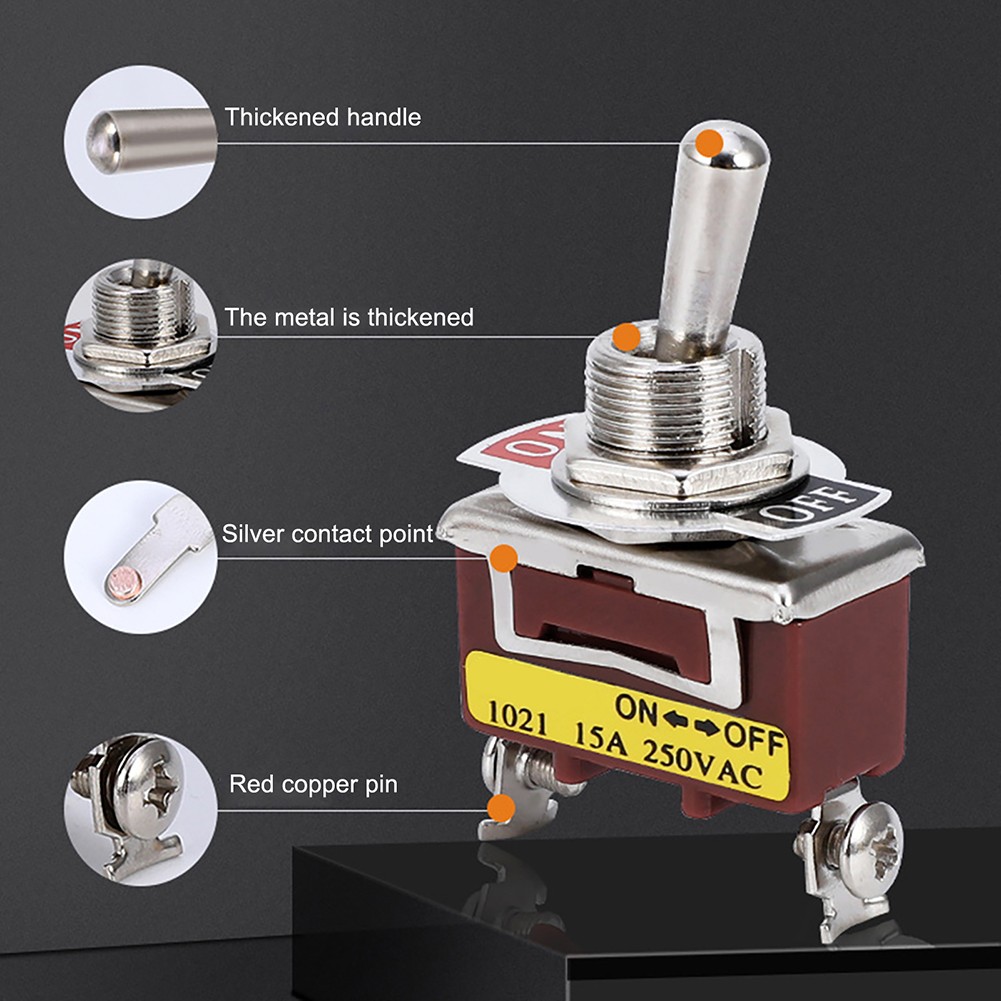

Button handle material: iron
Pin material: copper
Contact material: copper plated with silver
Dielectric Strength: 1500VAC, 1Minute
Operating Temperature: -25℃~ +85℃
Mechanical Life: 50,000 cycles
Electrical Life: 10,000 Cycles

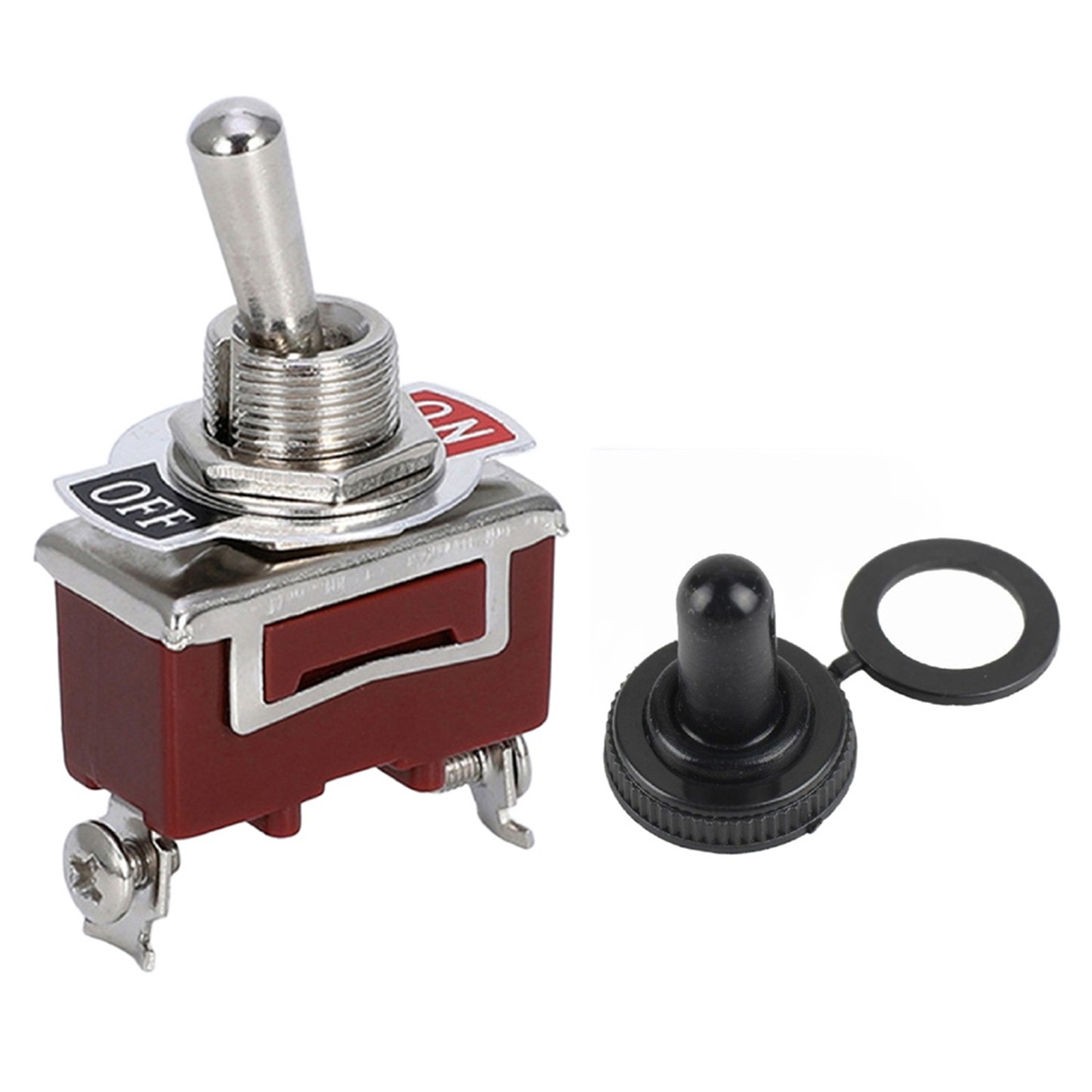

Package Contents:
1*Toggle Switch

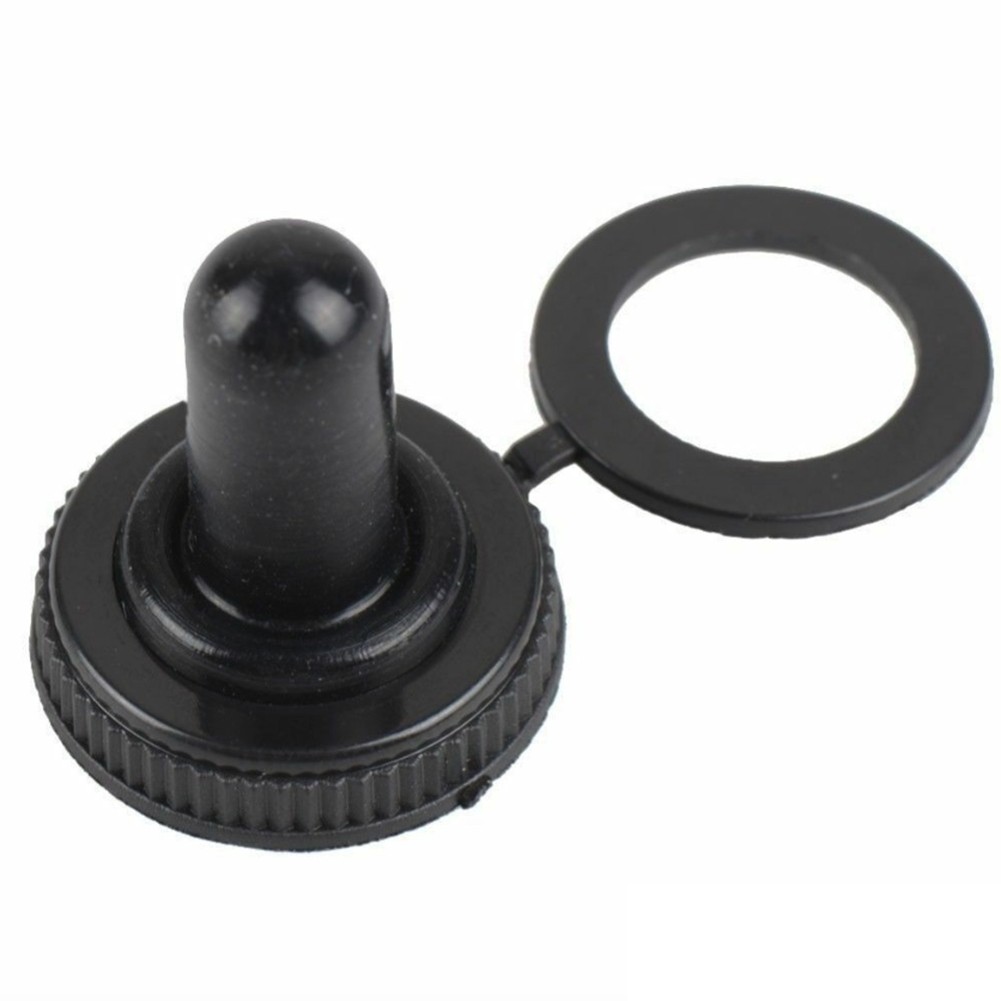

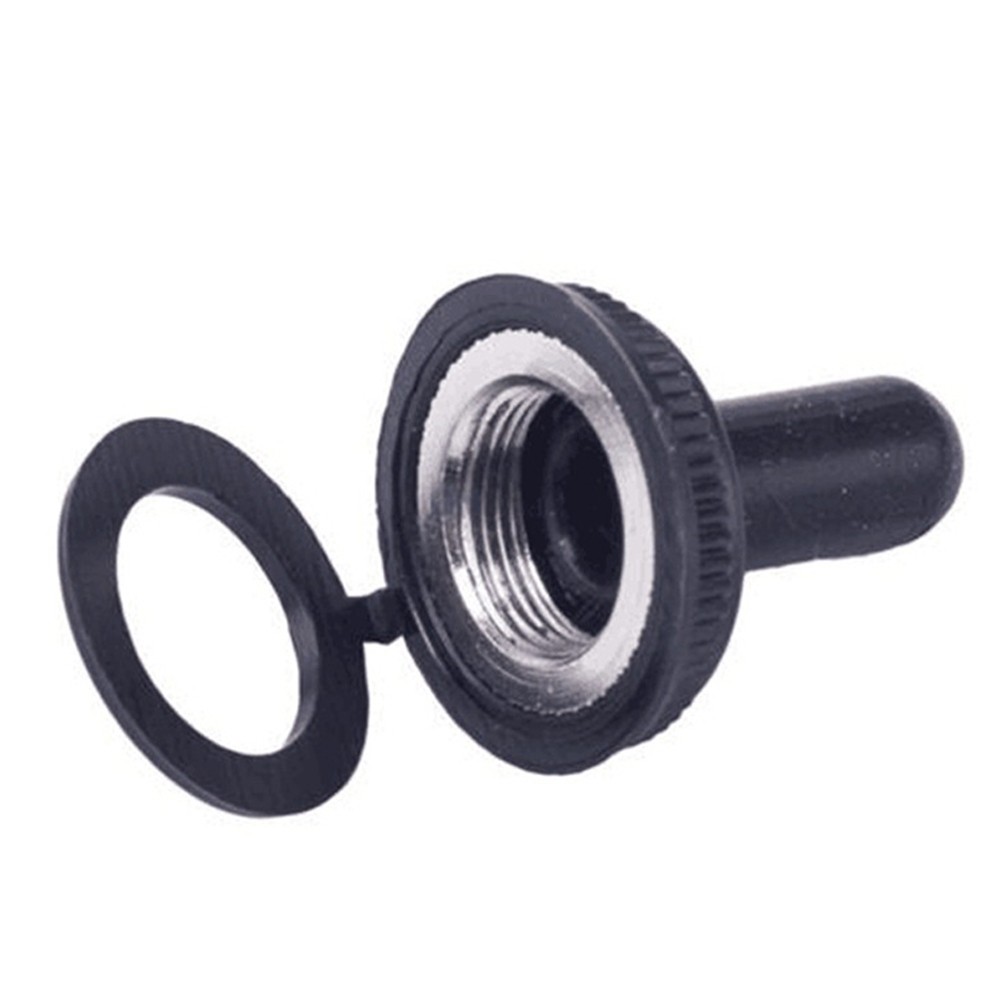

1*Waterproof Cap


Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
