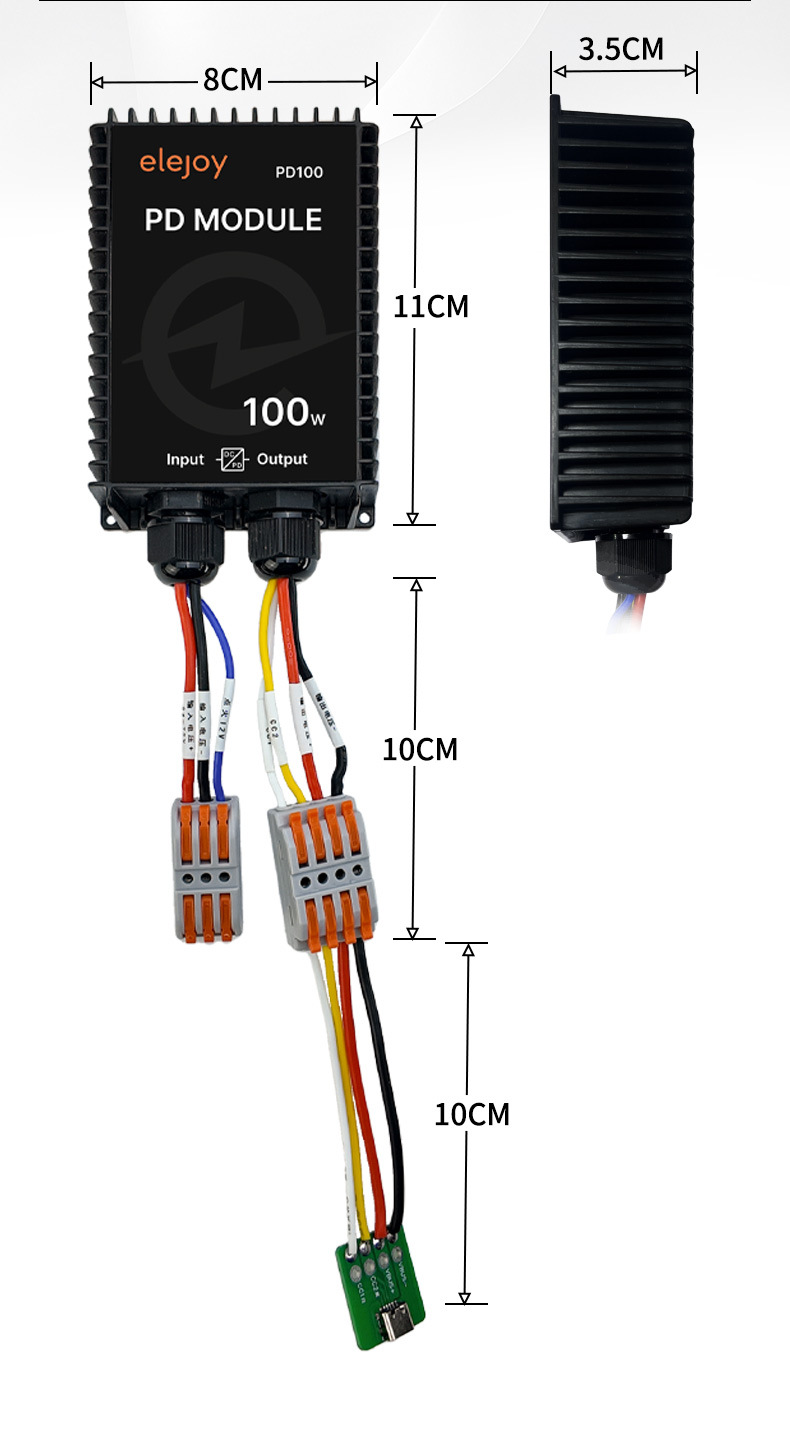

DC-DC Buck Converter
Product Specifications:
It is widely used in various electronic devices for USB power output, such as portable power banks, vehicle chargers, lithium battery small appliances or power tools, and any device with the Source role.
Features:
● Type-C charging
● Pure digital algorithm, precisely adjusting the output voltage and current, enhancing the dynamic response capability.
● Synchronous rectification circuit, efficiency can be increased by 5% to 15%, reducing heat dissipation requirements.
● PD3.0 protocol, fast charging standard, supporting up to 100W (20V/5A) power transmission and compatible with various devices.
● 96% conversion rate
● Complete protection mechanism, providing comprehensive protection: input undervoltage protection, output overcurrent protection, output short circuit protection, over-temperature protection
★ Input voltage range: 24V - 88V DC
(All 36V, 48V, 60V, 72V batteries are applicable)
★ Output voltage range: 5V - 21V 3A (PPS voltage)
(Phones, tablets, laptops, portable power banks, lithium batteries can all be used)
★ Maximum output power: 100W
