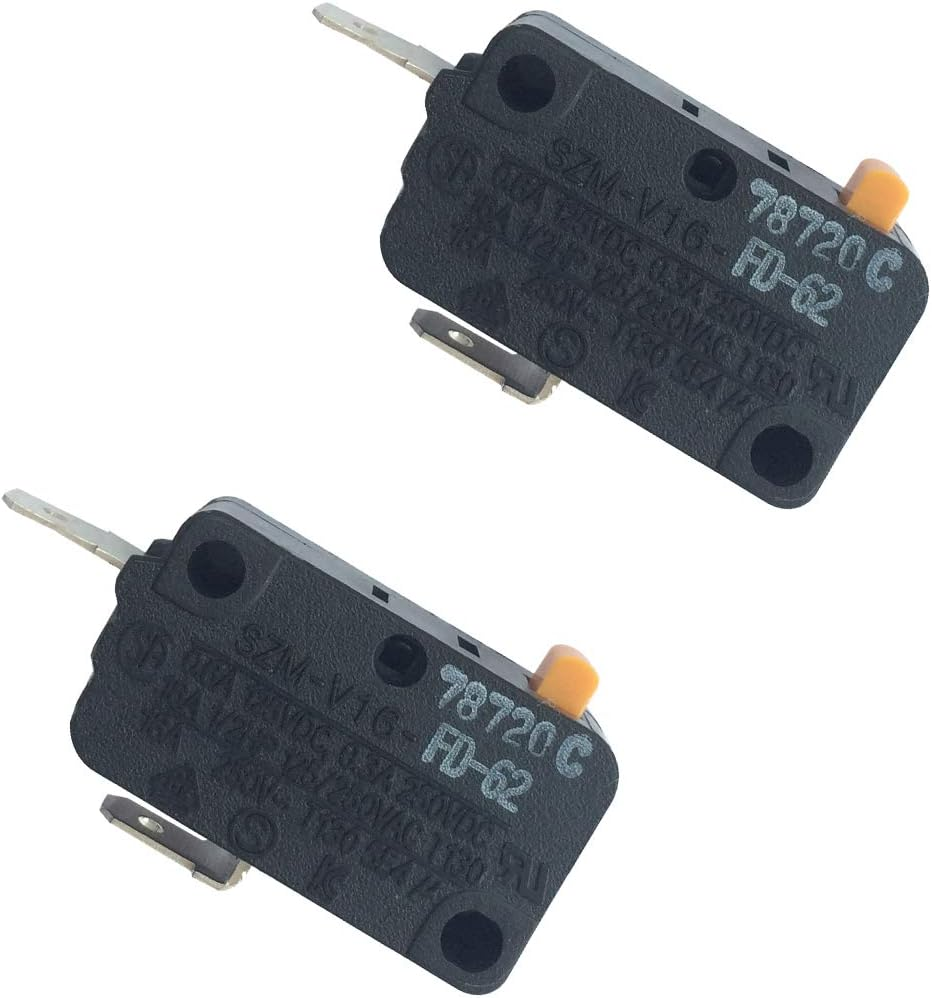

SZM-V16-FD-62 WB24X830 Monitor Switch RE2 Replacement for GE Starion Microwave 3405-001033 WB24X0800 WB24X800 AP2024338 PS237422 De34-20019A(Normally Closed)(Pack of 2)
Description
| Inner Material Type | Stainless Steel |
| Controller Type | Jog Dial |
| Capacity | 6 Grams |
| Color | As Pictured |
| Product Dimensions | 0.4 x 1.5 x 0.63 inches |
| Batteries Required? | No |
| Oven Cooking Mode | microwave radiation |
| Item Weight | 1.76 ounces |
| Installation Type | Over-the-Range |
| Batteries Included? | No |
| Voltage | 125 Volts (DC) |
| Item dimensions L x W x H | 0.4 x 1.5 x 0.63 inches |
| Is Discontinued By Manufacturer | No |
| Special Features | 一键按钮 |
| Size | Pack of 2 |
Product description
Monitor Door Switch WB24X830 Description:
- WB24x830 door interlock switch works in conjunction with microwave operation.
- The switch will prohibit the microwave from starting when the microwave door is open.
- Typically if the light & turntable works or the fan & display (countdown) works but the oven doesn't heat, it is most likely because a door switch has gone bad.
- Works with the following models: General Electric CVM2072SM1SS, EVM1750DMBB01, EVM1750DMWW01, EVM1750SMSS01,JE1540AW02.
WB24x830 Microwave Switch(Normally closed)
Single Pole, Single Throw (SPST)
- VDE certified (Europe)
- CSA certified (Canada)
- UL certified (US)
Note:
- The placement of the common terminal SZM-V16-FD(FA)-62 is different from SZM-V16-FD(FA)-63 Micro Switch
WB24x830 Monitor Switch
Snap Action Microswitch
- 0.6A 125VDC 0.3A 250VDC
- 16A 1/2HP 125/250VAC T130
- 16A 250V ~ T130 5E4u
Microwave Door Switch SZM-V16-FD-62
- Replaces: 253820, AP2024338, EAP237422, PS237422, WB24X0800, WB24X0830, WB24X10075, WB24X800.
- Works with the following brands: General Electric, Hotpoint
- Works with the following products: Microwave, Microwave Oven Combo, Range
How to replace WB24X830 Switch?
- Unplug the microwave power at first.
- Open the microwave door, remove the grill through taking off two screws at the grill top;
- Remove the screw on the left holding the control panel in place, loosen the screw behind the panel, lift the panel up and pull forward to detach.
- Find the door switch by removing the screws to detach the switch assembly.
- Press on the release tab to remove the middle switch.
- Disconnect the wire connector to release the old switch.
This switch fixes the following symptoms:
- Doesn’t shut off
- Won’t turn on
- No heat
Notice:
Be certain they are sufficient amperage rated and correct type (NC vs NO) to match originals. One can also use SPDT switches if only the appropriate NC or NO terminal is connected.
